Lippert 10? Self-Adjusting Electric Brake & Hub Kit � Tandem 4.4K Axles, 6-on-5.5? Pattern | Fits Dexter & Alko

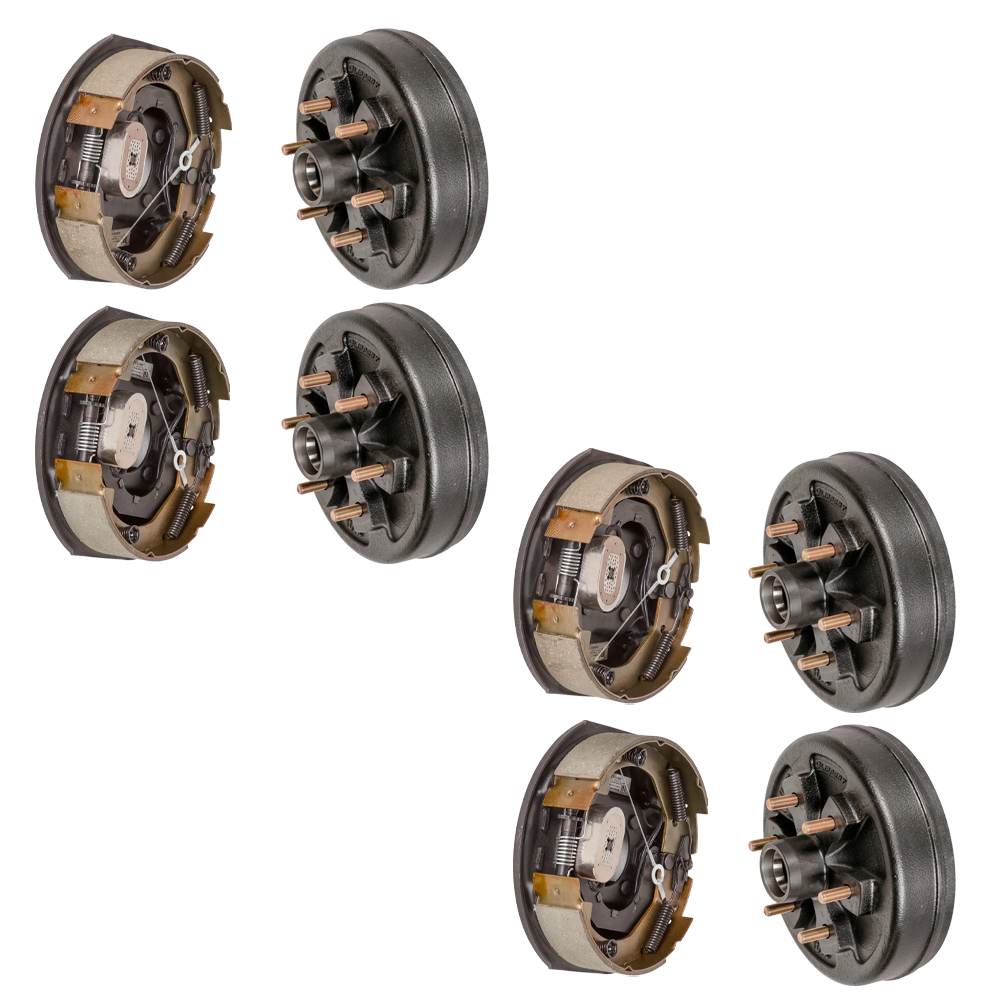

Lippert 10″ Forward Self-Adjusting Brakes & Bare Hubs/Drums – Tandem-Axle Kit

Refresh both axles of your 4,400 lb trailer with this all-in-one Lippert bundle. You get matched left- and right-hand 10″ self-adjusting electric drum brakes plus four cast-iron hub/drums—everything needed for smoother stops, longer component life and fast bolt-on installation. Built by the OEM that produces 5,000+ axles per day, these genuine Lippert parts also cross-fit Dexter and Alko axles for maximum versatility.

Bundle Contents:

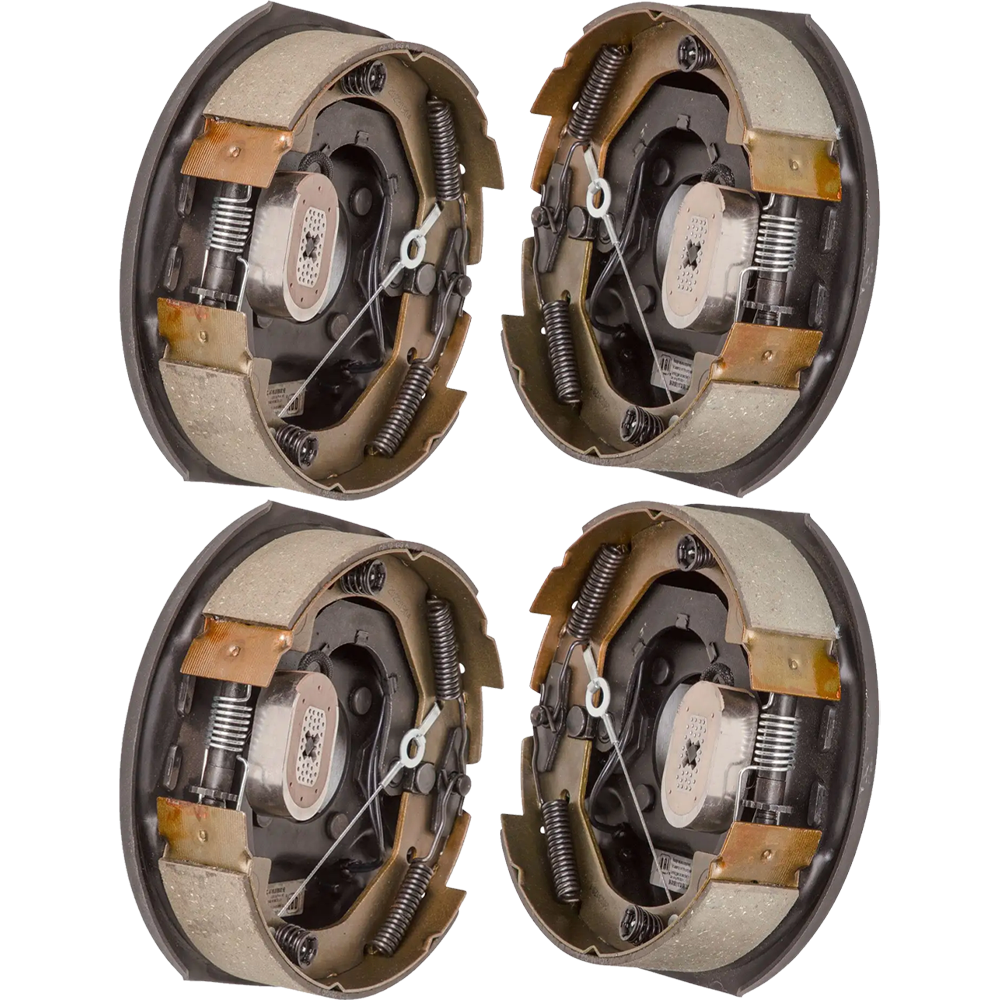

• QTY (2): Forward Self-Adjusting Brake Assembly – Driver Side, 10″ × 2-1/4″, 4-Bolt, 4.4K
  • Left-hand (curb-side) mounting
  • Self-adjusts every forward stop—up to 50 % shorter braking distance
  • Rated for 4,400 lb axles; 4-bolt brake flange
  • Genuine Lippert part—Dexter & Alko compatible
  • Dexter compatible PN: K23-478-00 | 023-478-00
• QTY (2): Forward Self-Adjusting Brake Assembly – Passenger Side, 10″ × 2-1/4″, 4-Bolt, 4.4K
  • Right-hand (road-side) mounting
  • No hydraulic lines—simpler install, less maintenance
  • Self-adjust mechanism reduces shoe and magnet wear
  • Fits most 4.4K Lippert/Dexter/Alko axles
  • Dexter compatible PN: K23-479-00 | 023-479-00

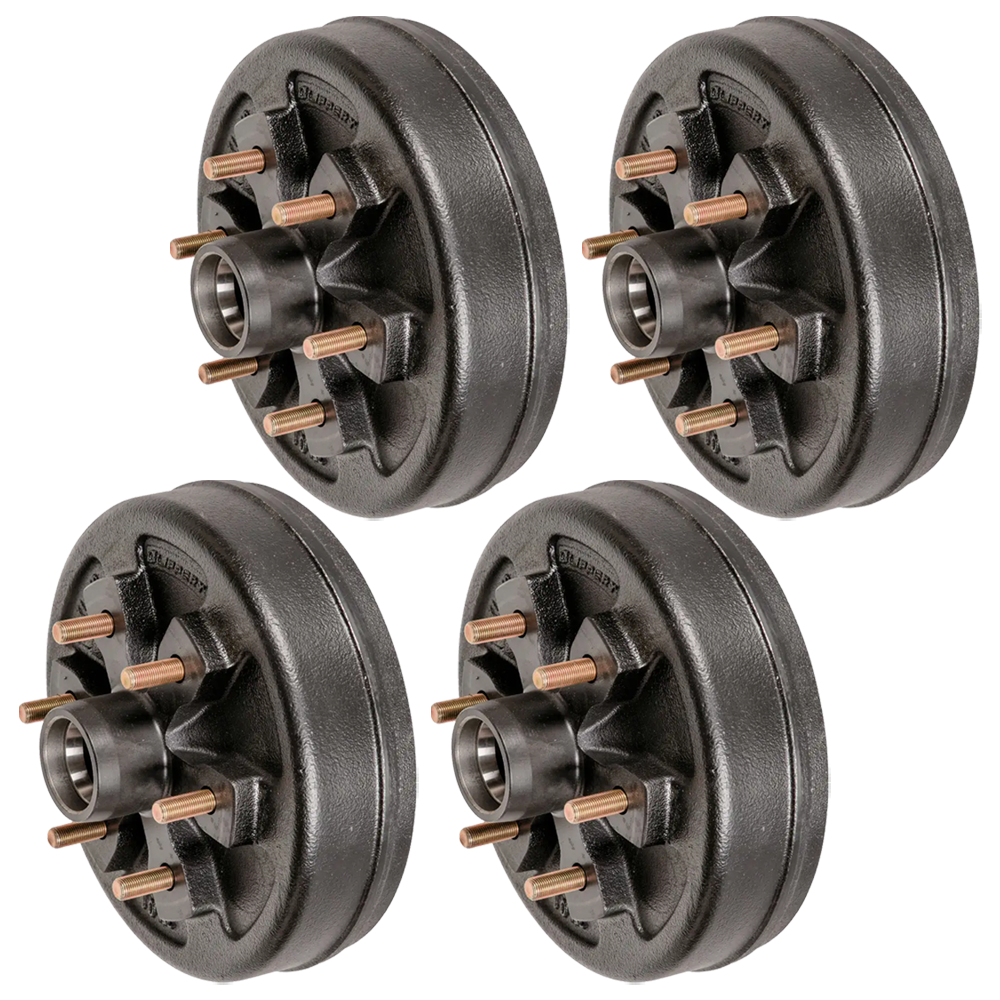

• QTY (4): 10″ Brake Hub/Drum, 6 on 5.5″ Pattern, 1/2″ Studs, 4,400 lb
  • Solid cast-iron hub with integrated drum
  • 6 × 5.5″ bolt circle • 1/2″-20 pressed studs
  • Fits 14.5″–16.5″ trailer wheels
  • Engineered for 4,400 lb axle ratings
  • Hub only – full bearing/grease seal assembly not included
  • Includes one-year Lippert warranty

Recommendation: Verify bolt pattern, brake flange and axle rating before installation. Repack or replace bearings as required, then retorque lug nuts after 25 miles and at every service interval.

Order today or call us at 877-869-6690 for expert advice and personalized service.
