Lippert 10? x 2.25? 3,500-lb LH Manual-Adjust Electric Brake & 5-on-4.5? Drum Hub Service Kit � Dexter, Alko & Rockwell Compatible

Lippert 10″ x 2.25″ 3,500-lb Electric Brake & Drum Hub Kit – Left-Hand

Restore confident stopping power on your 3,500-lb trailer axle with this genuine Lippert bundle. It pairs the trusted 10″ x 2.25″ manual-adjust left-hand electric brake assembly with a matching 5-on-4.5″ cast-iron hub-and-drum—complete with bearings and seal—so you can service one side quickly and reliably.

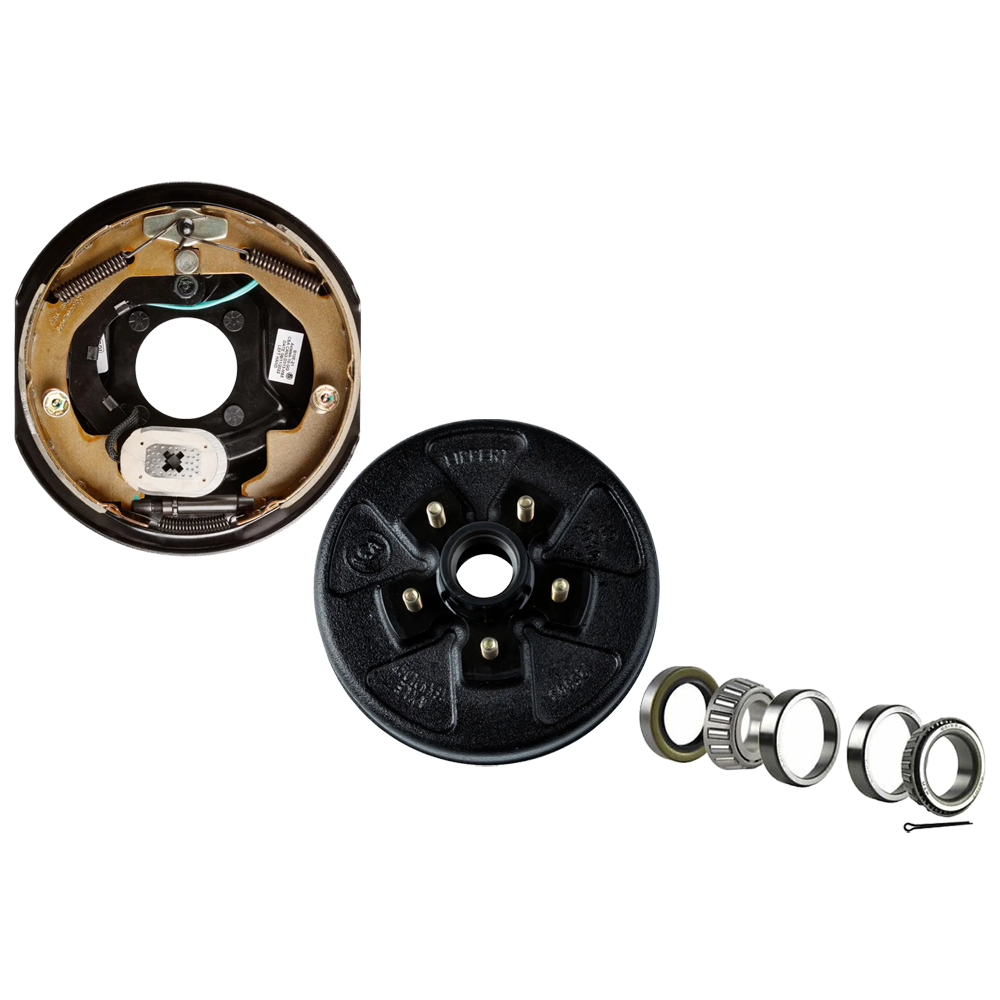

Bundle Contents:

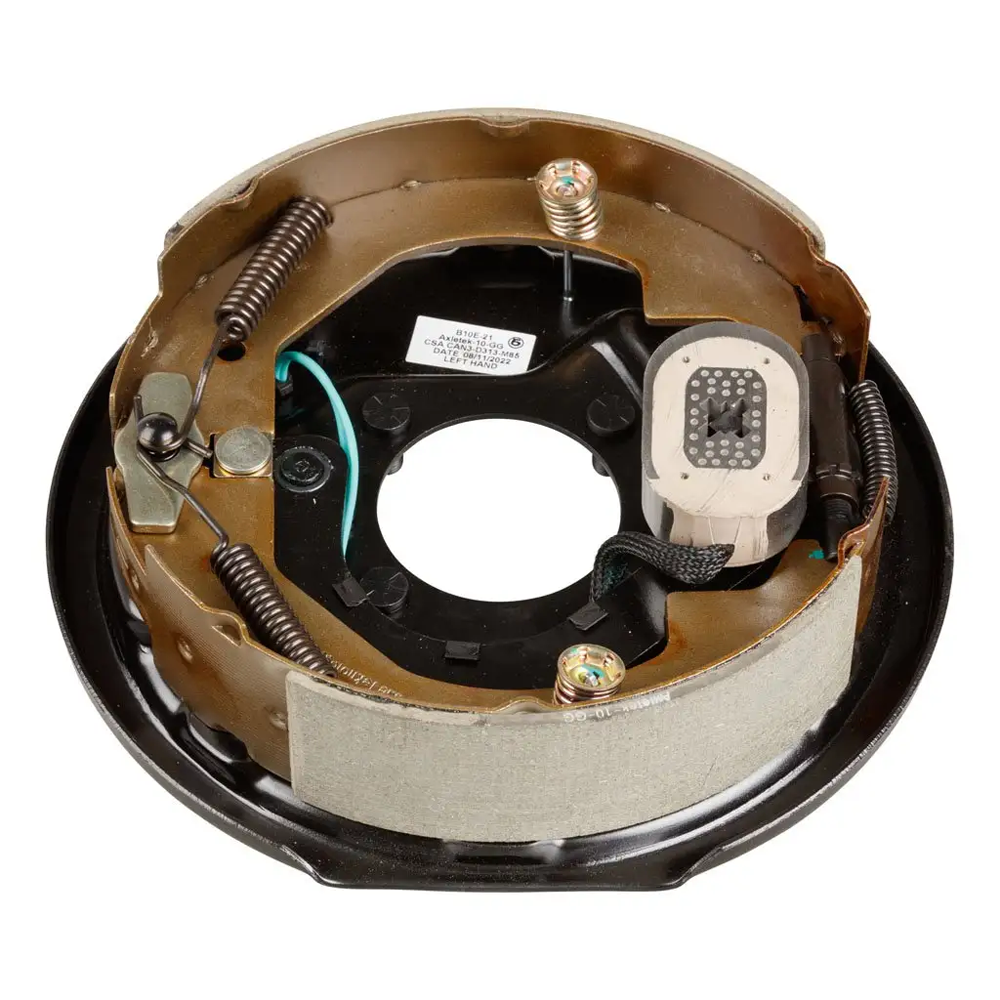

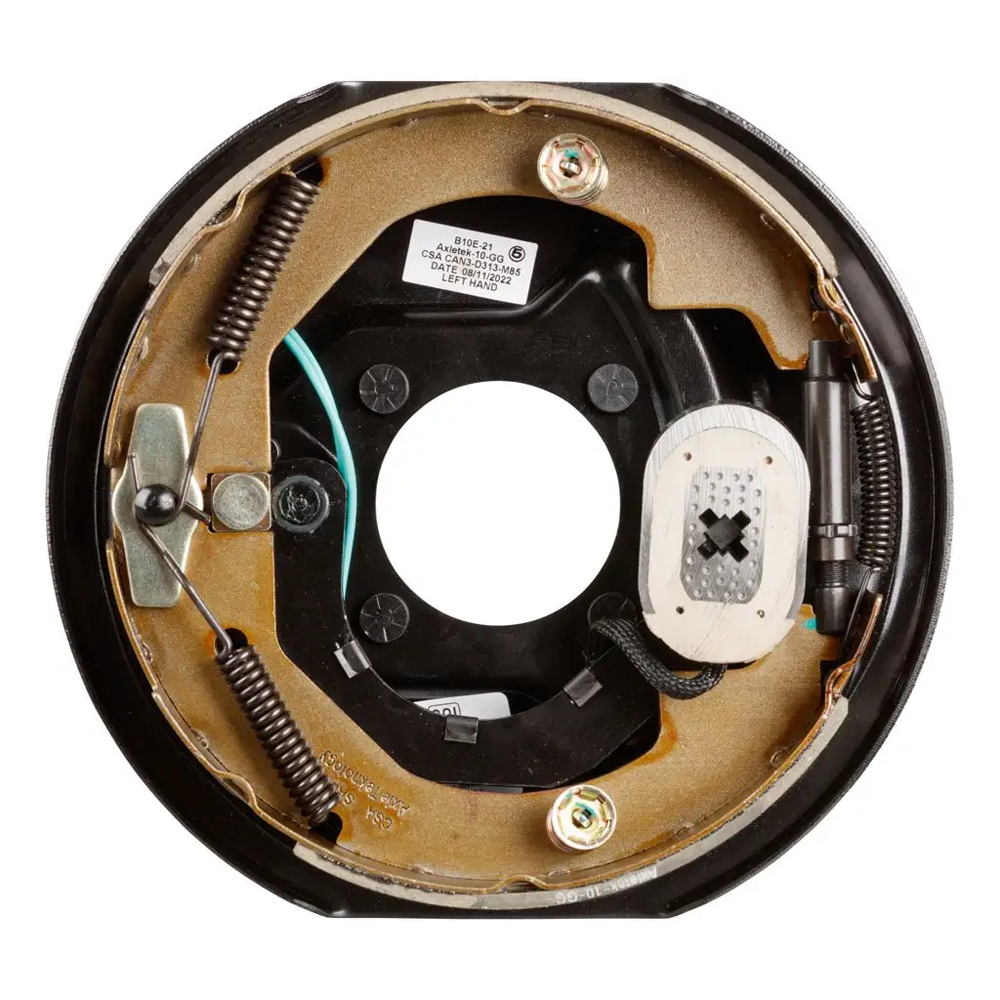

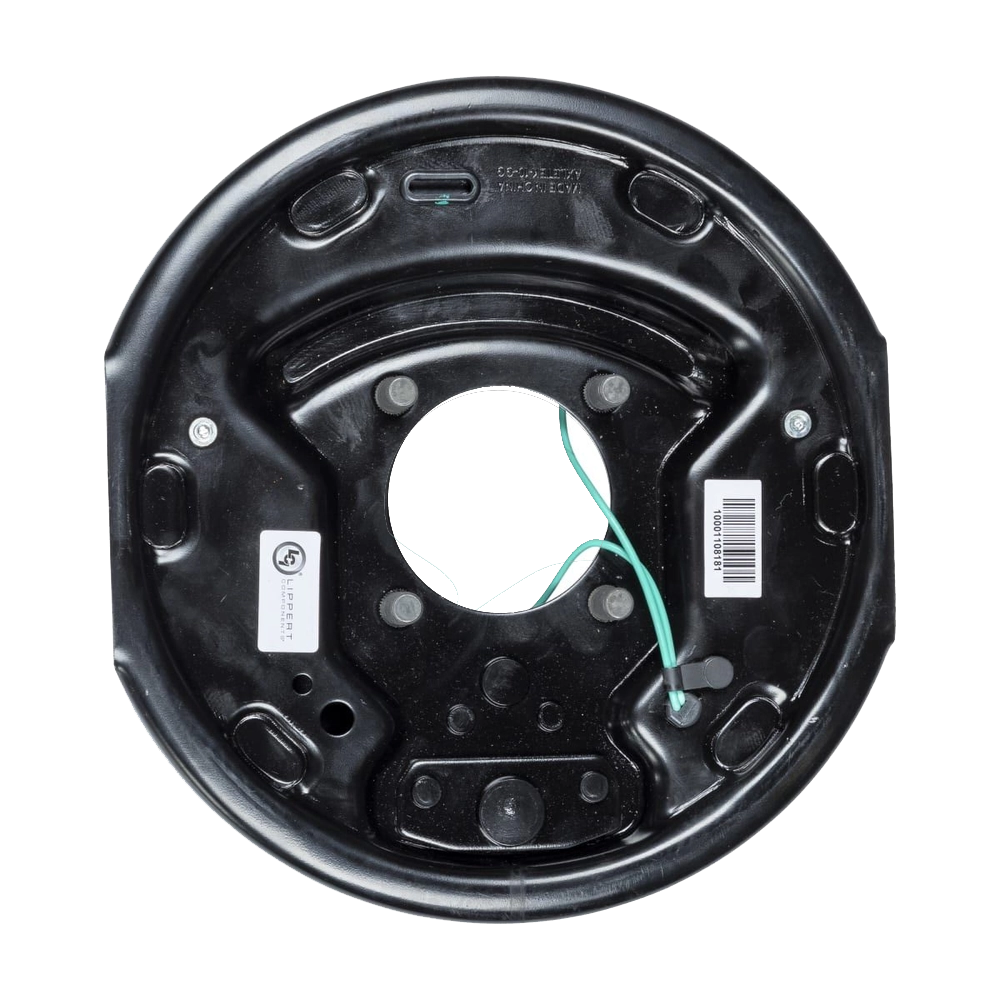

• QTY (1): Lippert Electric Brake Assembly – 10″ x 2.25″, 3,500 lbs. (Left)
  • Manual-adjust design for precise braking control
  • Fits standard 4-bolt mounting flange
  • Rated for 3,500-lb axles, road-side (LH)
  • Pre-wired leads for faster installation
  • Dexter compatible part numbers: K23-026-00 / 023-026-00
  • 1-year Lippert warranty

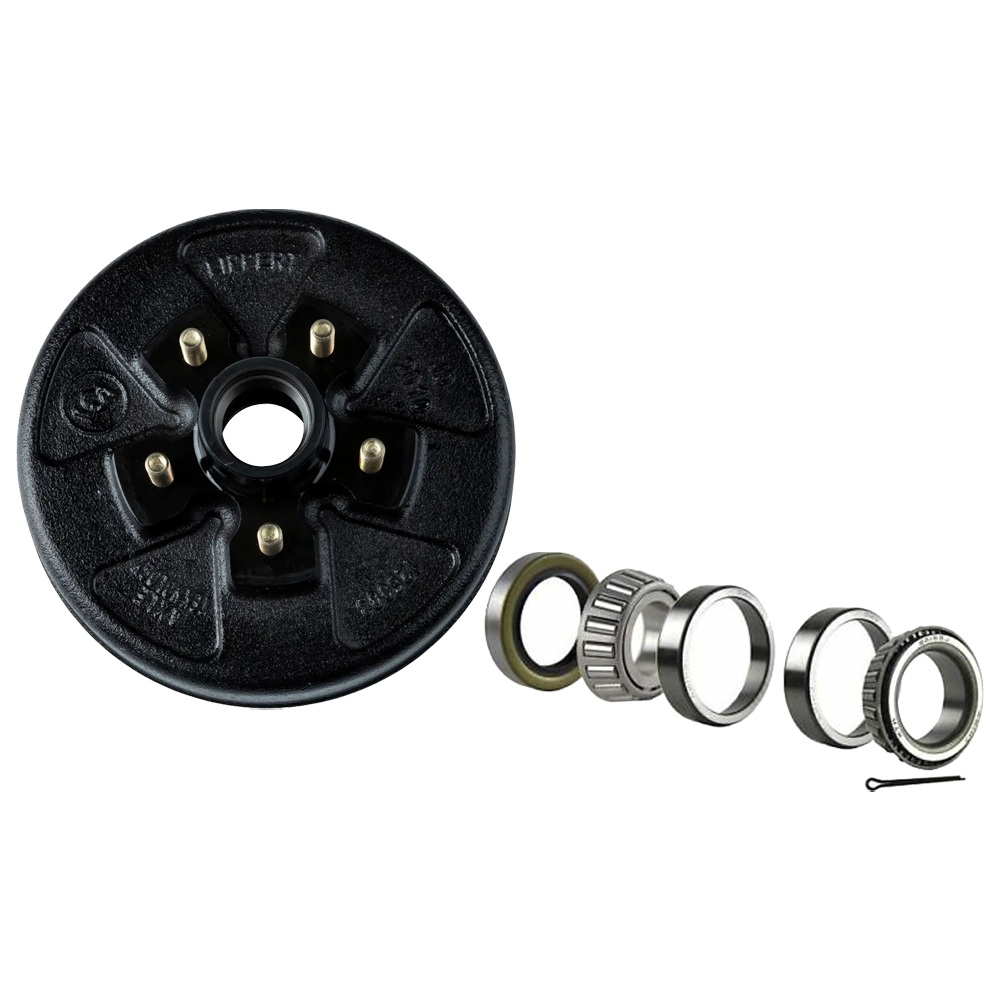

• QTY (1): Lippert 10″ Brake Drum Hub Assembly – 5 on 4.5″, 1/2″ Stud
  • Integrated cast-iron hub & drum
  • 5 on 4.5″ bolt pattern with 1/2″ studs
  • Fits 13″ – 15″ wheels
  • Rated for 3,500-lb axles, 1-year warranty
  • Includes bearing hardware (one complete kit per hub supplied):
    • Qty (1) Inner Bearing Cone
    • Qty (1) Outer Bearing Cone
    • Qty (1) Inner Bearing Cup
    • Qty (1) Outer Bearing Cup
    • Qty (1) Double-lip Grease Seal
    • Qty (1) Cotter Pin

Please verify all dimensions against your original-equipment label and service your brakes regularly for peak performance and safety.
