Lippert 10? x 2.25? Right-Hand Self-Adjusting Electric Brake & 3,500-lb Hub-Drum Kit � Dexter / Alko Compatible

Lippert 10″ x 2.25″ Right-Hand Self-Adjusting Electric Brake & 3,500-lb Hub-Drum Kit

Restore safe, responsive stopping power to your 3,500-lb trailer axle with this convenient Lippert bundle. It pairs a genuine forward self-adjusting electric brake assembly with a matching 10″ hub-and-drum so you can swap out worn components in one quick job and get back on the road with confidence.

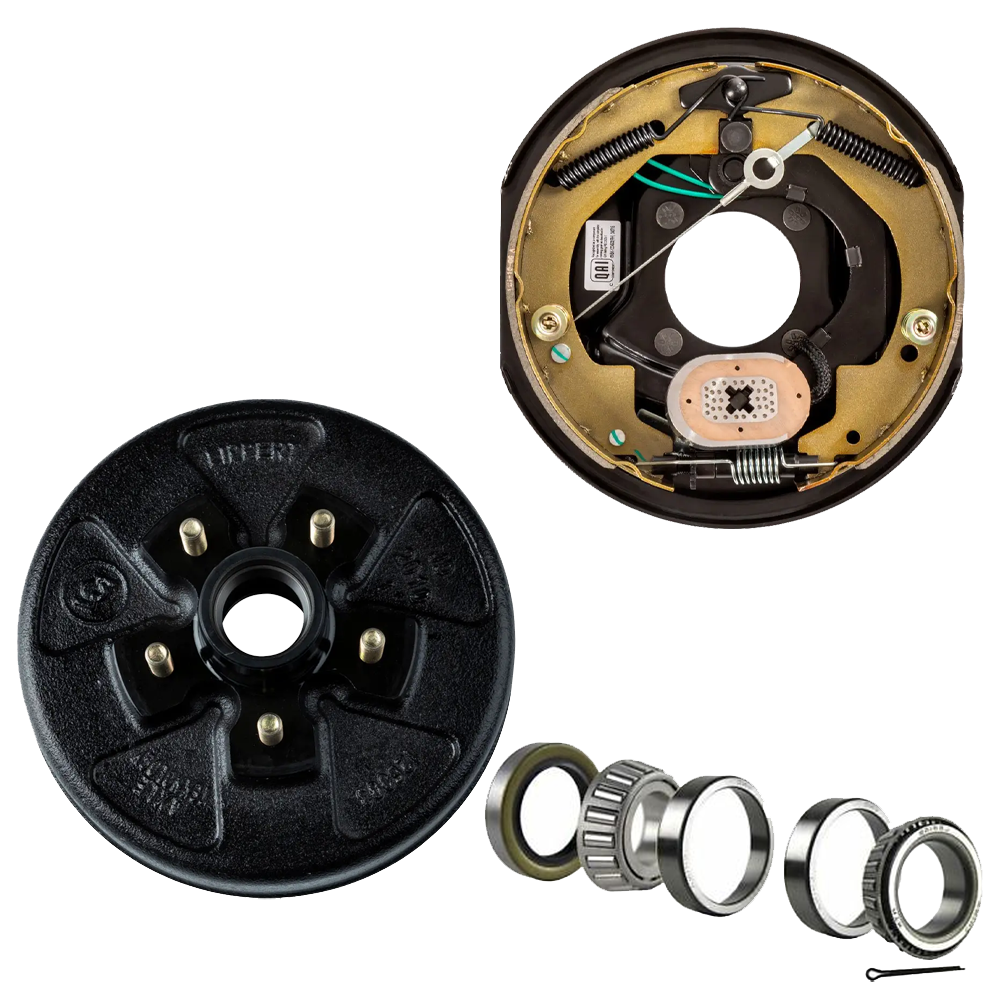

Bundle Contents:

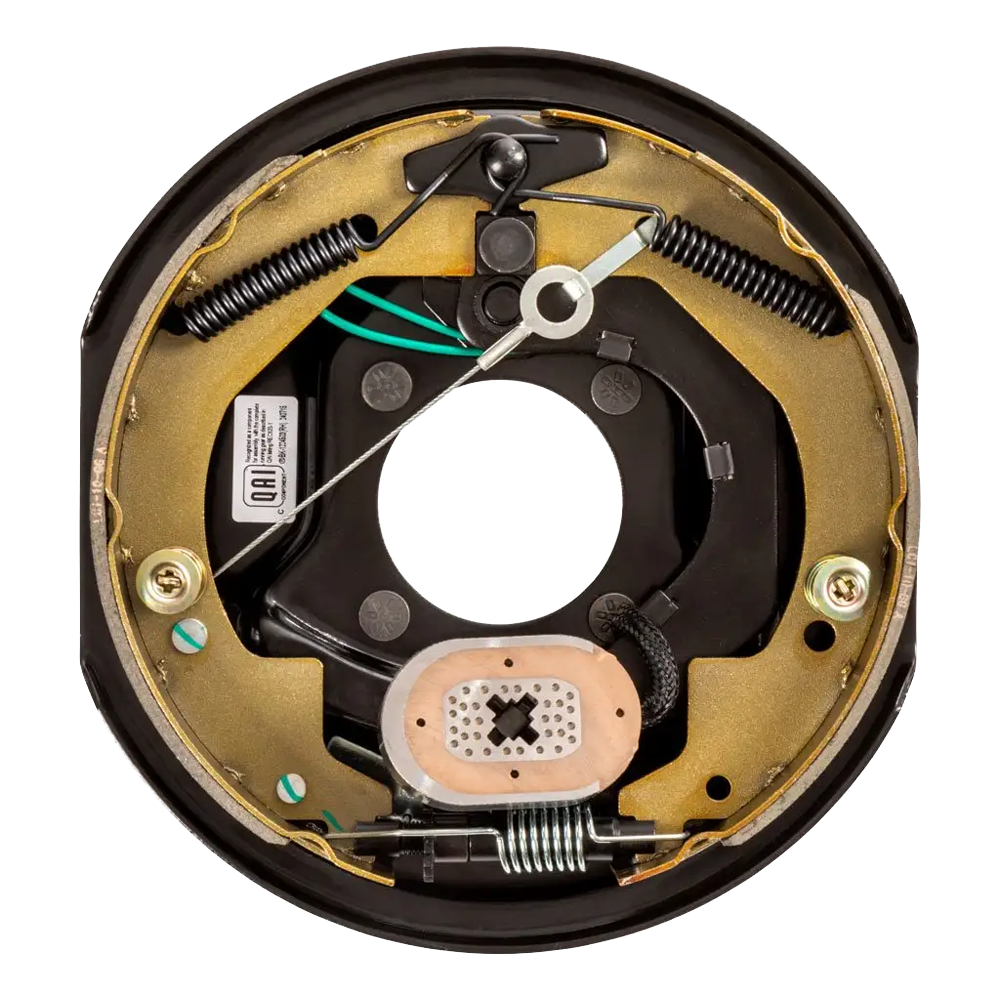

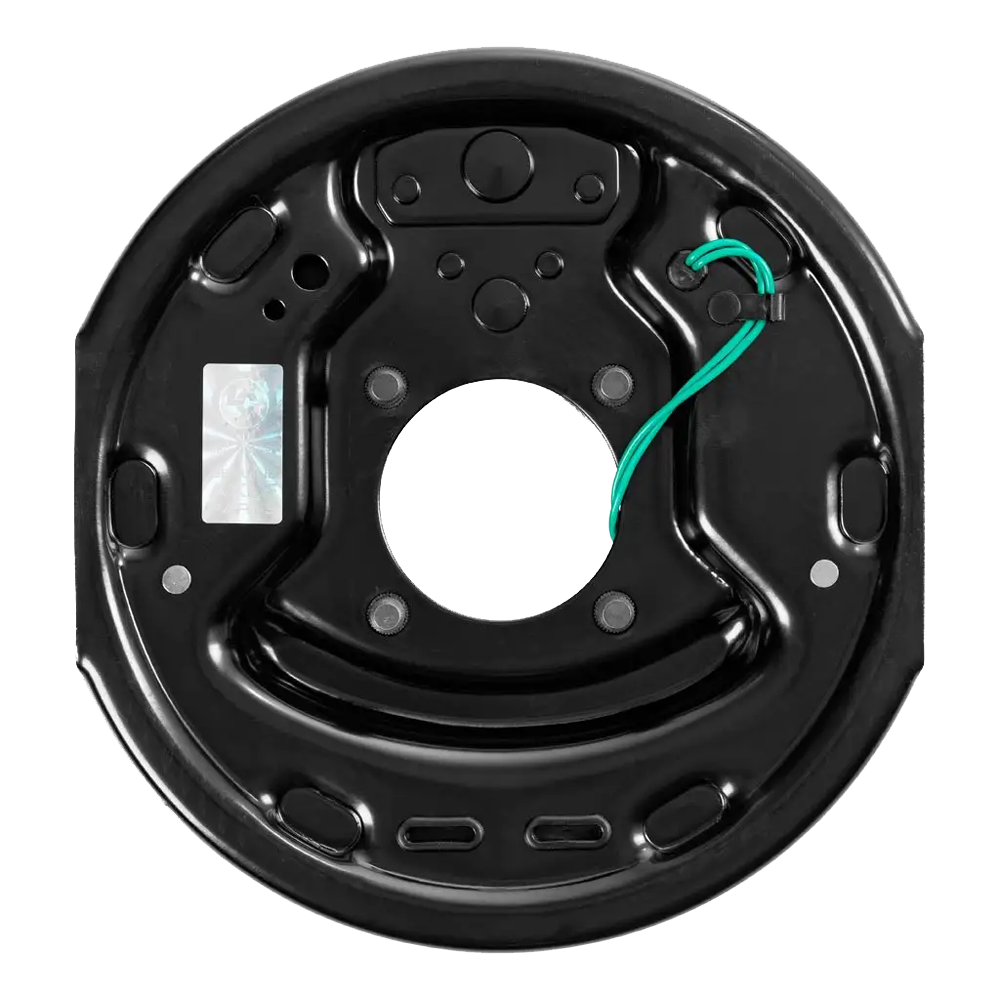

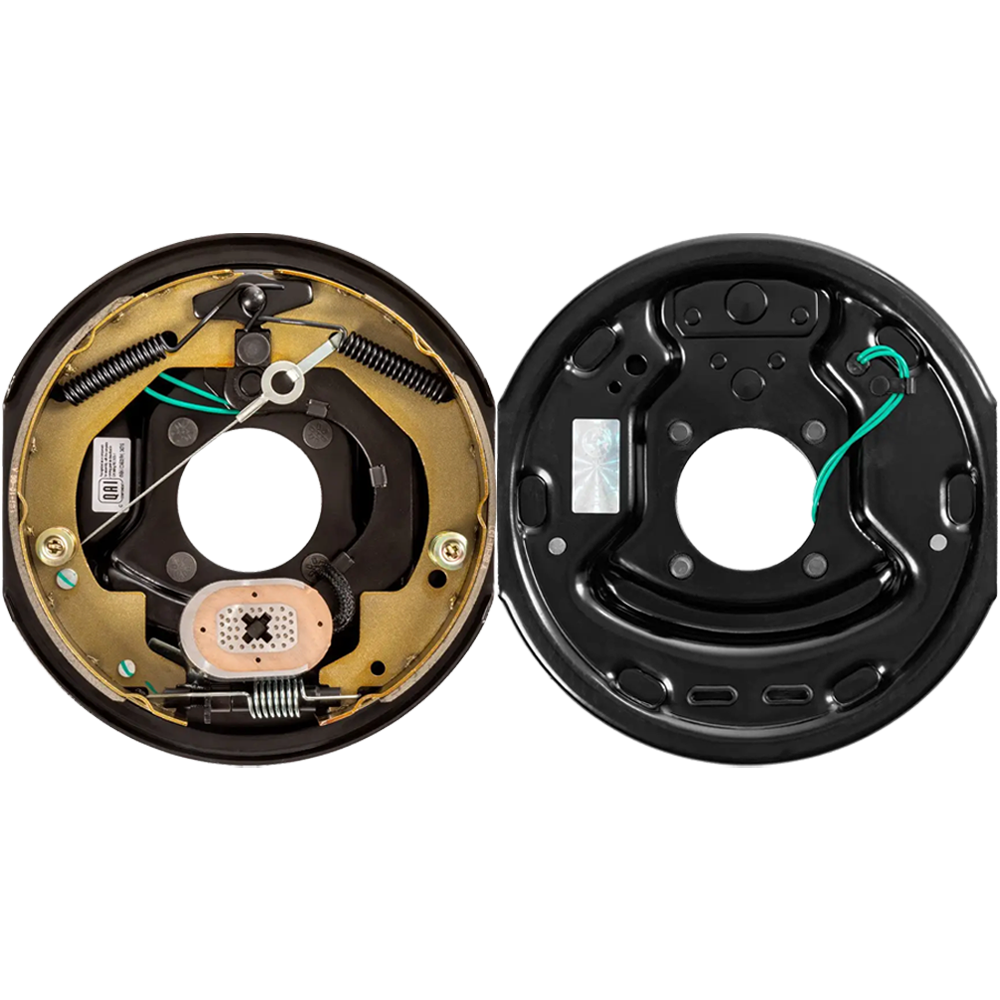

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 10″ x 2.25″, 4-Bolt, 3.5 K (Right-Hand)
  • Self-adjusts on every forward stop for up to 50 % shorter braking distance
  • 10″ × 2.25″ shoe fits standard 3,500-lb axles
  • Right-hand / curb-side configuration
  • Durable magnet & bonded linings reduce wear
  • Easy DIY bolt-on install; four-bolt brake flange
  • Dexter compatible part #: K23-469-00 | 023-469-00
  • One-year limited Lippert warranty

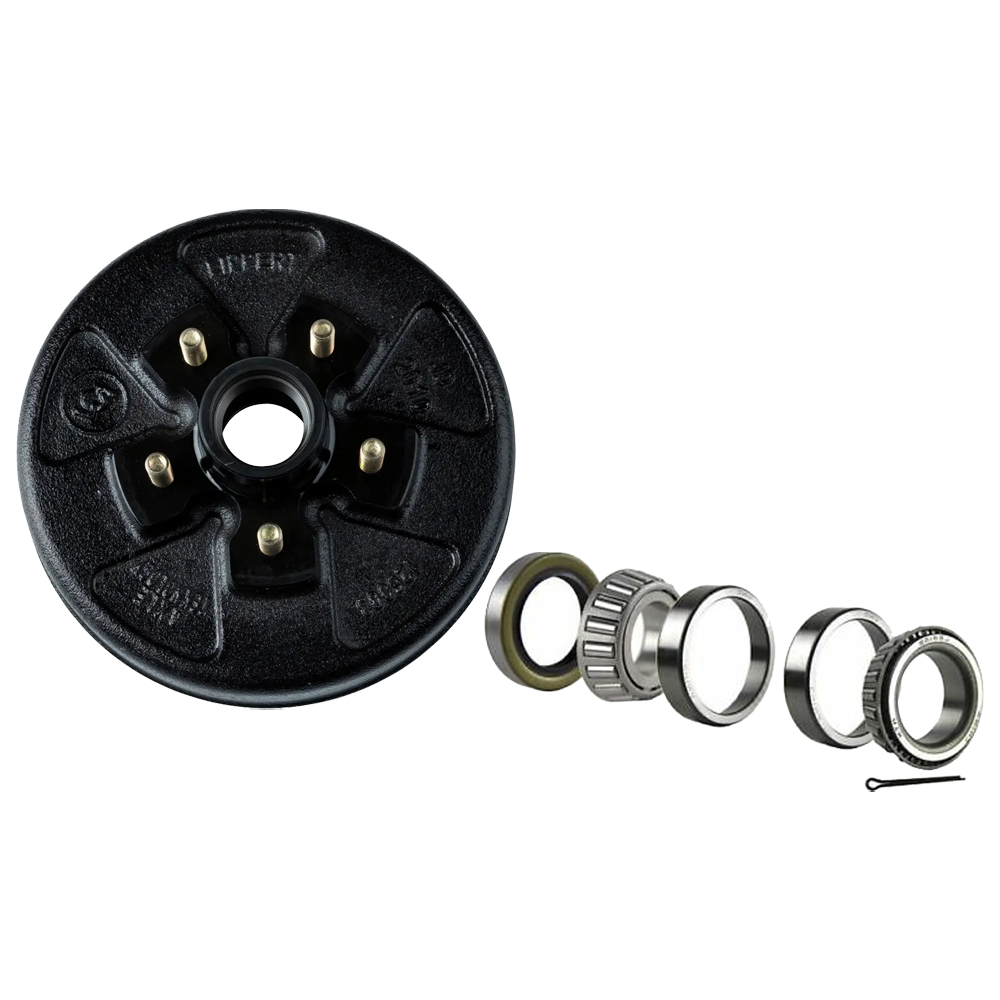

• QTY (1): Lippert 10″ Brake Drum Hub Assembly – 3,500-lb Axle, 5 on 4.5″ Pattern, 1/2″ Studs
  • Precision-machined cast-iron hub & drum
  • 5-on-4.5″ bolt circle with 1/2″ studs
  • Fits wheel sizes 13″ – 15″
  • Dexter compatible part #: K08-247-94 | 008-247-94
  • Bearing kit (bagged separately, 1 kit per hub) includes:
    • Inner bearing cone
    • Outer bearing cone
    • Inner bearing cup
    • Outer bearing cup
    • Cotter pin
    • Double-lip grease seal
  • Direct OE replacement — brake hub #126003
  • One-year limited warranty

Always verify your existing equipment and perform regular maintenance to ensure proper fit and peak braking performance.
