Lippert 10K Electric Brake and Hub/Drum Pair � 12�? x 3??, 8 on 6.5? Pattern
$854.99
Lippert 10K Electric Brake & Hub/Drum Pair – 12¼″ x 3⅜″

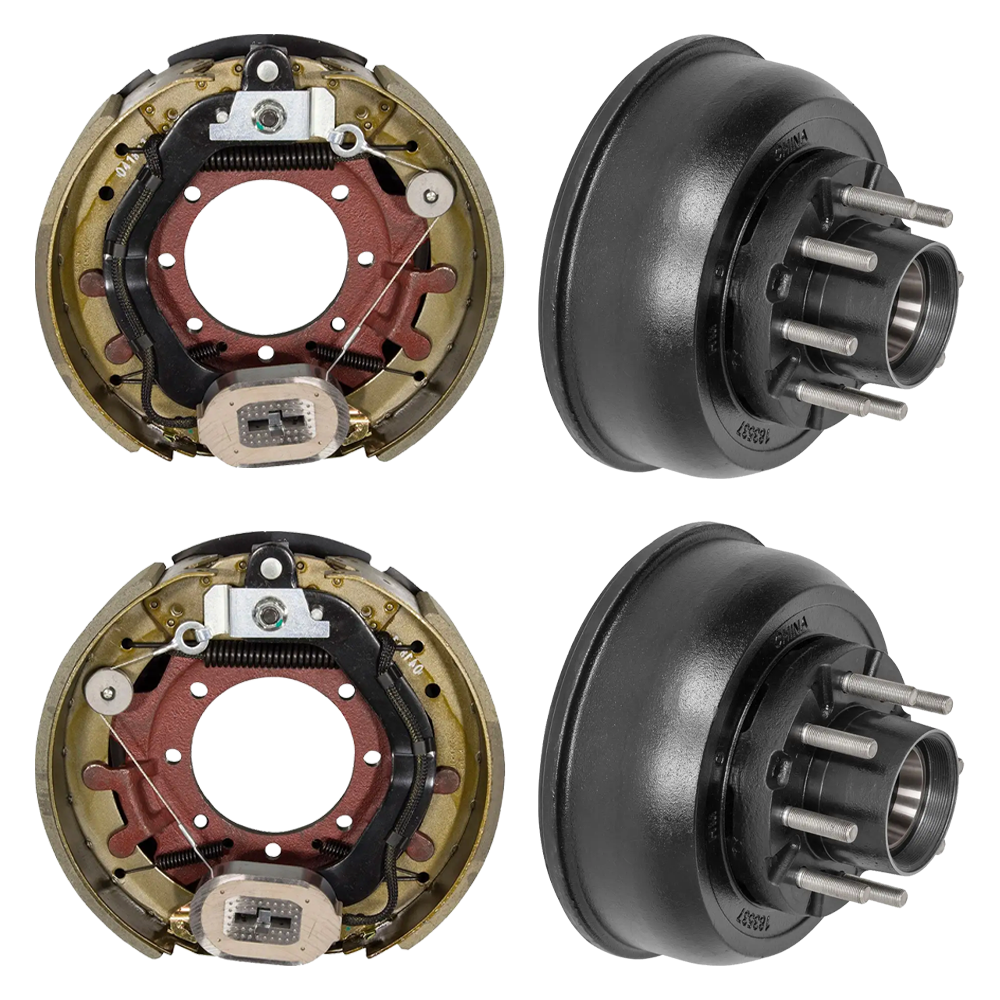

Upgrade your heavy-duty trailer with this complete Lippert 10,000-lb. electric brake bundle. It includes both left- and right-hand self-adjusting brake assemblies, as well as two rugged hub/drum units (8 on 6.5″ bolt pattern). Keep your trailer stopping reliably with genuine Lippert components designed for easier installation and improved braking performance.
Bundle Contents:
-

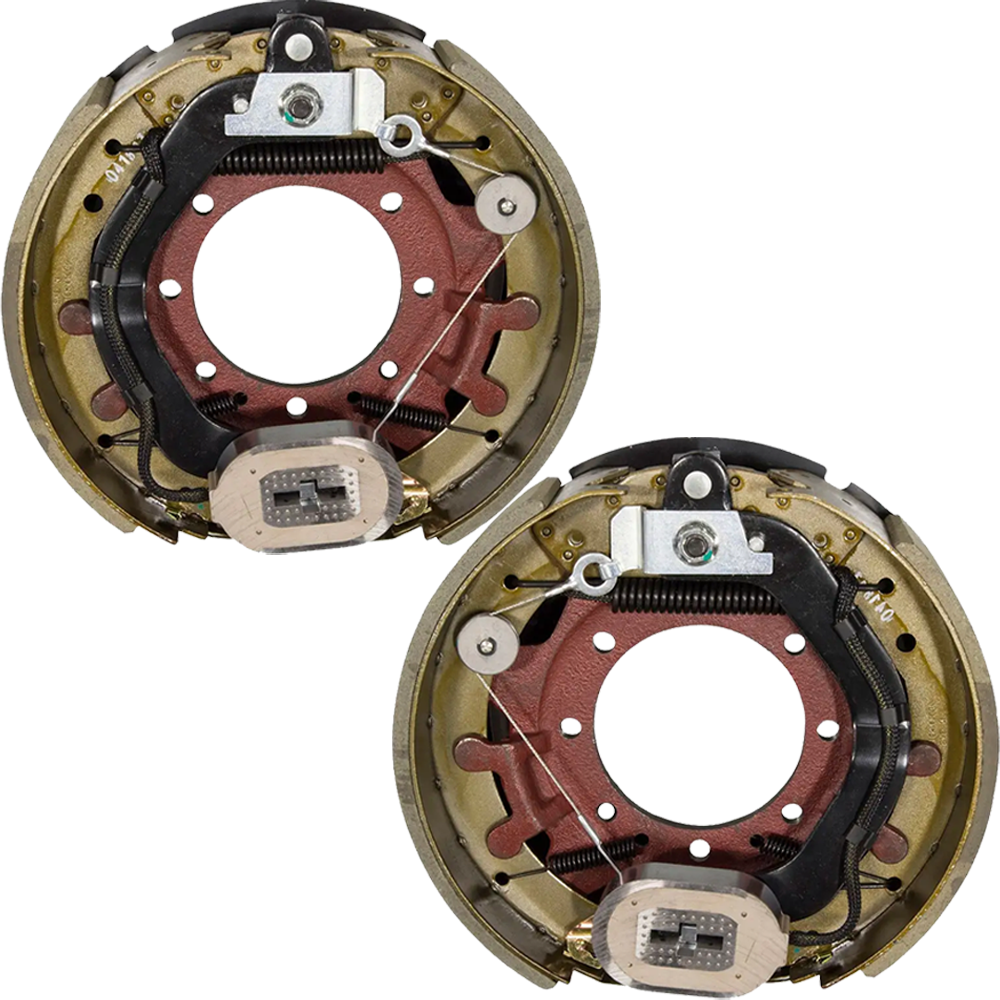

QTY (1): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Left Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for left-hand (roadside) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16", 16.5", 17" or 17.5" wheels
- Brake size: 12" x 3.38"
- New electric drum brakes will require a break-in period
- Dexter Compatible Part Number: K23-450-00|023-450-00
-
QTY (1): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Right Side
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for right-hand (curb-side) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16", 16.5", 17" or 17.5" wheels
- Brake size: 12" x 3.38"
- New electric drum brakes will require a break-in period
- Dexter Compatible Part Number: K23-451-00|023-451-00
-

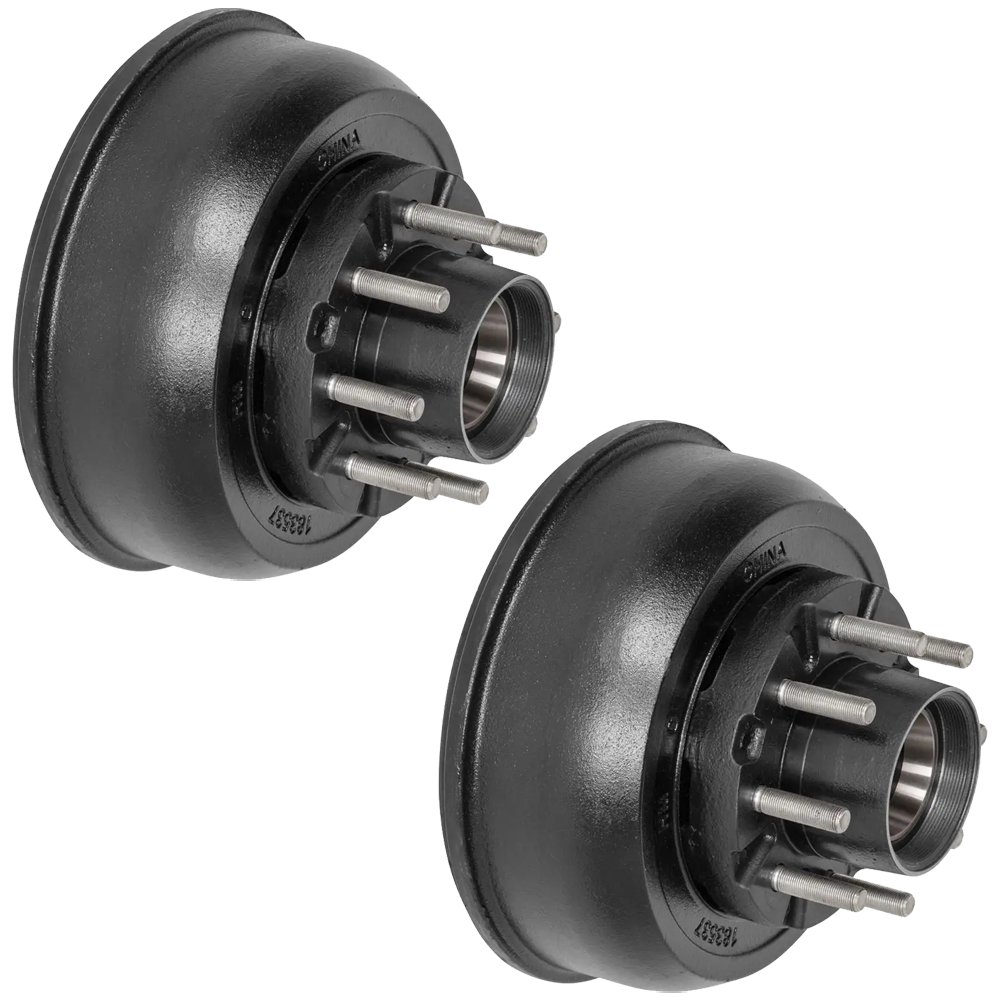

QTY (2): 12-1/4" x 3-3/8" Trailer Brake Drum - 10,000-lb.
- Axle capacity: 10,000 lbs.
- Brake size: 12-1/4"
- Brake width: 3-3/8"
- Lippert genuine replacement part
- Allows for electric or hydraulic drum brakes
- Durable, cast iron construction
- Backed by a 1-year warranty
Always confirm these components match your existing trailer setup. Periodic brake maintenance and inspections are essential for optimal performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Axle Rating | For 10,000-lb. Axles |
| Brake Drum Dimensions | 12.25" x 3.38" |
| Brake Mounting Pattern | Seven-bolt pattern |
| Hub Bolt Pattern | 8 on 6.5" |
| Hub Type | Hub with integrated drum assembly |
| Type of Adjustment | Self-adjusting (Forward Adjusting) |
| Brake Location | Left & Right (Driver & Passenger Sides) |
| Wheel Size Compatibility | 16", 16.5", 17", 17.5" |
Order today or call us at 877-869-6690 for expert advice and personalized service.
