Lippert 10K Tandem Axle Electric Brake Kit (Left x2, Right x2) with 8 on 6.5? Hub/Drums, 12.25??�?3.38?
$1,710.99
Lippert 10K Tandem Electric Brake & Hub/Drum Kit (12.25" x 3.38")
This complete Lippert 10K Tandem Electric Brake & Hub/Drum Kit provides reliable braking power and durability for heavy-duty trailer applications. It includes self-adjusting left and right brake assemblies plus matching 8 on 6.5-inch hub/drums designed for 10,000-lb. axles. Enjoy smoother towing performance, easier maintenance, and the confidence of genuine Lippert components.

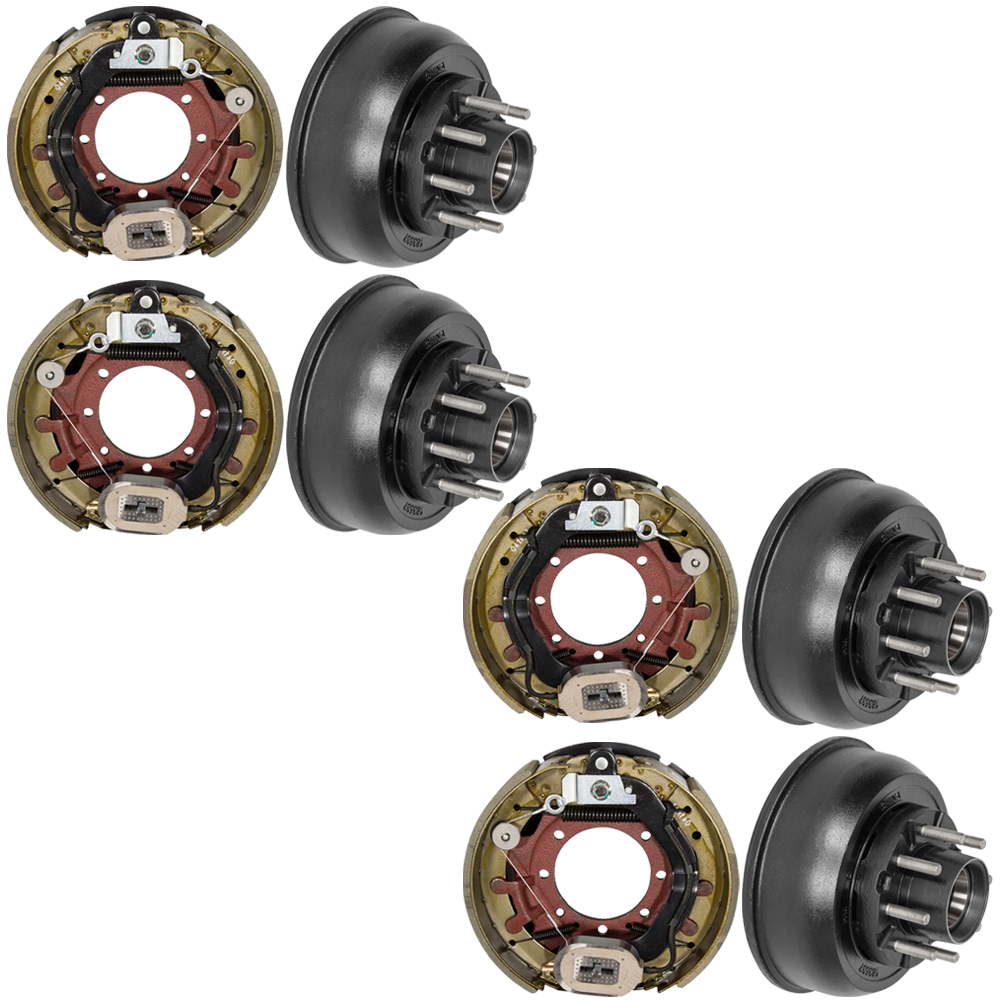

Bundle Contents:
-

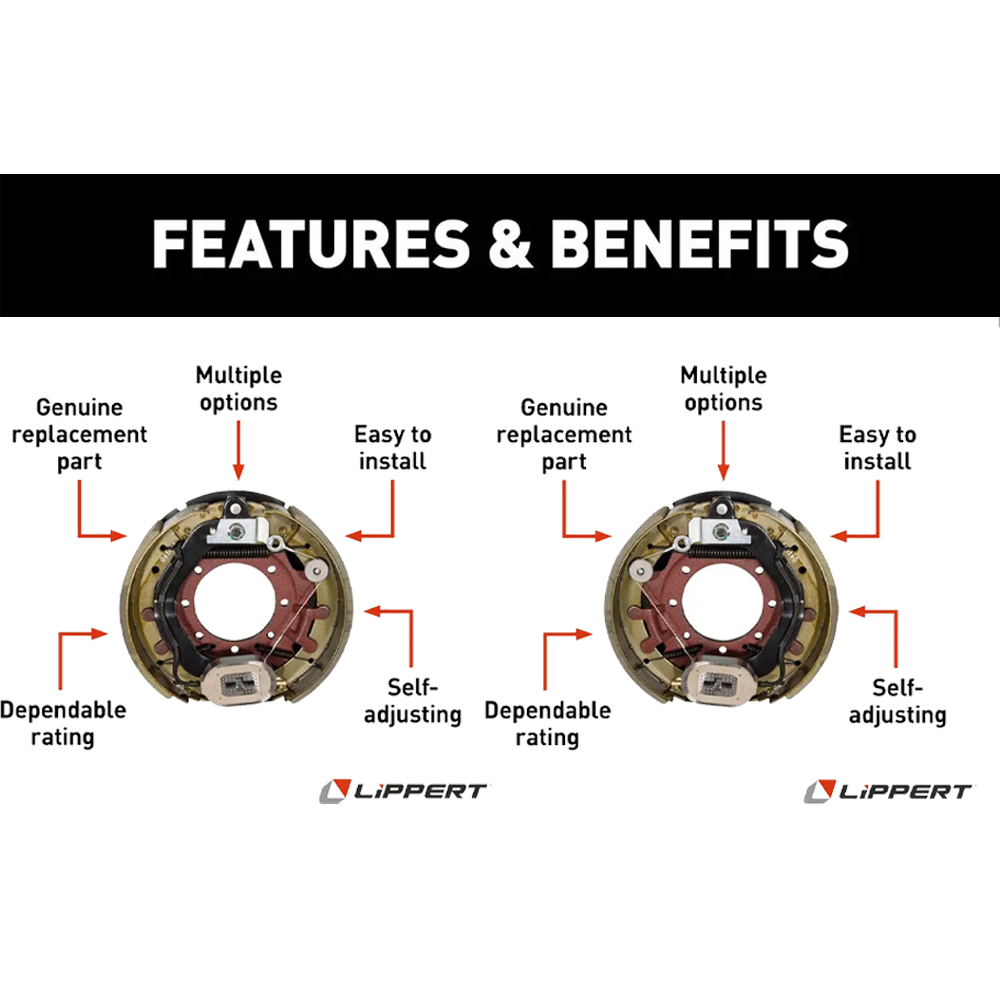

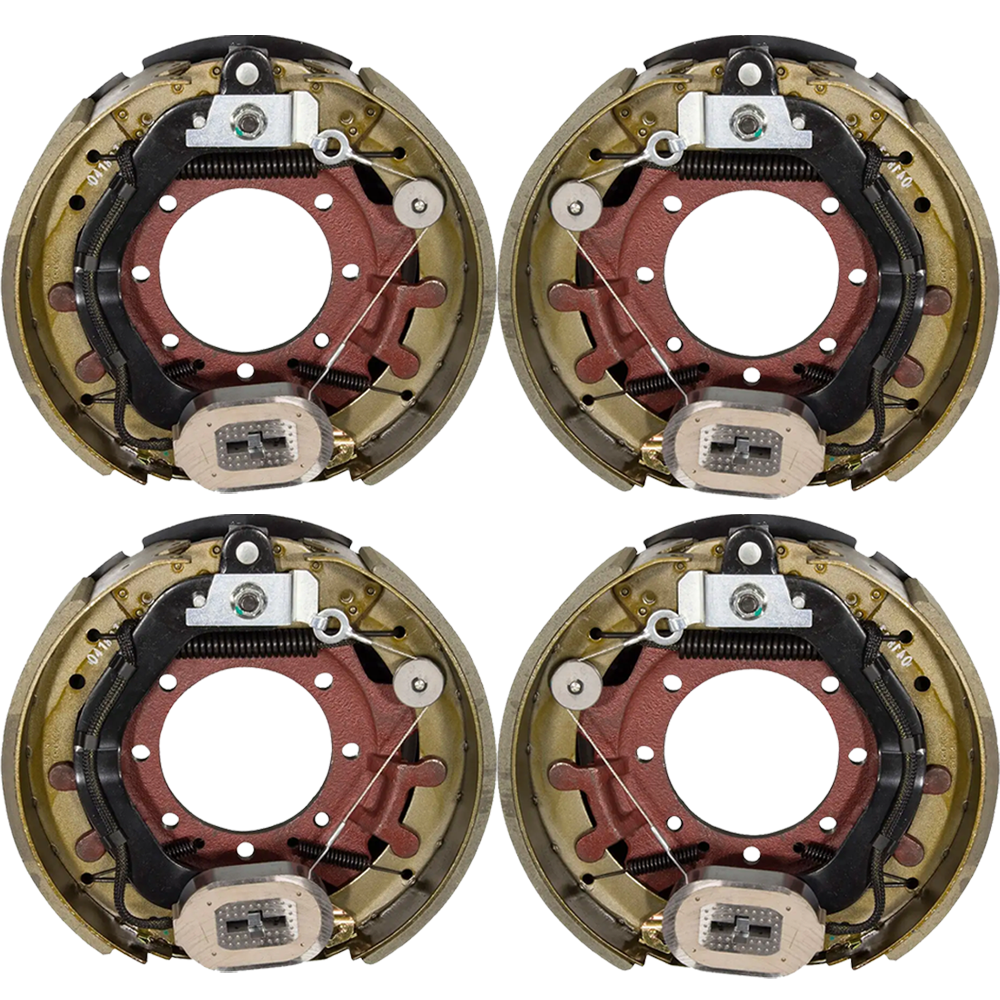

QTY (2): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Left Side
- Dexter Compatible Part Number: K23-450-00 | 023-450-00
- Replacement standard electric brake assembly with park
- Self-adjusting – no manual adjustments needed
- Designed for left-hand (roadside) installation
- For 10,000-lb. axles; seven-bolt mounting
- For 16"–17.5" wheels
- Brake size: 12" x 3.38"
- Forward self-adjusting brakes improve stopping distance
-
QTY (2): Lippert Electric Trailer Brake Assembly - 12.25" x 3.38" 10,000 lbs. Right Side
- Dexter Compatible Part Number: K23-451-00 | 023-451-00
- Replacement standard electric brake assembly with park
- Self-adjusting – no manual adjustments needed
- Designed for right-hand (curb-side) installation
- For 10,000-lb. axles; seven-bolt mounting
- For 16"–17.5" wheels
- Brake size: 12" x 3.38"
- Forward self-adjusting brakes improve stopping distance
-

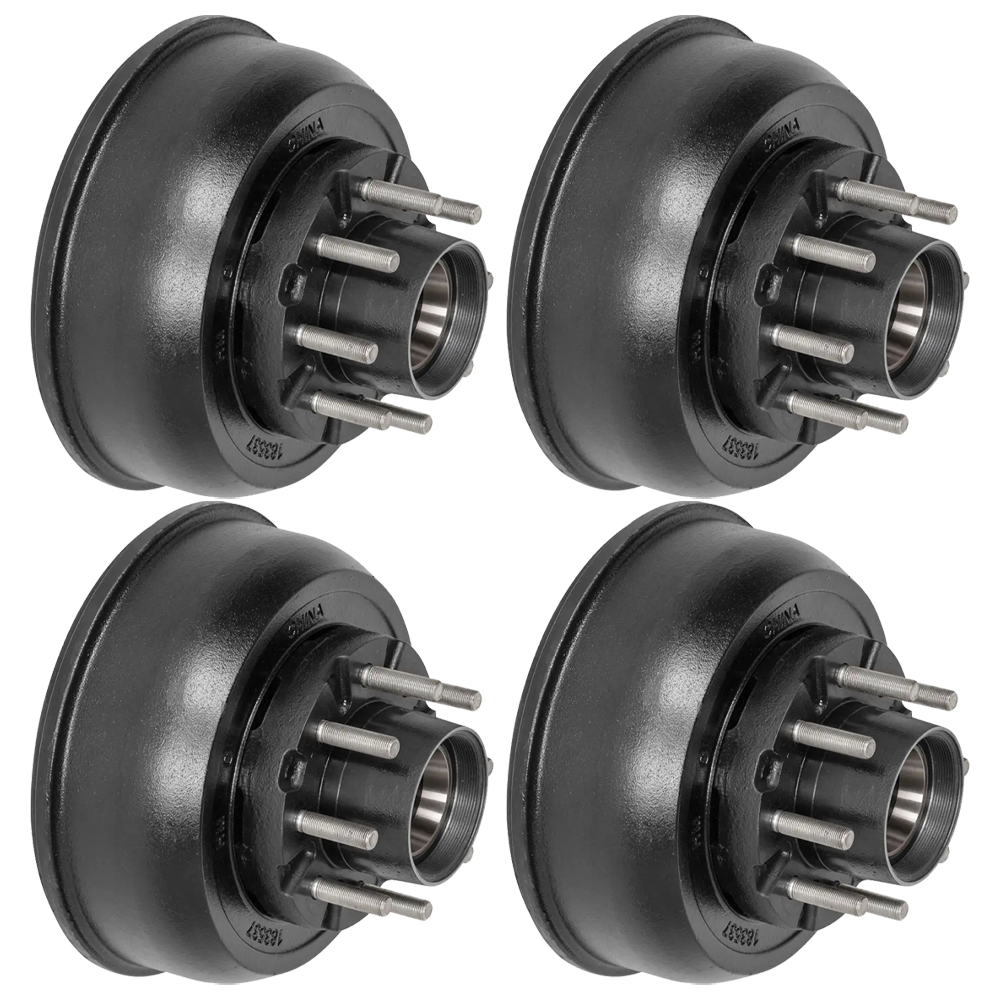

QTY (4): 12-1/4" x 3-3/8" Trailer Brake Drum - 10,000-lb.
- Axle capacity: 10,000 lbs.
- Brake size: 12-1/4" x 3-3/8"
- Durable, cast iron construction
- Works with electric or hydraulic drum brakes
- 8 on 6.5" bolt pattern
- Lippert genuine replacement part
We recommend verifying compatibility with your existing trailer brake system, following routine inspections, and replacing worn parts to ensure maximum braking performance.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Axle Rating | 10,000 lbs. |
| Brake Drum Dimensions | 12.25" x 3.38" |
| Brake Mounting Pattern | 7-bolt |
| Hub Bolt Pattern | 8 on 6.5" |
| Hub Type | Hub With Integrated Drum Assembly |
| Type of Adjustment | Self-Adjusting |
| Brake Location | Left (roadside) & Right (curbside) |
| Wheel Size Compatibility | 16", 16.5", 17", 17.5" |
