Lippert 10K Triple Axle Forward Self-Adjusting Brakes (Left x3, Right x3) with 8 on 6.5? Hub/Drums � 12-1/4? x 3-3/8?
$2,691.99

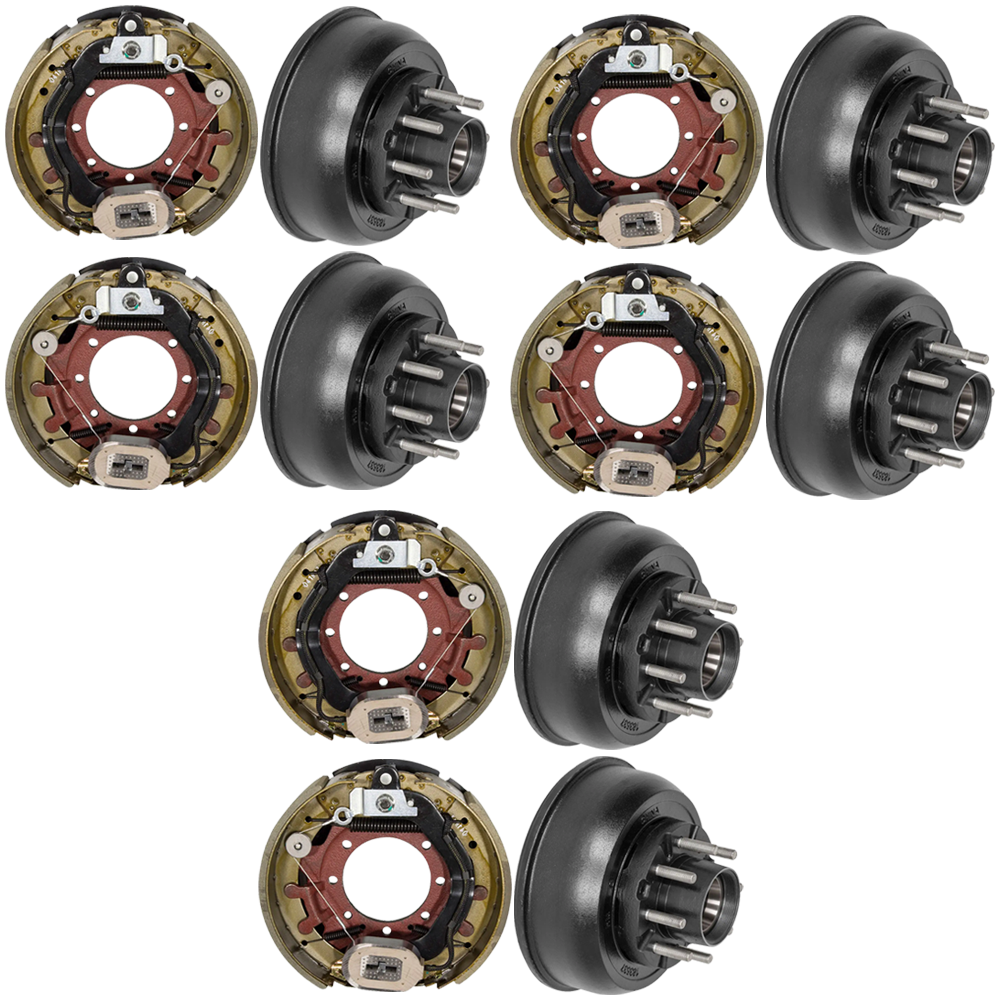

Lippert 10K Triple Axle Forward Self-Adjusting Brake & Hub/Drum Bundle
Upgrade your triple axle trailer with this complete Lippert 10,000-lb. brake and hub/drum kit. This bundle features three driver-side and three passenger-side forward self-adjusting brake assemblies, plus six 12-1/4″ x 3-3/8″ hub/drums (8 on 6.5″ bolt pattern). Enjoy smoother stops, reduced wear, and long-lasting performance on the road.
Bundle Contents:
-

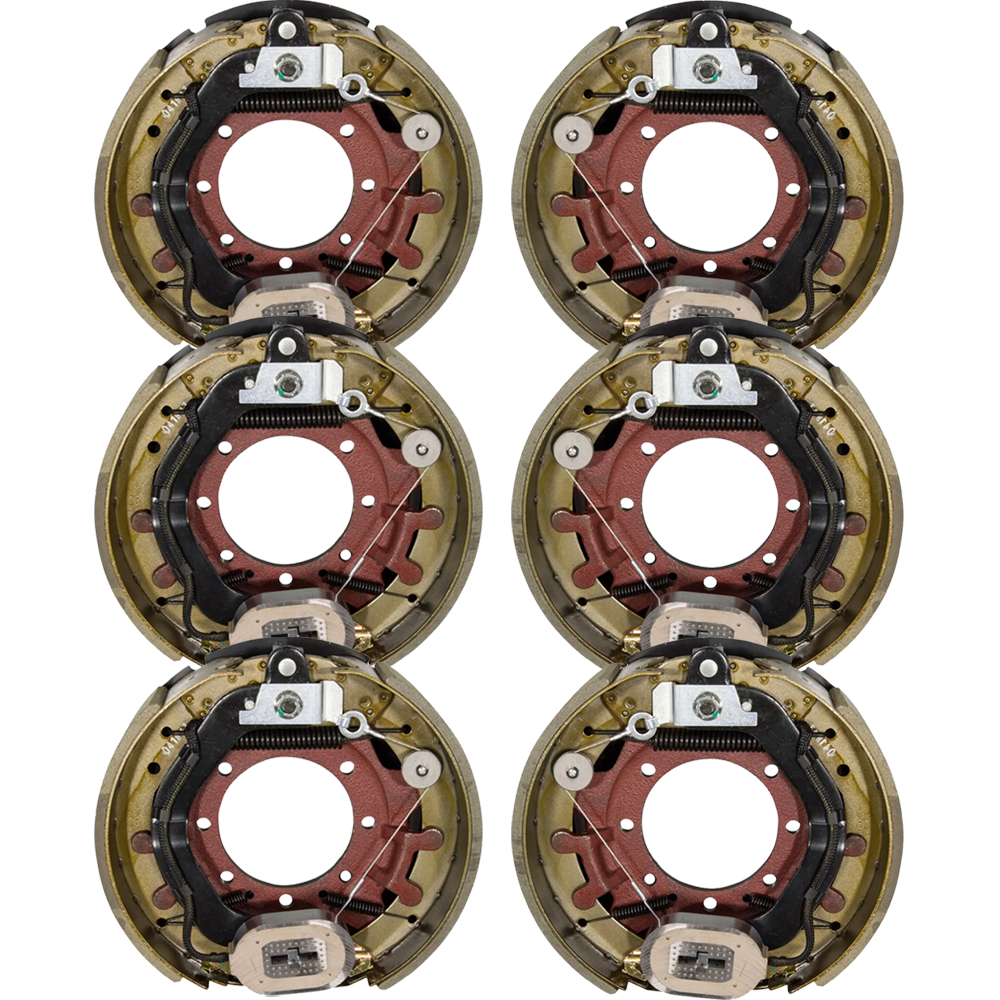

QTY (3): Forward Self-Adjusting Trailer Brake Assembly - 12-1/4" x 3-3/8" Driver Side, 10,000-lb. 7-Bolt
- Brake size: 12-1/4" x 3-3/8"
- Vehicle side: Driver / left
- Bolt pattern: Seven-bolt
- Axle capacity: 10,000 lbs.
- Adjustment: Self-adjust
- Brakes self-adjust during every forward stop, providing up to 50% better braking distance
- Helps prevent premature brake line and magnet wear for safer travels
- Compatible with Dexter and other axles
- Dexter Compatible Part Number: K23-450-00 | 023-450-00
-
QTY (3): Forward Self-Adjusting Trailer Brake Assembly - 12-1/4" x 3-3/8" Passenger Side, 10,000-lb. 7-Bolt
- Brake size: 12-1/4" x 3-3/8"
- Vehicle side: Passenger / right
- Bolt pattern: Seven-bolt
- Axle capacity: 10,000 lbs.
- Adjustment: Self-adjust
- Brakes self-adjust during every forward stop, providing up to 50% better braking distance
- Helps prevent premature brake line and magnet wear for safer travels
- Compatible with Dexter and other axles
- Dexter Compatible Part Number: K23-451-00 | 023-451-00
-

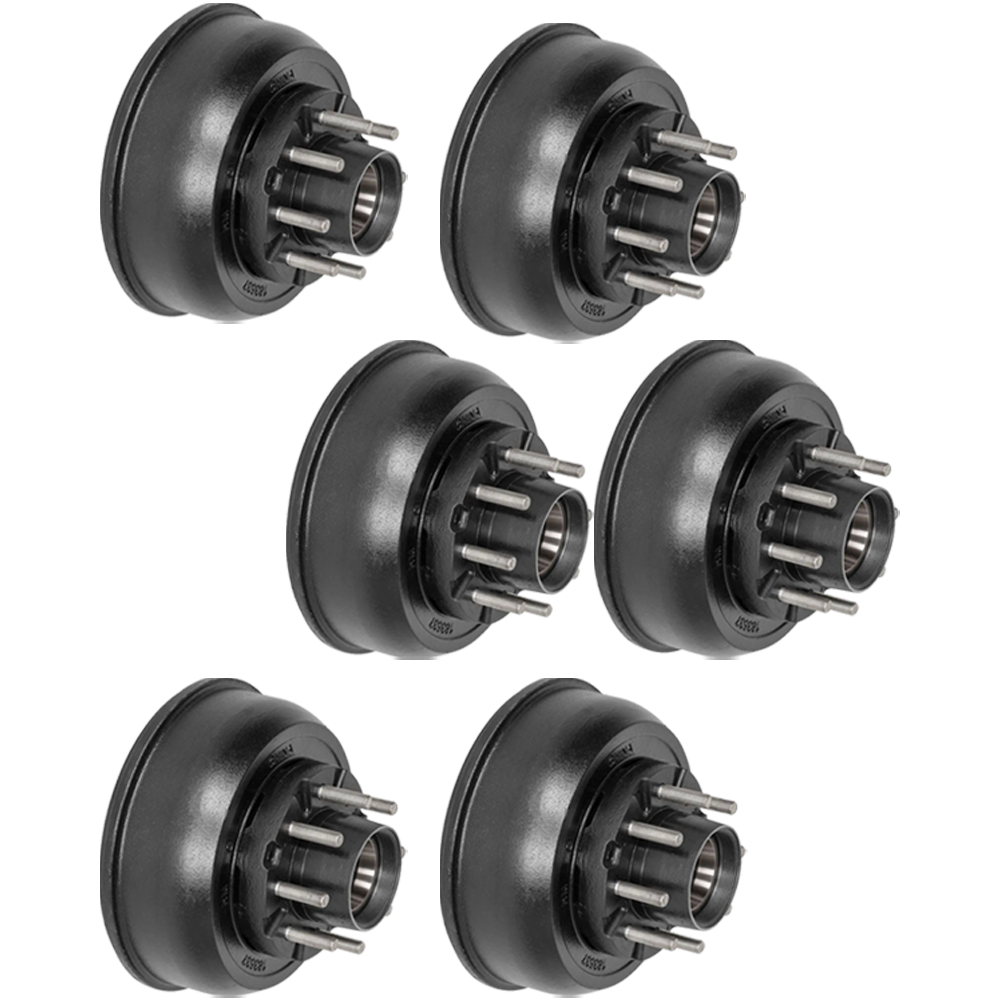

QTY (6): 12-1/4" x 3-3/8" Trailer Brake Drum - 10,000-lb.
- Axle capacity: 10,000 lbs.
- Brake size: 12-1/4"
- Brake width: 3-3/8"
- Allows for electric or hydraulic drum brakes
- Durable cast iron construction
- Designed as a Lippert genuine replacement part
Always verify your trailer’s original equipment and perform regular inspections to ensure safe operation. Proper maintenance and compatibility checks will help maximize the performance and longevity of your axle components.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake & Hub Kit |
| Axle Rating | 10,000 lbs. (Triple Axle) |
| Brake Drum Dimensions | 12-1/4" x 3-3/8" |
| Brake Mounting Pattern | 7-Bolt |
| Hub Bolt Pattern | 8 on 6.5" |
| Hub Type | Hub With Integrated Drum Assembly |
| Type of Adjustment | Forward Self-Adjust |
| Brake Location | Left (Driver) & Right (Passenger) |
| Wheel Size Compatibility | 16", 16.5", 17", 17.5" |
| Brand | Lippert |
| Universally Compatible With | Dexter, Al-Ko, Rockwell, and more |
Order today or call us at 877-869-6690 for expert advice and personalized service.
