Lippert 12?1/4??x?5??7?Bolt Self?Adjust Electric Brakes?&?8?on?275?mm Grease?Threaded Hubs � 16K Tandem Axle Kit � Dexter �?Alko?�?Rockwell Compatible
$2,713.99
Lippert Tandem‑Axle 16K Electric Brake & Hub Kit – Self‑Adjusting 12‑1/4″ x 5″ Brakes
Upgrade your heavy‑duty trailer with this complete Lippert tandem‑axle bundle. Engineered for 16,000‑lb axles, the kit pairs self‑adjusting 12‑1/4″ x 5″ electric brakes with grease‑packed threaded hubs—delivering smoother stops, reduced maintenance and reliable performance for equipment, livestock or specialty rigs.

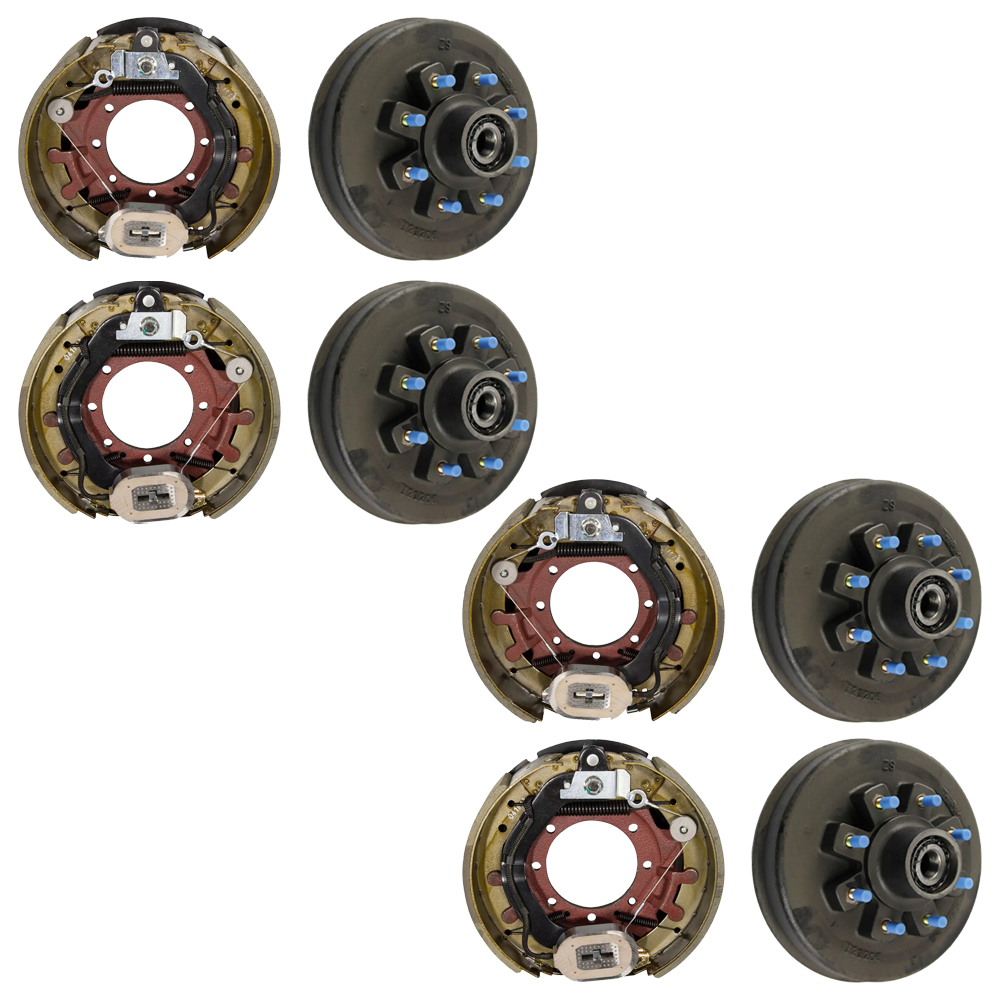

Bundle Contents:
-

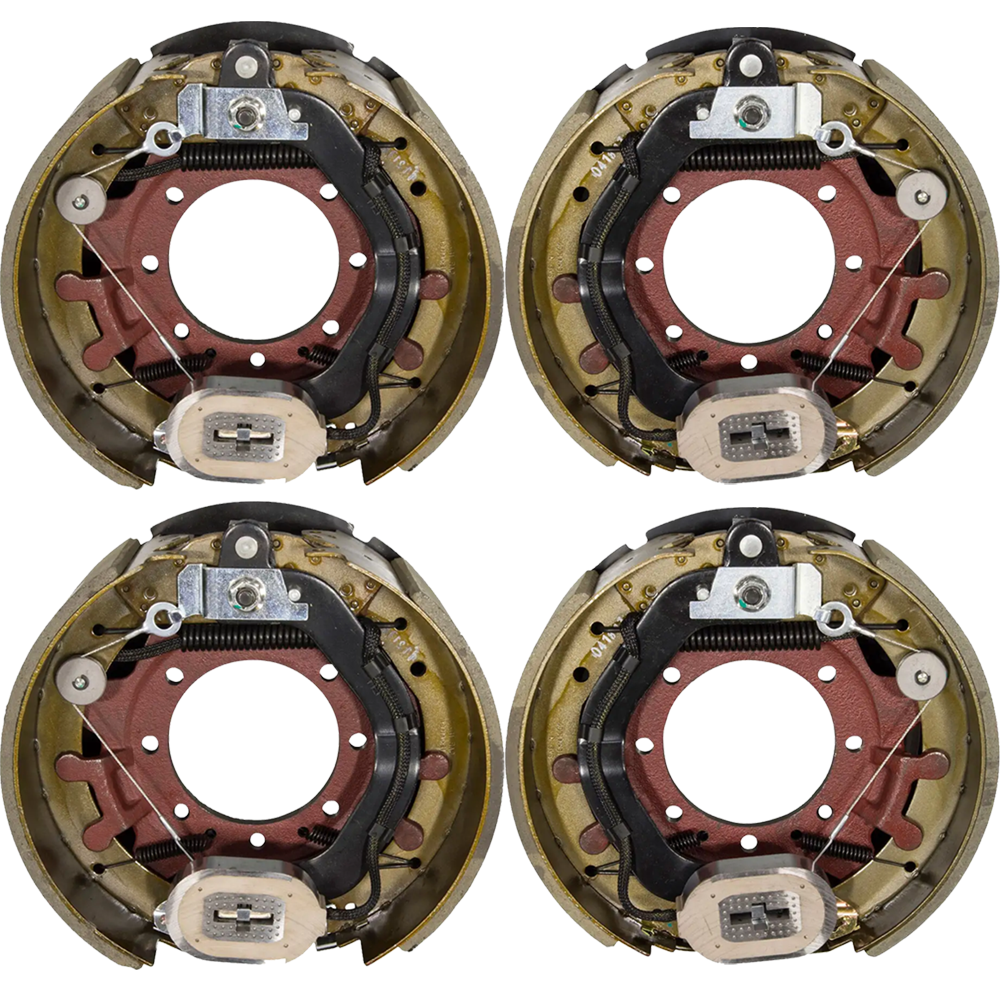

QTY (2): Forward Self‑Adjusting Electric Brakes – 12‑1/4″ x 5″, Driver‑Side, 12K‑16K, 7‑Bolt
- Left‑hand assembly with 7‑bolt mounting pattern
- Dexter Compatible Part Number: K23‑442‑00 | 023‑442‑00
- Self‑adjusts each forward stop—up to 50 % shorter braking distance
- Fits Lippert & Dexter 12K–16K axles
- Electric actuation—no hydraulic lines
- Genuine Lippert replacement part
-
QTY (2): Forward Self‑Adjusting Electric Brakes – 12‑1/4″ x 5″, Passenger‑Side, 12K‑16K, 7‑Bolt
- Right‑hand assembly for balanced stopping power
- Dexter Compatible Part Number: K23‑443‑00 | 023‑443‑00
- Self‑adjusting design reduces lining & magnet wear
- Universal with Dexter 7‑bolt plates
- Heavy‑duty magnets for consistent performance
- Backed by Lippert quality
-

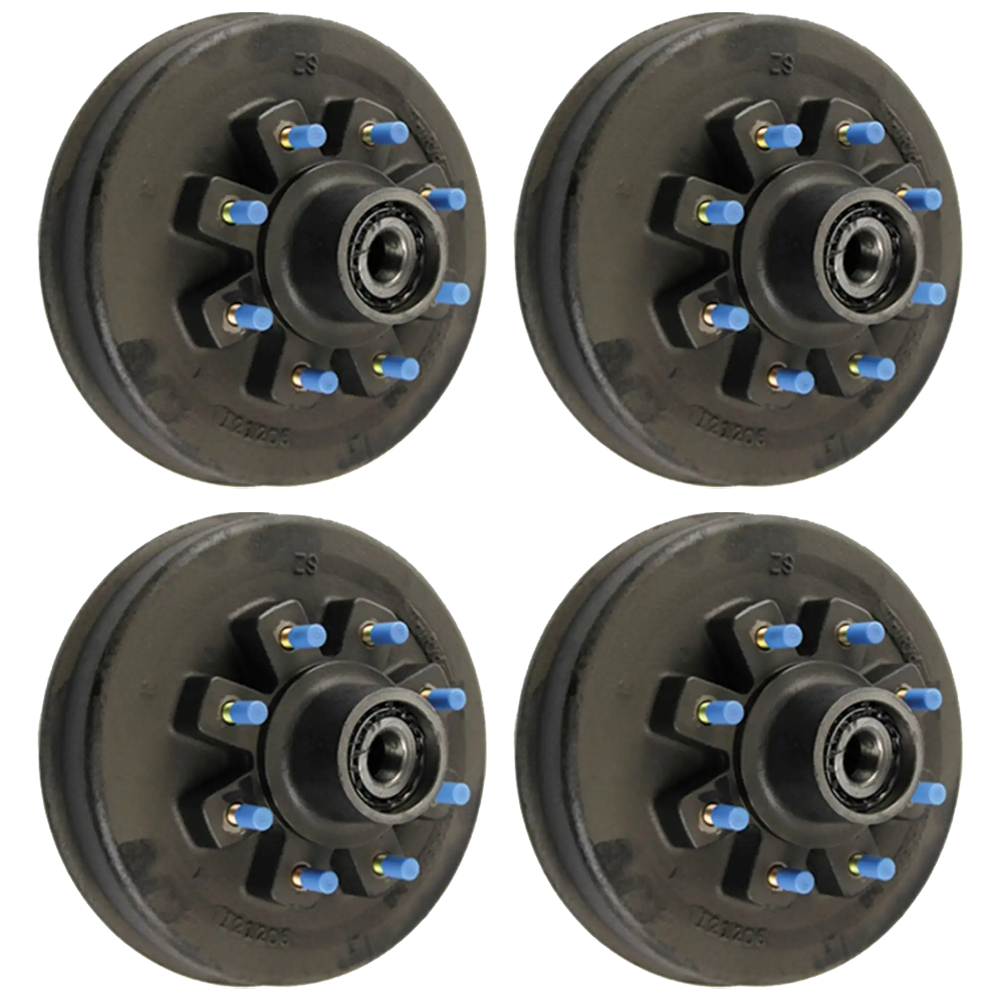

QTY (4): 12‑1/4″ Threaded Brake Hubs – 16K, 8 on 275 mm, M22 Studs, Grease
- Integrated drum & hub for electric or hydraulic brakes
- 8‑on‑275 mm bolt circle with pre‑installed M22 studs
- Races and wheel studs pre‑installed
- Accepts Valcrum threaded dust caps (not included)
- Precision‑machined cast‑iron dissipates heat
- Ready for grease‑packed bearings
Please verify axle rating, bolt pattern and mounting specs before installation. Re‑torque wheel nuts after the first 50 miles and inspect brakes/hubs regularly for optimal safety.
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
| Specifications: | |
|---|---|
| Kit Type | Complete Tandem‑Axle Brake & Hub Kit |
| Axle Rating | 16,000 lbs (per axle) |
| Brake Drum Dimensions | 12‑1/4″ x 5″ |
| Brake Mounting Pattern | 7‑Bolt |
| Hub Bolt Pattern | 8‑on‑275 mm |
| Hub Type | Threaded Grease Hub with Integrated Drum |
| Stud Size | M22 |
| Type of Adjustment | Forward Self‑Adjusting Electric |
| Brake Location | Driver & Passenger (Left/Right) |
| Wheel Size Compatibility | 17‑1/2″ |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
