Lippert 12-1/4" x 5" RH Self-Adjust Electric Brake (7-Bolt) + 16K Threaded Hub (8 on 275 mm M22) � Dexter Alko Rockwell
$608.99

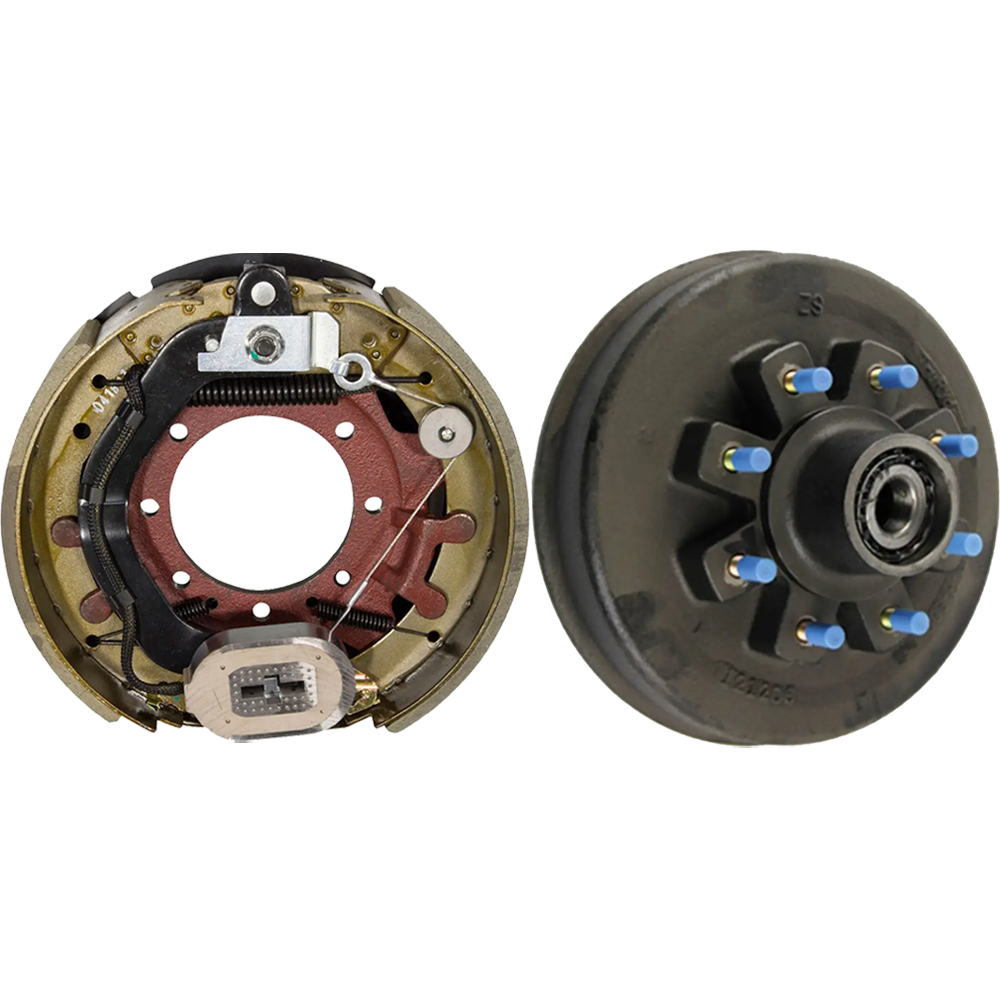

Lippert 16K Right-Hand 12-1/4" x 5" Self-Adjusting Electric Brake & Threaded Hub Kit
Upgrade your heavy-duty trailer with genuine Lippert components. This bundle pairs a forward self-adjusting right-hand electric brake with a robust threaded hub, delivering smoother stops, reduced maintenance, and drop-in compatibility with most 12K-16K axles—including Dexter, Alko, and Rockwell.
Bundle Contents:
-

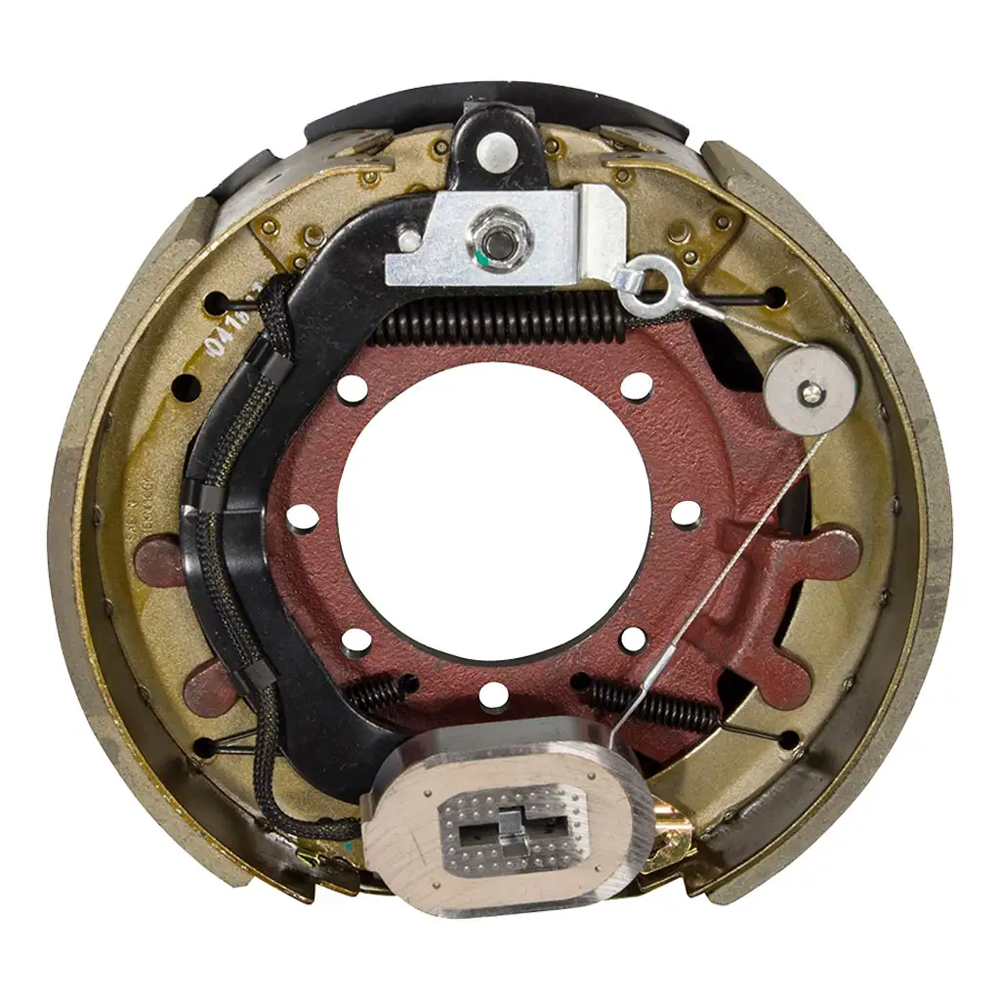

QTY (1): Forward Self-Adjusting Brake – 12-1/4" x 5", Passenger-Side, 12-16K, 7-Bolt
- Self-adjusts every forward stop for up to 50% shorter braking distance
- Fits 12K–16K axles; right-hand/passenger orientation
- Seven-bolt mounting pattern; electric operation—no hydraulic lines
- Reduces magnet & lining wear for longer service life
- Lippert OE part; interchangeable with Dexter
- Dexter compatible part numbers: K23-443-00, 023-443-00
-

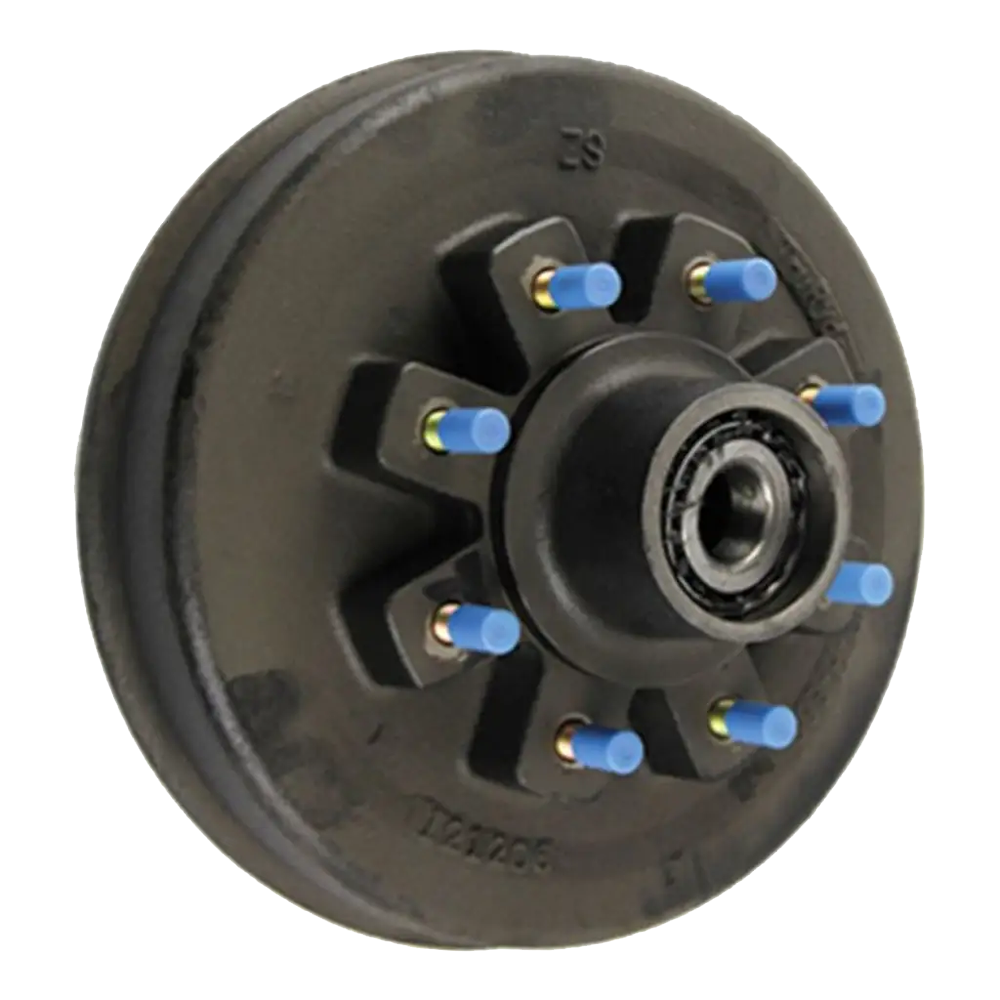

QTY (1): 12-1/4" Threaded Trailer Brake Hub – 16K, 8 on 275 mm, M22 Studs
- Threaded cast-iron hub with integrated drum
- 8 on 275 mm bolt circle; M22 wheel studs (races & studs pre-installed)
- Rated for 16,000 lb axles; works with electric or hydraulic drums
- Accepts Valcrum threaded dust caps
- Lippert OE replacement; Dexter compatible
- Backed by 1-year Lippert warranty
Please verify part numbers and dimensions with your original equipment before installation, and perform routine maintenance for safe, reliable operation.
| Specifications: | |
|---|---|
| Kit Type | Right-Hand Brake & Threaded Hub Bundle |
| Axle Rating | 16,000 lb (limited by brake assembly) |
| Brake Drum Dimensions | 12-1/4" x 5" |
| Brake Mounting Pattern | 7-bolt |
| Hub Bolt Pattern | 8 on 275 mm |
| Hub Type | Threaded hub with integrated drum |
| Stud Size | M22 |
| Type of Adjustment | Forward self-adjust |
| Brake Location | Right-hand / Passenger |
| Wheel Size Compatibility | 17-1/2" wheel |
Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.
Order today or call us at 877-869-6690 for expert advice and personalized service.
