Lippert 12.25? � 3.38? 8K RH Self-Adjusting Electric Brake + Greased 8-on-6.5 Hub/Drum Bundle � Dexter / Alko / Rockwell Compatible

Lippert 8K Electric Brake & Greased Hub/Drum Service Bundle

This genuine Lippert kit delivers everything required to service one 8,000 lb axle in a single box: a forward self-adjusting right-hand electric brake assembly and a factory-greased hub/drum with 5/8″ studs. Matched components ensure proper fit, quicker installation, and dependable braking performance mile after mile.

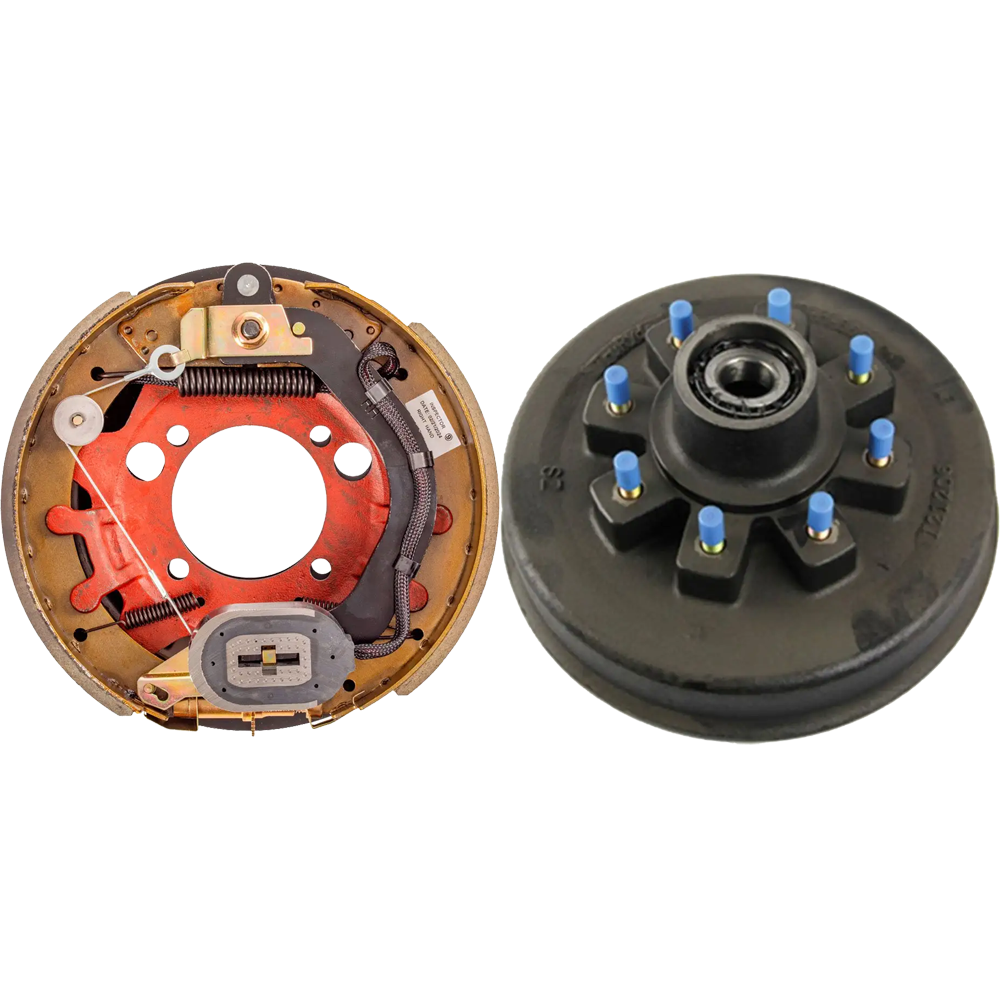

Bundle Contents:

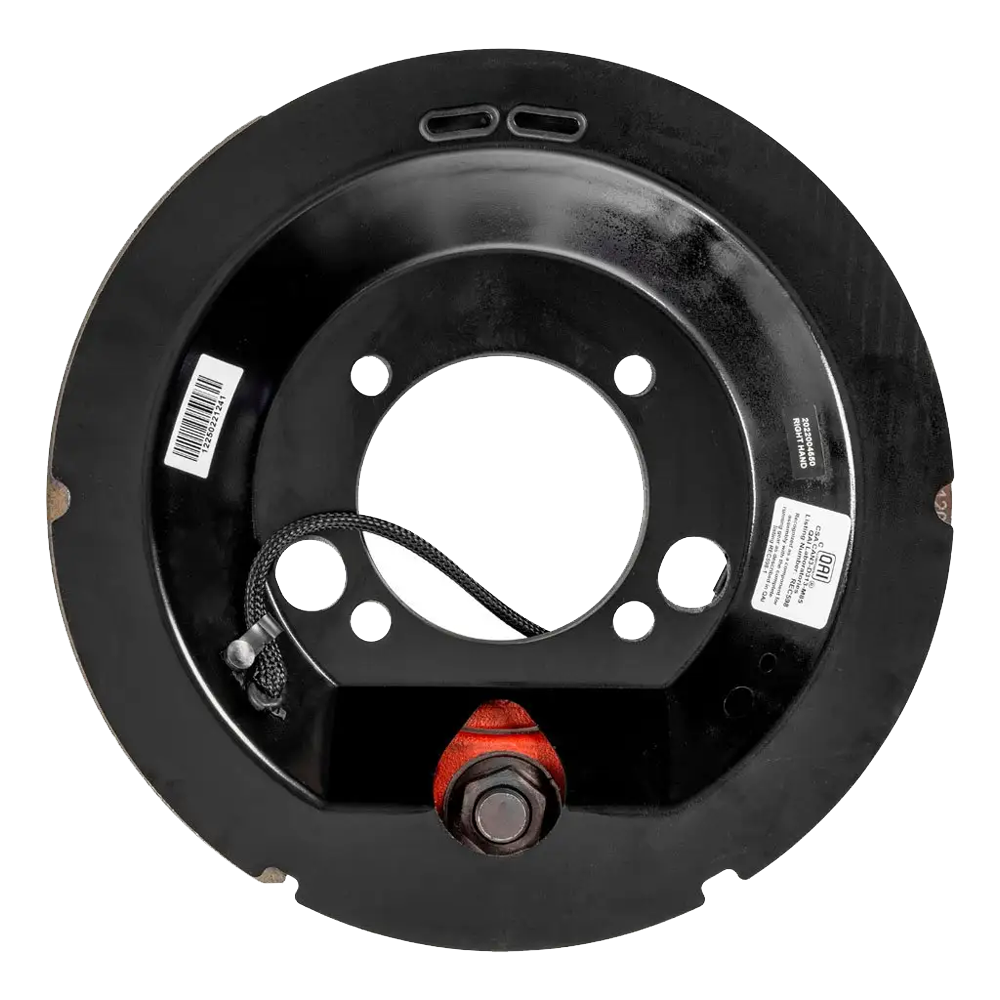

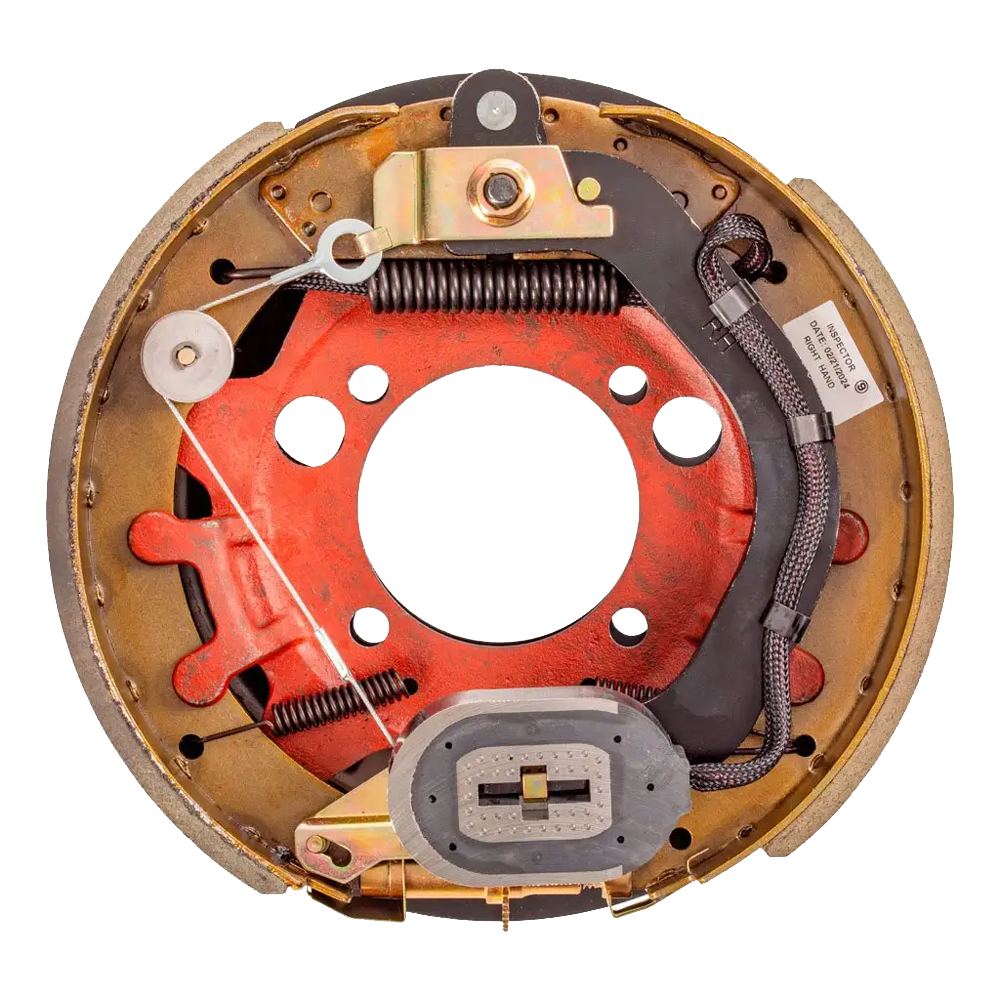

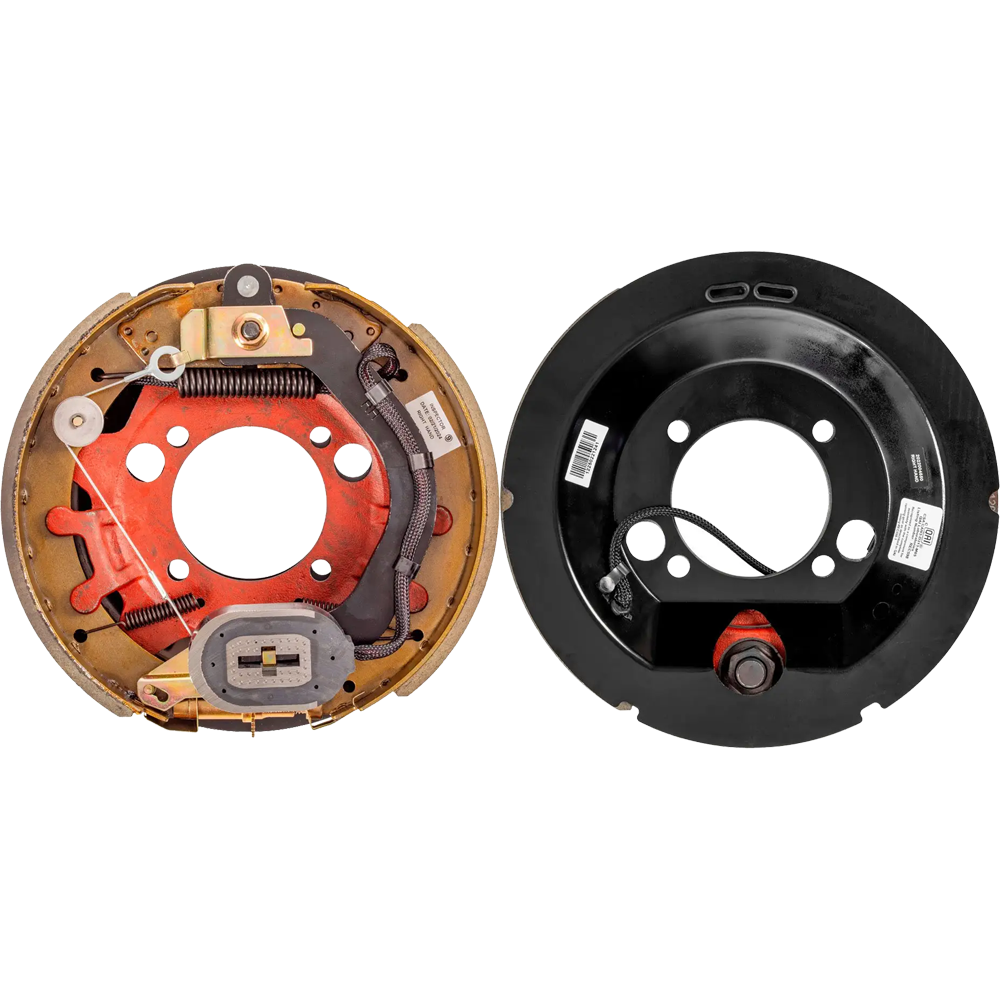

• QTY (1): Lippert 12.25″ × 3.38″ RH Self-Adjusting Electric Brake Assembly – 8,000 lb
  • Forward self-adjusting design eliminates manual star-wheel checks
  • Dexter cross-reference K23-435-00 / 023-435-00
  • Curb-side (passenger side) with park-brake lever
  • Four-bolt brake flange – fits 16″–17.5″ wheels
  • Brake size 12.25″ × 3.38″, rated 8 K

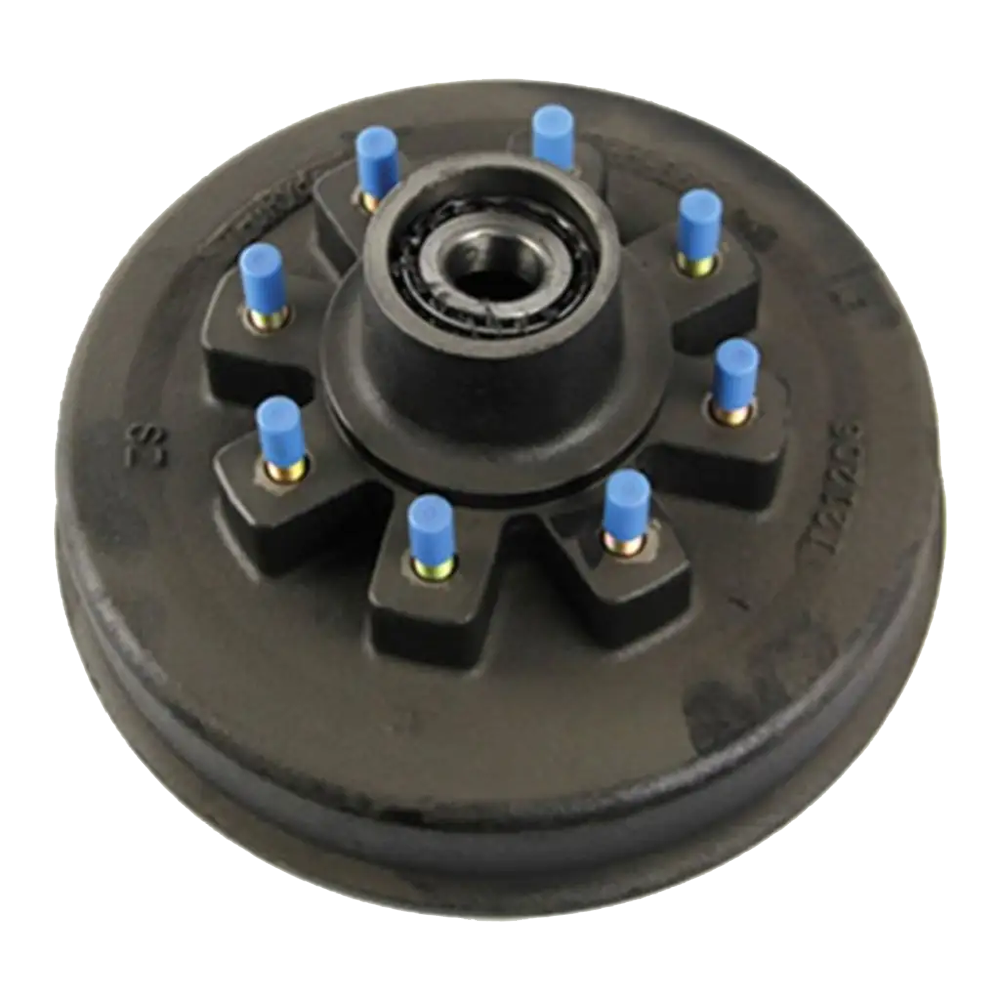

• QTY (1): Lippert Greased Hub/Drum Assembly – 8-on-6.5″, 5/8″ Stud, 8,000 lb
  • Durable cast-iron drum with integral hub for tight runout control
  • Bearing cones, seal & high-temp grease factory-installed
  • 8-on-6.5″ bolt circle • 5/8″ studs • fits 16″–17″ wheels
  • One-year Lippert warranty

Product image for reference only — minor cosmetic details (casting style, cap color, stud protectors, packaging) may vary between production runs. All items ship to the exact specifications listed.

Verify your original equipment part numbers and perform regular brake and bearing maintenance to keep your trailer safe and road-ready.
