Lippert 12" Brake Drum & Hub Kit � Triple Axle, 7K, 8-on-6.5" Pattern (6 Hubs w/ Bearings) � Dexter & Al-Ko Compatible
$792.99
Lippert 12" 7K Triple-Axle Brake Drum & Hub Kit – 8 on 6.5" (Qty 6)
Maintain reliable stopping power on your triple-axle trailer with this complete six-pack of Lippert 12-inch brake drum hub assemblies. Built from durable cast iron and paired with individually bagged bearing kits, each hub installs quickly on 7,000-lb axles that share the popular 8 on 6.5-inch bolt pattern.

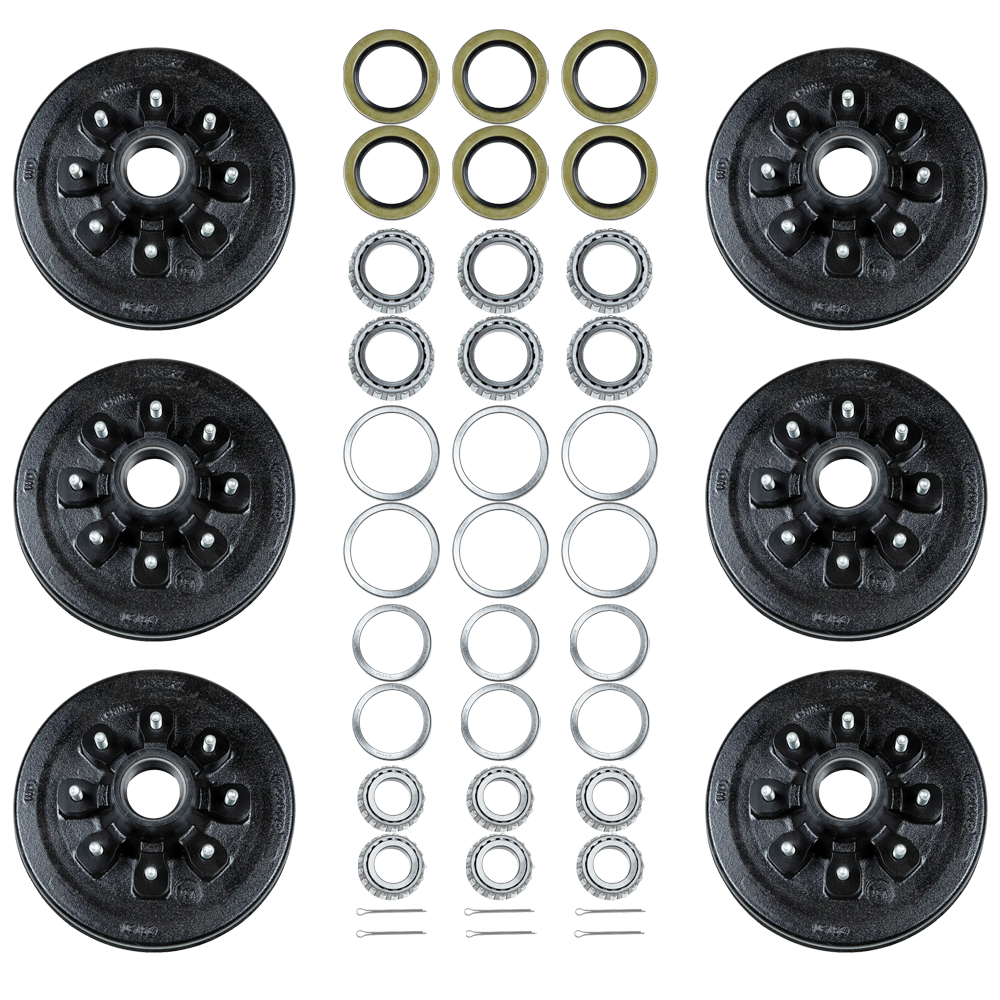

Bundle Contents:
-

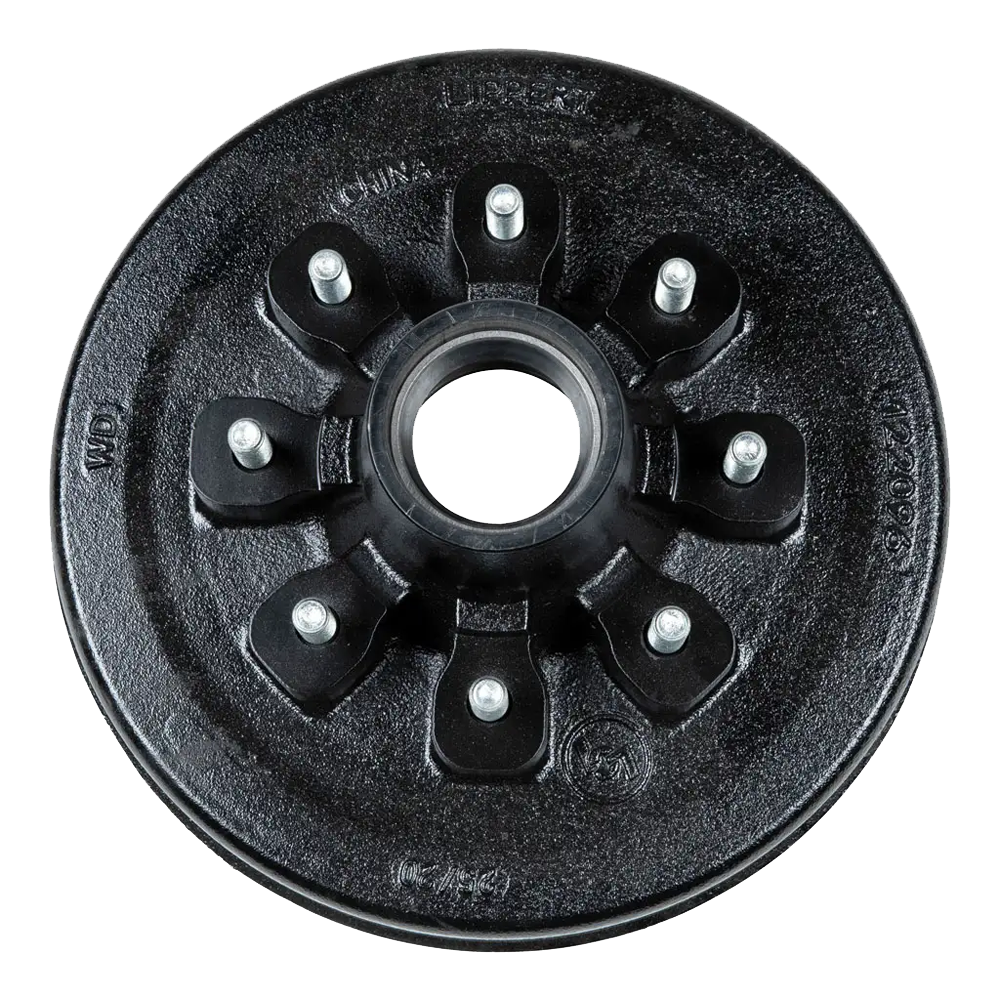

QTY (6): Lippert 12" Brake Drum Hub Assembly for 7,000-lb Axle – 8 on 6.5", 1/2" Stud

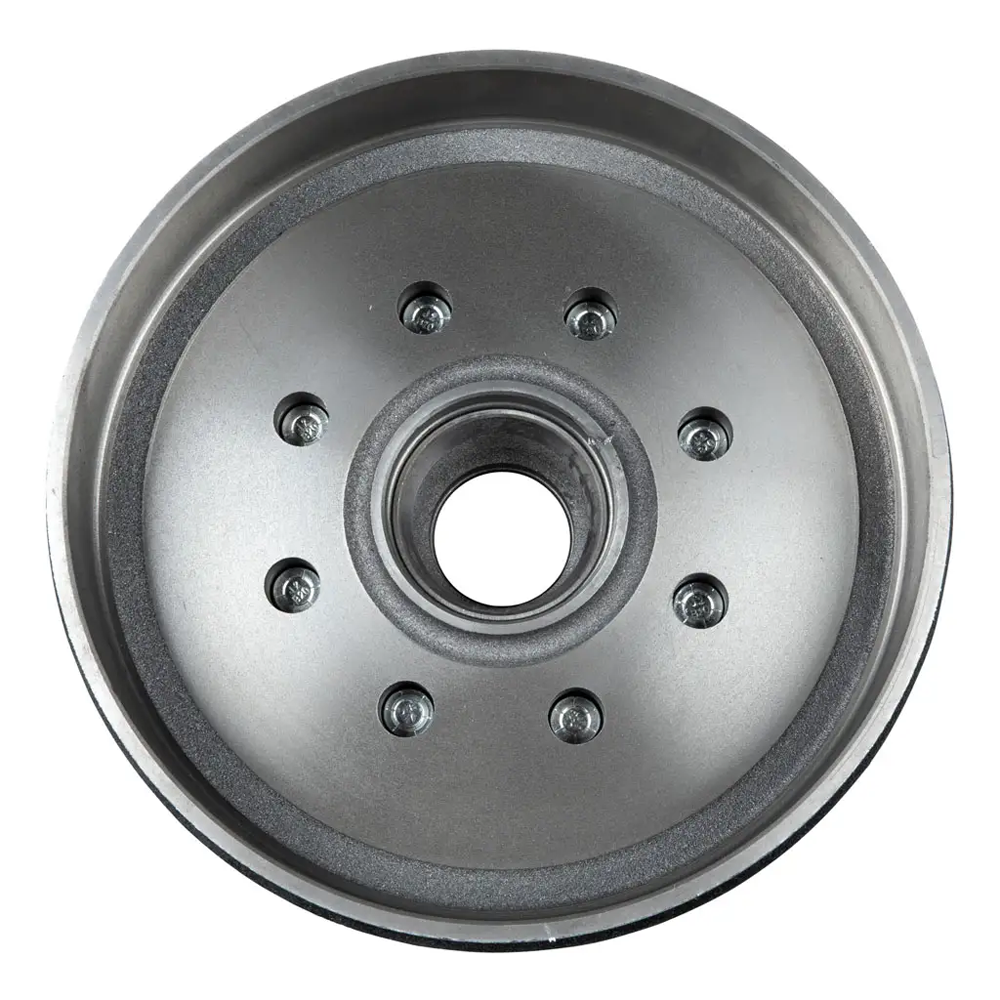

- Solid cast-iron 12" hub-and-drum design for dependable braking
- Pre-drilled 8 on 6.5" pattern with 1/2" wheel studs
- Rated for 7,000-lb Lippert, Dexter, Al-Ko & other compatible axles

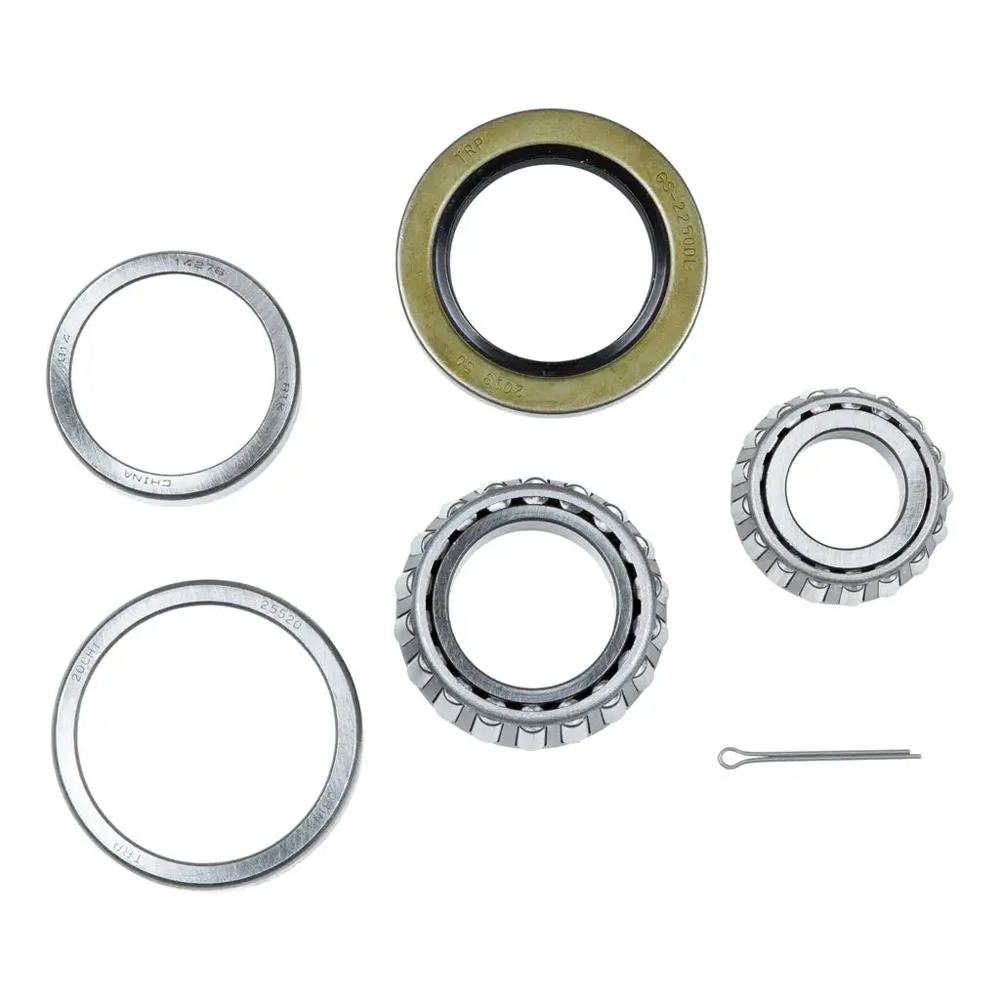

- Bagged separately — one bearing kit per hub includes:
- Inner bearing cone & cup
- Outer bearing cone & cup
- Double-lip grease seal
- Cotter pin
- Works with 16" – 17.5" wheels; replaces Lippert #122096
- Dexter Compatible Part Number: K08-219-9B
- Limited 1-year manufacturer warranty
Always compare part numbers to your original equipment and re-pack or replace bearings as part of routine brake maintenance.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple-Axle Brake Drum & Hub Kit |
| Axle Rating | 7,000 lbs per axle |
| Drum Size | 12" × 2" |
| Hub Size | 12" |
| Bolt Pattern | 8 on 6.5" |
| Stud Size | 1/2" |
| Wheel Compatibility | 16" – 17.5" |
| Included Parts | Hub & Drum, Bearing Kit (bagged separately), Races, Seal, Cotter Pin |
| Quantity in Kit | 6 Hubs |
| Warranty | 1-Year Limited |
| Manufacturer Part # | Hub 122096 / Bearing Kit 333951 |
Order today or call us at 877-869-6690 for expert advice and personalized service.
