Lippert 12? Brake & Hybrid Hub-Drum Kit � 8-on-6.5? Triple-Axle, 7K / 8K Hybrid (Dexter � Alko � Rockwell � Quality)

Lippert 12″ Brake & Hybrid Hub-Drum Kit – 8-on-6.5″, Triple-Axle 7K / 8K Hybrid

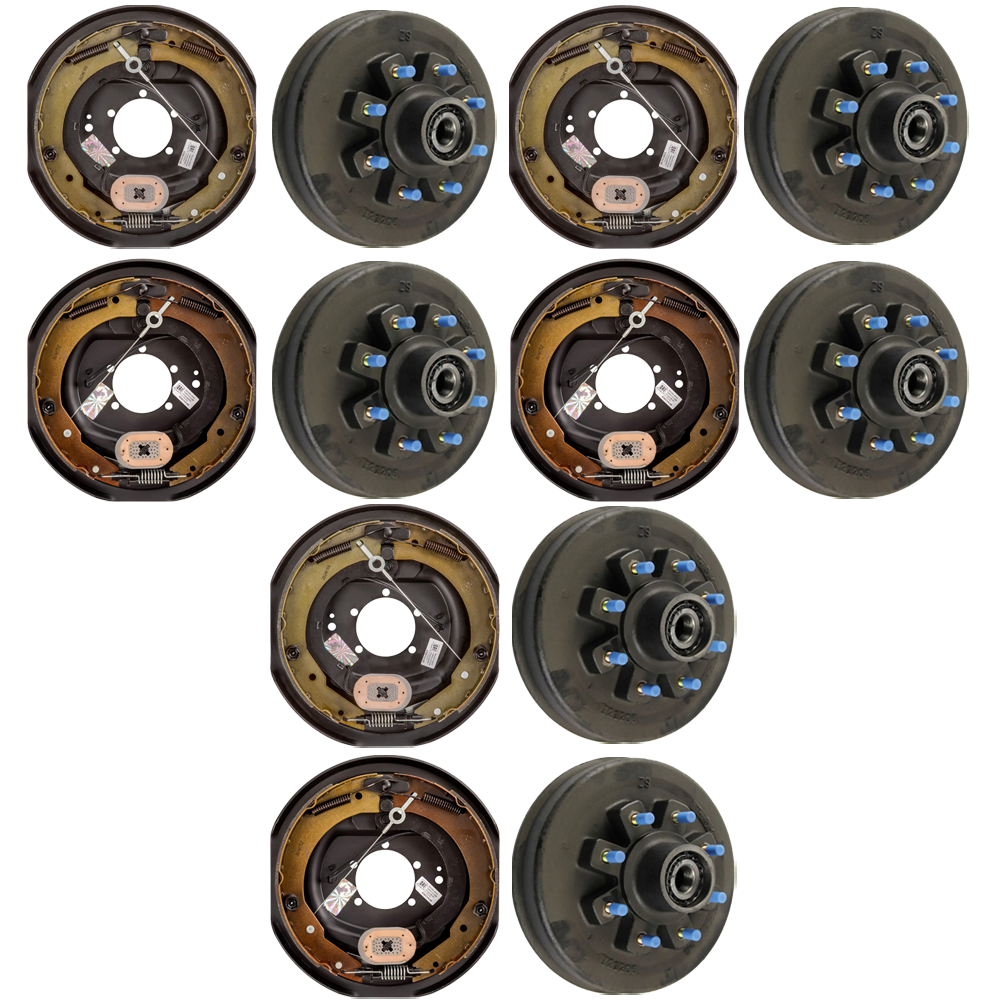

Refresh your trailer’s braking system with this complete Lippert bundle. It combines six forward self-adjusting 12″ electric brakes with six hybrid 12″ × 2″ hub-drums to service three axles. The brakes are engineered for standard axles up to 7,000 lbs and are also factory-approved for 8,000-lb hybrid axles (hybrid axles use 7K brake hardware teamed with an 8K hub). The hub-drums themselves are rated for 8K hybrid axles and use the popular 8-on-6.5″, 5/8″-stud pattern—making this kit ideal for livestock, equipment and other heavy-duty haulers that run either 7K conventional or 8K hybrid axle sets.

Bundle Contents:

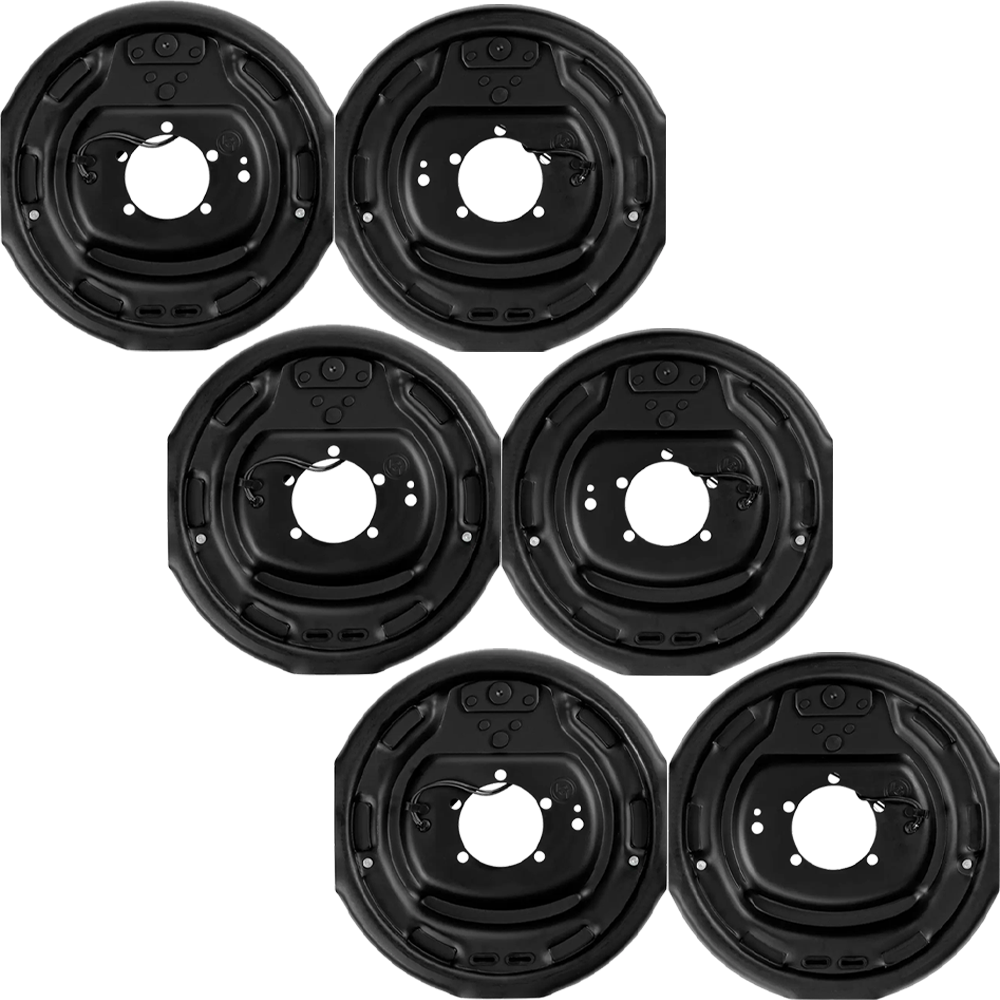

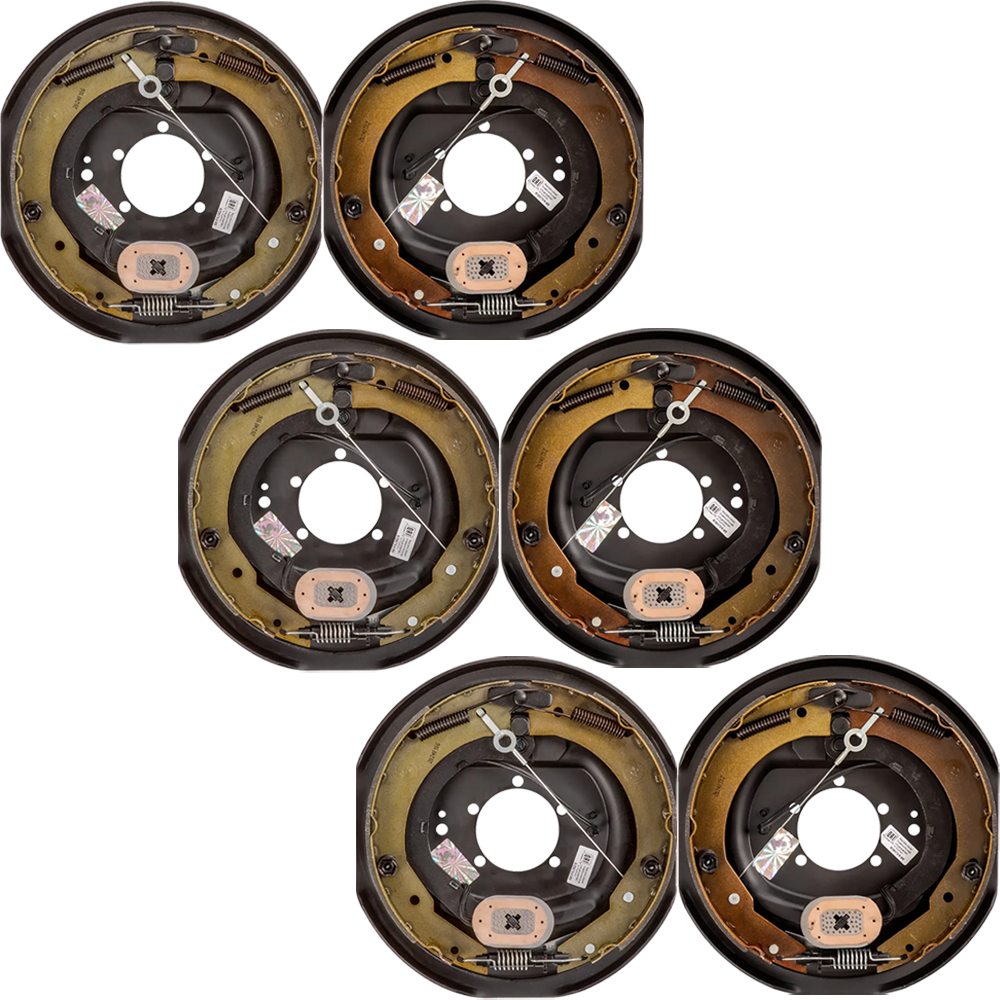

• QTY (3): Lippert 12″ × 2″ Forward Self-Adjusting Electric Brake Assembly – Left Hand (Road Side)
  • For 15″–17.5″ wheels; 5,200–7,000-lb & 8K hybrid axles
  • Five-bolt mounting; easy DIY install
  • Self-adjusting shoes maintain optimal clearance
  • Dexter compatible PN: K23-464-00 / 023-464-00
  • 1-year limited warranty
• QTY (3): Lippert 12″ × 2″ Forward Self-Adjusting Electric Brake Assembly – Right Hand (Curb Side)
  • Mirror-image fit for balanced braking on 15″–17.5″ wheels
  • Five-bolt mounting; plug-and-play wiring
  • Dexter compatible PN: K23-465-00 / 023-465-00
  • Keeps shoes adjusted automatically
  • 1-year limited warranty

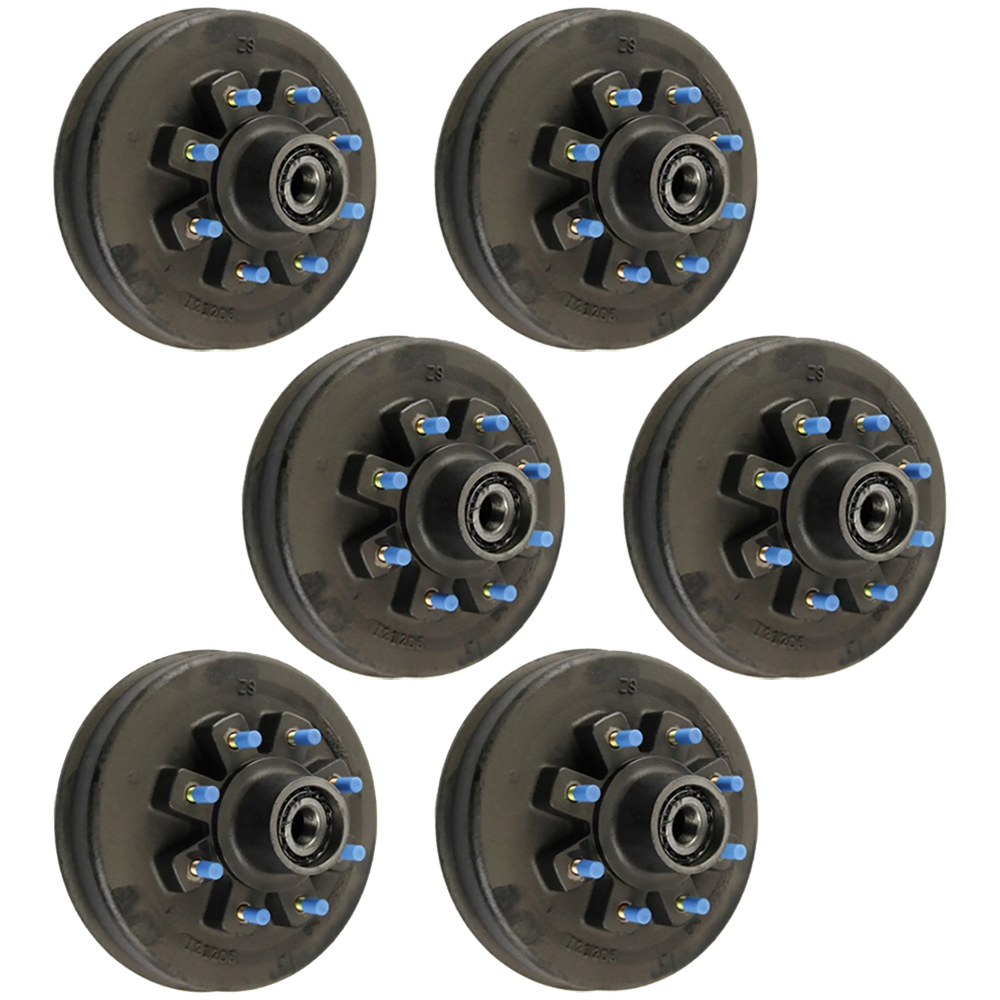

• QTY (6): Lippert Hybrid Brake Drum Hub Assembly – 12″ × 2″, 8-on-6.5″, 5/8″ Stud
  • Grey-iron hub-drum with bearing races & studs pre-installed
  • 8-on-6.5″ bolt pattern, 4.75″ hub pilot
  • Rated for 8,000-lb hybrid axles; 17.5″ single wheels
  • Limited 1-year warranty

Please verify fitment against your original equipment. Standard axles up to 7K and all 8K hybrid axles are supported. Inspect braking components regularly for safe, reliable towing.
