Lippert?12" Electric Brake Assemblies?&?8?on?6.5?Drum?Hub?Kit � Single?Axle?7K,?9/16"?Studs � Compatible with Dexter,?Alko?&?Quality?Axles

Lippert 12" Electric Brake & Drum Hub Bundle – Built for 7,000‑lb Single‑Axle Trailers

This convenient bundle pairs Lippert’s industry‑leading 12" electric brake assemblies with heavy‑duty 8‑on‑6.5" drum hubs and complete bearing kits. Perfect for refreshing or upgrading a 7K trailer axle, it delivers smooth stopping power, long‑lasting durability, and cross‑brand compatibility with Dexter, Alko and other quality axles.

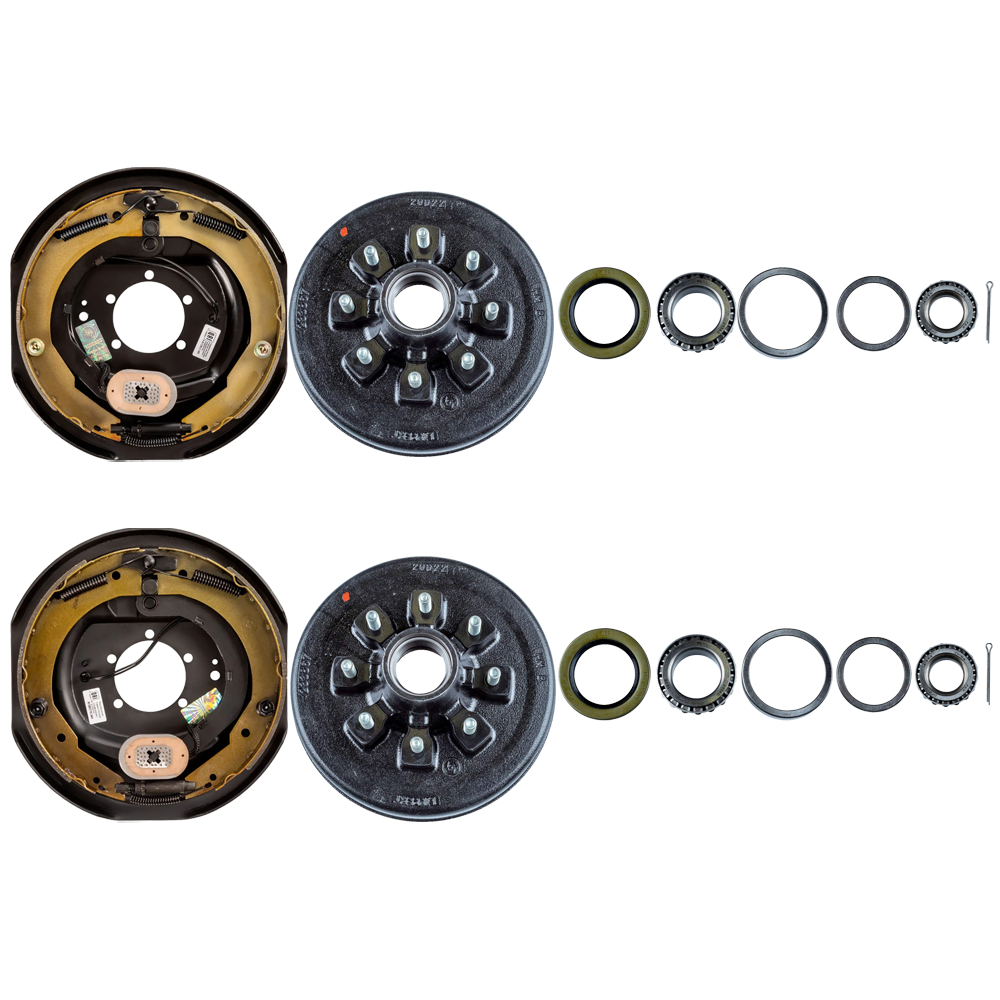

Bundle Contents:

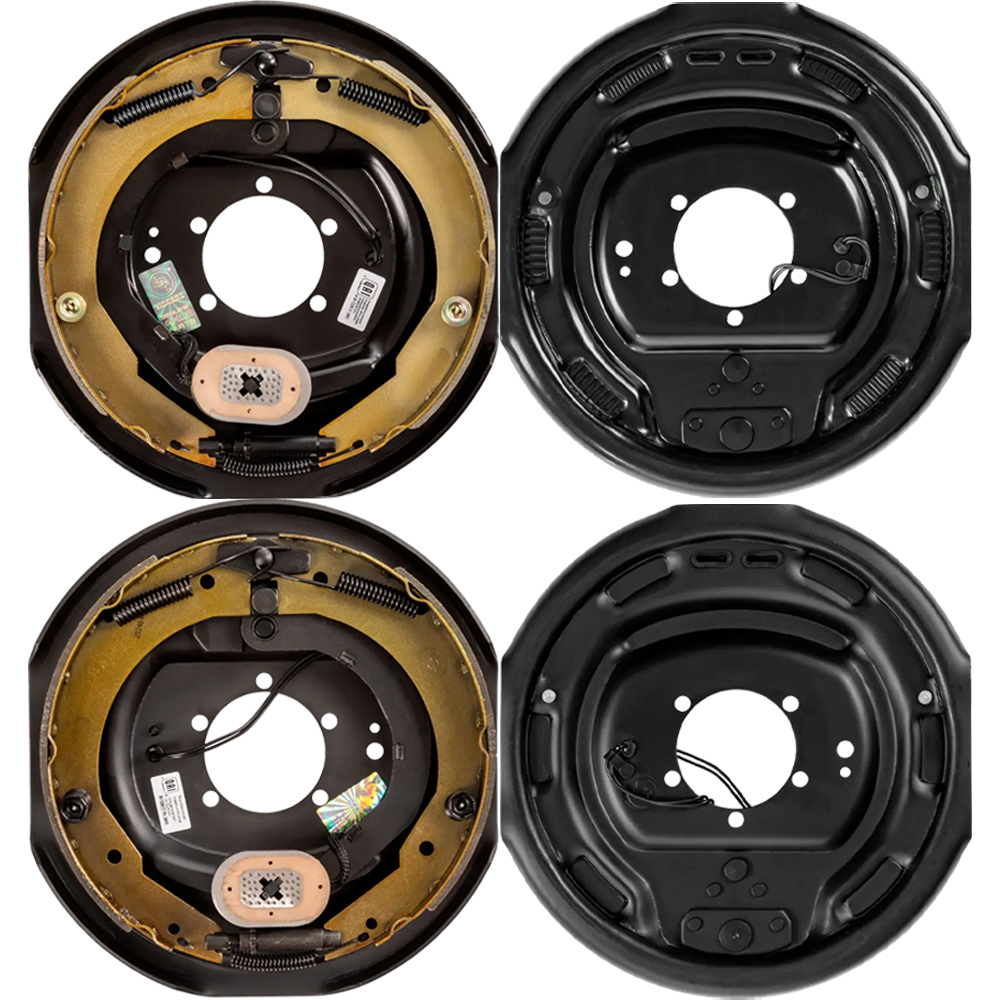

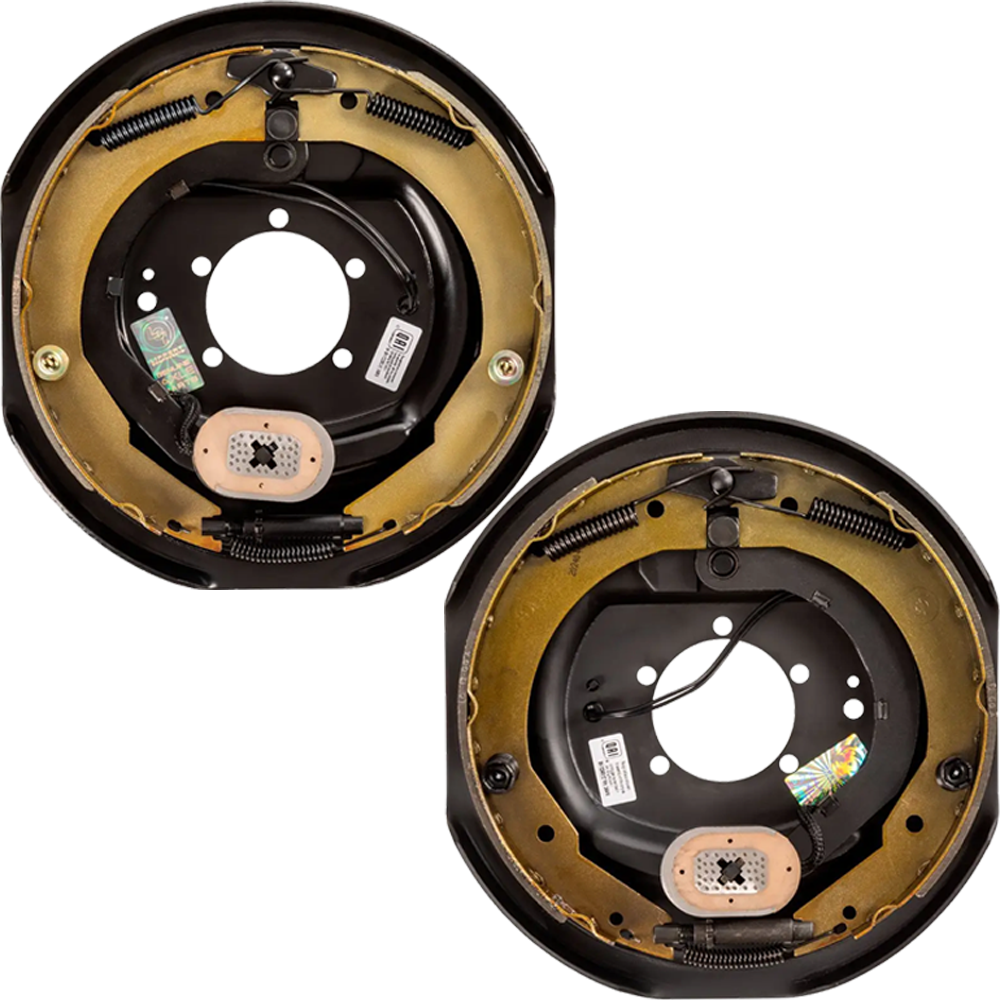

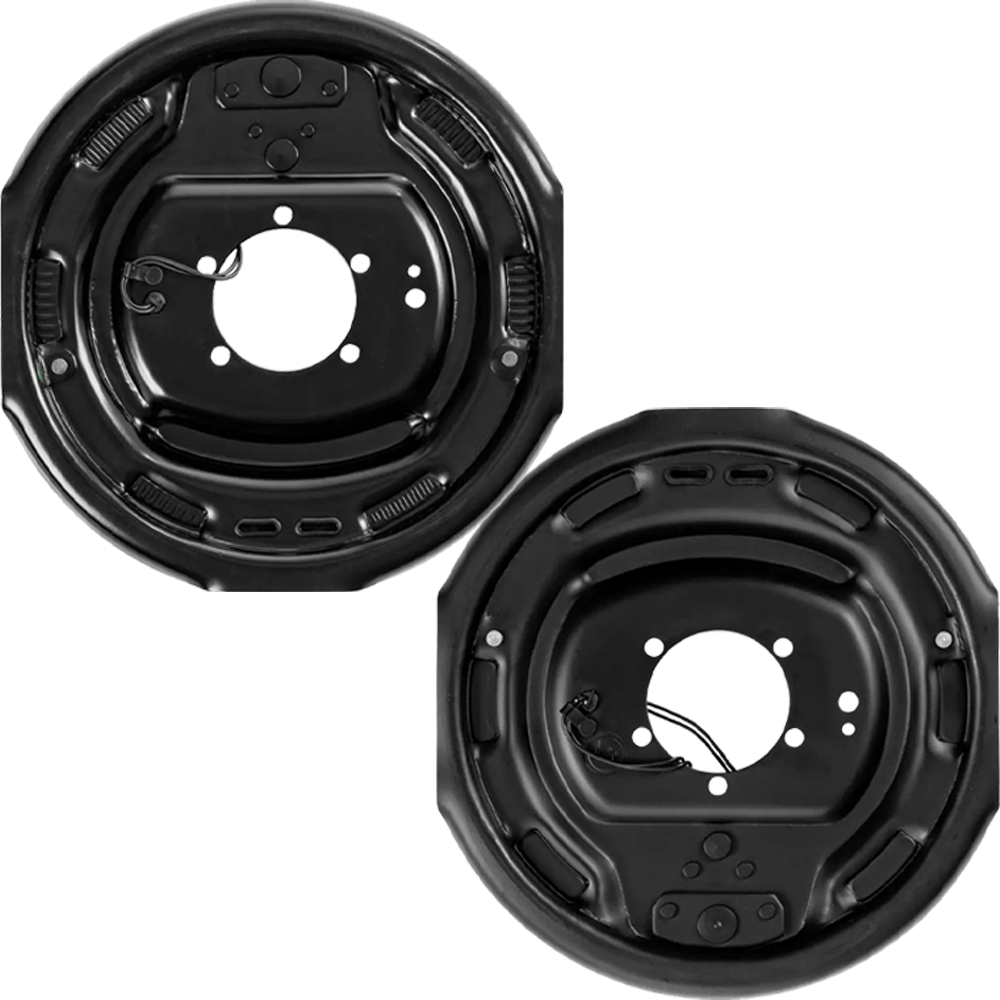

• QTY (1): Lippert 12" x 2" Electric Brake Assembly – Left‑Hand (Roadside)
  • Manual‑adjust electric brake with parking feature
  • 5‑bolt mount, fits 15"–17.5" wheels
  • Rated for 5,200–7,000 lb & 8,000 lb hybrid axles
  • Dexter compatible part numbers: K23‑180‑00, 023‑180‑00
• QTY (1): Lippert 12" x 2" Electric Brake Assembly – Right‑Hand (Curbside)
  • Mirror‑image unit of the left‑hand brake
  • Manual‑adjust; five‑bolt mounting pattern
  • For 15"–17.5" wheels, 5,200–7,000 lb axles
  • Dexter compatible part numbers: K23‑181‑00, 023‑181‑00

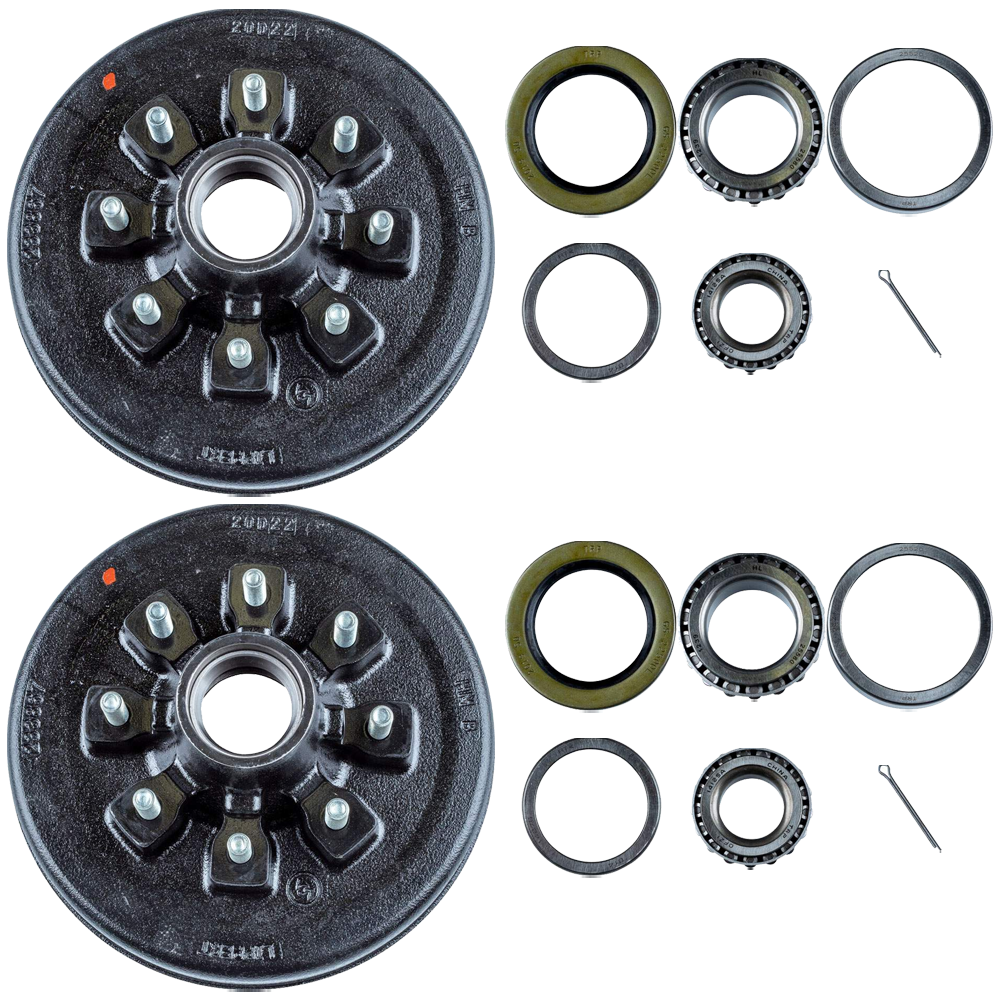

• QTY (2): Lippert 12" Drum Hub Assembly – 8 on 6.5", 9/16" Studs
  • Cast‑iron hub & drum rated for 7,000 lb axle
  • Dexter compatible part number: K08‑219‑9C
  • Wheel size range: 16"–17.5"
  • Lippert hub #134543 • Limited 1‑year warranty
  • Bearing Kit (bagged separately, one kit per hub) includes:
    • Inner Bearing Cone
    • Inner Bearing Cup
    • Outer Bearing Cone
    • Outer Bearing Cup
    • Cotter Pin
    • Double‑Lip Grease Seal

Always verify your existing axle specs before ordering and perform routine inspections to keep your trailer braking system in peak condition.
