Lippert 12" Electric Brake & Hybrid Hub-Drum Kit � 8-on-6.5", 7K Standard / 8K Hybrid Axle, 5/8" Studs, LH/RH Pair � Compatible with Dexter | Alko | Rockwell

Lippert 12" Electric Brake & Hybrid Hub-Drum Kit for 7K Standard or 8K Hybrid Axles

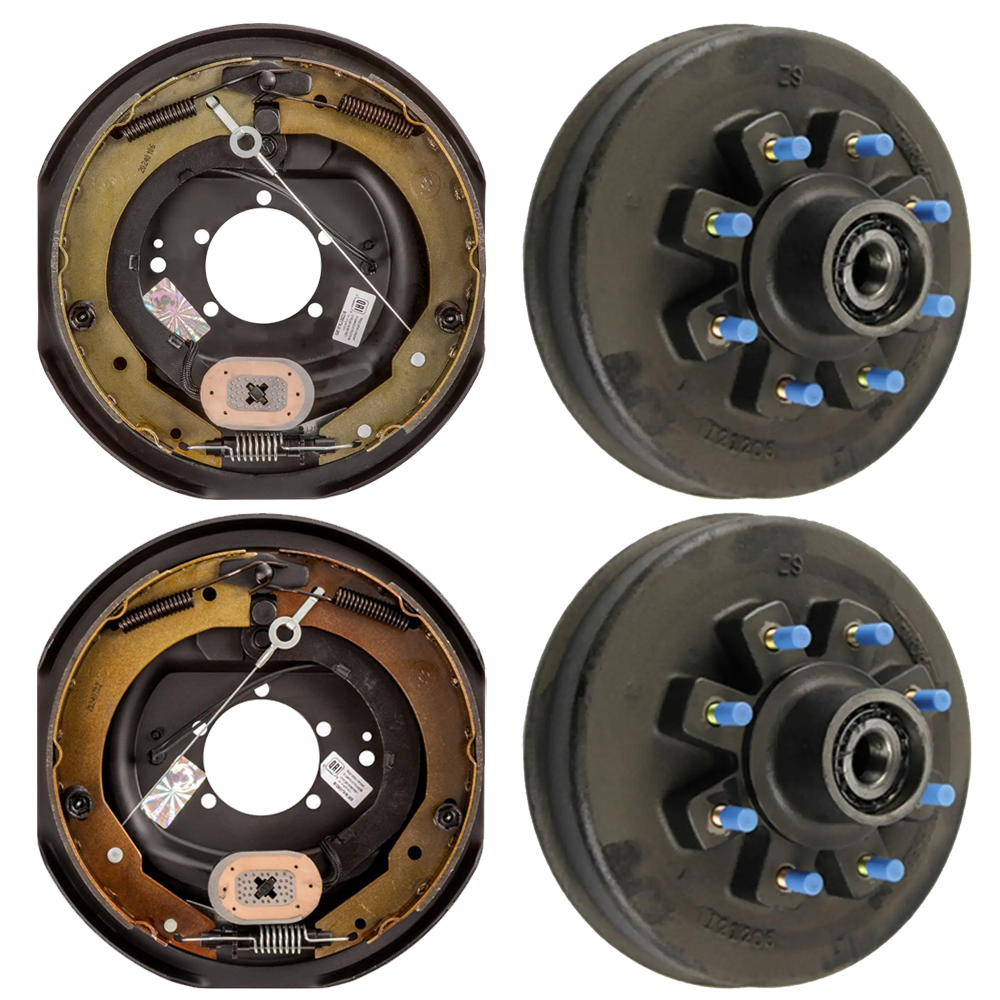

Service or upgrade your single 8-lug axle with this all-in-one Lippert bundle. It delivers left- and right-hand forward-self-adjusting electric brakes plus two heavy-duty hybrid hub-drums. Axle Rating: 7,000 lbs when installed on conventional 7K axles – OR 8,000 lbs when used on Lippert/Dexter 8K Hybrid axles designed for 12" × 2" brakes with larger bearings and 5/8" studs.

Bundle Contents:

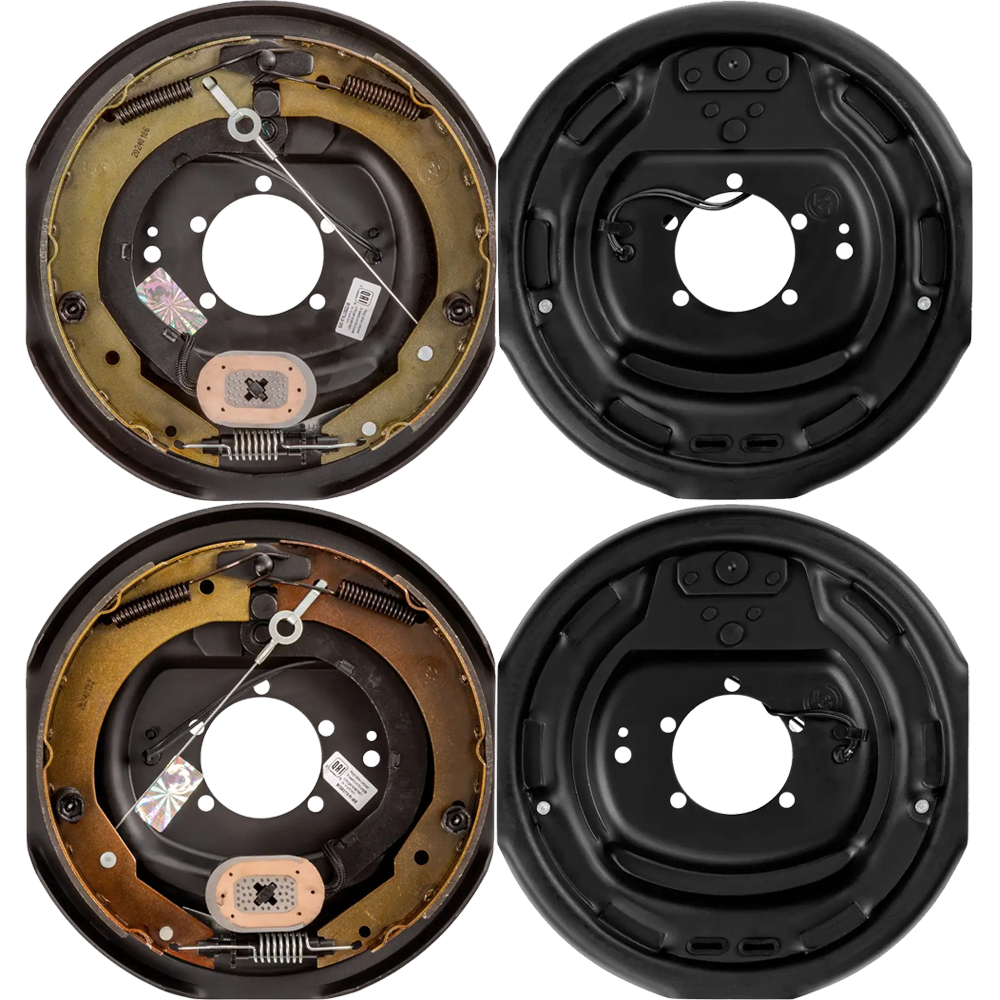

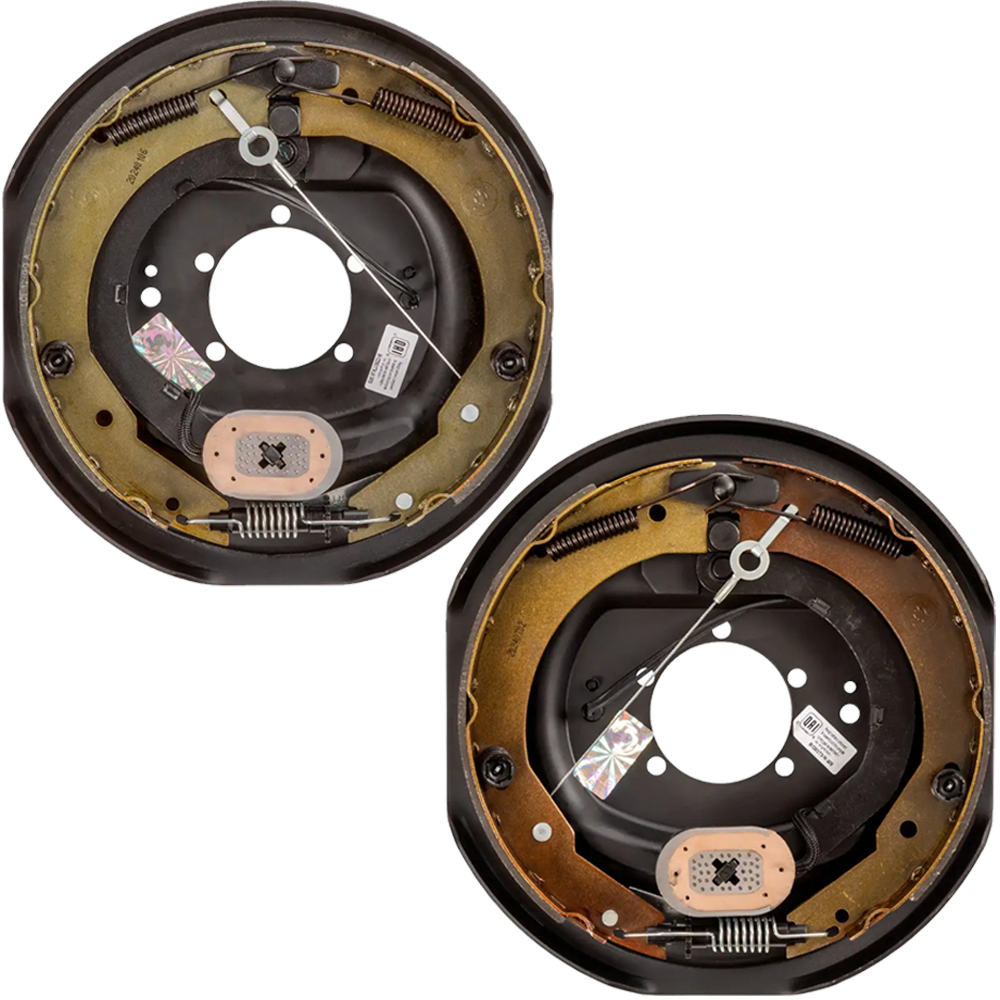

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12" × 2", 7K (Left-Hand)
  • Road-side (LH) electric brake; forward self-adjusting shoes
  • Fits 15"–17.5" wheels; 12" × 2" drum surface
  • Rated for 5.2K–7K & 8K hybrid axles

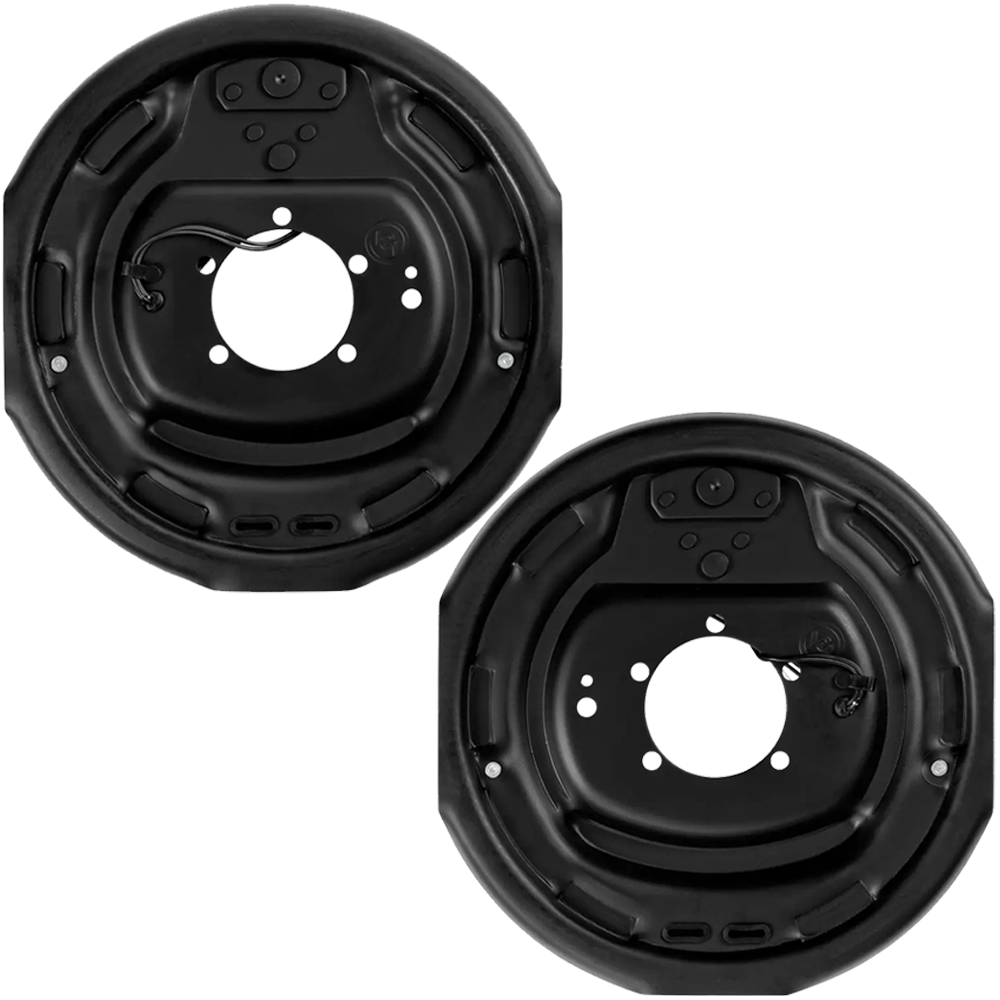

  • Five-bolt brake-flange pattern; quick DIY install
  • Dexter compatible part numbers: K23-464-00 | 023-464-00
  • 1-year limited warranty
• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12" × 2", 7K (Right-Hand)
  • Curb-side (RH) electric brake; forward self-adjusting shoes
  • Fits 15"–17.5" wheels; 12" × 2" drum surface
  • Rated for 5.2K–7K & 8K hybrid axles
  • Five-bolt brake-flange pattern; easy replacement
  • Dexter compatible part numbers: K23-465-00 | 023-465-00
  • 1-year limited warranty

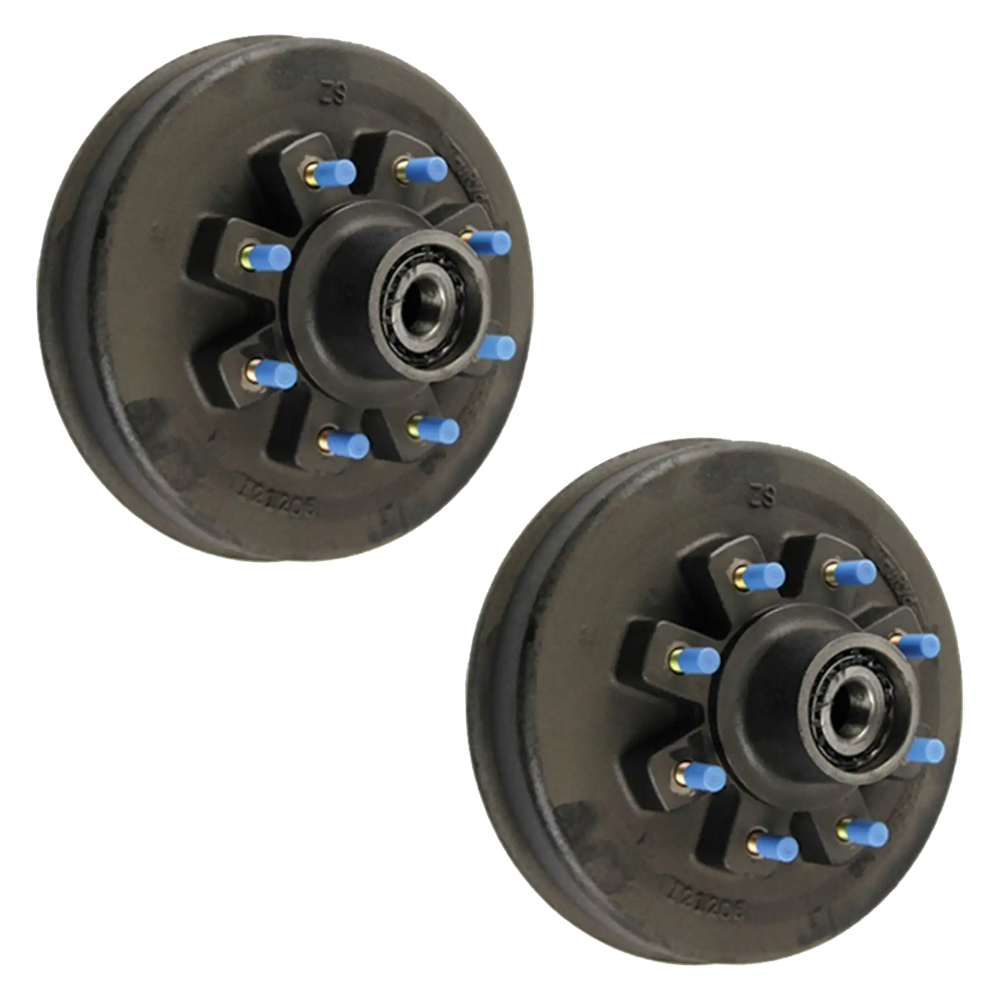

• QTY (2): Lippert Brake Drum Hub Assembly – 8-on-6.5", 5/8" Stud, 12" × 2"
  • Durable grey-iron hub with integrated 12" drum
  • 8-on-6.5" bolt circle, 4.75" hub pilot, 5/8" studs
  • Engineered for 8,000-lb hybrid axles; fits 17.5" wheels
  • Includes bearing races & wheel studs installed
  • 1-year limited warranty

Recommendation: Verify axle ratings, bolt patterns and wheel sizes before purchase. Perform regular inspections, torque checks and lubrication to maximize safety and component life.
