Lippert?12? Electric Brake?&?Threaded?Hybrid?Hub?Drum Kit � 8?on?6.5?, 7K / 8K?Hybrid Tandem?Axle 4?Wheel Set (Dexter,?Alko,?Rockwell Compatible,?9/16??Studs)
$746.99

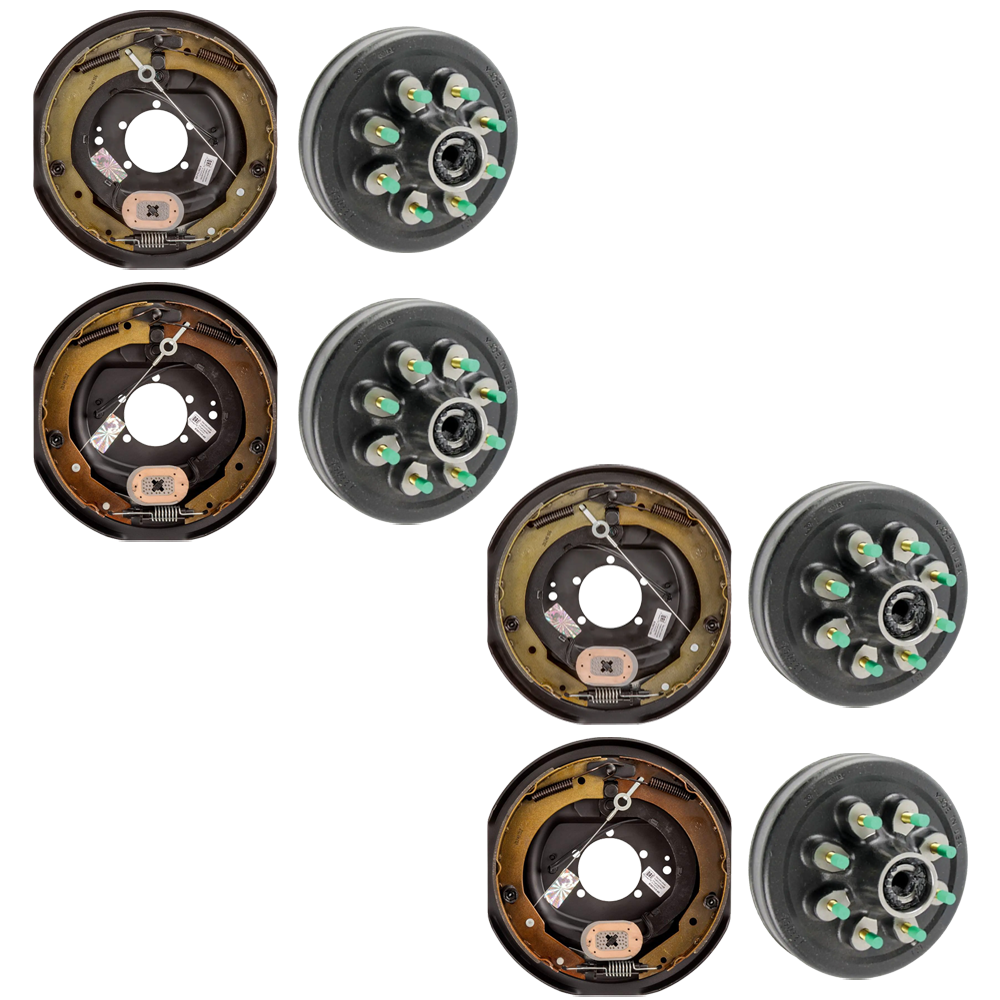

Lippert 8K‑Hybrid / 7K Tandem‑Axle 12″ Brake & Threaded Hybrid Hub‑Drum Bundle
This complete Lippert bundle combines forward self‑adjusting 12″ electric brakes with rugged threaded hybrid hub‑drums to give your heavy‑duty tandem‑axle trailer smoother, more consistent stopping power. The 12″ × 2″ brakes are rated up to 7,000 lbs on conventional axles and are also approved for 8,000‑lb hybrid axles that use 12″ brakes. Paired with 8K‑rated hub‑drums, this kit delivers OEM‑grade performance that fits Lippert, Dexter, Alko, Rockwell and other quality axles sharing the popular 8‑on‑6.5″ pattern.
Bundle Contents:
-

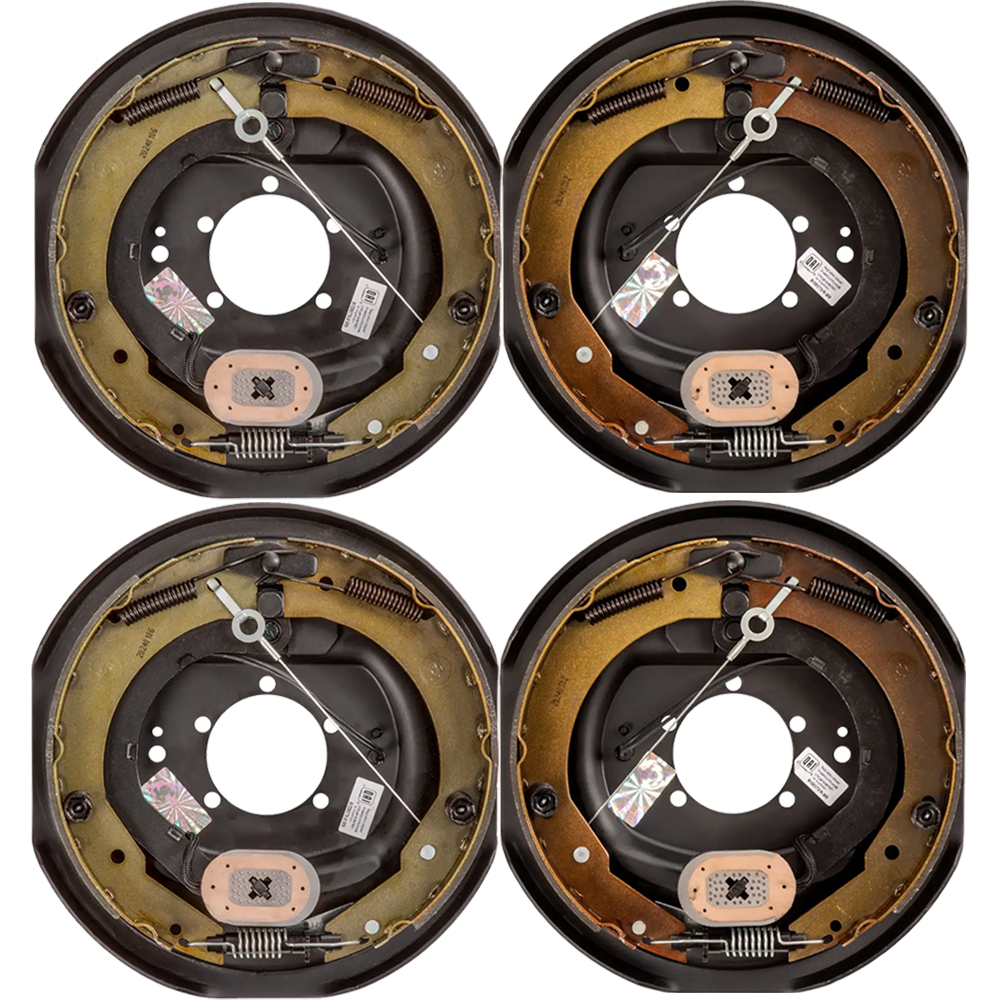

QTY (2): Lippert Forward Self‑Adjusting 12″ × 2″ Electric Brake Assembly – Left‑Hand, 7K
- Road‑side (LH) replacement brake
- Self‑adjusting forward‑design for even wear
- Fits 15″–17.5″ wheels; 5‑bolt brake flange
- Rated for 5.2K–7K axles & 8K hybrid axles
- Dexter compatible PN: K23‑464‑00 | 023‑464‑00
- DIY install; 1‑year Lippert warranty
-
QTY (2): Lippert Forward Self‑Adjusting 12″ × 2″ Electric Brake Assembly – Right‑Hand, 7K
- Curb‑side (RH) replacement brake
- Self‑adjusting – no periodic manual tuning
- Fits 15″–17.5″ wheels; 5‑bolt brake flange
- Rated for 5.2K–7K axles & 8K hybrid axles
- Dexter compatible PN: K23‑465‑00 | 023‑465‑00
- Easy bolt‑on install; 1‑year Lippert warranty
-

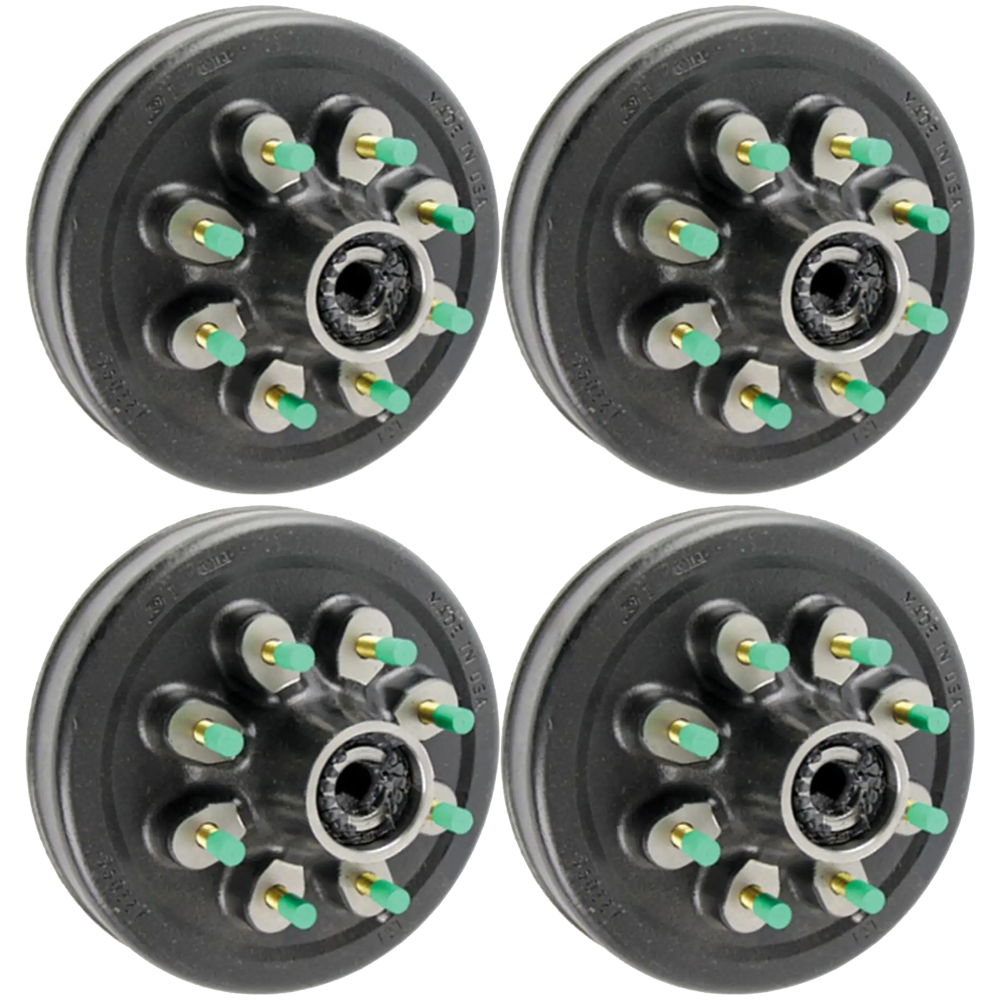

QTY (4): 12″ Threaded Hybrid Trailer Brake Hub‑Drum – 8K, 8‑on‑6.5″, 9/16″ Studs
- Integrated hub & drum for electric or hydraulic brakes
- 8,000 lb axle capacity; 12″ drum diameter
- 8‑on‑6.5″ bolt pattern with 9/16″ pre‑installed studs
- Races and wheel studs ship pre‑installed
- Accepts Valcrum threaded dust caps; cast‑iron construction
- Universally compatible with Dexter; 1‑year warranty
Always verify bolt pattern, stud size, and axle rating before ordering. Torque lugs per manufacturer specs and service bearings routinely for maximum safety and longevity.
| Specifications: | |
|---|---|
| Kit Type | Complete Tandem‑Axle Brake & Threaded Hybrid Hub‑Drum Kit |
| Axle Rating | Up to 7,000 lbs per axle (approved for 8,000‑lb hybrid axles using 12″ × 2″ brakes) |
| Brake Drum Dimensions | 12″ diameter × 2″ shoe width |
| Brake Mounting Pattern | 5‑bolt brake flange |
| Hub Bolt Pattern | 8 on 6‑1/2″ |
| Hub Type | Threaded Hybrid Hub with Integrated Drum |
| Stud Size | 9/16″ |
| Type of Adjustment | Forward Self‑Adjusting (Nev‑R‑Adjust) |
| Brake Location | Includes LH (road) & RH (curb) assemblies |
| Wheel Size Compatibility | Brakes – 15″–17.5″ | Hub‑Drum – 16″–17.5″ |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
