Lippert 12" Left‑Hand Electric Brake & 6‑on‑5.5" Hub Drum Kit – 6,000‑lb Axle, 1/2" Stud

Refresh your trailer’s stopping power with this genuine Lippert replacement bundle. The manual‑adjust 12" x 2" electric brake assembly teams with a factory‑assembled 12" hub‑and‑drum so you can service both critical wear parts in one install—ideal for 6,000‑lb axles used on RVs, utility, equipment and livestock trailers.

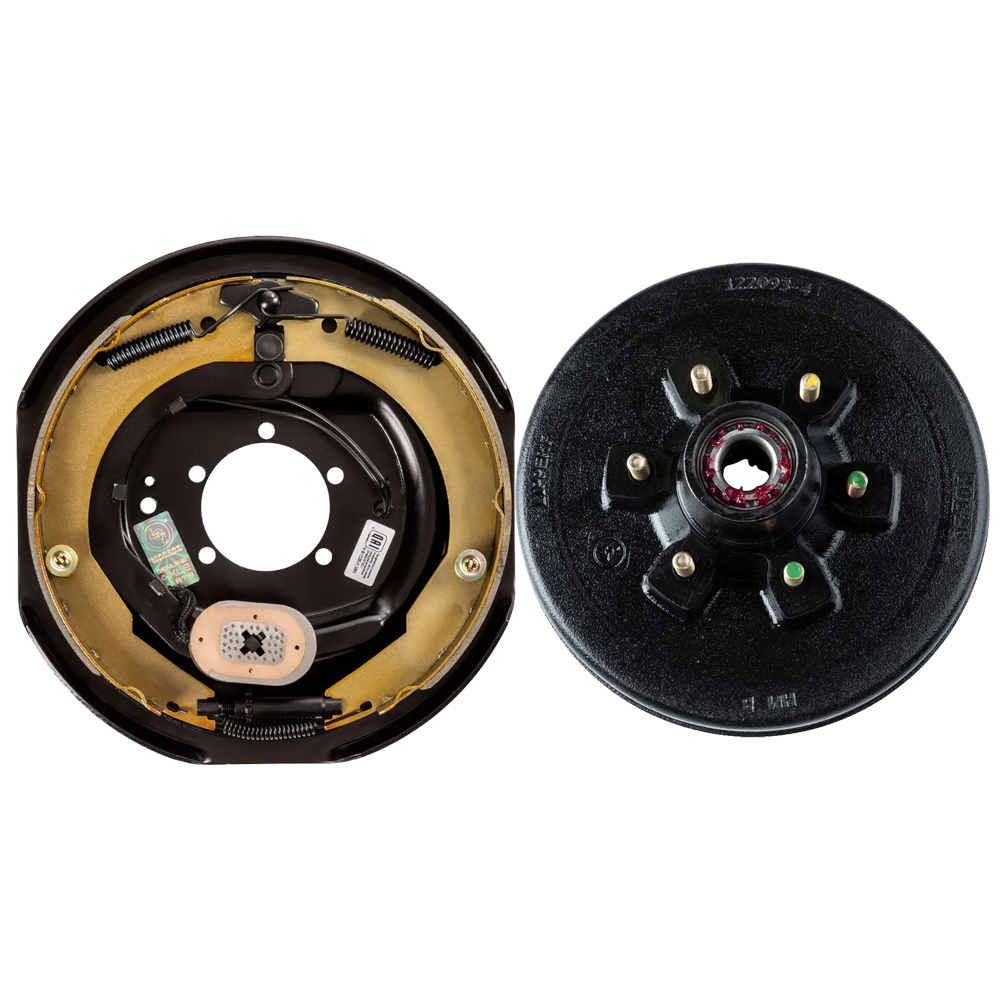

Bundle Contents:

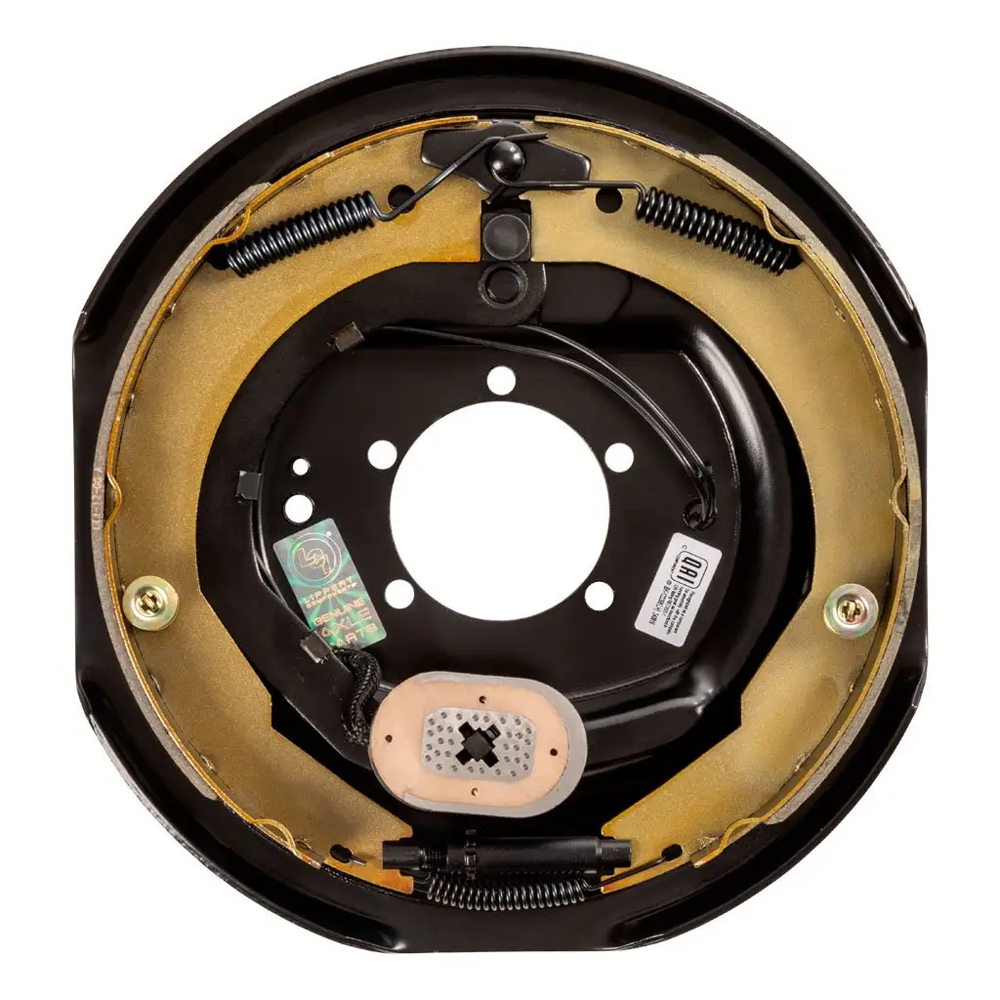

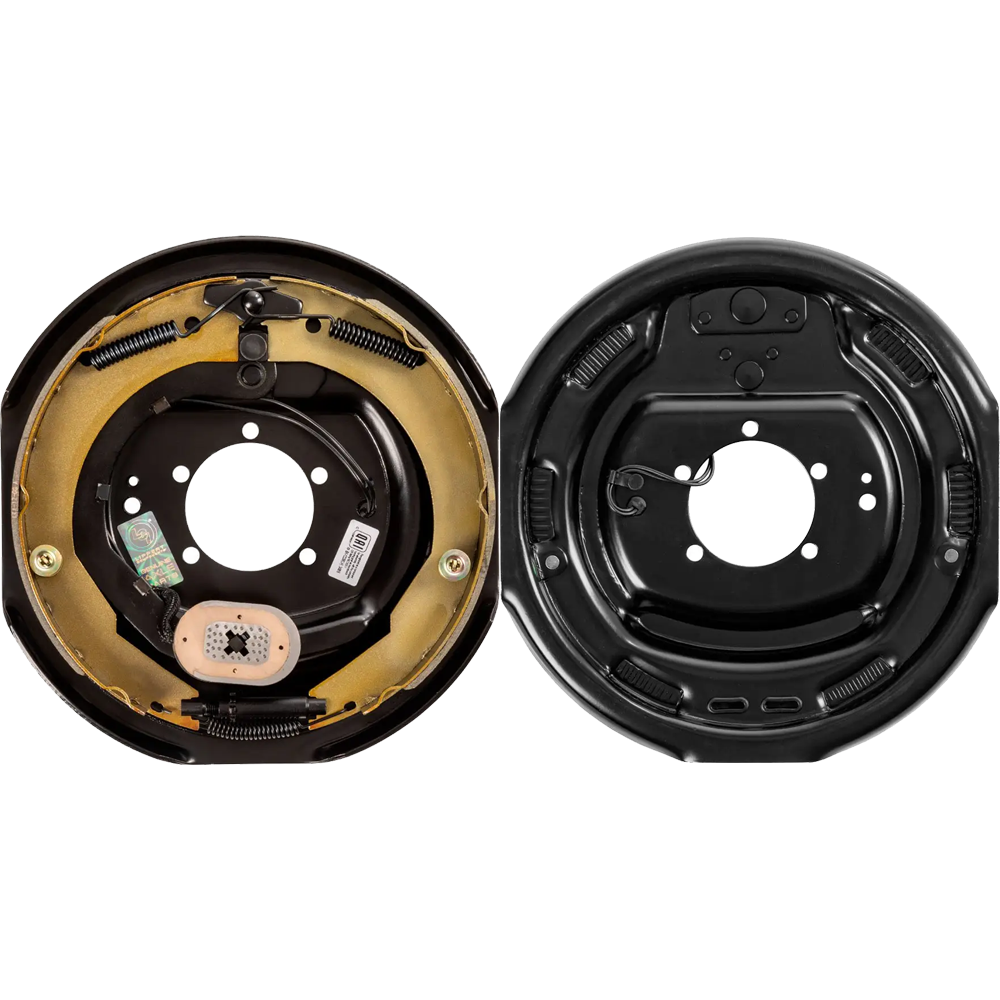

• QTY (1): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Left Hand
  • Replaces worn electric brakes on 4,000‑7,000‑lb axles
  • Manual adjuster lets you fine‑tune braking force
  • Standard 4‑bolt mounting flange for quick DIY install
  • Dexter‑compatible P/N: K23‑180‑00 | 023‑180‑00
  • Road‑side (left‑hand) orientation • 1‑year limited warranty

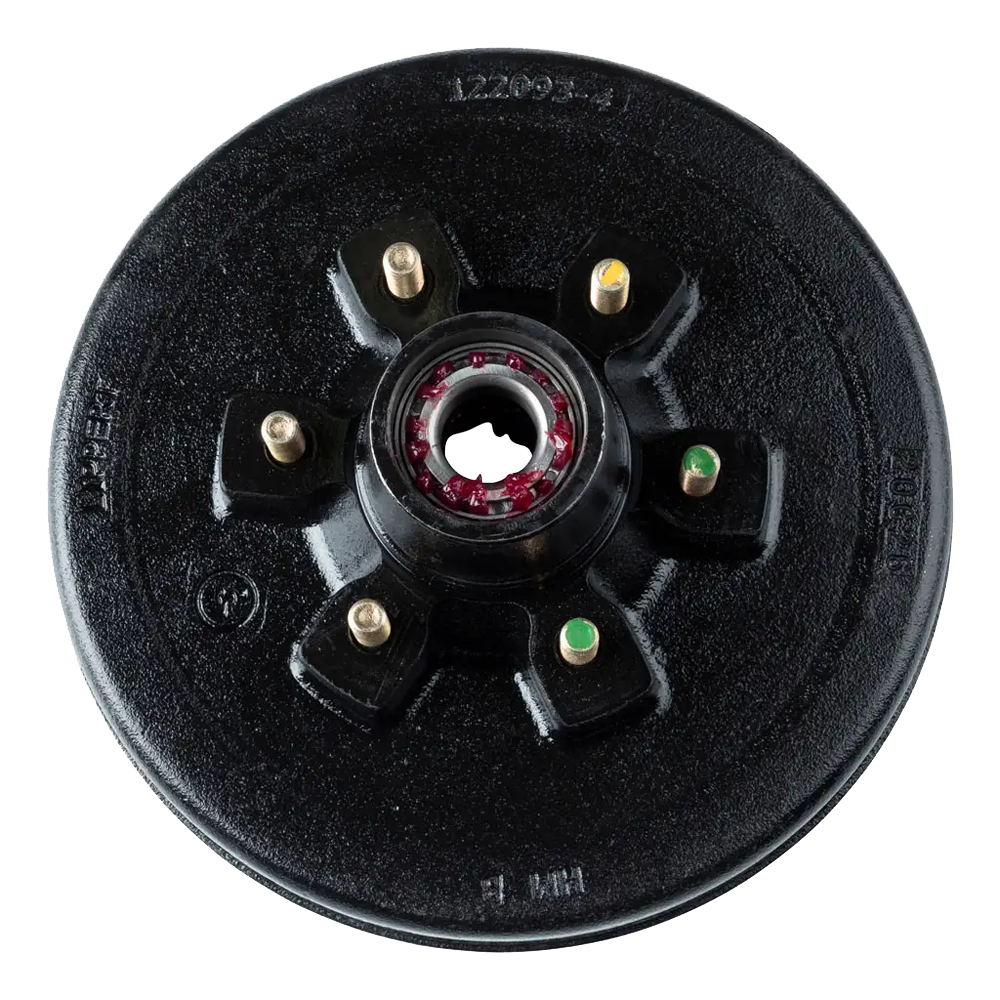

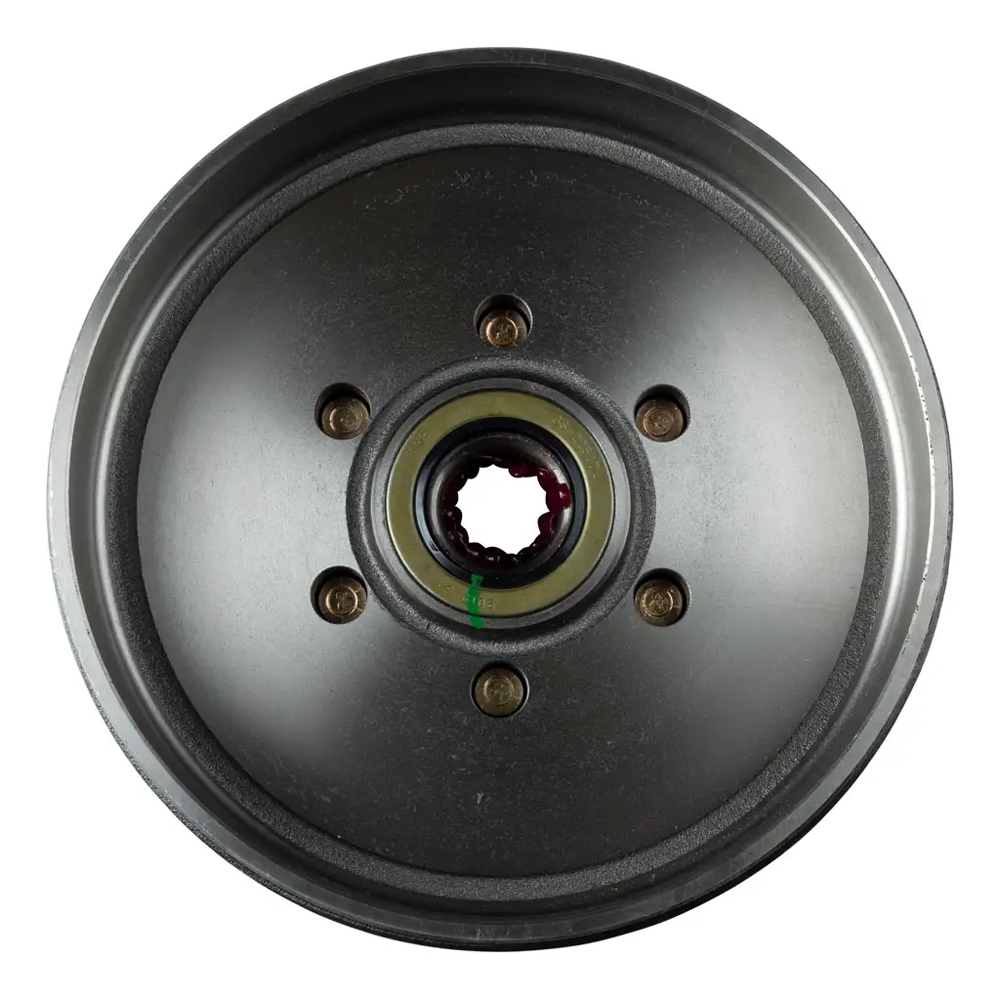

• QTY (1): Lippert 6‑on‑5.5" Hub & Drum – 6,000‑lb Axle, 1/2" Stud (Fully Assembled)
  • Cast‑iron hub with integral 12" brake drum — ships fully assembled
  • Inner & outer bearing cones, grease seal and high‑temp grease pre‑installed at the factory
  • 6 on 5.5" bolt circle with 1/2" press‑in studs
  • Fits 14.5" – 16.5" trailer wheels • axle rating: 6,000 lbs
  • Replaces Lippert brake‑hub assembly #122463 (part #814202)
  • Limited 1‑year warranty

Always verify part numbers and dimensions against your original equipment and perform routine maintenance for safe, dependable operation.
