Lippert?12? Left?Hand Electric Brake Assembly & 8?on?6.5? Hub?Only Drum Kit, 7?K Axle, 9/16? Studs � Dexter &?Al?Ko Compatible

Lippert 12″ LH Electric Brake + 8‑on‑6.5″ Hub‑Only Drum Kit – 7 K Axle, 9/16″ Studs

Refresh your trailer’s stopping power with this convenient Lippert bundle. It pairs a genuine 12″ left‑hand manual‑adjust electric brake assembly with a rugged threaded‑hybrid hub‑only drum. Rated for up to 7,000 lb axles (the hub itself is 8 K for extra margin), the kit drops straight into Dexter, Al‑Ko and other popular axle setups.

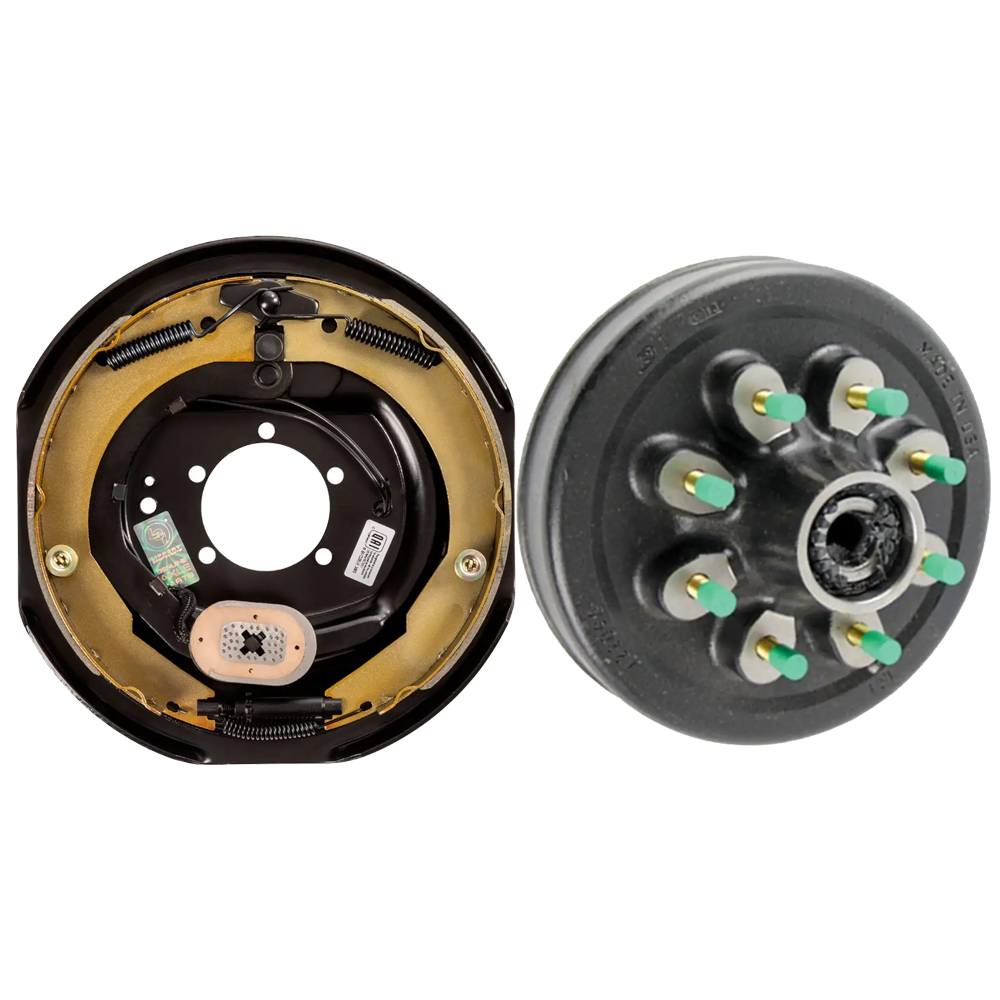

Bundle Contents:

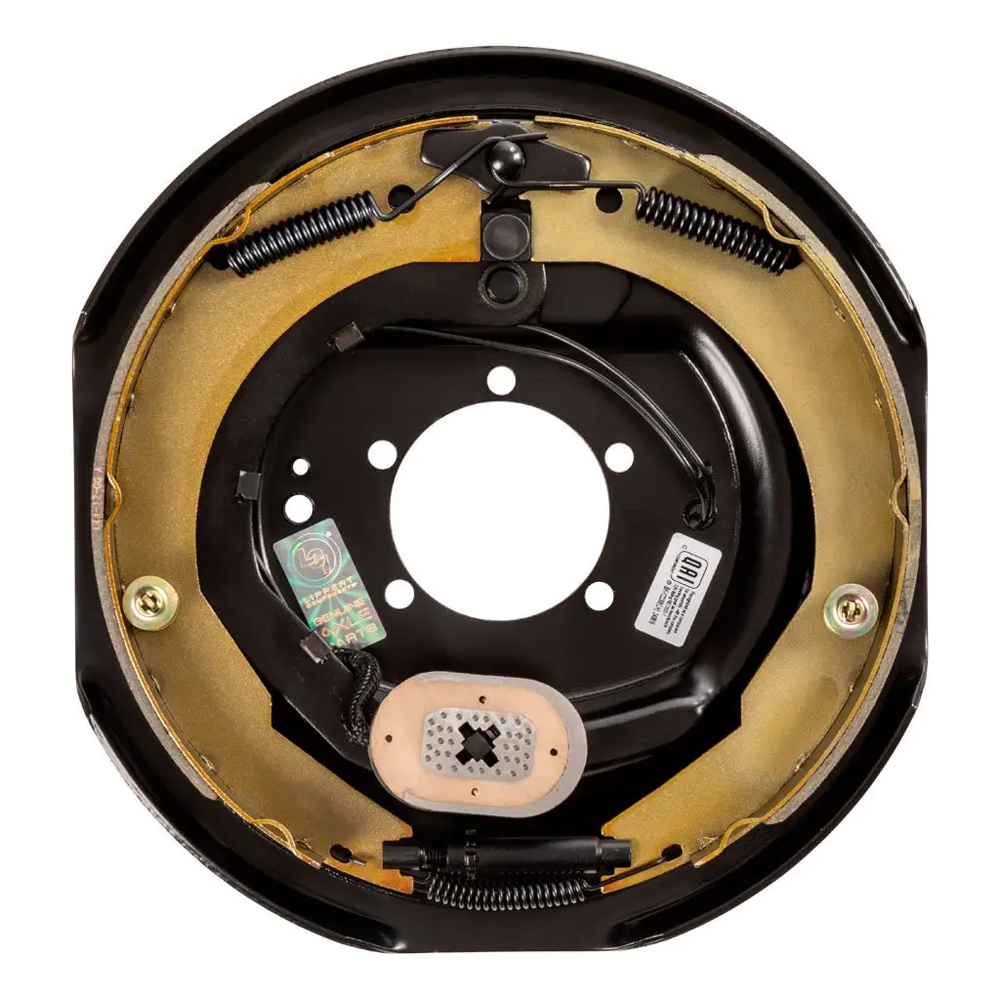

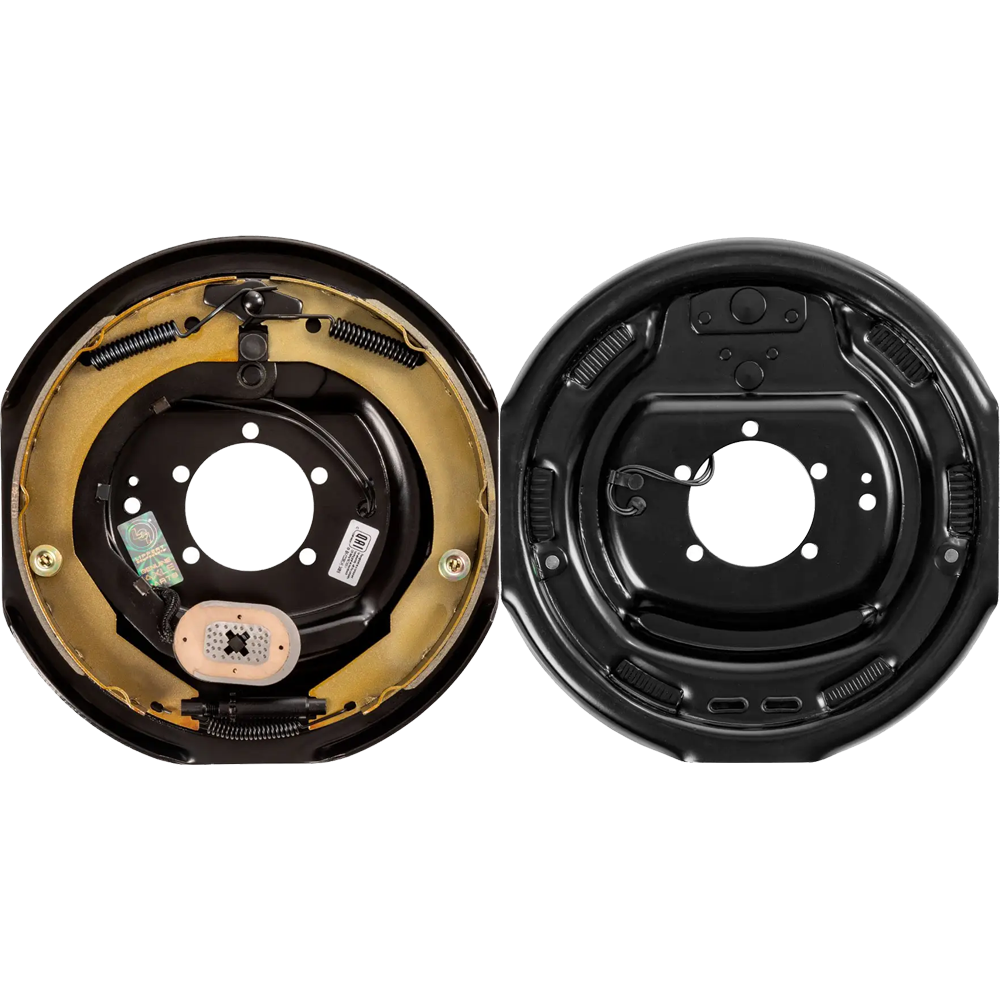

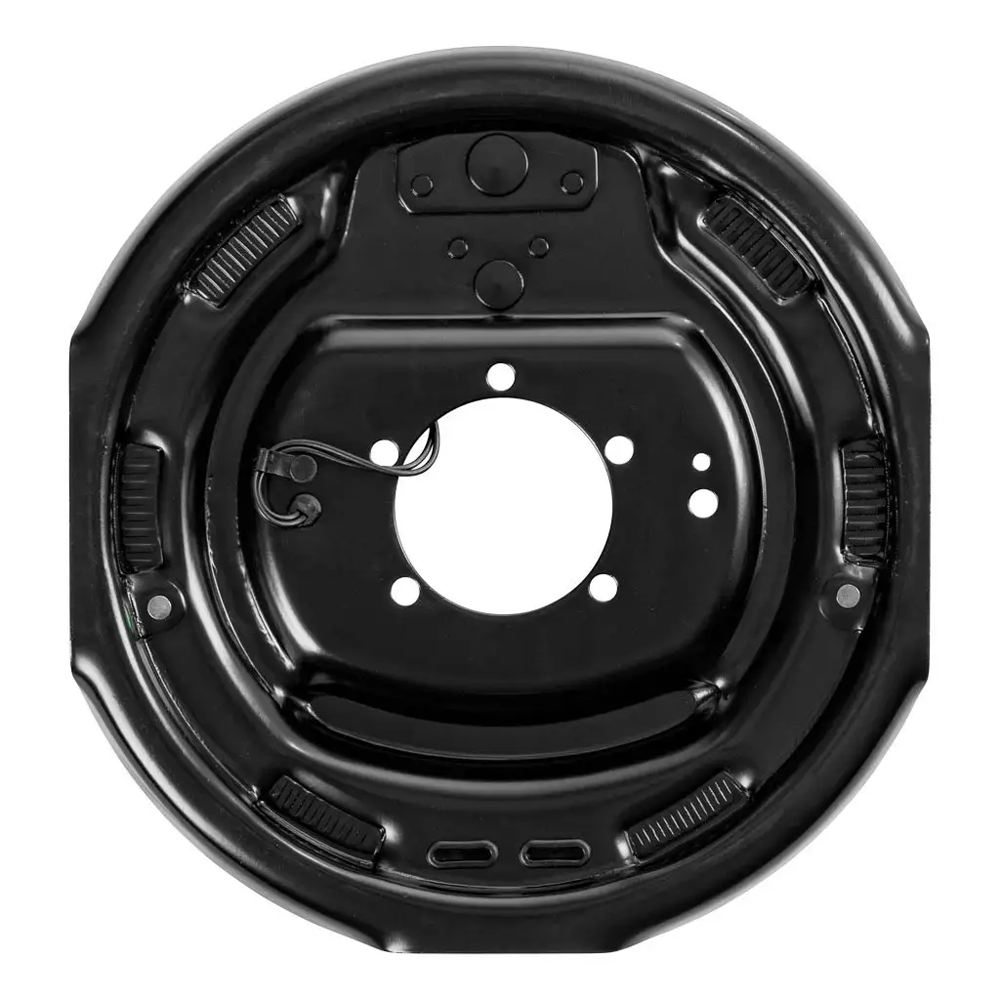

• QTY (1): Lippert 12″ × 2″ Left‑Hand Electric Brake Assembly
  • Manual‑adjust design for precise brake tuning
  • 4‑bolt mounting pattern; fits 4 K – 7 K axles
  • Road‑side (driver‑side) configuration
  • Dexter Compatible PN: K23‑180‑00 / 023‑180‑00
  • Pre‑wired magnet lead for easy DIY install
  • Lippert OEM part backed by 1‑year warranty

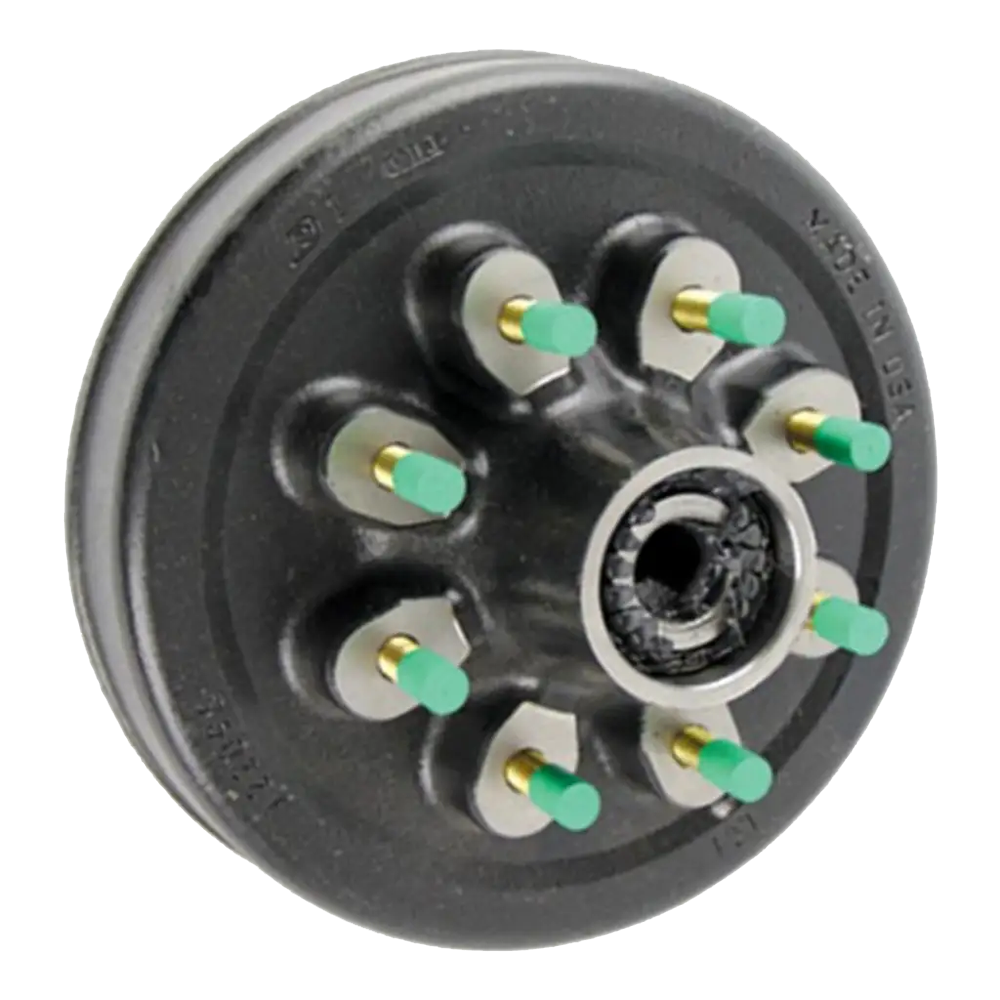

• QTY (1): 12″ Threaded Hybrid Hub‑Only Drum – 8 on 6‑1/2″, 9/16″ Studs
  • Engineered for 8,000 lb capacity (bundle limited to 7 K by brake)
  • 8 on 6‑1/2″ bolt circle with pre‑installed 9/16″ wheel studs & races
  • Accepts electric or hydraulic 12″ × 2″ shoes
  • Cast‑iron, threaded‑hybrid design accepts Valcrum dust caps
  • Universally compatible with Dexter, Al‑Ko & Lippert axles
  • Backed by a 1‑year warranty

Tip: Match replacement parts to your original equipment, torque lug nuts after 50 miles, and service brakes & bearings on schedule for peak performance.
