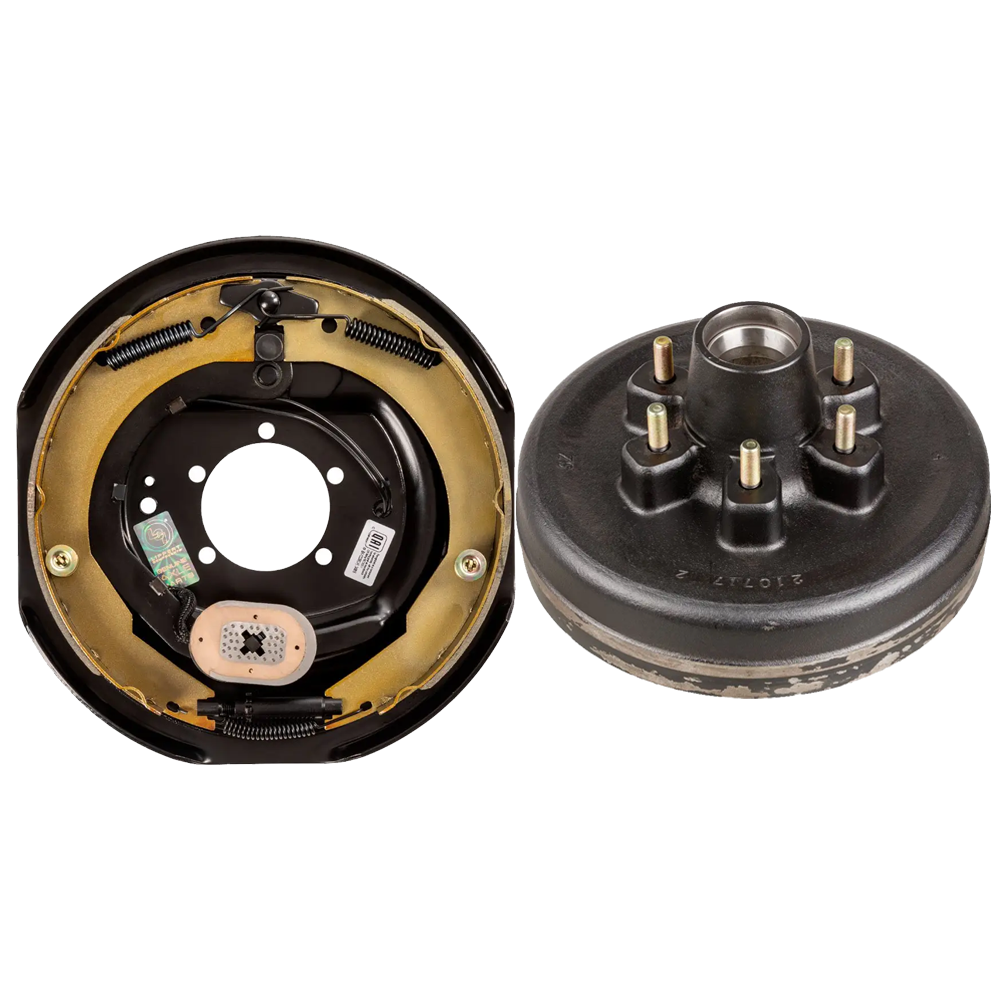

Lippert 12" Left‑Hand Electric Brake & 6‑on‑5.5 Hub‑Only Drum Kit
Refresh your trailer’s stopping power with this convenient Lippert service bundle. It pairs a premium 12" left‑hand electric brake assembly with a matching 6‑on‑5.5 hub‑only drum so you can restore one 6,000‑lb axle quickly, confidently, and at a cost‑saving bundle price.
Bundle Contents:
-

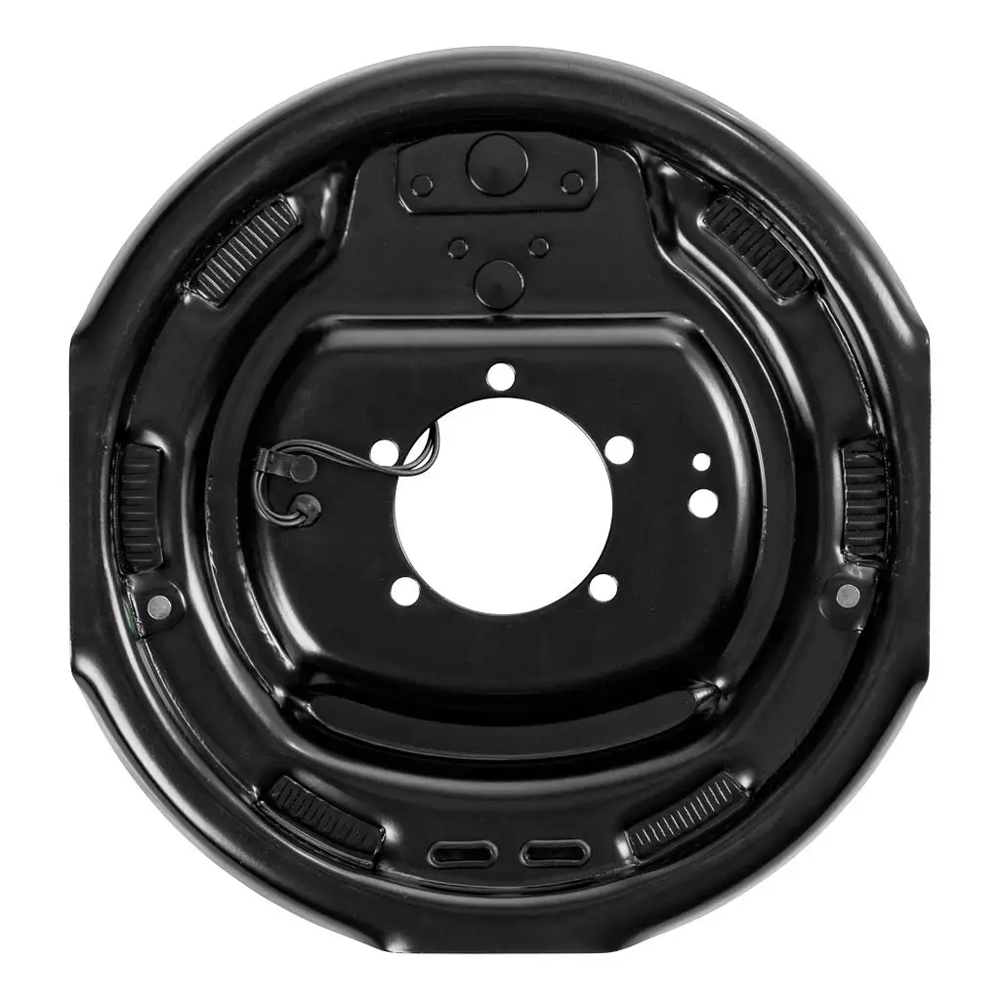

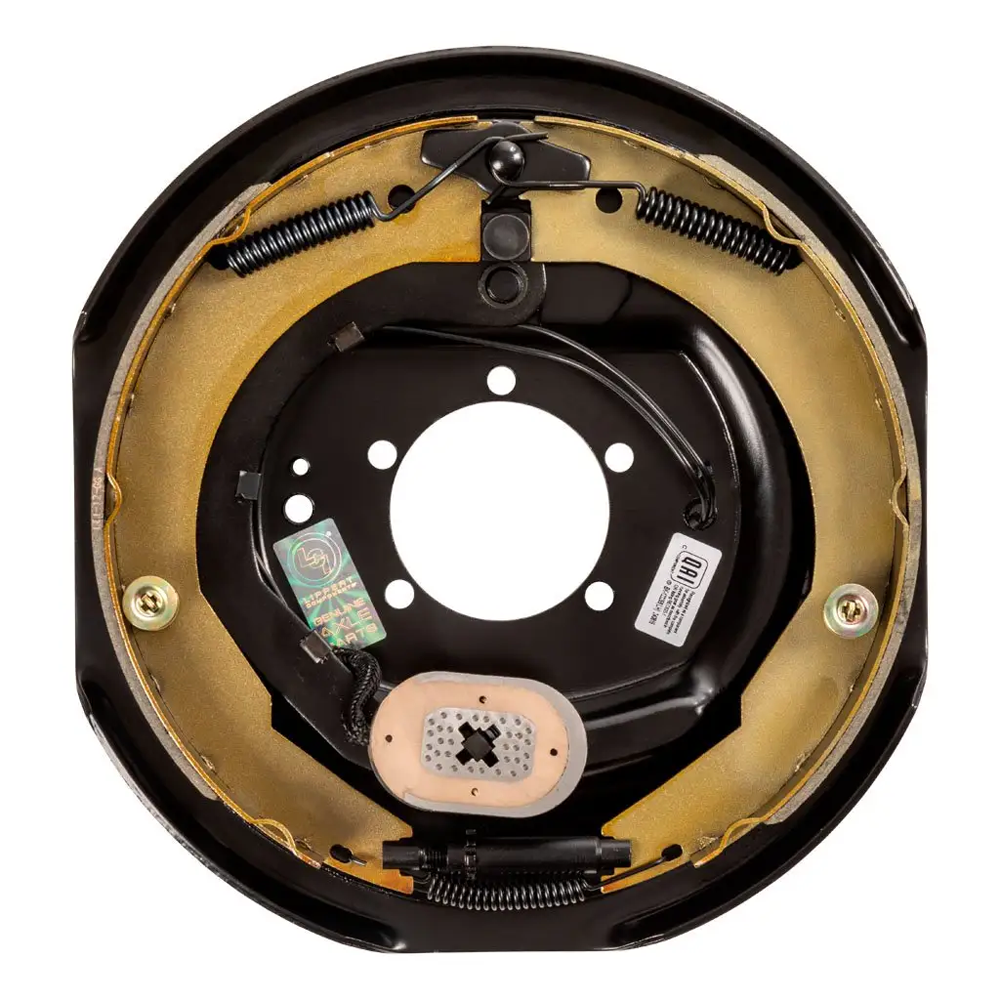

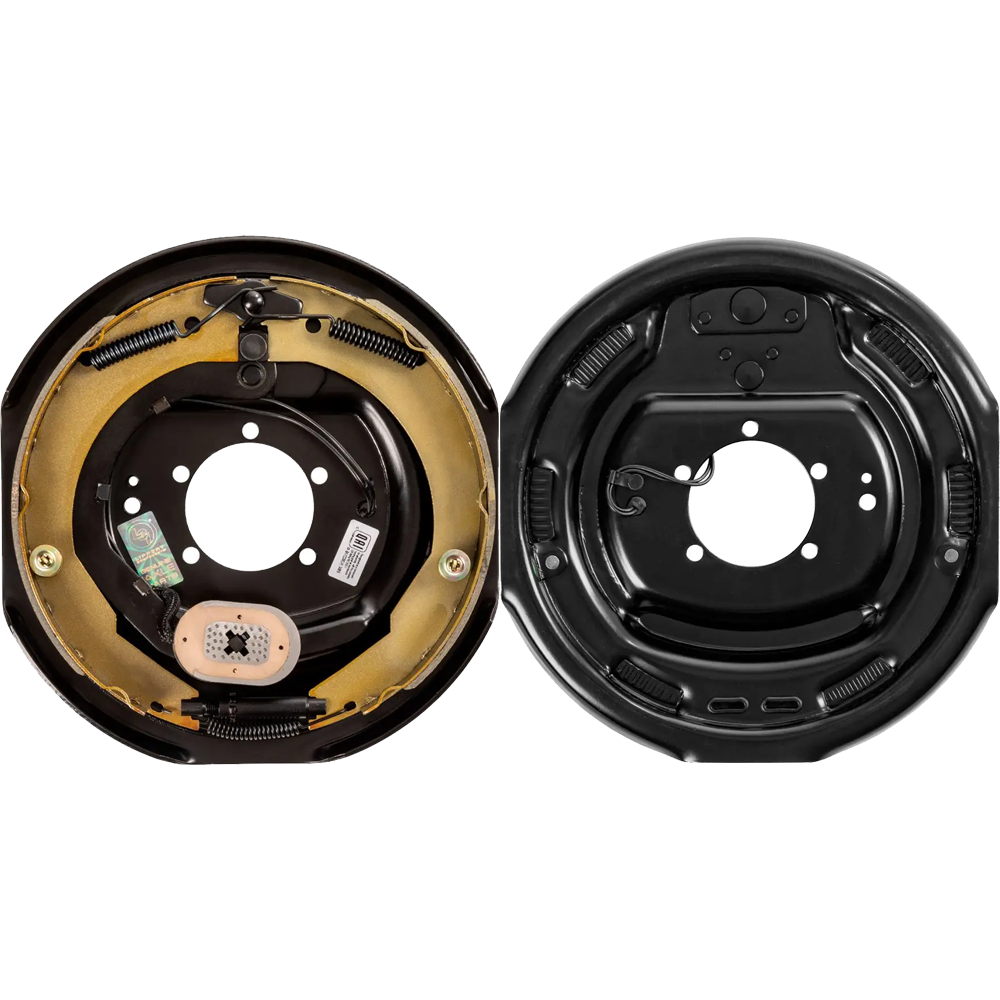

QTY (1): Lippert 12" x 2" Left‑Hand Electric Brake Assembly (4,000‑7,000 lb)
- Manual‑adjust replacement electric brake with parking lever
- 5‑bolt mounting; installs on roadside only
- Fits 5,200‑7,000 lb & 8,000 lb hybrid axles
- Works with 15" – 17.5" wheels
- Dexter compatible P/N: K23-180-00 | 023-180-00
- 12" x 2" shoe size; break‑in required for full performance
-

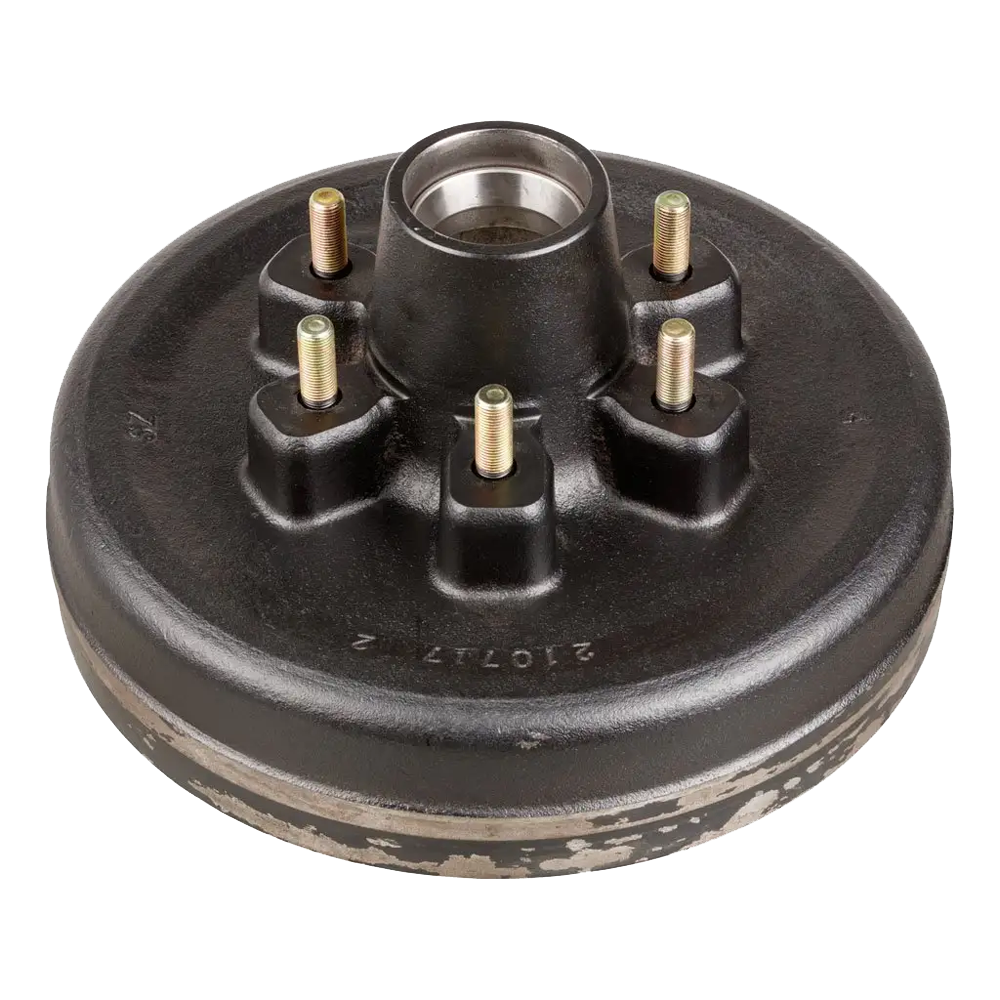

QTY (1): 12" Trailer Brake Hub‑Only Drum – 6 on 5.5", 1/2" Studs
- Hub‑only drum — brake shoe hardware not included
- Rated for 6,000 lb axles
- 6 on 5.5" bolt circle with 1/2" press‑in studs
- Accepts 14.5" – 16.5" wheels
- High‑strength cast construction; 1‑year limited warranty
Always verify your axle rating, wheel size, and bolt pattern before purchase. After installation, adjust brakes and re‑torque lug nuts regularly for safe, trouble‑free towing.
| Specifications: | |
|---|---|
| Kit Type | Single‑Side Brake & Hub Drum Service Kit |
| Axle Rating | 6,000 lb (lower‑capacity component governs bundle) |
| Brake Drum Dimensions | 12" x 2" |
| Brake Mounting Pattern | 5‑bolt |
| Hub Bolt Pattern | 6 on 5.5" |
| Hub Type | Hub with Integrated Drum (hub‑only) |
| Stud Size | 1/2" |
| Type of Adjustment | Manual |
| Brake Location | Left‑Hand (Roadside) |
| Wheel Size Compatibility | 14.5" – 17.5" |
| Brand | Lippert (Dexter & AL‑KO cross‑compatible) |
| Warranty | 1‑year limited |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
