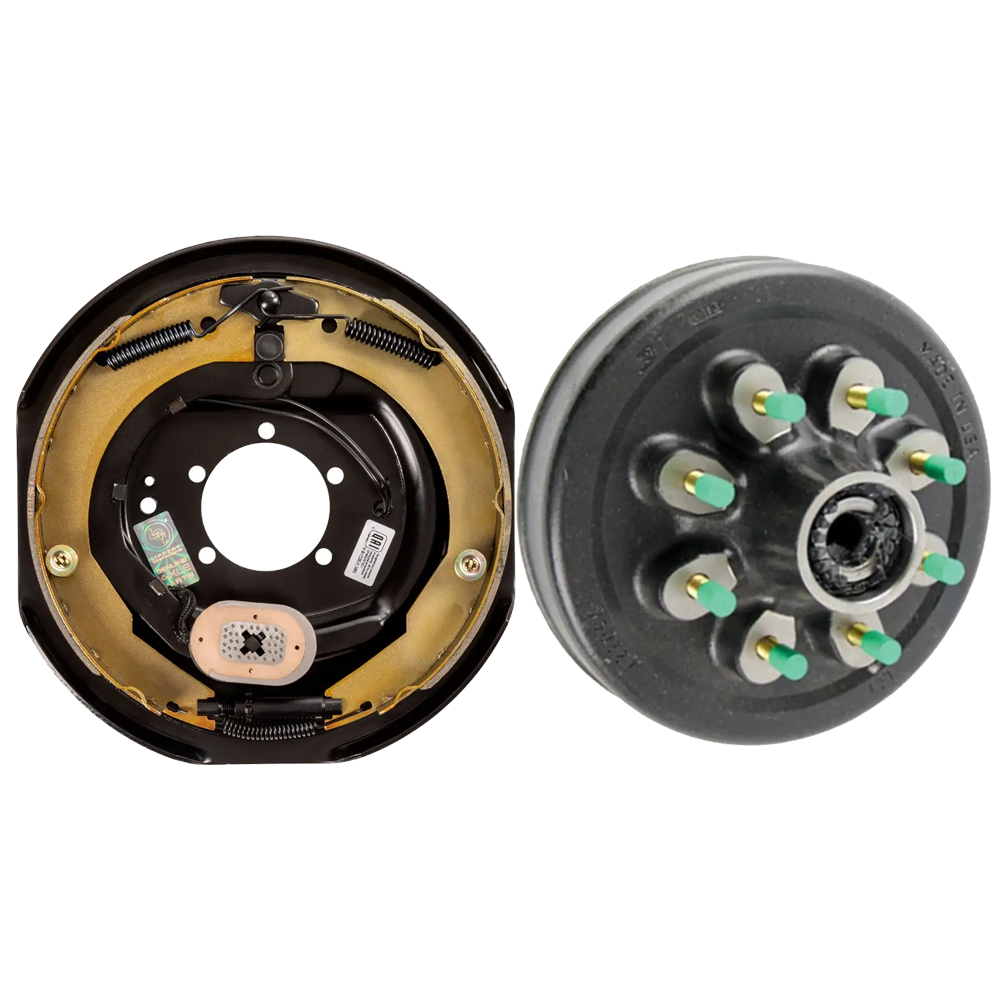

Lippert 12" LH Electric Brake Assembly & 8‑on‑6.5" Oil‑Bath Hub‑Only Drum Bundle

Restore smooth, reliable stopping power with this genuine Lippert kit. It pairs a manual‑adjust 12" left‑hand electric brake assembly with a threaded, oil‑bath 8‑lug hub‑only drum for dependable performance on axles up to 7,000 lbs. Perfect for RV, horse, cargo and utility trailers that need OEM‑quality parts in one convenient box.

Bundle Contents:

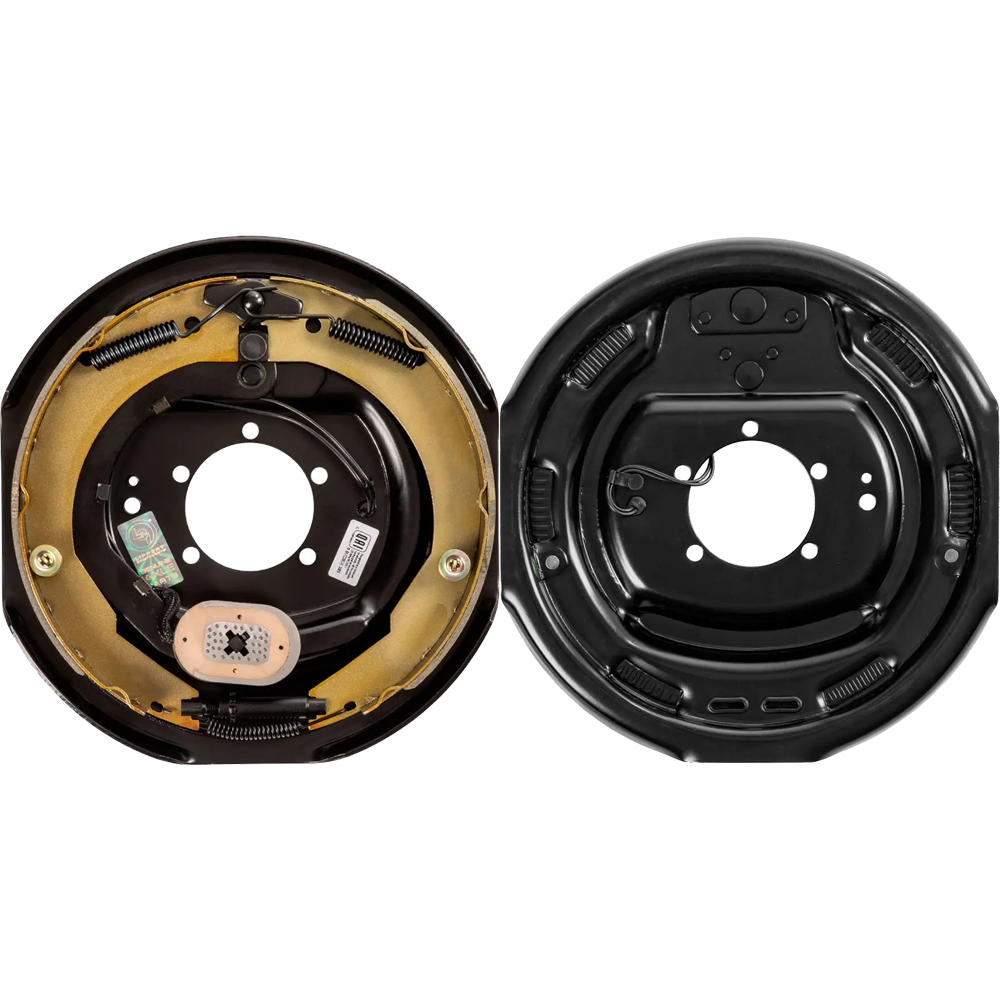

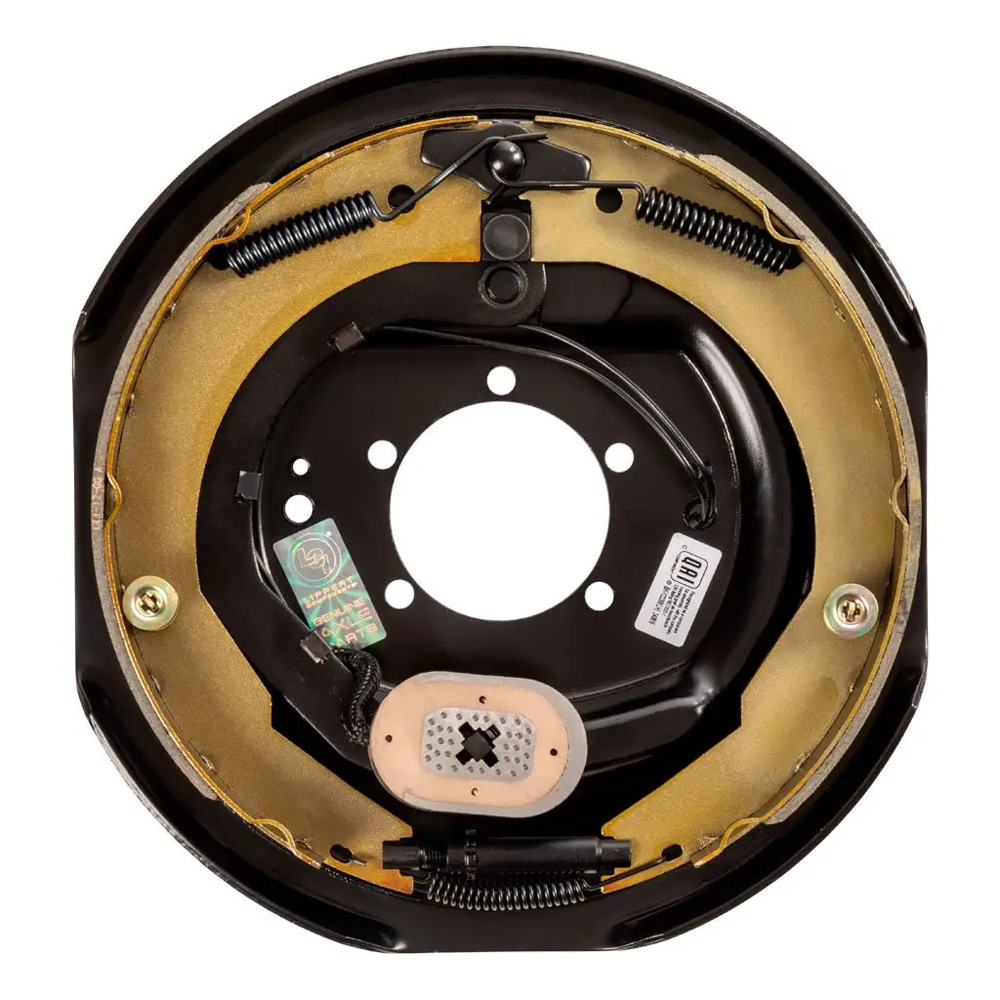

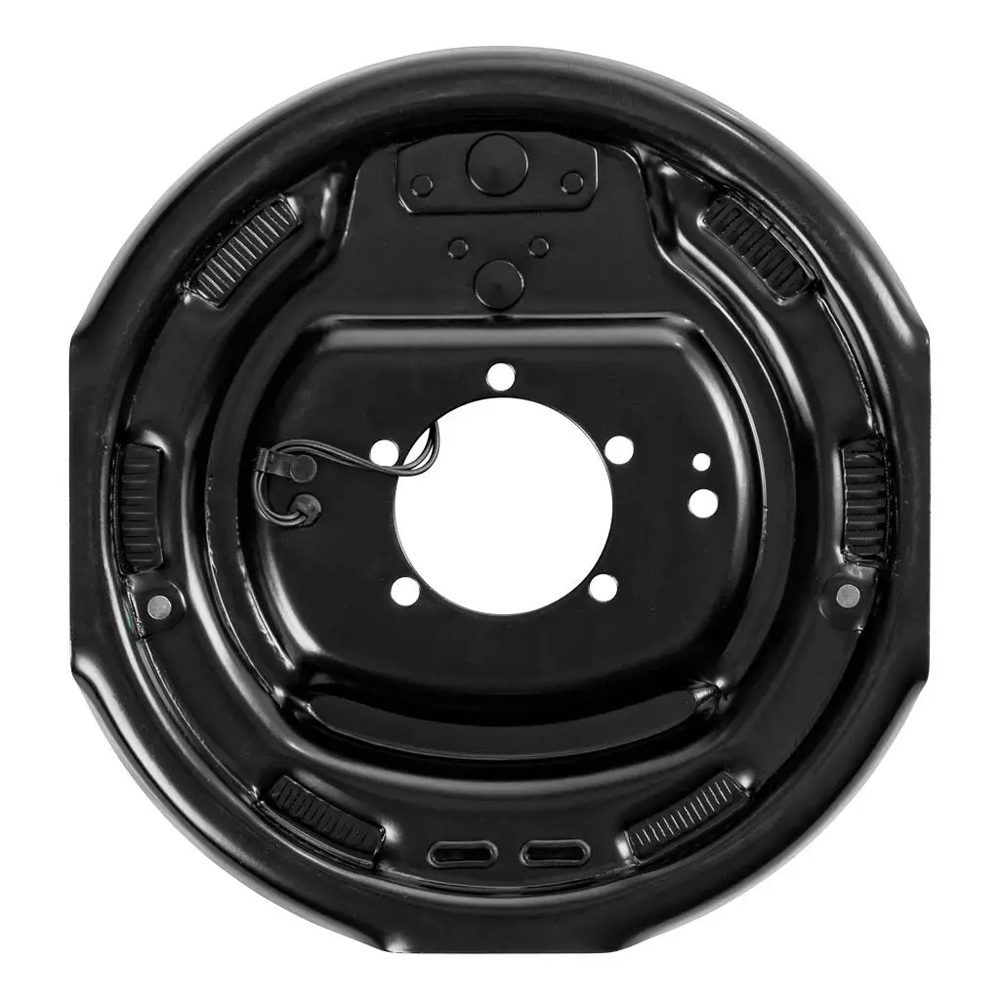

• QTY (1): Lippert 12" x 2" Manual Electric Brake Assembly – Left Hand
  • Genuine Lippert replacement electric brake assembly
  • Left‑hand (road‑side) orientation
  • Brake size: 12" x 2"
  • Axle rating: 4,000‑7,000 lbs
  • 4‑bolt mounting pattern; manual adjustment
  • Dexter Compatible Part Number: K23‑180‑00 | 023‑180‑00
  • Simple bolt‑on DIY installation
  • 1‑year manufacturer warranty

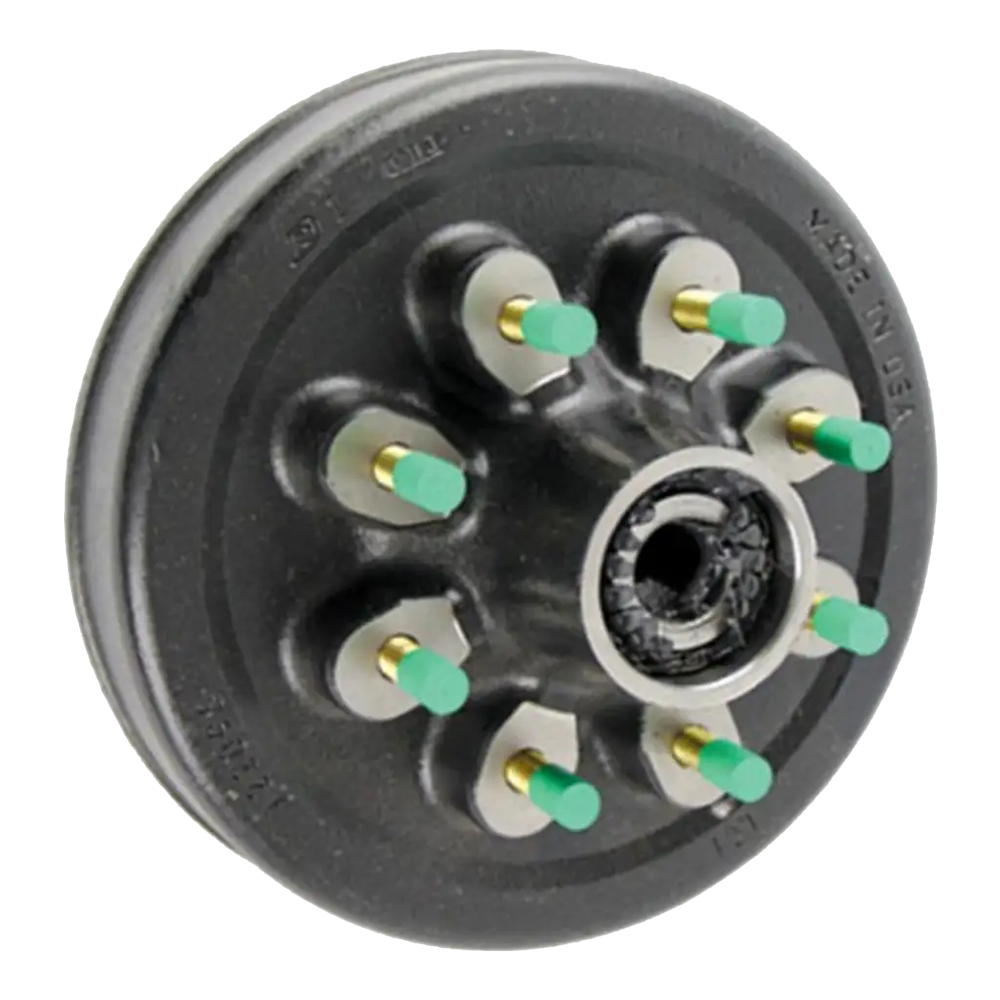

• QTY (1): Lippert 12" Threaded Hybrid Oil‑Bath Hub‑Only Drum – 8‑on‑6.5", 9/16" Studs
  • 12" threaded hub‑only drum for up to 8,000‑lb axles
  • 8‑lug on 6‑1/2" bolt pattern, 9/16" studs installed
  • Races and wheel studs come pre‑installed
  • Designed for oil‑bath lubrication (threaded cap; oil not included)
  • Accepts electric or hydraulic drum brakes
  • Durable cast‑iron construction; accepts Valcrum threaded dust caps
  • Universal fit for Dexter, Lippert & Alko axles
  • 1‑year manufacturer warranty

Verify your existing axle specifications and perform routine brake and bearing maintenance for safe, dependable operation.
