Lippert?12"?LH Electric Brake?&?Grease Drum Hub?�?7,000?lb?Axle?(8K?Hybrid?Compatible),?8?on?6.5,?5/8"?Stud?�?Dexter?/?Alko?/?Rockwell
$218.99

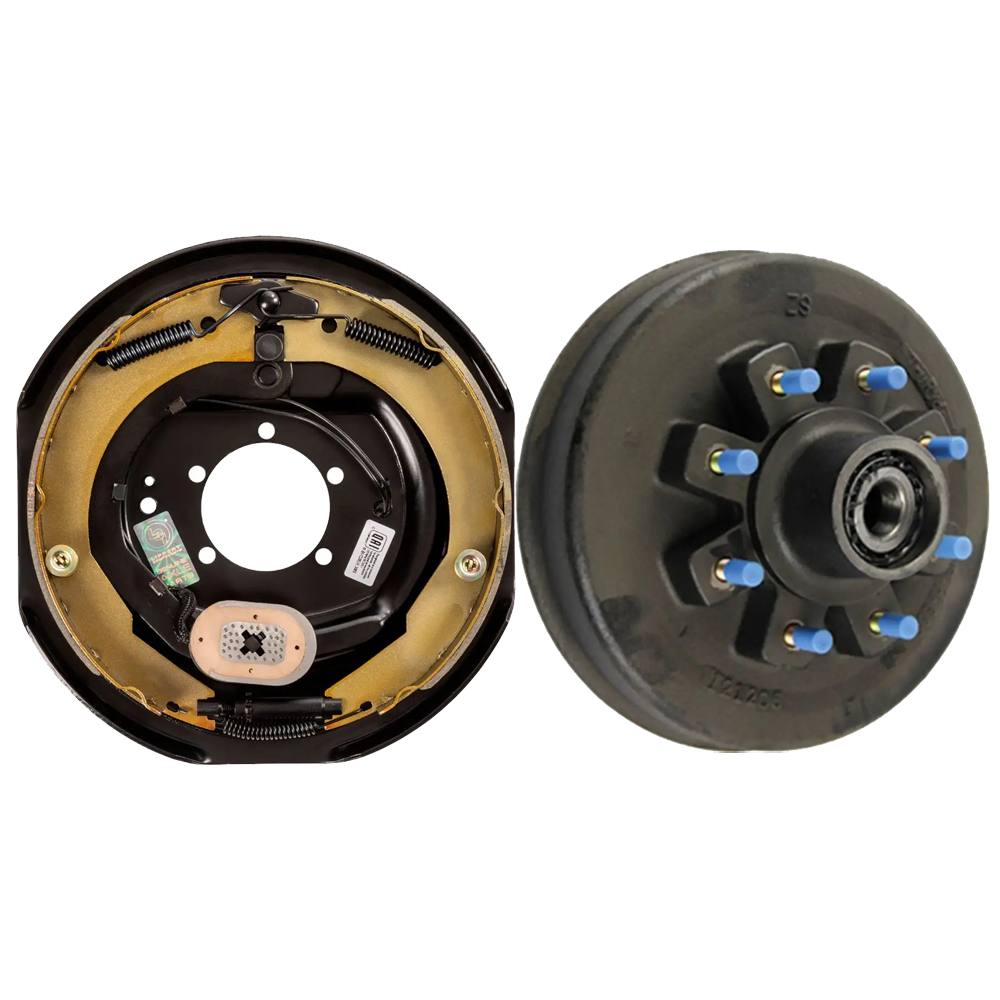

Lippert 12" Left‑Hand Electric Brake & Hybrid Grease Drum Hub Bundle
Service your heavy‑duty trailer with this genuine Lippert package. It pairs a 12" x 2" manual‑adjust electric brake assembly with a threaded hybrid grease drum hub (8‑on‑6.5", 5/8" studs) for reliable stopping power on 7,000 lb axles—and it also fits 8,000 lb hybrid axles that use 12" brakes.
Bundle Contents:
-

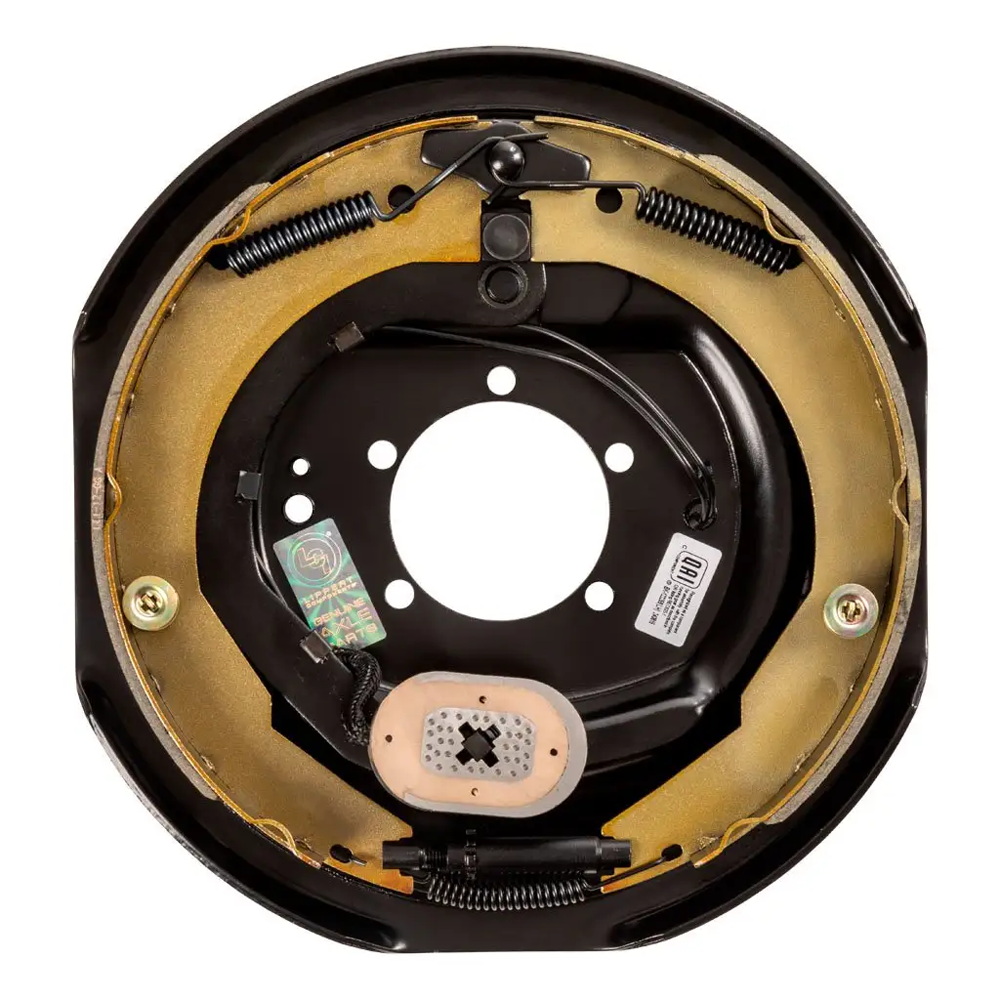

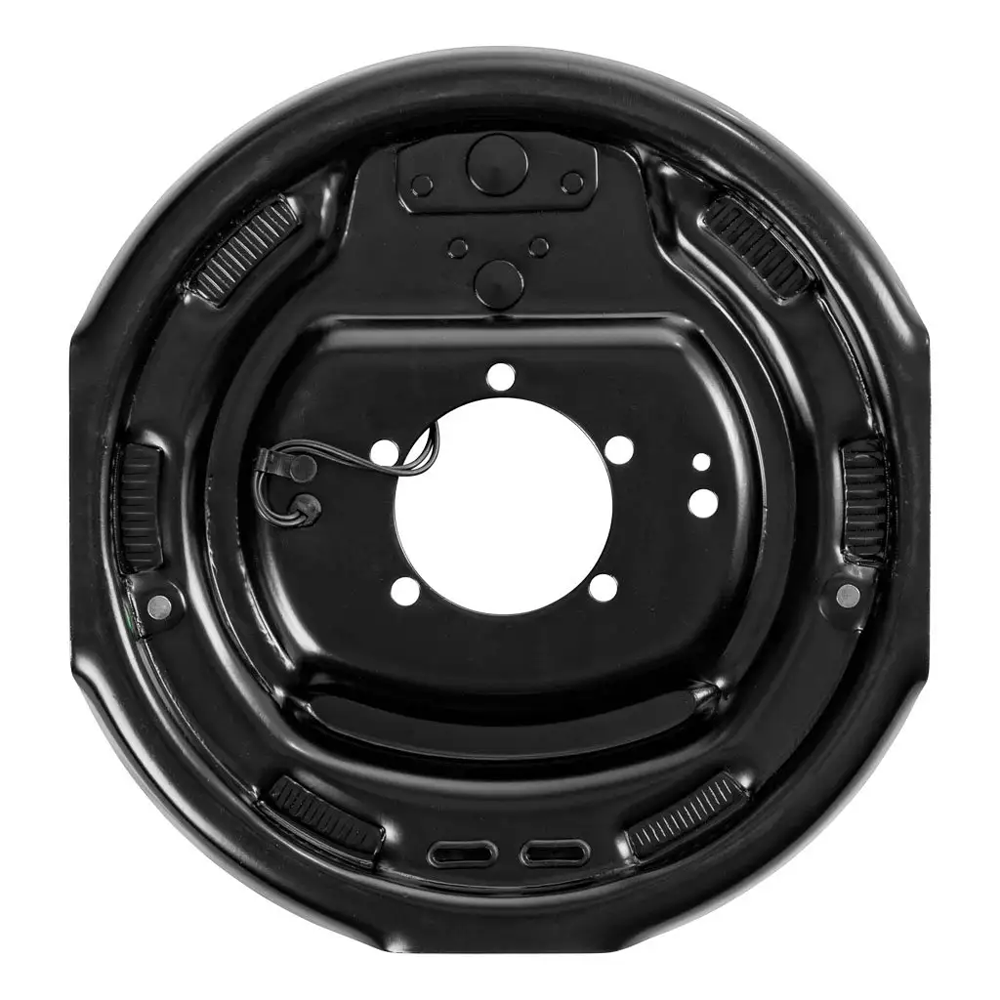

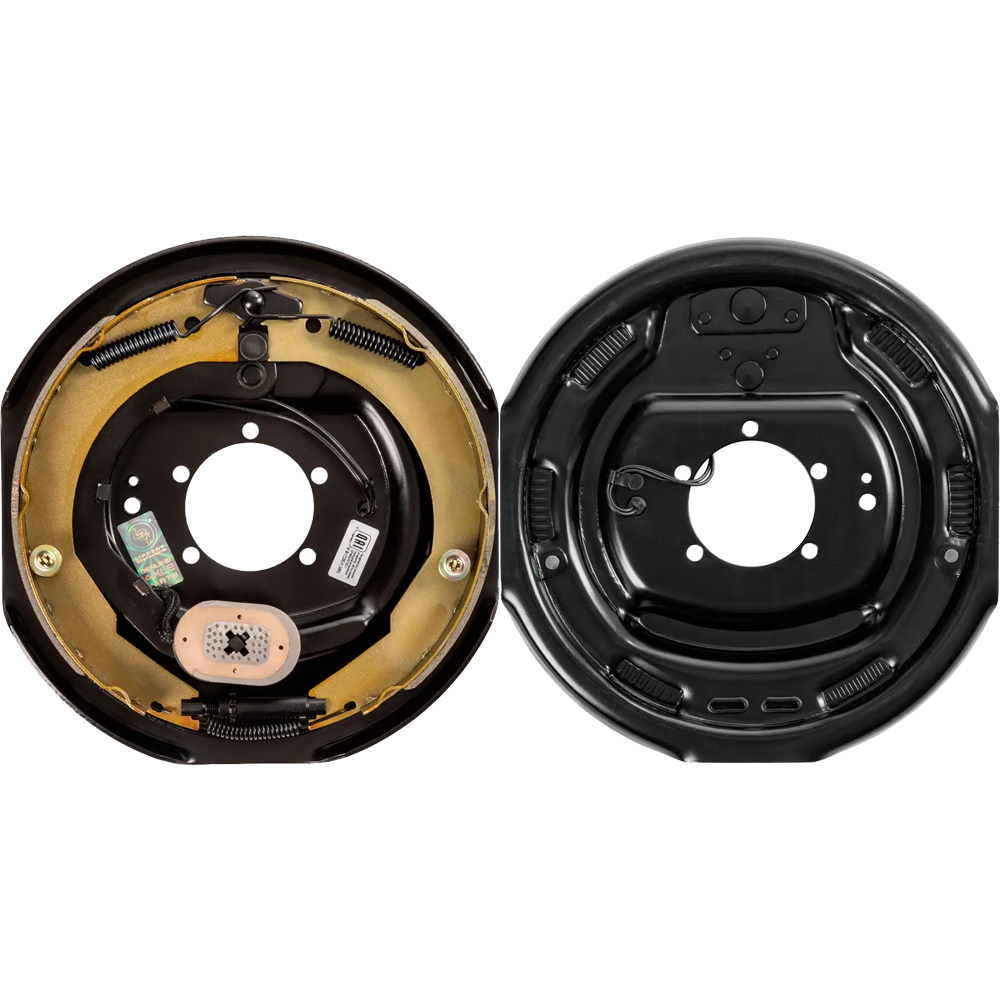

QTY (1): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Left‑Hand
- Road‑side mount; 5‑bolt brake flange
- Axle fit: 5,200‑7,000 lb (plus 8,000 lb hybrid)
- Manual shoe adjustment
- Wheel size compatibility: 15" – 17.5"
- Dexter Compatible Part #: K23‑180‑00 | 023‑180‑00
- DIY installation (hardware sold separately)
-

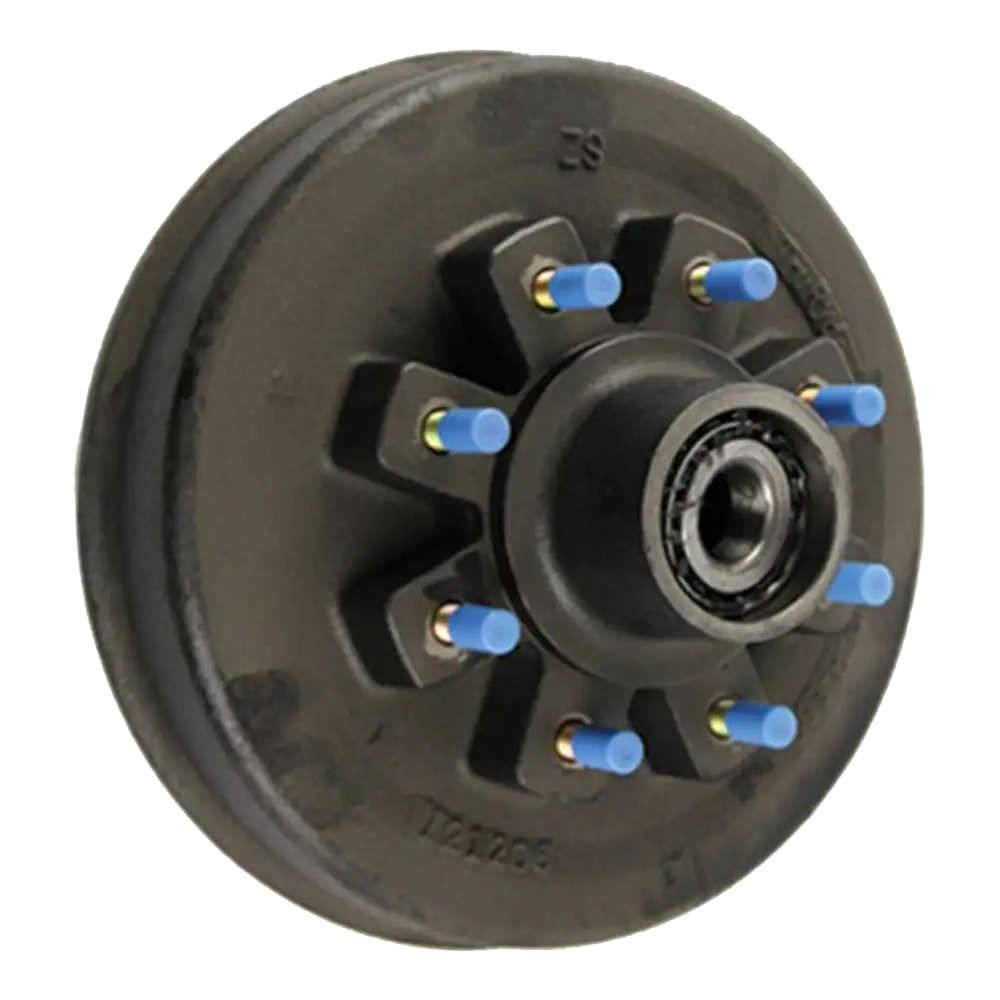

QTY (1): Threaded Hybrid Grease Drum Hub – 8‑on‑6.5", 5/8" Studs
- Rated for 8,000 lb axles
- 12" drum—electric or hydraulic brakes
- Races & wheel studs come pre‑installed
- Accepts Valcrum threaded dust caps
- Durable cast‑iron construction; 1‑yr warranty
- Wheel size compatibility: 17.5" wheels
Always verify axle rating, bolt pattern and wheel size before installation, and perform routine maintenance to ensure peak brake performance.
| Specifications: | |
|---|---|
| Kit Type | Complete Electric Brake & Drum Hub Kit |
| Axle Rating | 7,000 lbs max (fits 8,000 lb hybrid axles) |
| Brake Drum Dimensions | 12" Ø × 2" |
| Brake Mounting Pattern | 5‑bolt brake flange |
| Hub Bolt Pattern | 8‑on‑6.5" |
| Hub Type | Threaded hybrid grease, cast iron |
| Stud Size | 5/8" |
| Type of Adjustment | Manual |
| Brake Location | Left‑hand (driver side) |
| Wheel Size Compatibility | Brake: 15" – 17.5" | Hub: 17.5" |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
