Lippert?12" LH?Manual?Adjust Electric Brake?&?Fully?Assembled?8?on?6.5 Drum?Hub?Kit �?7,000?lb Axle,?9/16" Studs �?Dexter/Alko Compatible
$239.99

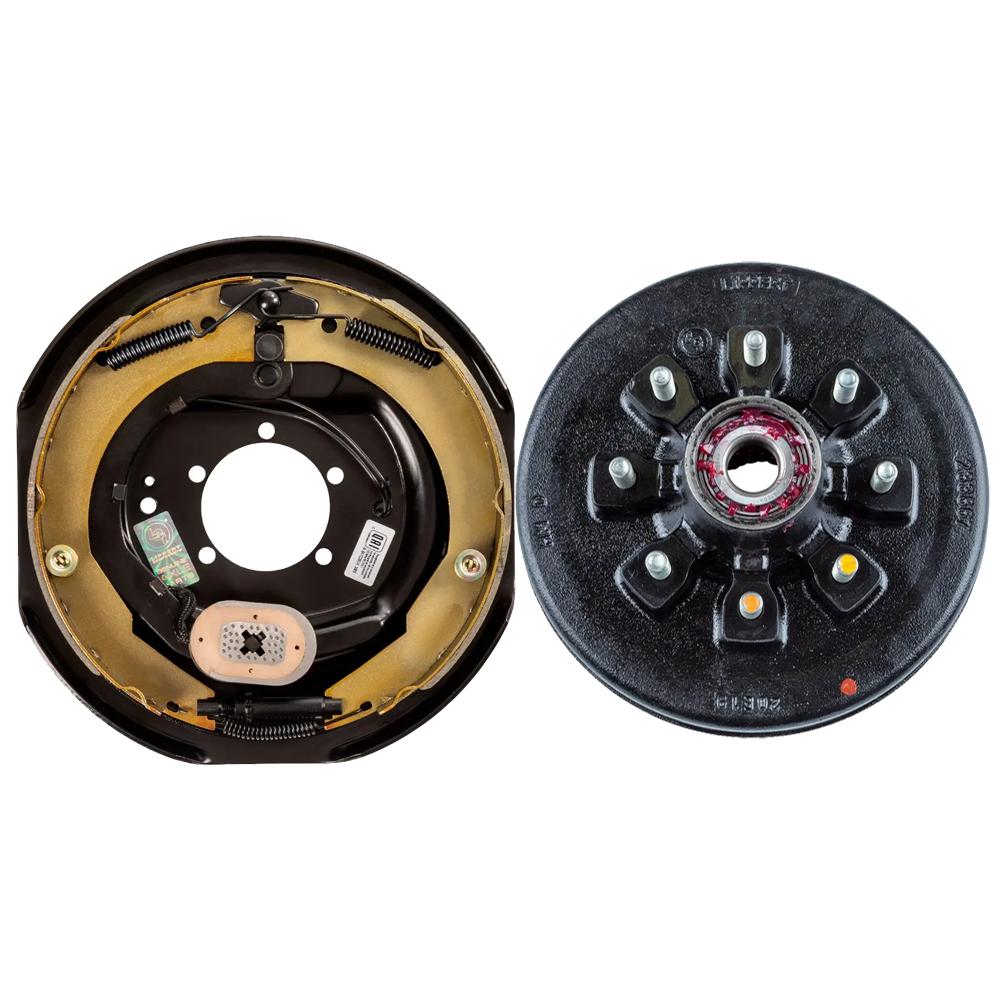

Lippert 12" Manual‑Adjust Electric Brake & Fully Assembled Drum Hub Bundle
Refresh your 7,000‑lb trailer axle with this genuine Lippert bundle. It pairs a ready‑to‑install 12" left‑hand manual‑adjust electric brake assembly with a fully assembled, pre‑greased 8‑on‑6.5" drum hub featuring 9/16" studs. Combining OEM engineering with Lippert’s legendary quality, this kit restores confident stopping power while simplifying maintenance.
Bundle Contents:
-

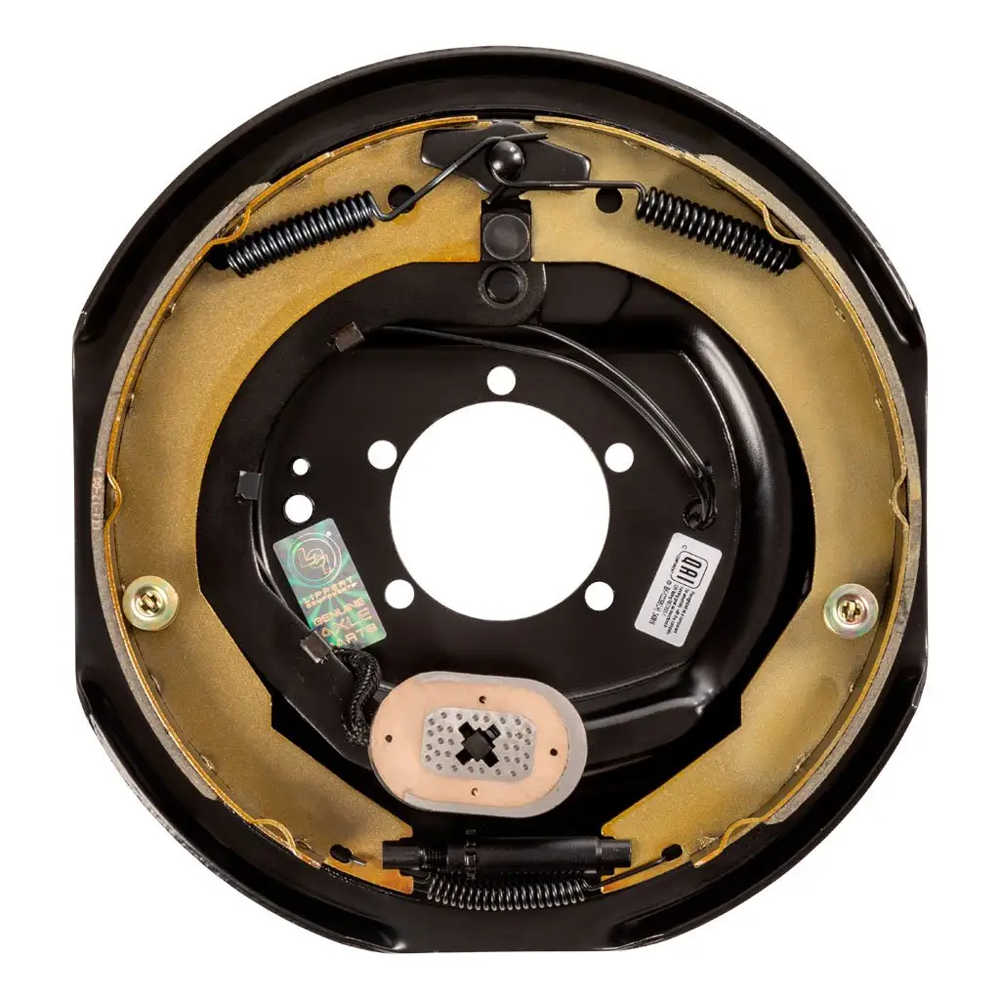

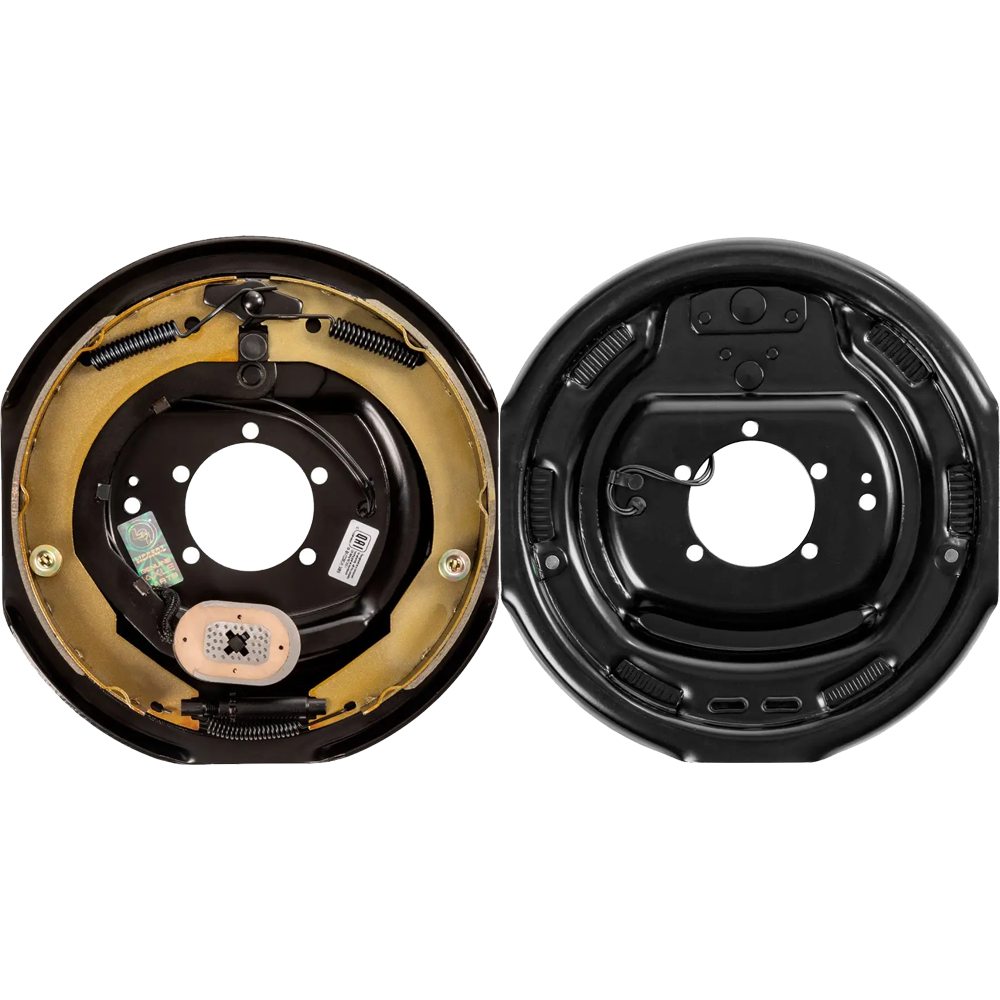

QTY (1): Lippert Electric Trailer Brake Assembly – 12" × 2", 4,000‑7,000 lb, Left Side
- Manual‑adjust electric brake with parking feature
- Designed for roadside (LH) fit on 5,200‑7,000 lb & 8,000 lb hybrid axles
- Five‑bolt mounting pattern; fits 15"–17.5" wheels
- 12" × 2" shoe size—requires break‑in for full performance
- Dexter compatible part numbers: K23‑180‑00 / 023‑180‑00
-

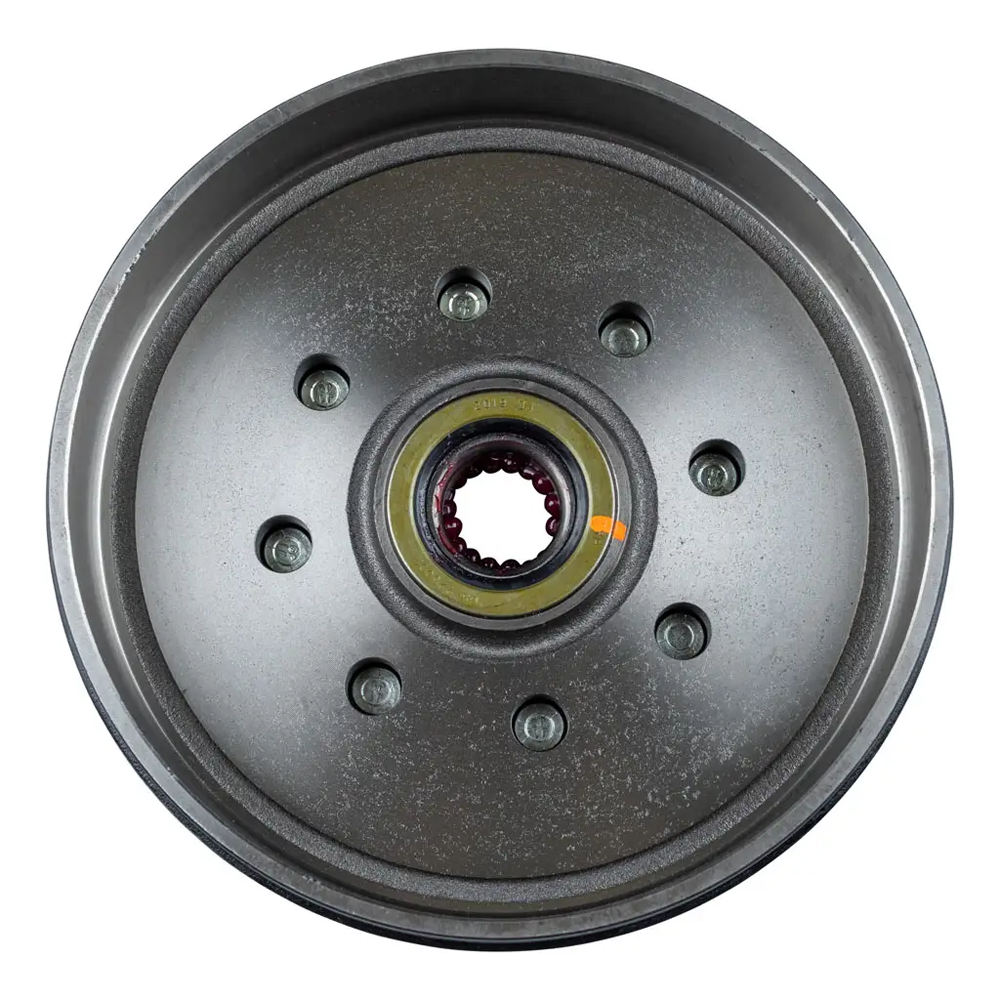

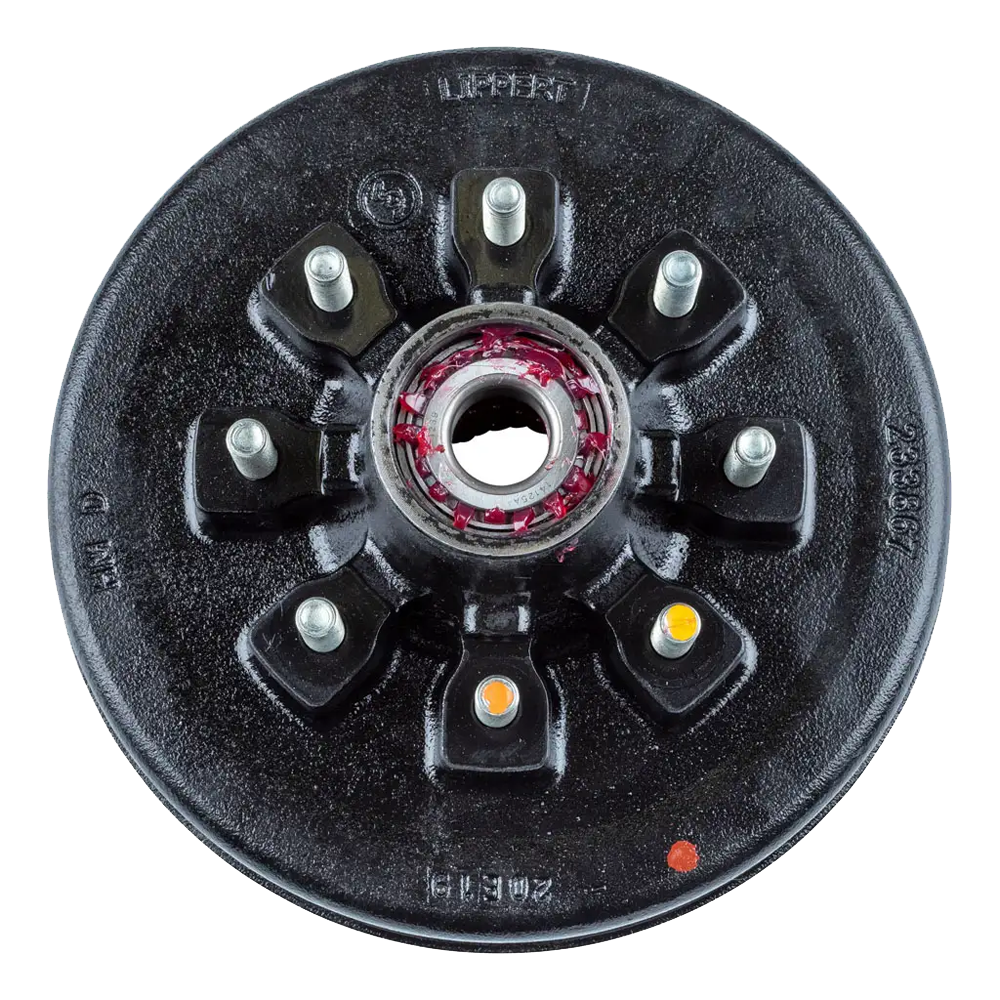

QTY (1): Lippert Brake Drum Hub Assembly – 8 on 6.5", 9/16" Stud, 7,000 lb Axle
- Fully assembled cast‑iron hub & drum, pre‑greased and ready to install
- 8 on 6.5" bolt pattern with 9/16" press‑in studs
- Includes bearing cones, seal & grease; 1‑year limited warranty
- Ideal for 16"–17.5" wheels; OE part #141290
Always verify original equipment part numbers and perform regular inspections to keep your braking system operating at peak efficiency.
| Specifications: | |
|---|---|
| Kit Type | Manual Electric Brake & Drum Hub Kit |
| Axle Rating | 7,000 lbs |
| Brake Drum Dimensions | 12" Ø × 2" Shoe Width |
| Brake Mounting Pattern | 5‑bolt (Backing Plate) |
| Hub Bolt Pattern | 8 on 6.5" |
| Hub Type | Fully Assembled Hub with Integrated Drum |
| Stud Size | 9/16" |
| Type of Adjustment | Manual |
| Brake Location | Left‑Hand (Roadside) |
| Wheel Size Compatibility | Brake: 15"–17.5"; Hub: 16"–17.5" |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
