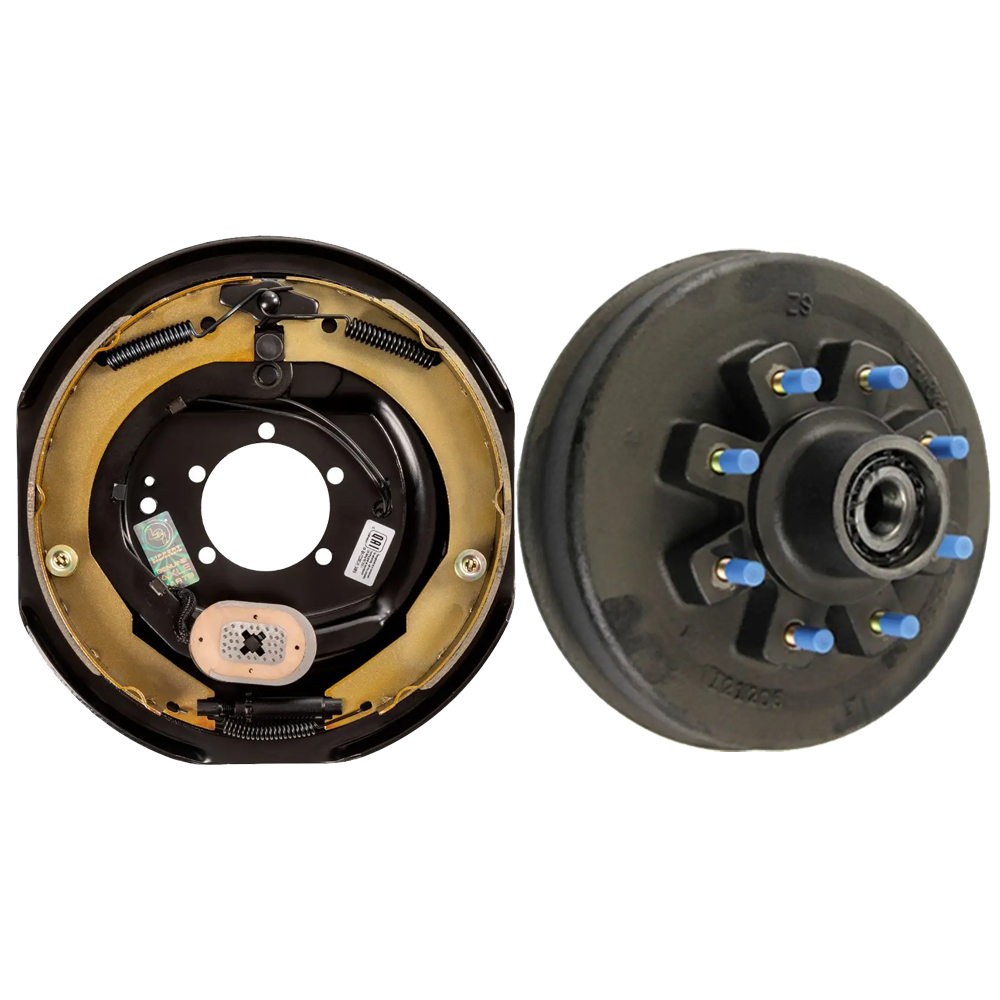

Lippert 12" LH Electric Brake + Oil‑Bath 8‑on‑6.5 Drum Hub Bundle

Restore smooth, reliable stopping power with this genuine Lippert bundle that pairs a manual‑adjust, left‑hand 12" × 2" electric brake assembly with an oil‑bath hub‑and‑drum. Rated for up to 7,000 lbs on standard axles and 8,000 lbs on Lippert hybrid axles, it’s a direct replacement for Dexter and Alko systems running 17.5" wheels.

Bundle Contents:

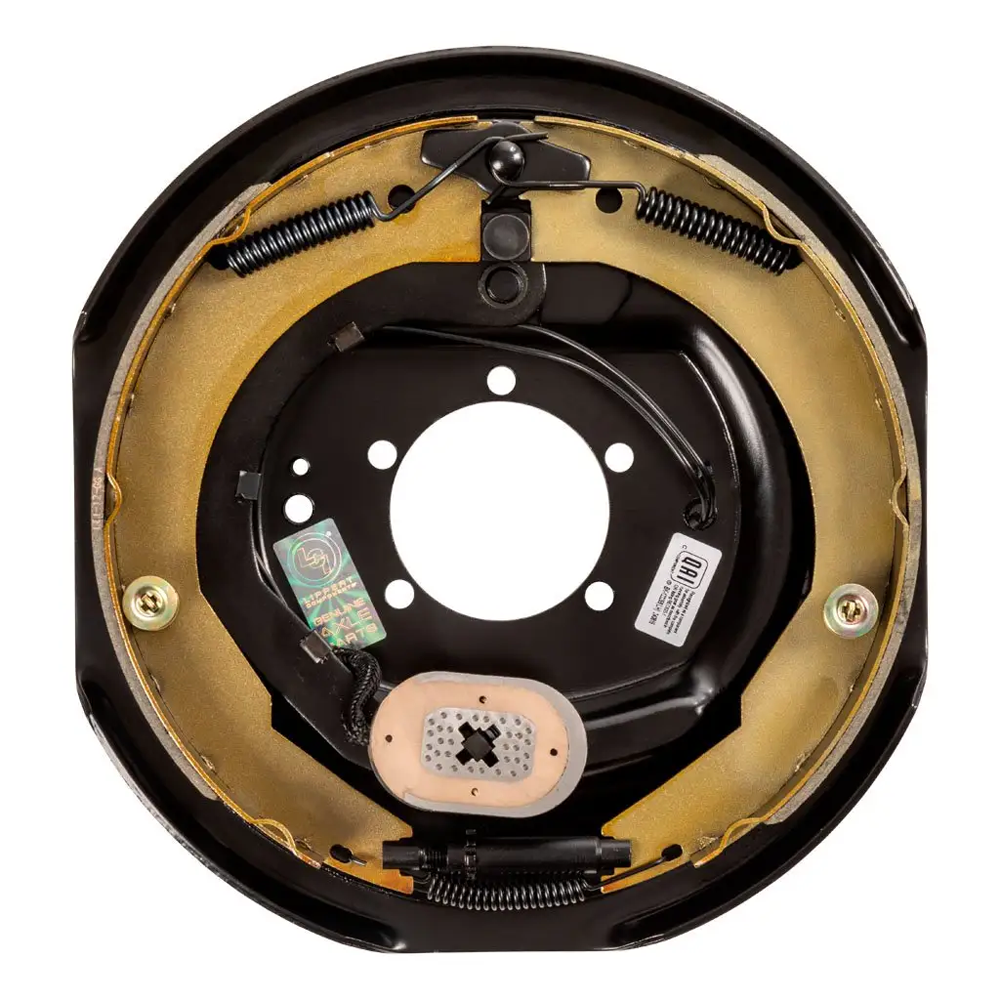

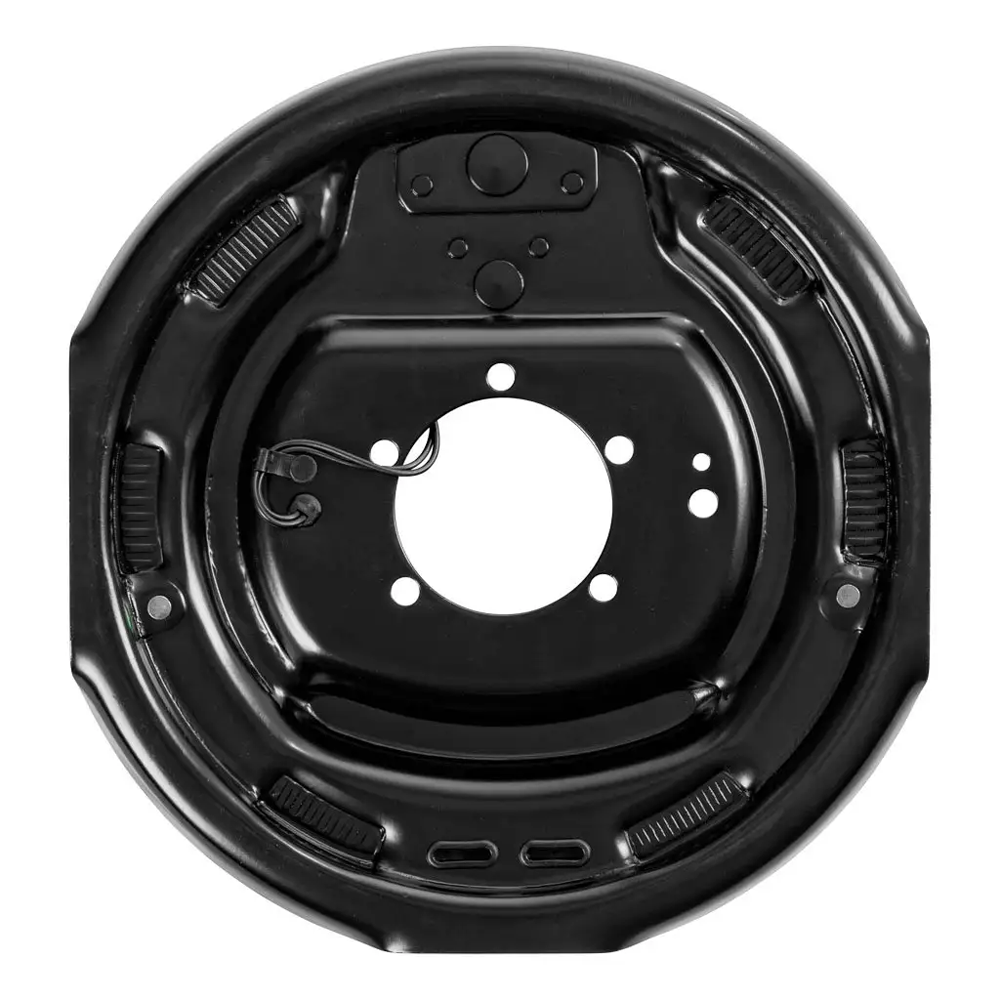

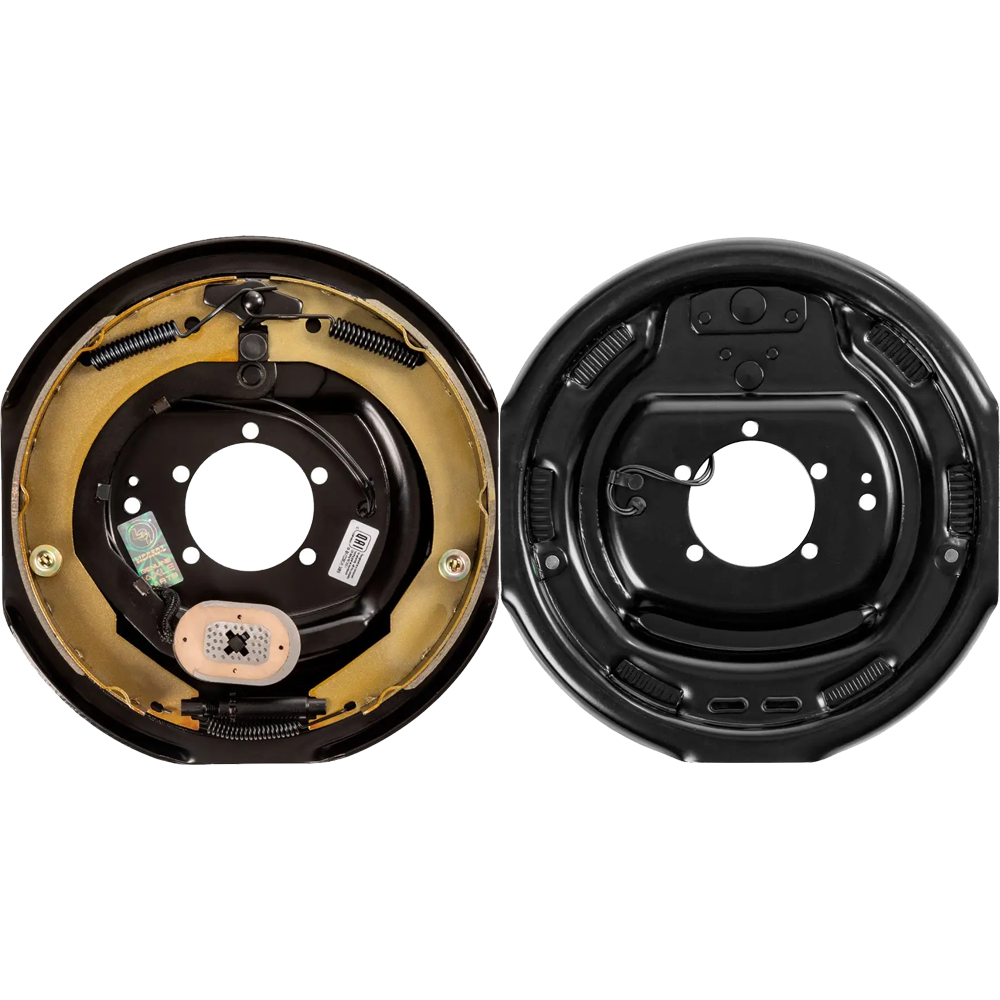

• QTY (1): Lippert 12" × 2" Manual‑Adjust Electric Brake – Left‑Hand (Roadside)
  • Replacement standard electric brake with parking feature
  • Manual shoe adjustment for precision braking
  • 5‑bolt mounting pattern; 12" × 2" shoe size
  • Fits 5,200‑7,000 lb axles & Lippert 8,000 lb hybrid axles
  • Wheel range: 15" – 17.5"
  • Dexter compatible PN: K23‑180‑00 / 023‑180‑00
  • New drum brakes require a short break‑in period

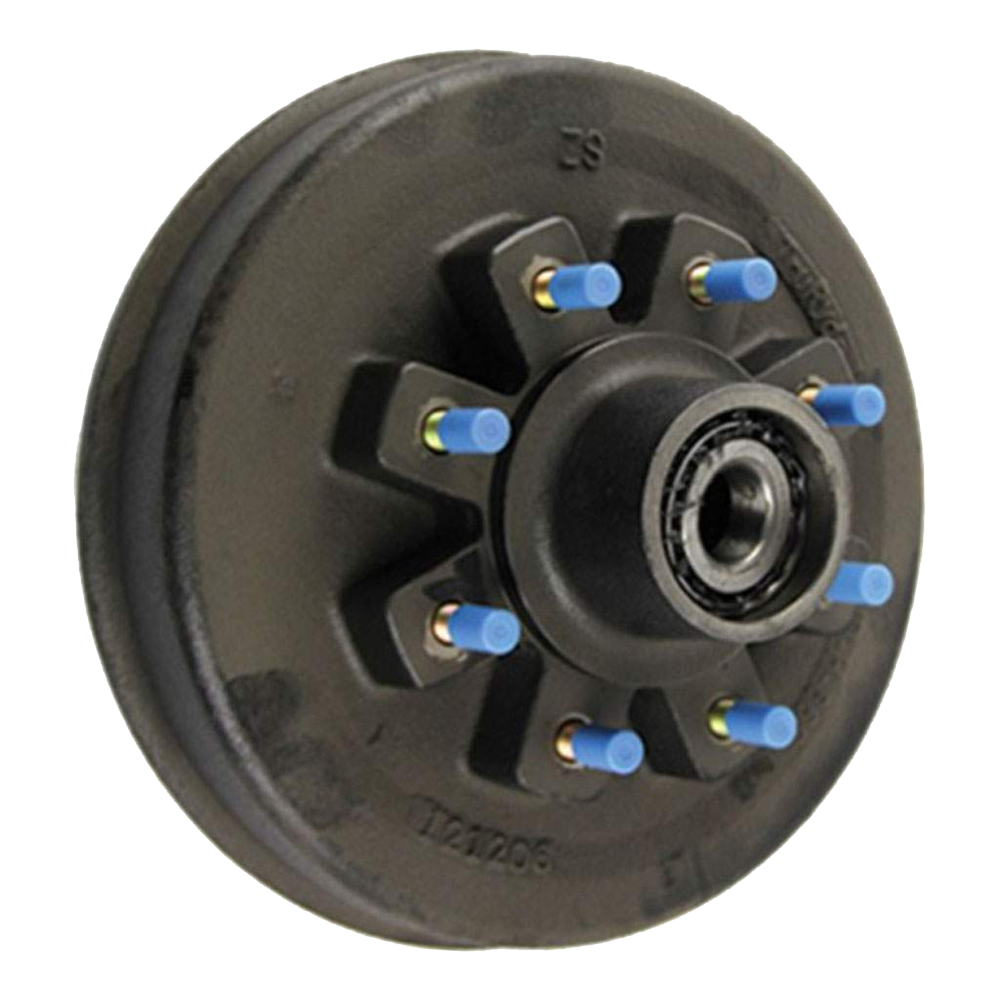

• QTY (1): Lippert Oil‑Bath Drum Hub – 8 on 6.5", 5/8" Stud, 8 k
  • Genuine Lippert hub with integrated drum & oil‑bath design
  • Bearing races & wheel studs come pre‑installed
  • Bearing cones, seal & grease factory‑installed for quick swap‑in
  • 8 on 6.5" bolt pattern; 5/8" heat‑treated studs
  • Rated for 8,000 lb axles; mates perfectly with 12" × 2" brakes
  • Optimized for 17.5" single wheels

Always verify existing equipment, torque fasteners to spec and perform routine maintenance for maximum safety and component life.
