Lippert?12"?LH?Manual?Electric?Brake?Assembly?+?8?on?6.5"?Hub?Only?Drum � 7K?Axle,?9/16"?Studs � Dexter?/?AL?KO?/?Rockwell?Compatible
$329.99
Lippert 12" LH Electric Brake Assembly & 8‑on‑6.5" Hub‑Only Drum – 7K Axle Bundle
This all‑in‑one Lippert bundle replaces your worn components with an OEM‑quality, manual‑adjust 12" x 2" electric brake assembly and a rugged 8‑on‑6.5" hub‑only drum. Ideal for refreshing the stopping power on trailers up to 7,000 lbs.

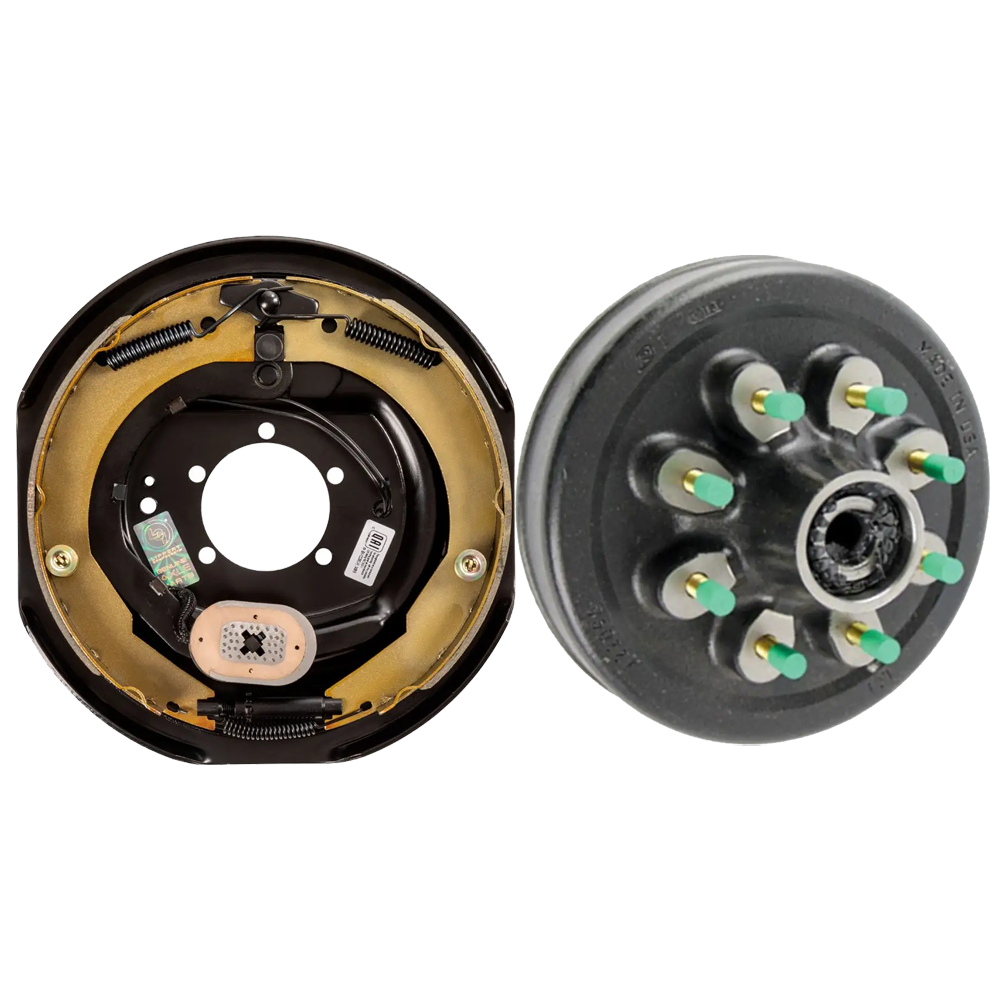

Bundle Contents:
-

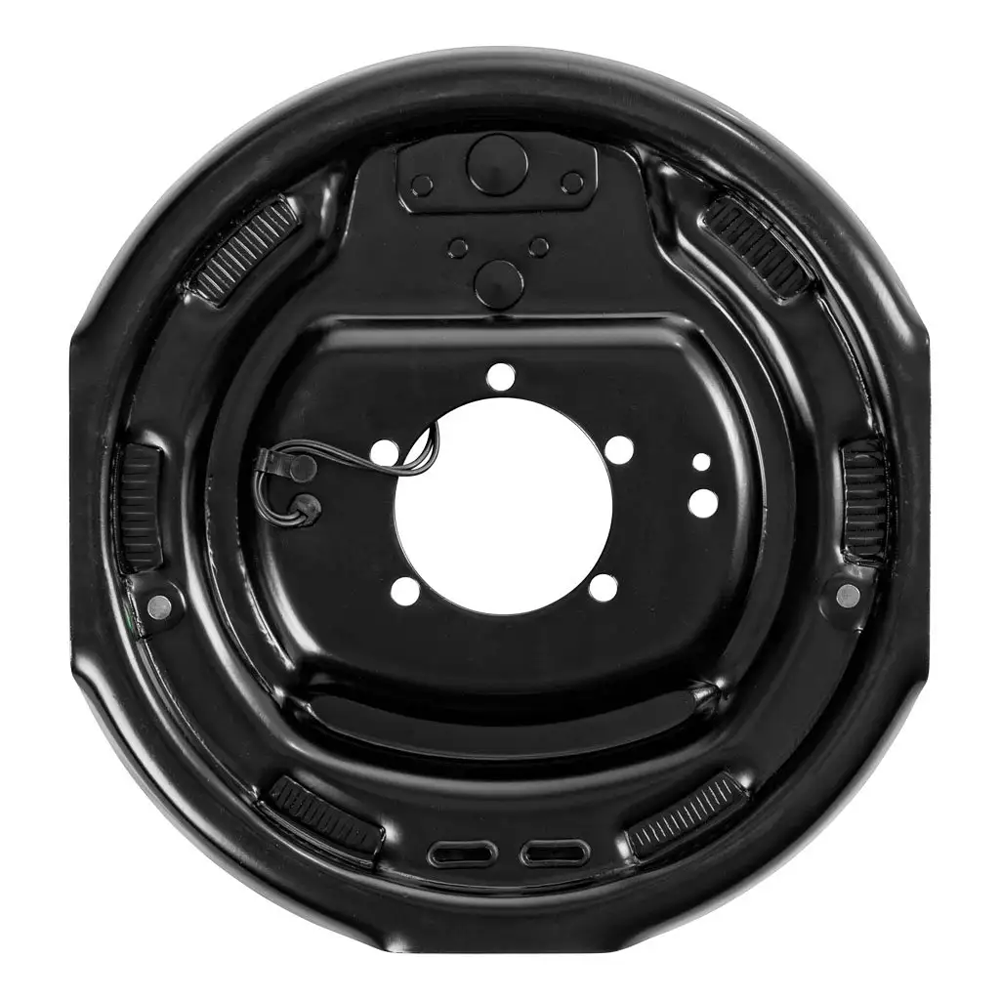

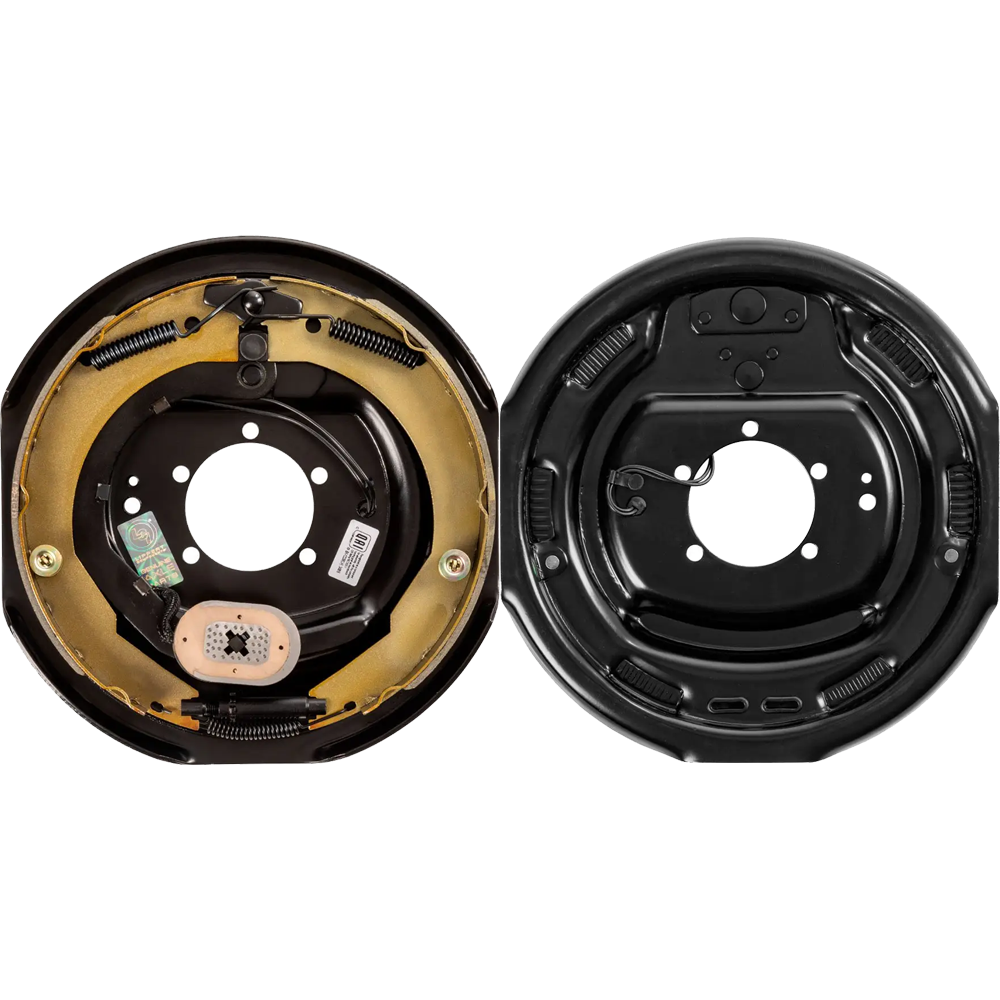

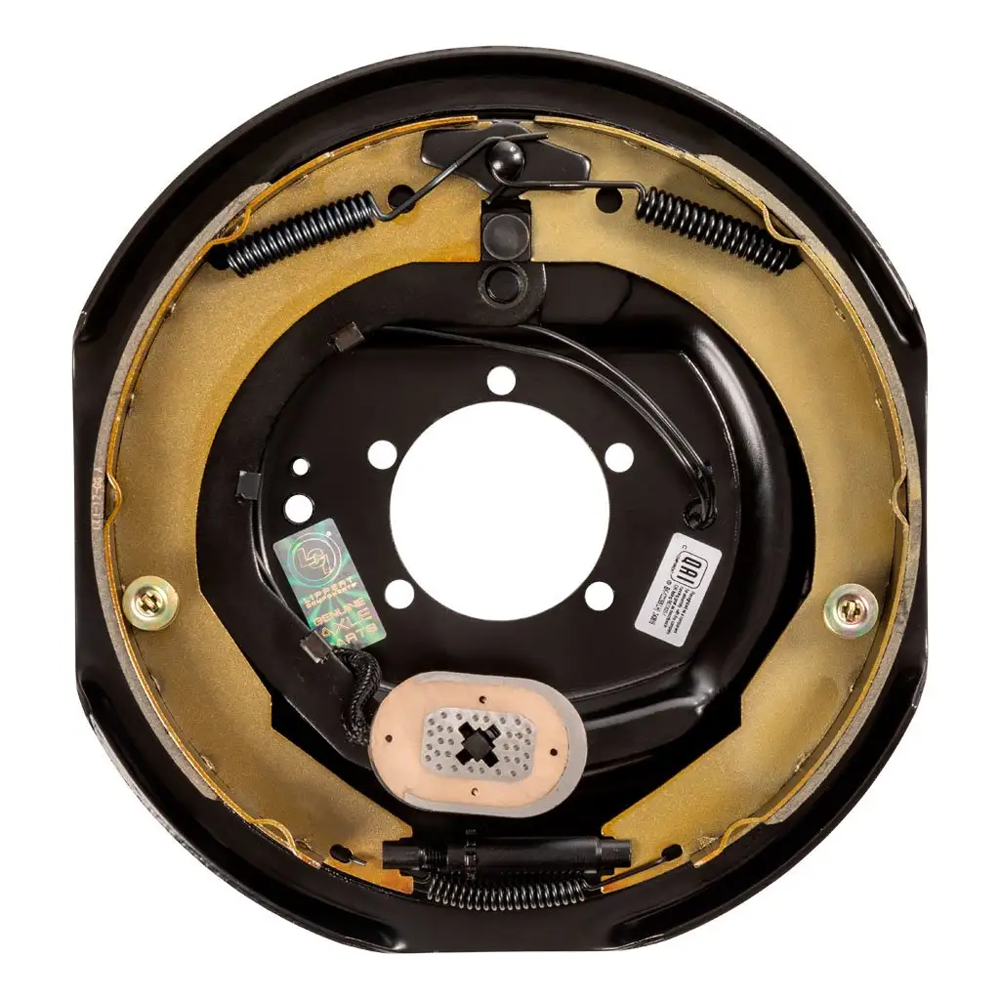

QTY (1): Lippert 12" x 2" Left‑Hand Electric Brake Assembly
- Road‑side (LH) replacement brake, manual adjust
- Fits 4,000 – 7,000 lb axles
- 4‑bolt mounting pattern for quick DIY install
- 12" x 2" bonded brake shoes
- Dexter compatible PN: K23‑180‑00 / 023‑180‑00
- 1‑year limited warranty
-
QTY (1): Lippert 8‑on‑6.5" Hub‑Only Drum, 9/16" Studs
- Engineered for 8,000 lb axles (bundle limited to 7K by brake rating)
- Durable cast‑iron construction with machined races
- 8 on 6.5" bolt pattern with 9/16" studs
- Compatible with 16", 16.5", 17", 17.5" wheels
- 1‑year limited warranty
Verify your original equipment specifications and perform routine brake and hub maintenance for safe towing.
| Specifications: | |
|---|---|
| Kit Type | Replacement Brake Assembly & Hub‑Only Drum Kit |
| Axle Rating | 7,000 lbs (limited by brake capacity) |
| Brake Drum Dimensions | 12" x 2" |
| Brake Mounting Pattern | 4‑bolt brake flange |
| Hub Bolt Pattern | 8 on 6‑1/2" |
| Hub Type | Hub with Integrated Drum |
| Stud Size | 9/16" |
| Type of Adjustment | Manual |
| Brake Location | Left Hand (Road Side) |
| Wheel Size Compatibility | 16", 16.5", 17", 17.5" |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
