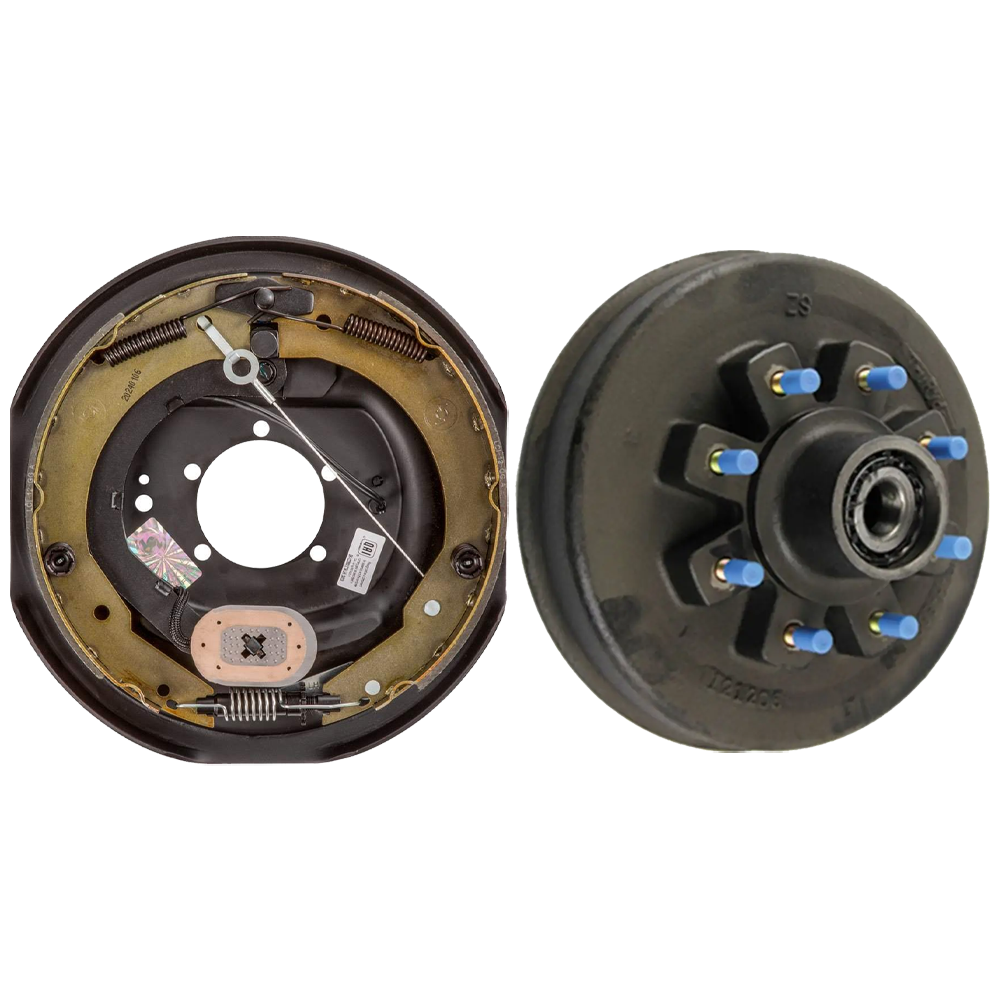

Lippert Left‑Hand 12" Self‑Adjusting Brake & 12" Drum Hub Kit – 8‑on‑6.5, 5/8" Studs

Upgrade your trailer’s stopping power with a matched Lippert bundle that combines a forward self‑adjusting left‑hand electric brake assembly with a rugged 12" drum hub. Designed for 8,000‑lb hybrid axles but limited by the brake’s 7,000‑lb rating, this kit delivers reliable performance, simplified maintenance and faster installs.

Bundle Contents:

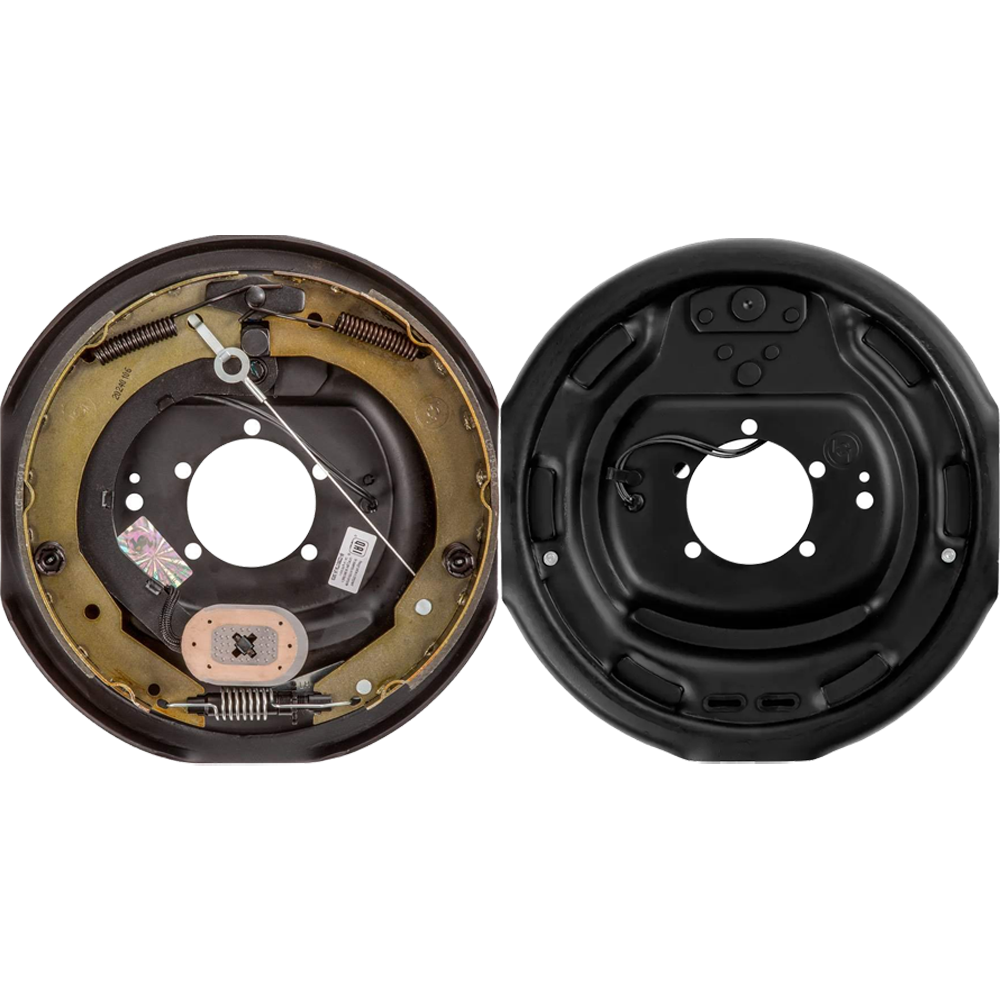

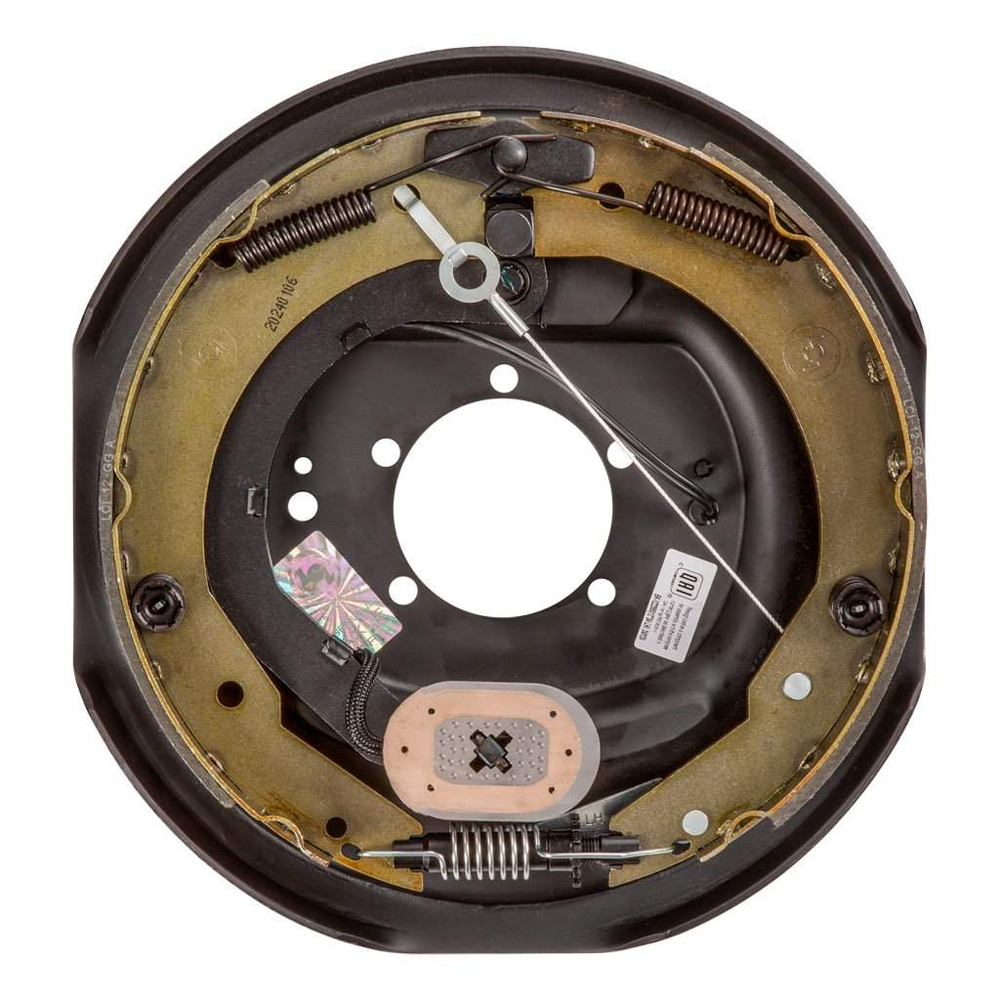

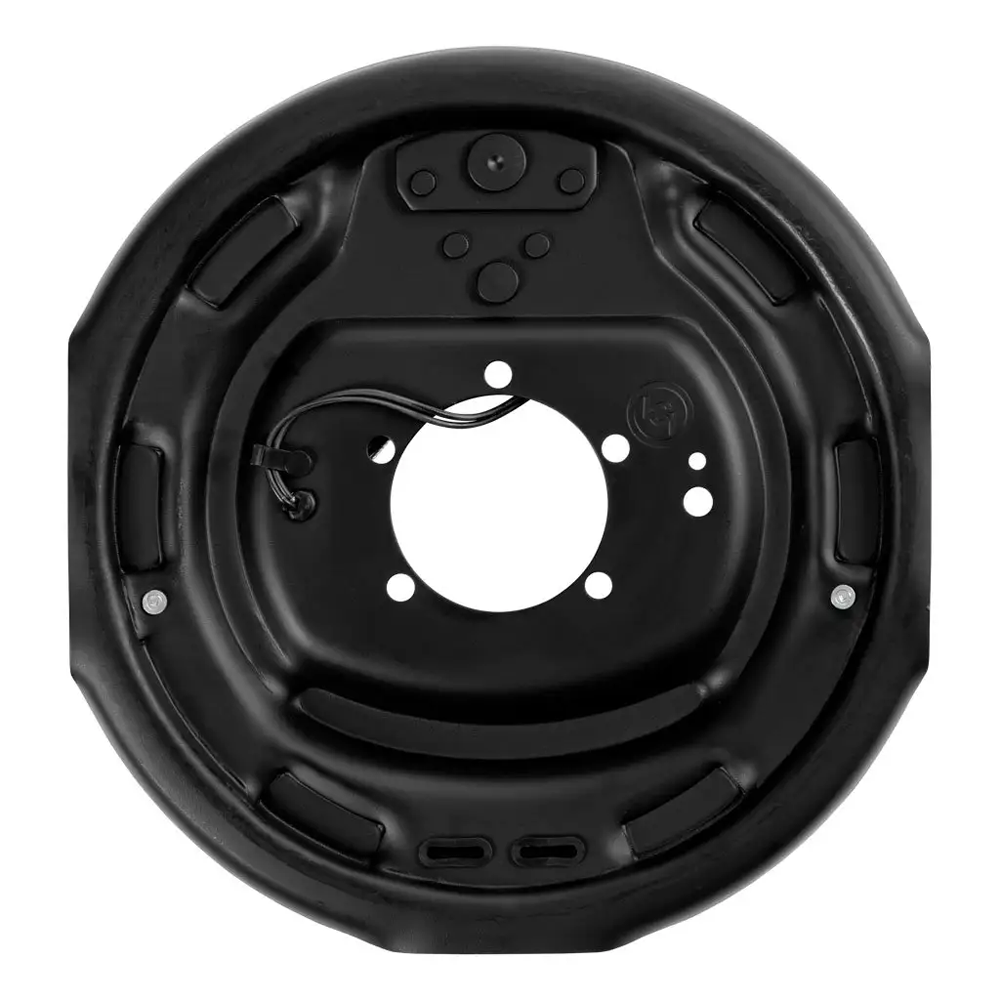

• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 5‑Bolt, 4‑7K (Left)
  • Replacement electric brake assembly
  • Left‑hand (road side) configuration
  • 12" × 2" shoe & lining
  • Axle rating: 4,000 – 7,000 lbs
  • Five‑bolt mounting pattern
  • Forward self‑adjusting – no manual tweaks
  • Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00
  • DIY‑friendly installation
  • 1‑year limited warranty

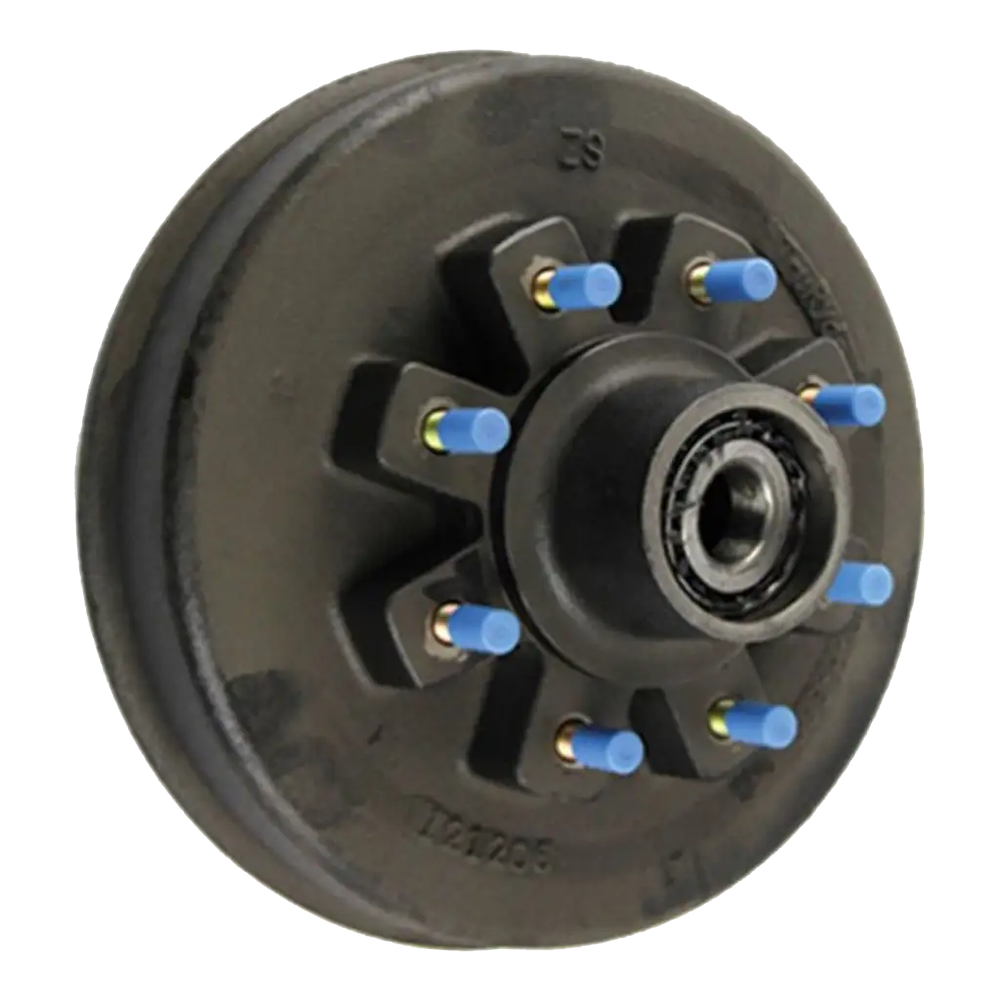

• QTY (1): Lippert Brake Drum Hub Assembly – 8K Hybrid Axle, 8‑on‑6.5", 5/8" Stud
  • Fits 12" × 2" brakes on 8,000‑lb hybrid axles (bundle limited to 7,000 lbs)
  • Durable grey‑iron hub/drum with races and wheel studs pre‑installed
  • Bolt pattern: 8‑on‑6.5"  •  Hub pilot: 4.75"
  • 5/8" wheel studs for secure fit
  • Compatible with 17.5" single wheels
  • Limited 1‑year warranty

Always verify your original equipment specifications and perform regular brake and hub maintenance for peak trailer performance.
