Lippert 12"?LH Self?Adjusting Electric Brake &?12"?7K Hub?Drum Bundle � 8?on?6.5?BP, 9/16"?Studs � Dexter?/?AL?KO?/?Rockwell Compatible

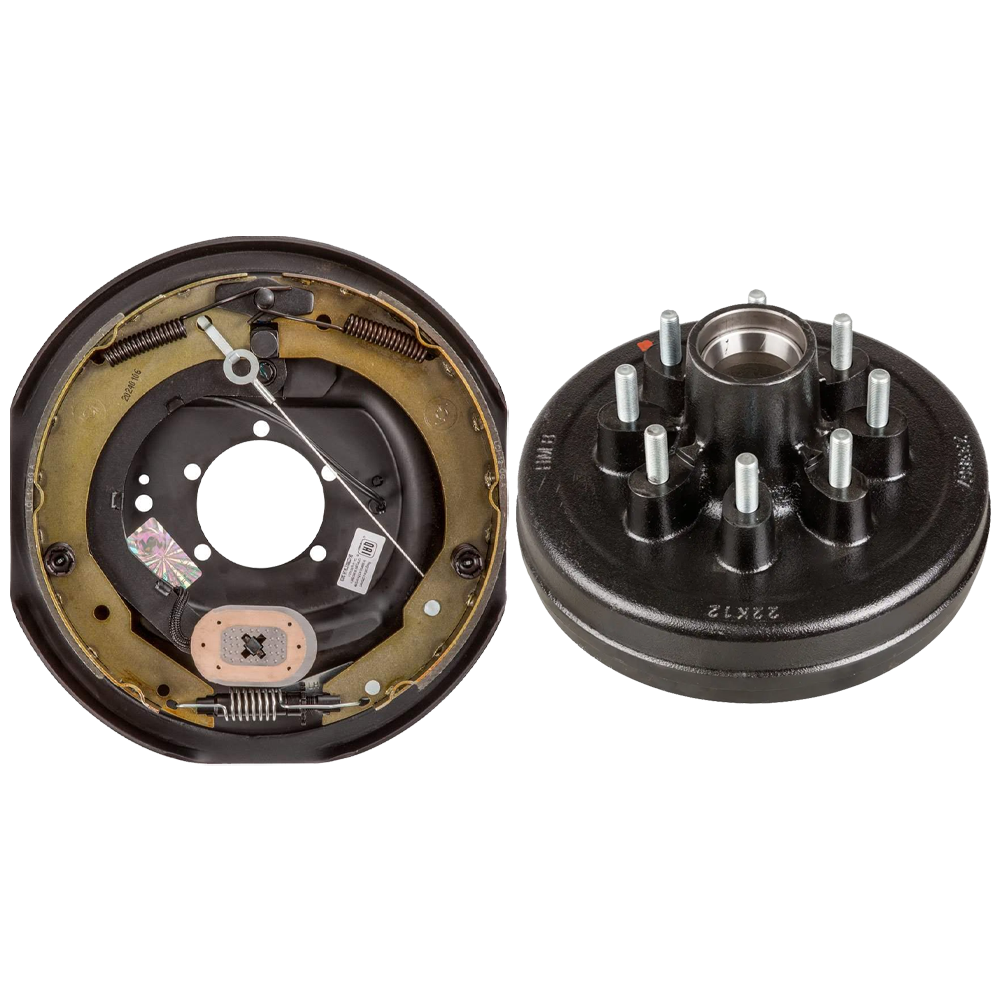

Lippert Left‑Hand Self‑Adjusting Brake Assembly & 12" Bare Brake Drum Hub Bundle

This convenient bundle pairs Lippert’s forward self‑adjusting 12" x 2" electric brake assembly with a matching 12" 7,000‑lb rated hub‑drum, giving you everything you need to refresh one side of a heavy‑duty trailer axle. Enjoy faster installation, automatic brake adjustment, and genuine Lippert quality in one cost‑effective kit.

Bundle Contents:

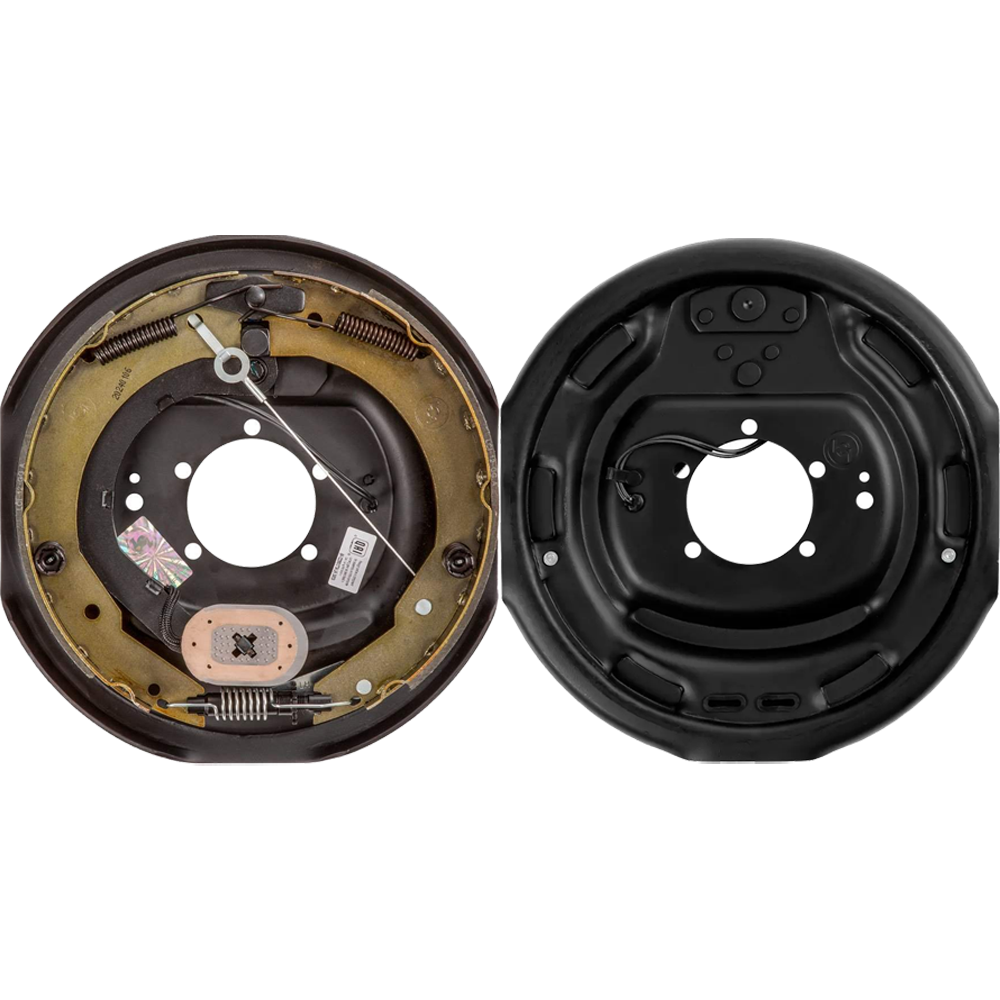

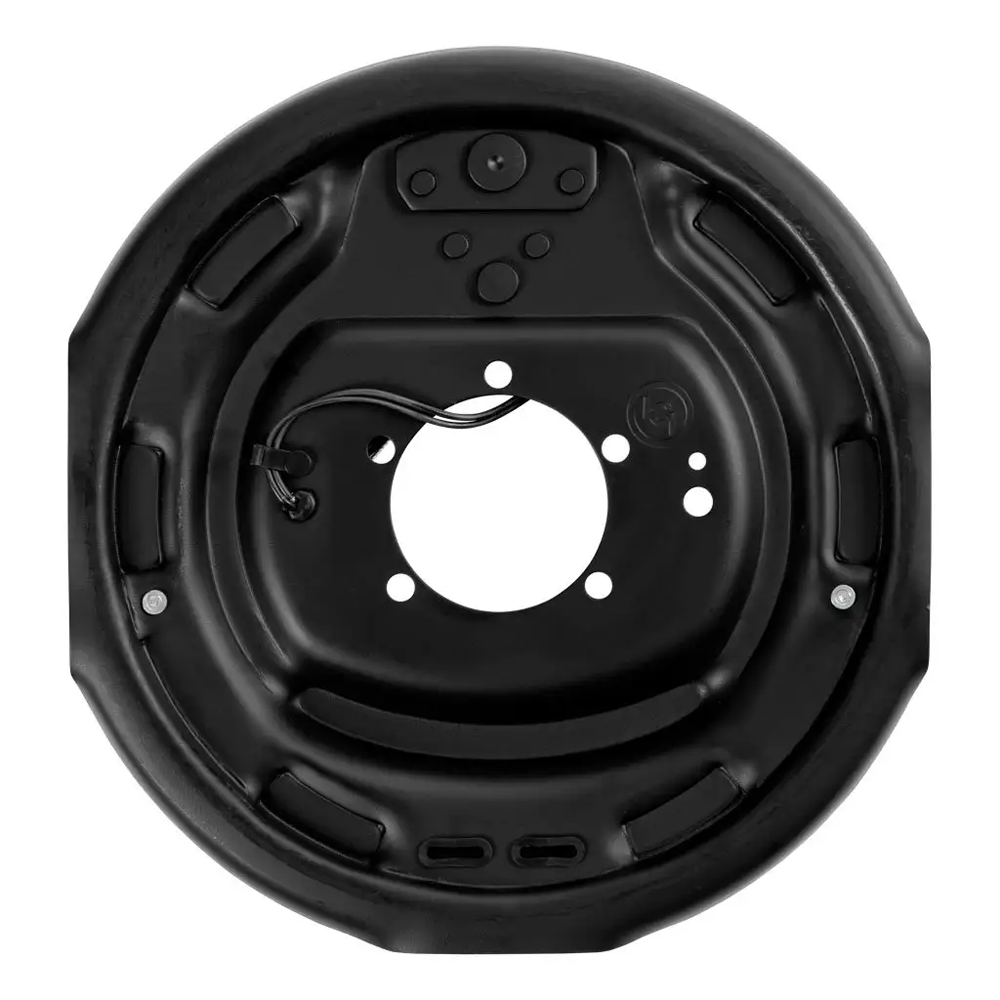

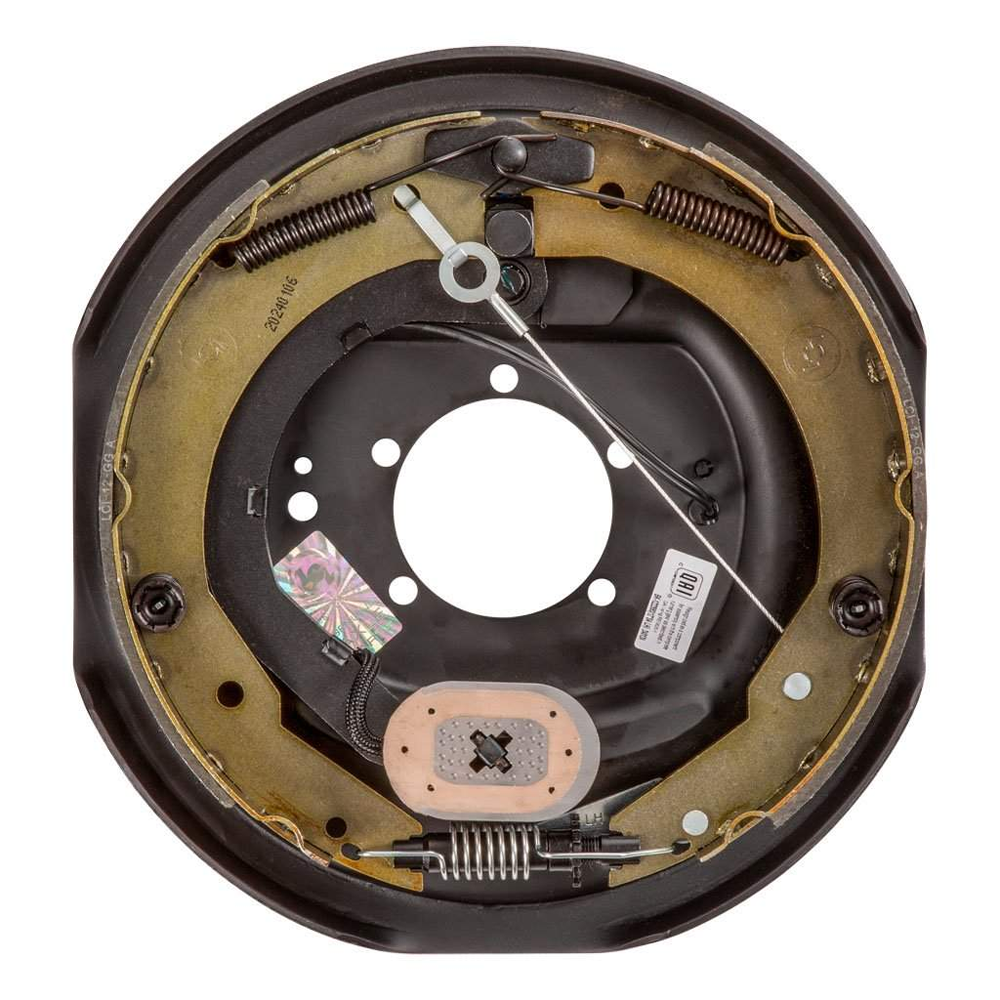

• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" x 2", 5‑Bolt, 4‑7K (Left)
  • Left‑hand (road side) replacement electric brake
  • 12" x 2" shoes; fits 4,000‑7,000 lb axles
  • Five‑bolt mounting pattern; easy DIY installation
  • Self‑adjusts at every forward stop for up to 50 % shorter braking distance
  • Dexter compatible part numbers: K23‑464‑00 | 023‑464‑00
  • Prevents premature shoe and magnet wear; 1‑year limited warranty

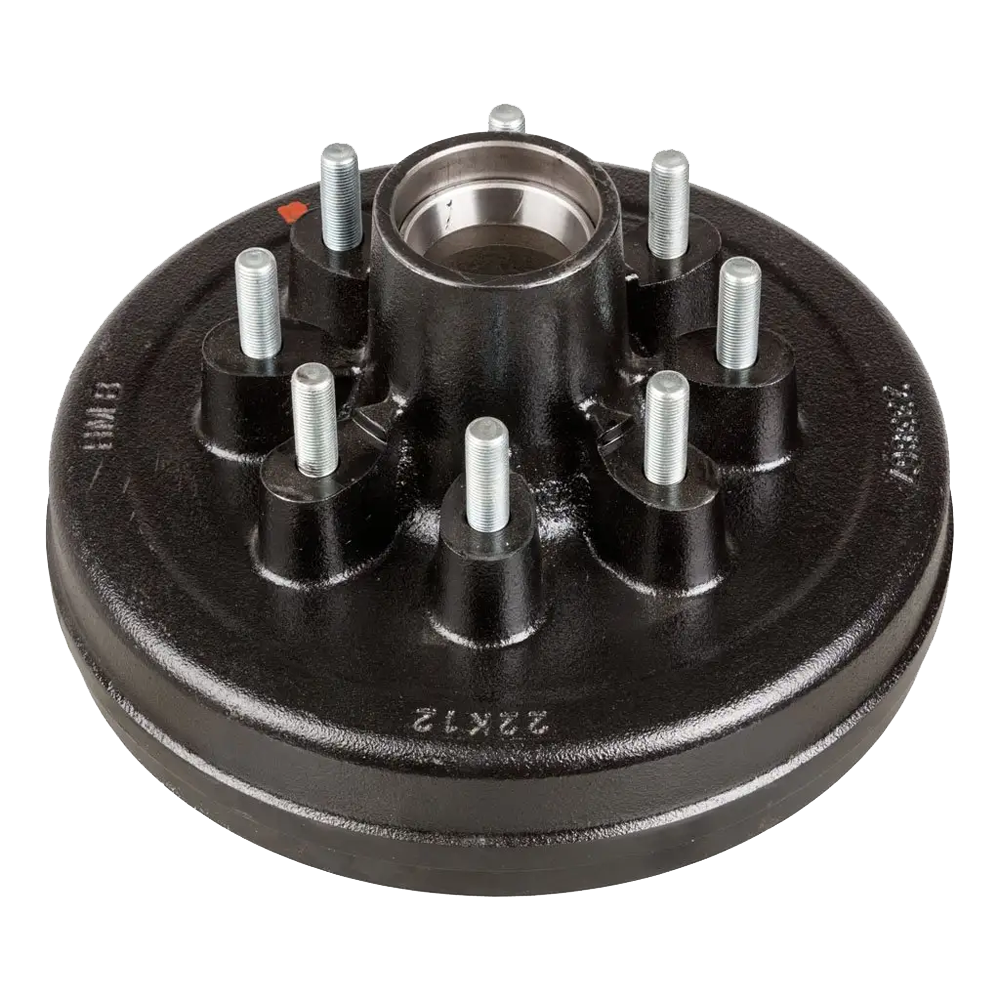

• QTY (1): 12" Trailer Brake Hub Assembly – 7,000 lb, 8 on 6.5", 9/16" Studs
  • Bare hub with integrated 12" brake drum
  • Hub only – full bearing assembly not included
  • Rated for 7,000 lb axles
  • 8 on 6.5" bolt circle with 9/16" studs
  • Fits 16"–17.5" wheels
  • Genuine Lippert quality replacement component; 1‑year limited warranty

Before ordering, verify your axle’s brake size, bolt pattern, and weight rating. Inspect brakes, bearings, and seals regularly to maximize performance and safety.
