Lippert?12? Manual?Adjust Electric Brake Assemblies?& 8?on?6.5?Drum?Hubs w/?Bearing Kit � 7K?Single?Axle?|?Dexter?&?Alko?Compatible

Lippert 12″ Electric Brake & Drum Hub Kit – Built for 7,000‑lb Single‑Axle Trailers

Restore confident stopping power with this all‑inclusive Lippert bundle. It pairs manual‑adjust 12″ electric brake assemblies with robust 8‑on‑6.5″ cast‑iron drum hubs and individual bearing kits—everything you need to service a 7K single axle quickly and safely.

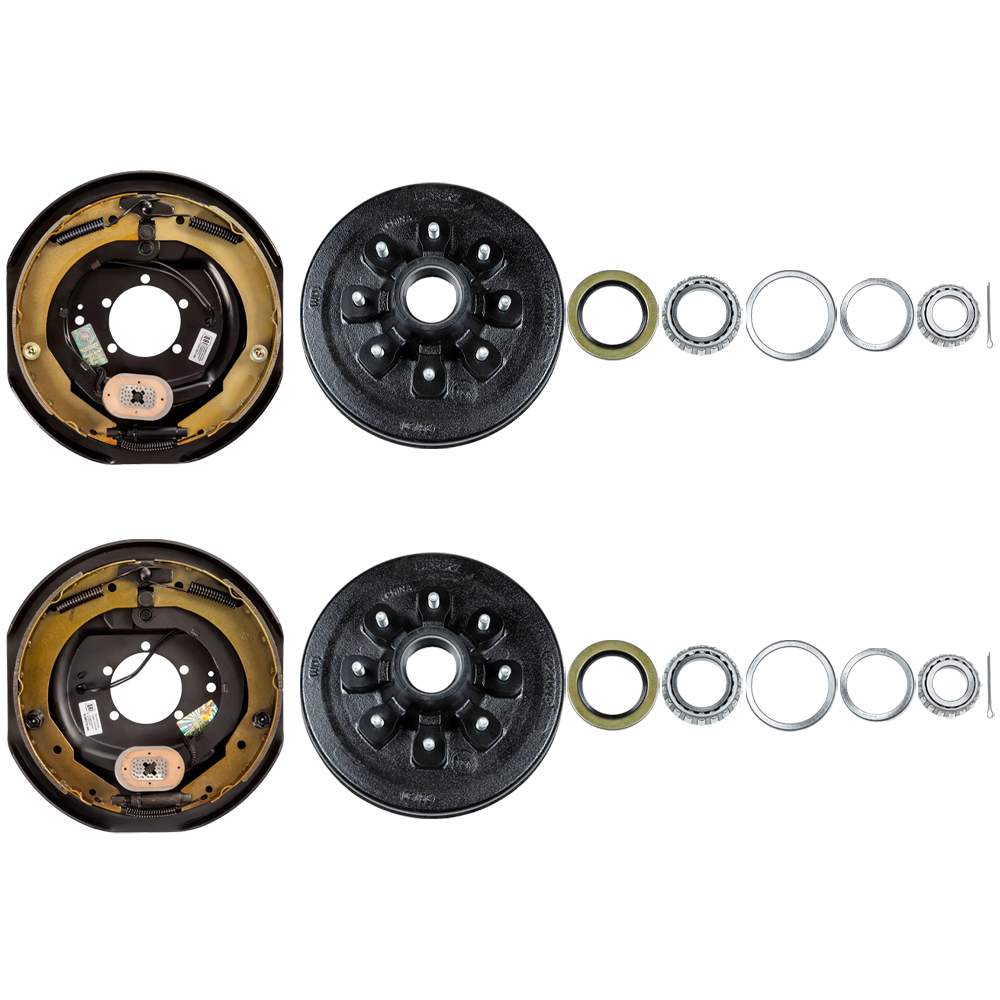

Bundle Contents:

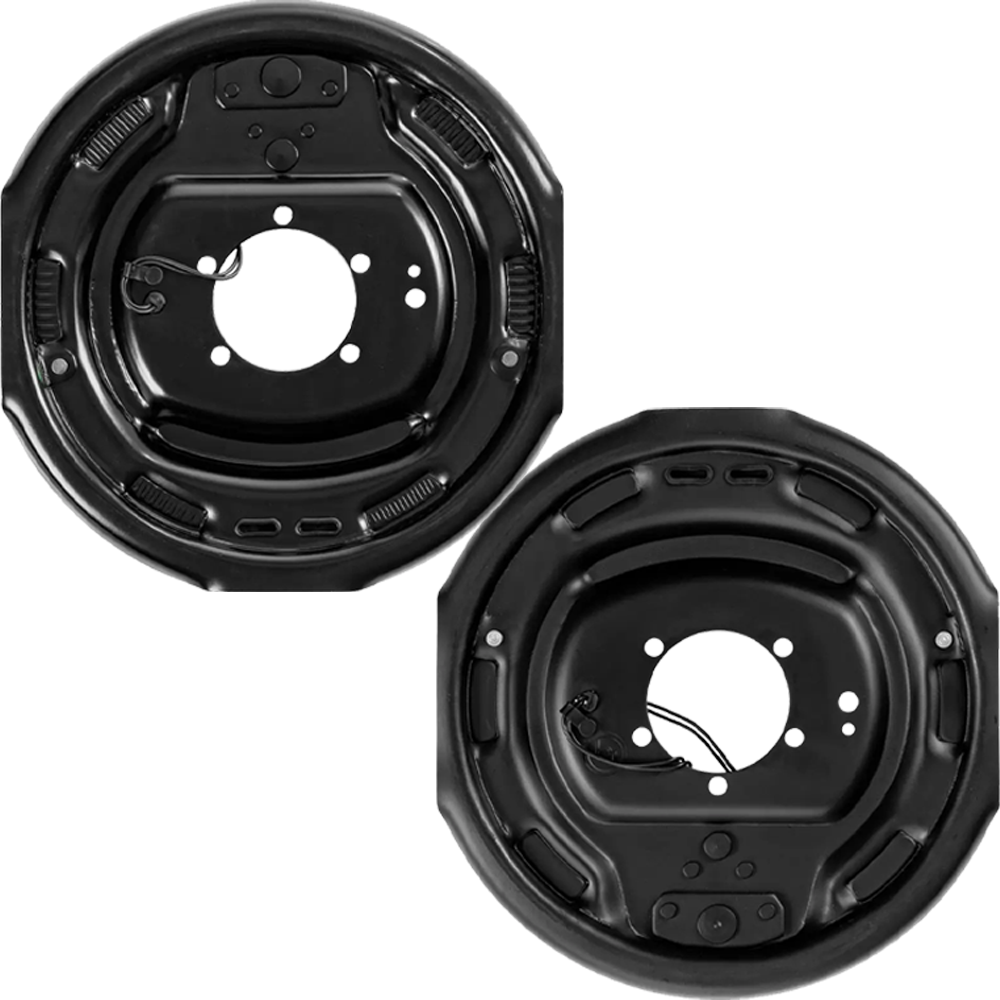

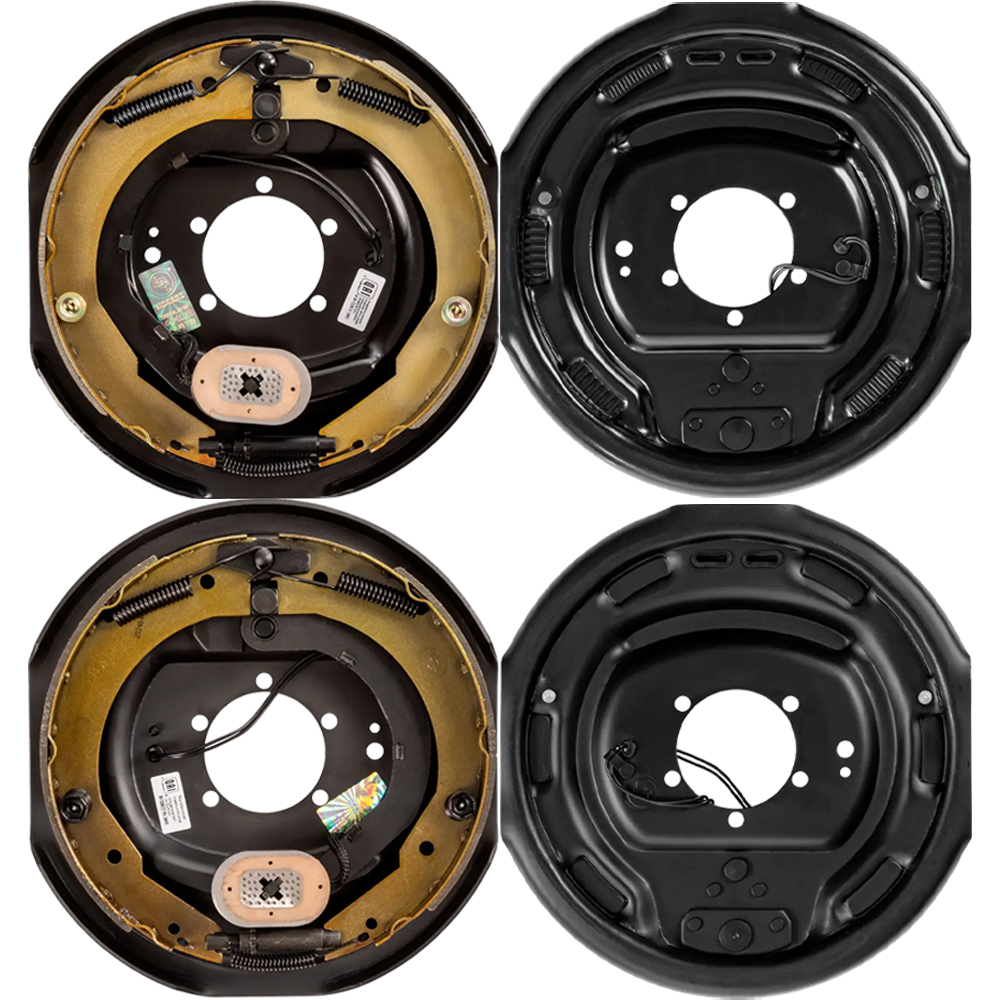

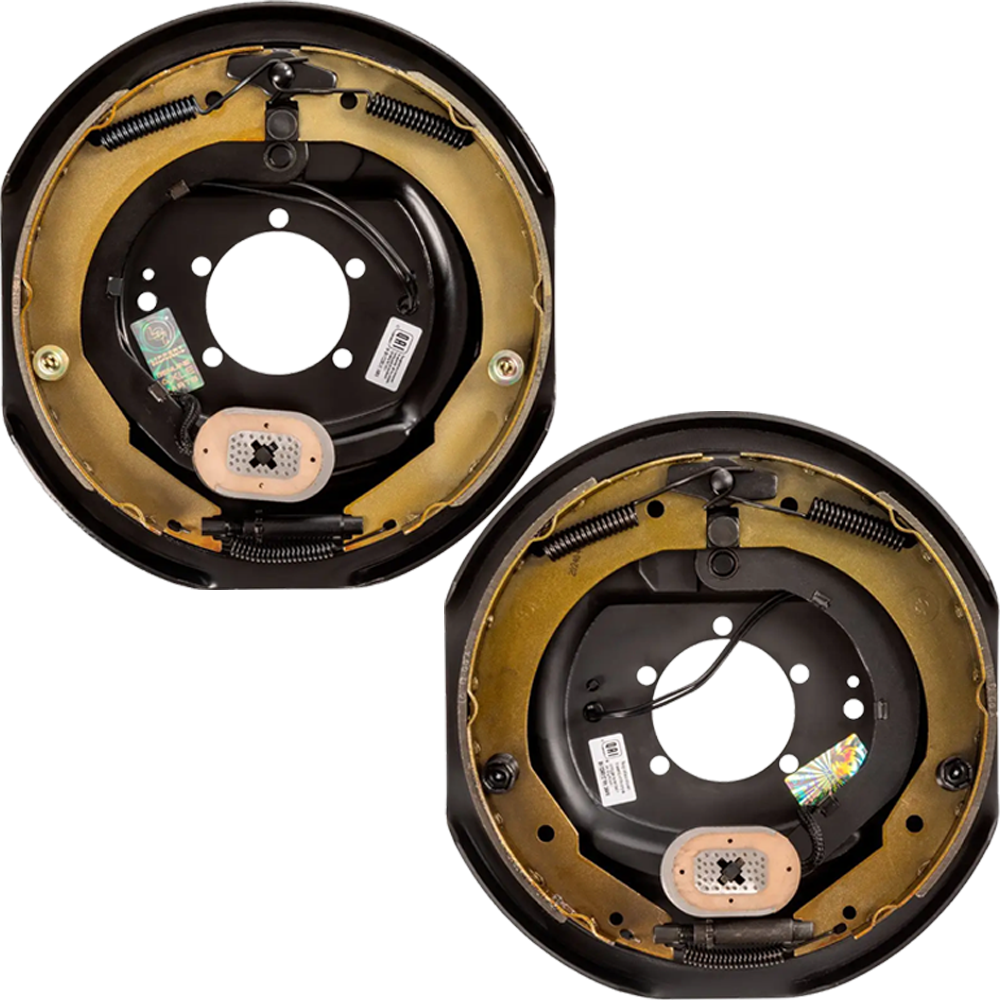

• QTY (1): Lippert Electric Trailer Brake Assembly – 12″ × 2″, 4,000‑7,000 lbs, Left (Road‑Side)
  • Manual‑adjust, standard electric brake with park feature
  • 5‑bolt mounting pattern for fast DIY install
  • Fits 5,200–7,000 lb axles & 8K hybrid axles
  • Compatible with 15″–17.5″ wheels
  • Dexter Compatible Part No.: K23‑180‑00 | 023‑180‑00
  • Requires break‑in for peak performance
• QTY (1): Lippert Electric Trailer Brake Assembly – 12″ × 2″, 4,000‑7,000 lbs, Right (Curb‑Side)
  • Manual‑adjust, standard electric brake with park feature
  • 5‑bolt mounting pattern for fast DIY install
  • Fits 5,200–7,000 lb axles & 8K hybrid axles
  • Compatible with 15″–17.5″ wheels
  • Dexter Compatible Part No.: K23‑181‑00 | 023‑181‑00
  • Requires break‑in for peak performance

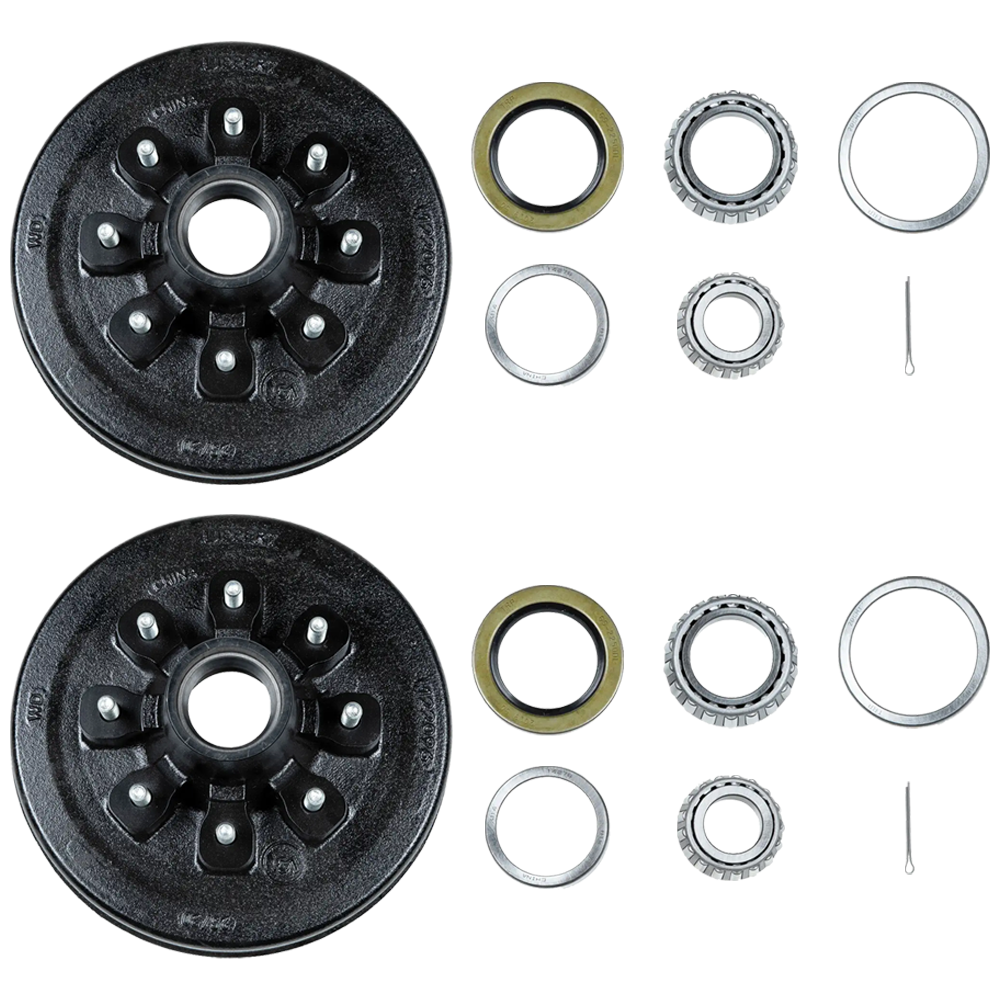

• QTY (2): Lippert 12″ Brake Drum Hub Assembly – 8 on 6.5″, 1/2″ Studs, for 7,000‑lb Axle
  • Durable cast‑iron hub with integrated 12″ drum
  • 8‑lug, 6.5″ bolt circle; 1/2″ pre‑pressed studs
  • Fits 16″–17.5″ wheels
  • Dexter Compatible Part No.: K08‑219‑9B
  • Includes complete bearing & grease‑seal kit (#333951) (bagged separately – one kit per hub):
    • Inner Bearing Cone
    • Inner Bearing Cup
    • Outer Bearing Cone
    • Outer Bearing Cup
    • Double‑lip Grease Seal
    • Cotter Pin
  • Lippert hub #122096; 1‑year limited warranty

Recommendation: Verify original equipment specs before purchase and perform routine inspections, lubrication, and adjustment to keep your braking system operating safely.
