Lippert?12"?Manual?Adjust Electric Brake Assembly Pair?+?(2)?6?on?5.5"?Hub?Only Drums � Fits?6,000?lb Trailer Axles � Compatible with?Dexter,?AL?KO,?Rockwell

$323.99

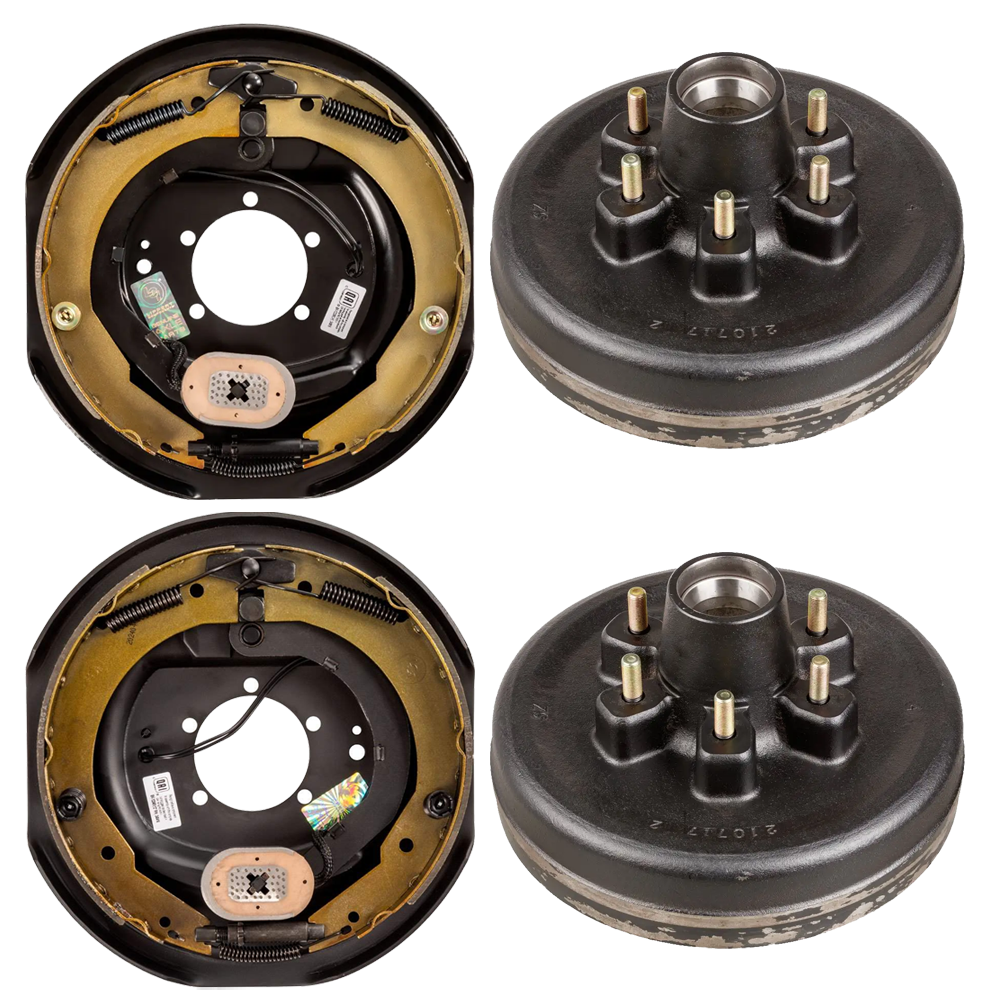

Lippert 12" Manual‑Adjust Electric Brake & Hub‑Only Drum Bundle – 6K Axle

Restore confident stopping power on your 6,000‑lb trailer axle with this genuine Lippert bundle. You receive a matched left‑ and right‑hand pair of 12" manual‑adjust electric brakes plus two 6‑on‑5.5" hub‑only drums with 1/2" studs—everything needed for a smooth, reliable upgrade that’s also compatible with Dexter, AL‑KO, and Rockwell axles.

Bundle Contents:

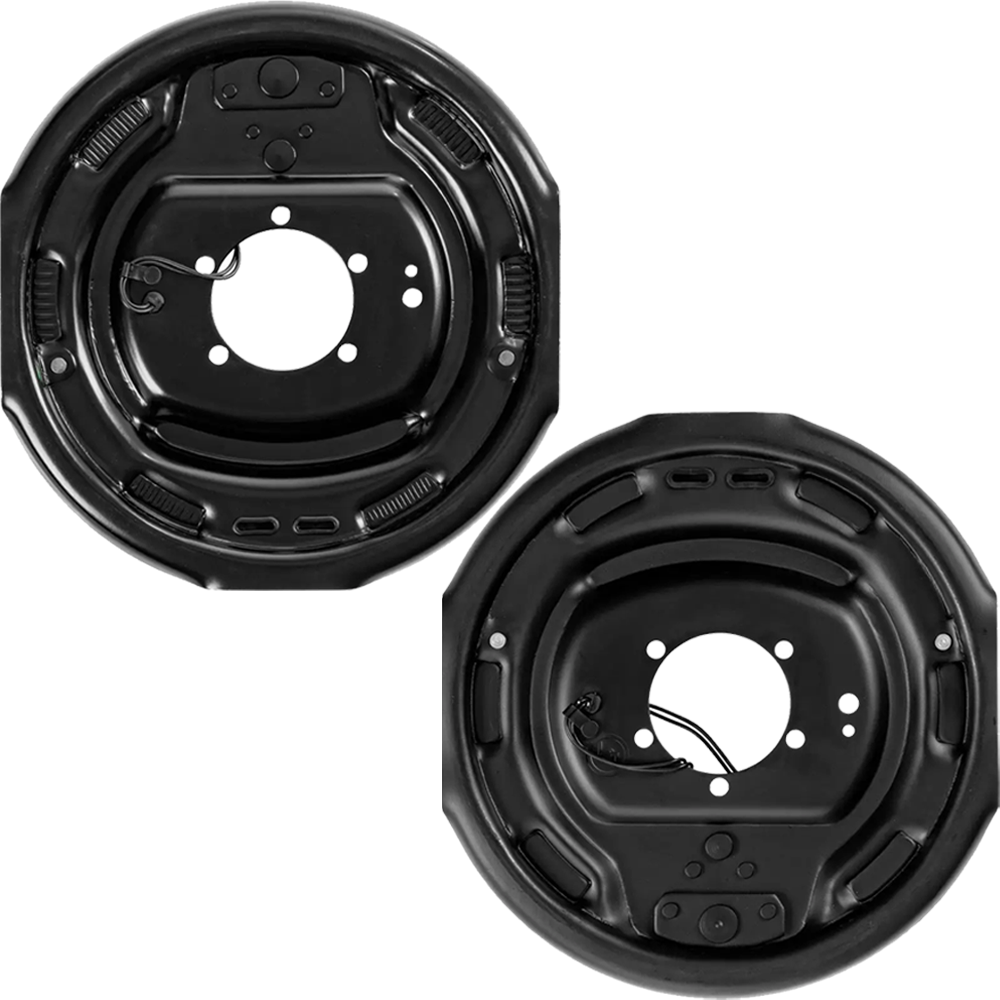

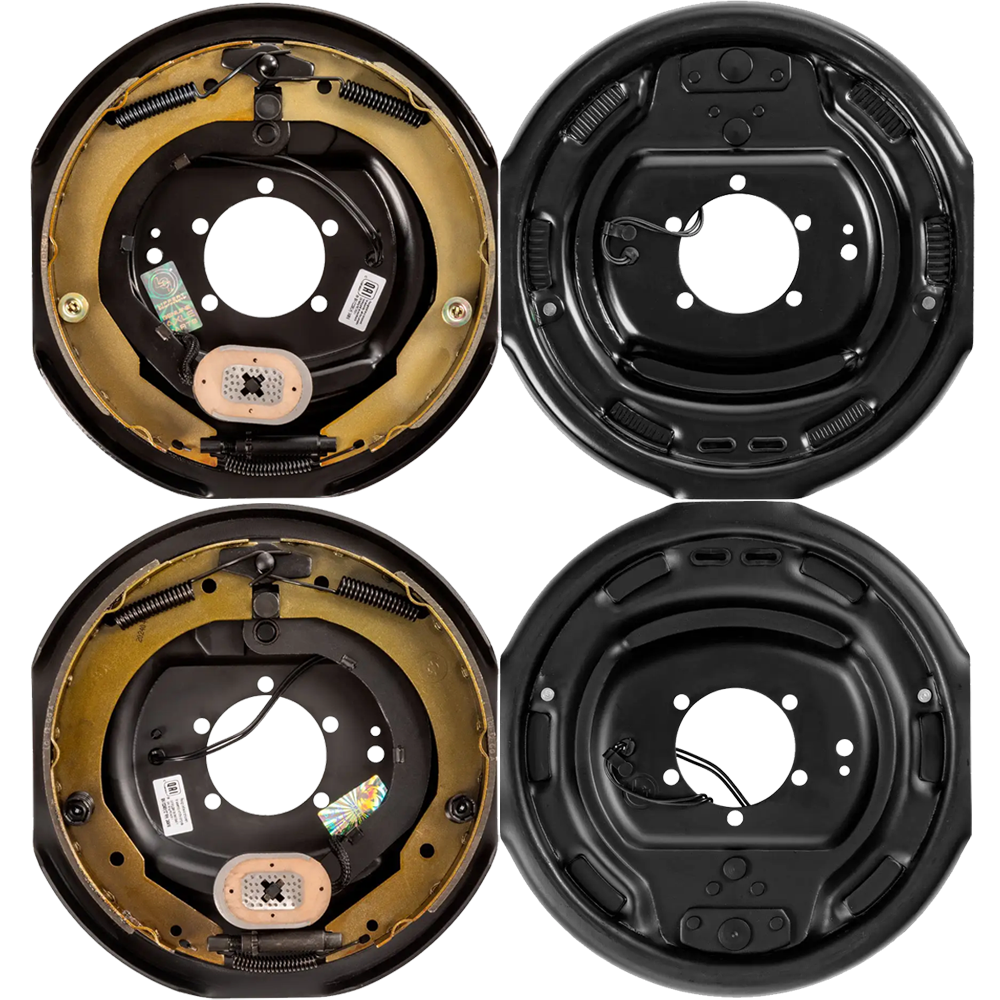

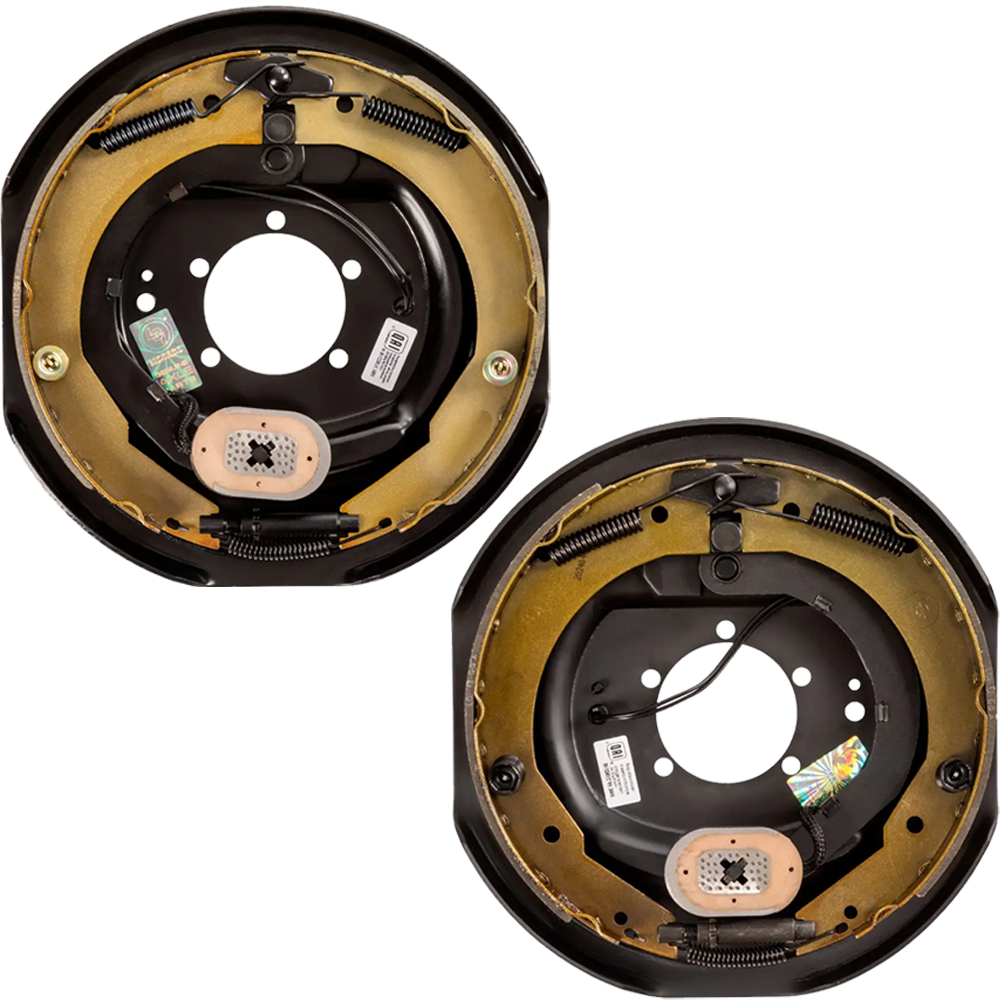

  • QTY (1): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Left Hand (Road‑Side)
    • Genuine Lippert replacement part
    • Manual adjustment for precise braking control
    • Brake size: 12" x 2"
    • Axle rating: 4,000 – 7,000 lbs
    • 4‑bolt mounting pattern
    • Dexter Compatible Part Number: K23‑180‑00 | 023‑180‑00
    • Easy DIY installation
    • 1‑year limited warranty
  • QTY (1): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Right Hand (Curb‑Side)
    • Genuine Lippert replacement part
    • Manual adjustment for precise braking control
    • Brake size: 12" x 2"
    • Axle rating: 4,000 – 7,000 lbs
    • 4‑bolt mounting pattern
    • Dexter Compatible Part Number: K23‑181‑00 | 023‑181‑00
    • Easy DIY installation
    • 1‑year limited warranty

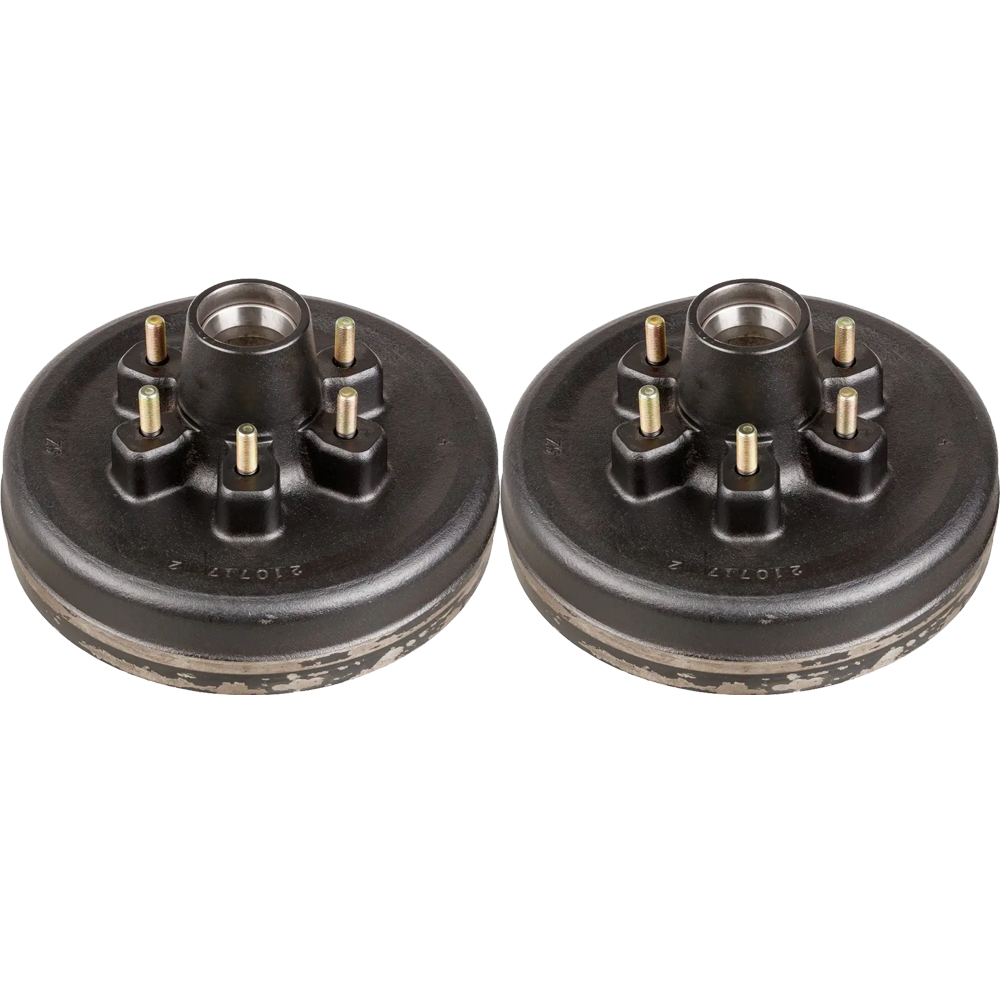

  • QTY (2): 12" Hub‑Only Drum – 6 on 5.5" Pattern, 1/2" Studs (6,000‑lb)
    • Brake hub only – full drum assembly not included
    • Axle rating: 6,000 lbs
    • Bolt pattern: 6 on 5.5"
    • Stud size: 1/2"
    • Wheel size range: 14.5" – 16.5"
    • Limited 1‑year warranty

Always confirm original part numbers before ordering, and perform regular brake inspections and manual adjustments to maximize performance and axle life.

Specifications:
Kit Type Complete Manual‑Adjust Brake & Hub‑Only Drum Bundle
Axle Rating 6,000 lbs (bundle limited by hub capacity)
Brake Drum Dimensions 12" x 2"
Brake Mounting Pattern 4‑Bolt
Hub Bolt Pattern 6 on 5‑1/2"
Hub Type Hub with Integrated Drum (Hub‑Only)
Stud Size 1/2"
Type of Adjustment Manual Adjust
Brake Location Left (Road‑Side) & Right (Curb‑Side)
Wheel Size Compatibility 14.5", 15", 16", 16.5"
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
