Lippert 12? Manual?Adjust Electric Brake Pair?&?8?on?6.5 Grease Drum Hubs Kit?�?7K Rated / 8K Hybrid?Compatible, 5/8? Studs, 17.5? Wheels � Compatible with Dexter, Alko, Rockwell, Quality Axles
$428.99

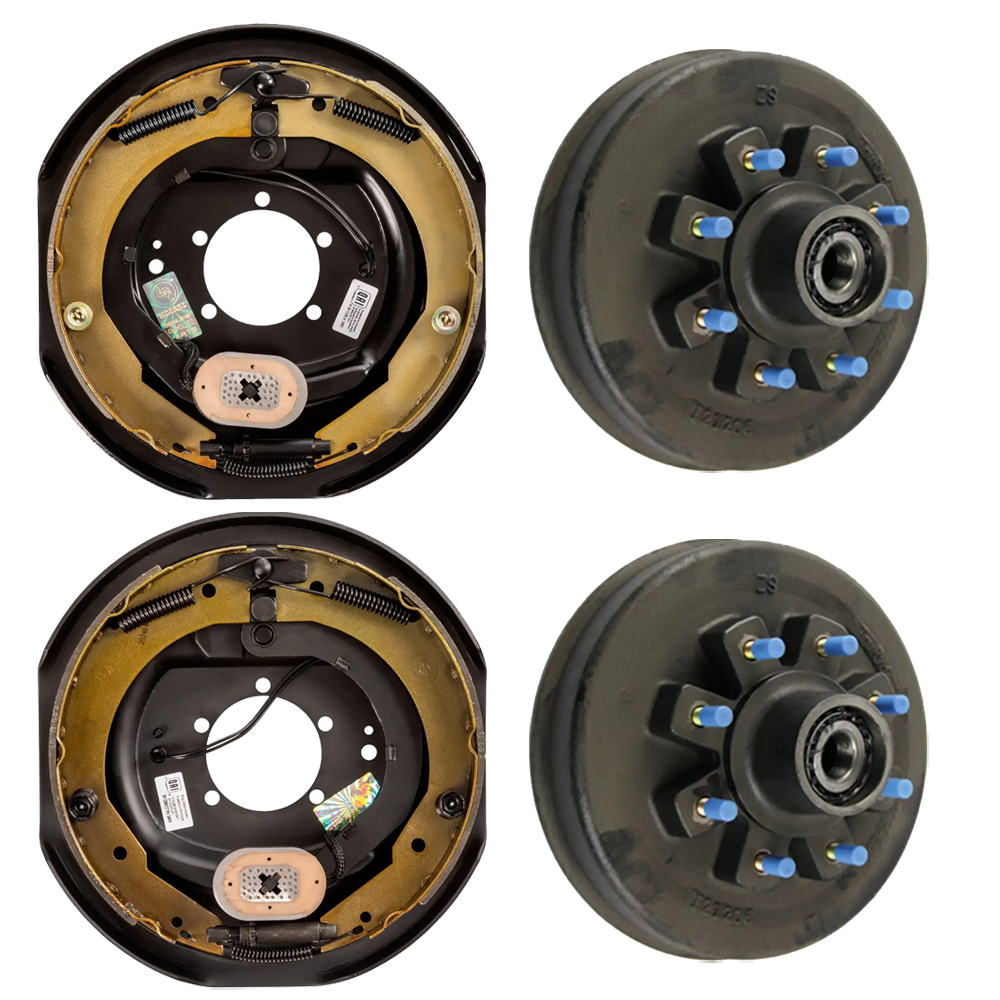

Lippert 12″ Electric Brake & Grease Drum Hub Bundle – 7K Rated / 8K Hybrid‑Compatible
Refresh your heavy‑duty single‑axle trailer with this all‑Lippert kit. It combines a matched left‑and‑right set of 12″ manual‑adjust electric brakes with rugged 8‑on‑6.5 grease drum hubs (5/8″ studs) for confident stopping power on 7,000 lb axles—while also fitting 8,000 lb “hybrid” axles that run 12″ brakes and 17.5″ wheels.
Bundle Contents:
-

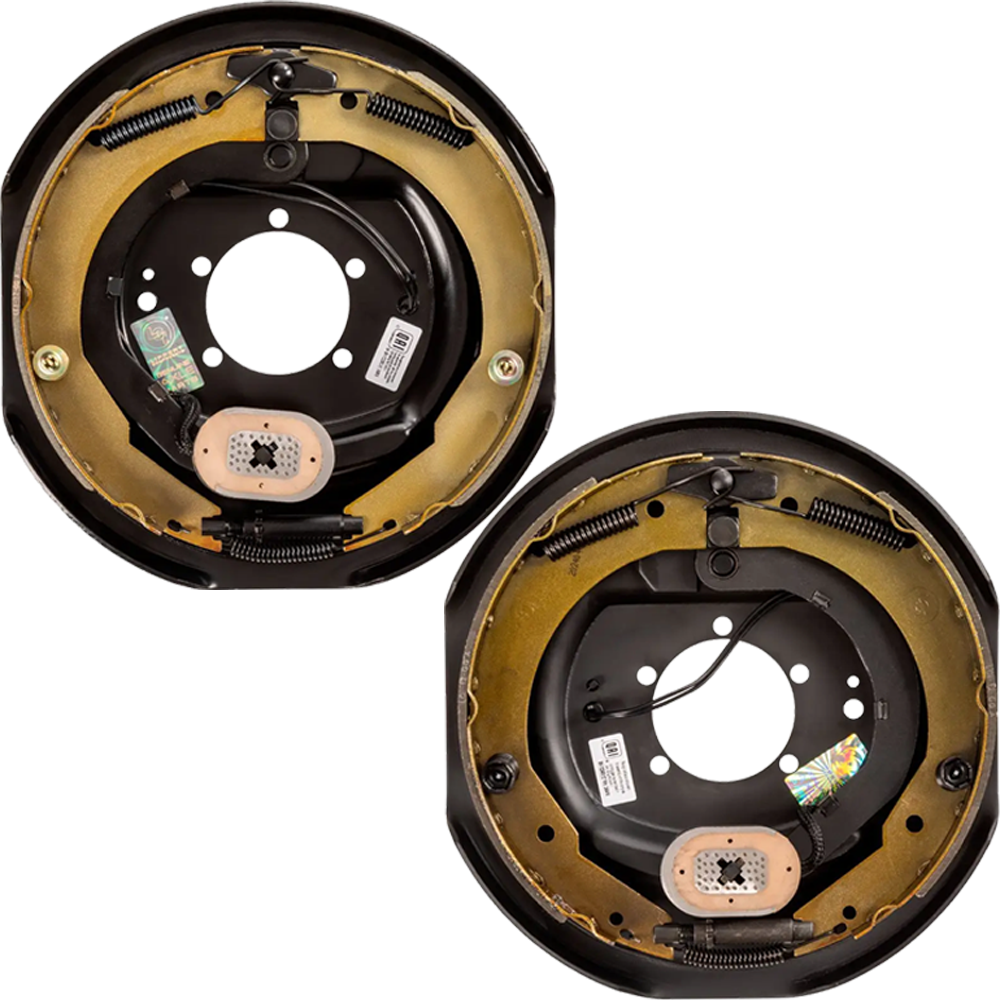

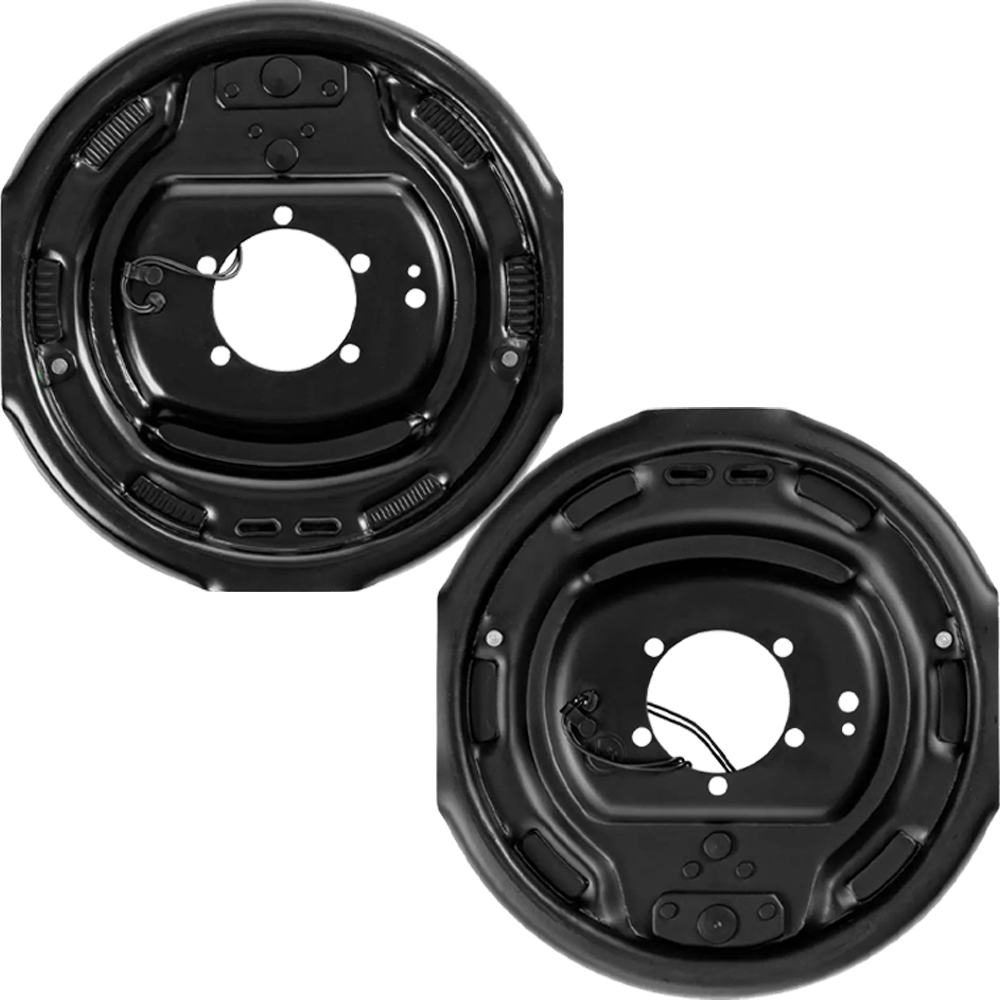

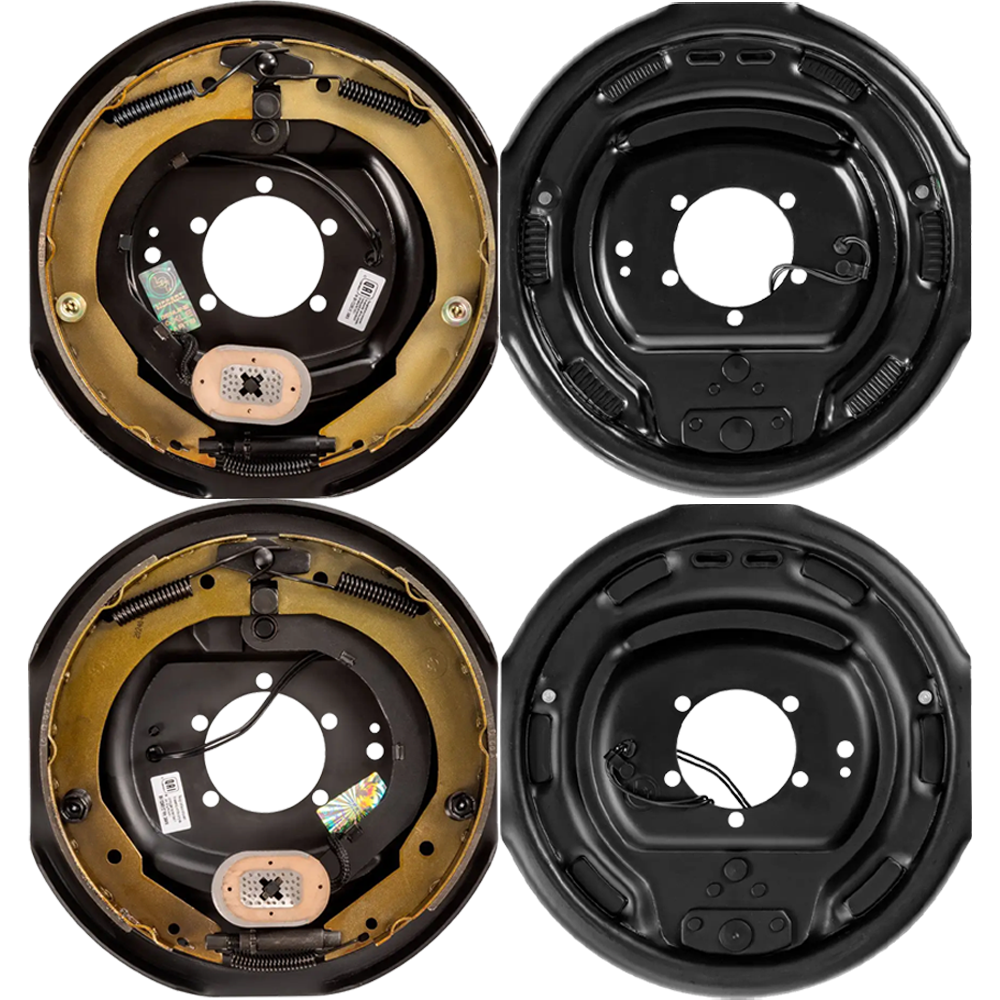

QTY (1): Lippert 12″ × 2″ Manual‑Adjust Electric Brake Assembly – Left (Roadside)
- Standard electric drum brake with park feature
- Manual shoe‑to‑drum adjustment
- Roadside (LH) mounting – 5‑bolt pattern
- Fits 5,200‑7,000 lb axles & 8,000 lb hybrid axles
- Works with 15″–17.5″ wheels
- 12″ × 2″ friction surface – break‑in required
- Dexter Compatible Part #: K23‑180‑00 | 023‑180‑00
-
QTY (1): Lippert 12″ × 2″ Manual‑Adjust Electric Brake Assembly – Right (Curb‑side)
- Standard electric drum brake with park feature
- Manual shoe‑to‑drum adjustment
- Curb‑side (RH) mounting – 5‑bolt pattern
- Fits 5,200‑7,000 lb axles & 8,000 lb hybrid axles
- Works with 15″–17.5″ wheels
- 12″ × 2″ friction surface – break‑in required
- Dexter Compatible Part #: K23‑181‑00 | 023‑181‑00
-

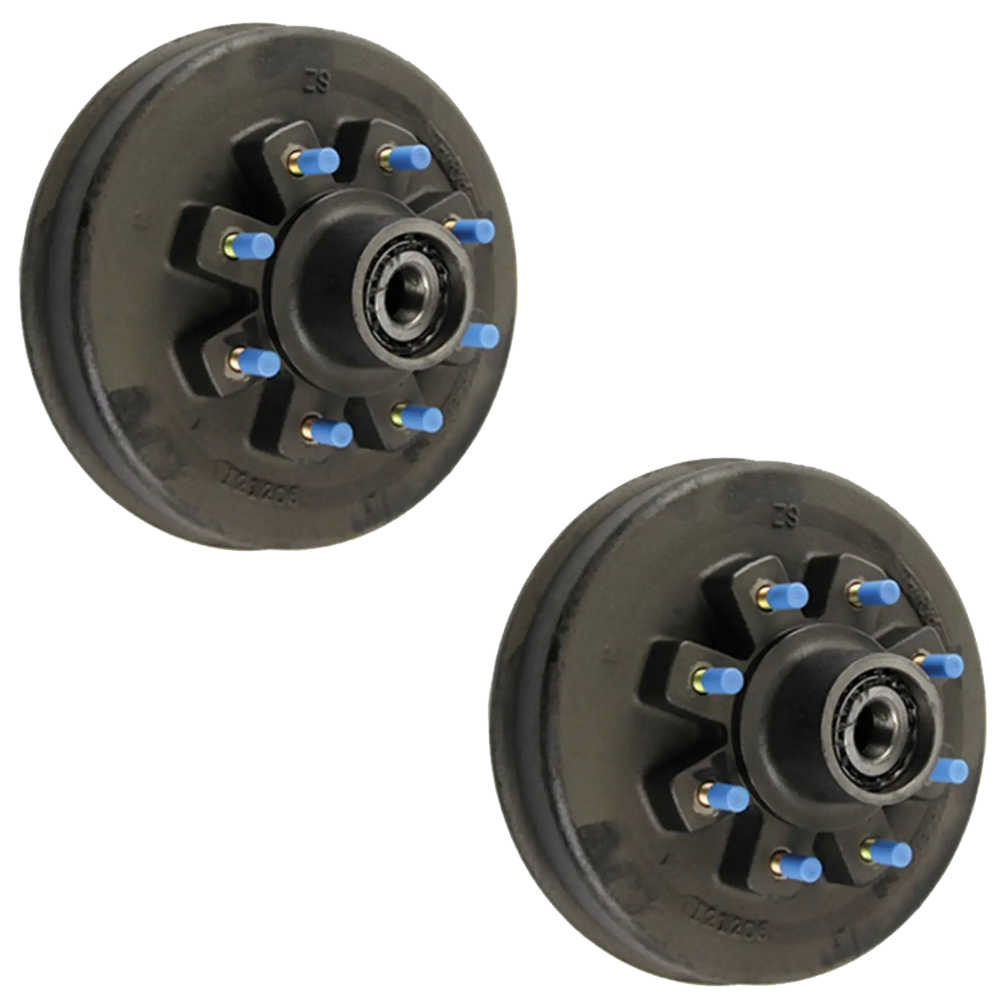

QTY (2): Lippert Threaded Hybrid Grease Drum Hub – 8 K, 8‑on‑6.5″, 5/8″ Studs
- 8,000 lb axle classification – 12″ drum
- 8‑on‑6.5″ bolt circle, 5/8″ threaded studs
- 17.5″ wheel size
- Accepts electric or hydraulic brakes
- Races & wheel studs come pre‑installed
- Valcrum dust‑cap compatible, cast‑iron build
- Lippert 1‑year warranty
Always verify axle rating, bolt pattern and wheel size before installation. While this kit installs on 8K hybrid axles that utilize 12″ brakes, overall braking performance remains rated to 7,000 lb. Perform regular bearing and brake maintenance for maximum service life.
| Specifications: | |
|---|---|
| Kit Type | Complete Single‑Axle Electric Brake & Grease Drum Hub Kit |
| Axle Rating | 7,000 lb braking capacity; installs on 7K axles or 8K hybrid axles |
| Brake Drum Dimensions | 12″ × 2″ |
| Type of Adjustment | Manual |
| Brake Location | Left & Right assemblies included |
| Brake Mount Pattern | 5‑Bolt |
| Hub Type | Threaded Grease Hub with Integrated Drum |
| Hub Bolt Pattern | 8 on 6‑1/2″ |
| Stud Size | 5/8″ |
| Wheel Size Compatibility (Brakes) | 15″–17.5″ |
| Wheel Size Compatibility (Hubs) | 17.5″ |
Order today or call us at 877-869-6690 for expert advice and personalized service.
