Lippert?12? Manual Electric Brake Pair?+?8?on?6.5? Hub?Only Drums � 9/16? Studs, Dexter �?Al?Ko �?Rockwell Compatible (7?K Kit)

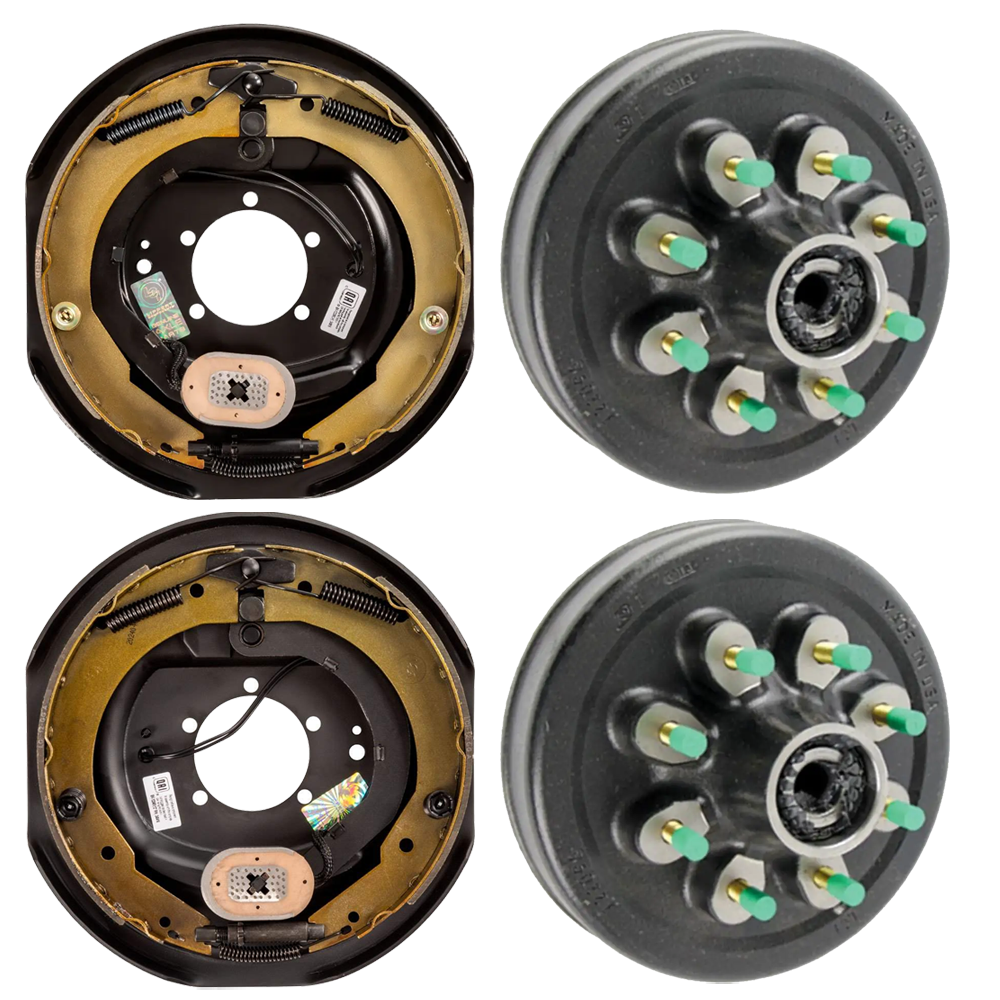

Lippert 12″ Manual Electric Brake & 8‑on‑6.5″ Hub‑Only Drum Bundle

Refresh your heavy‑duty trailer’s stopping power with this genuine Lippert bundle: a matched left‑and‑right pair of 12″ manual‑adjust electric brakes plus two 8‑on‑6.5″ hub‑only drums with 9/16″ studs. Rated to the lower component (7,000 lb), this kit installs quickly, ships ready‑to‑mount with races and studs pre‑installed, and is fully compatible with Dexter, Al‑Ko, and Rockwell 8 K axles.

Bundle Contents:

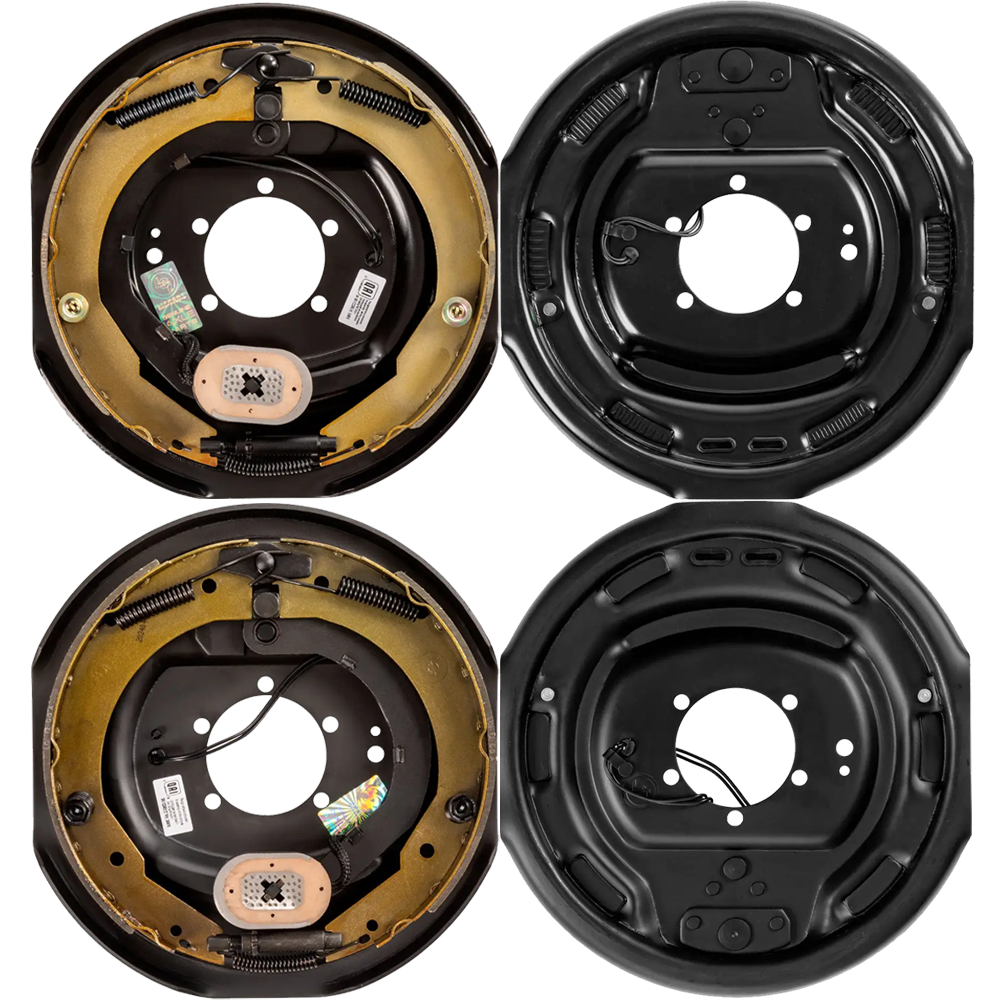

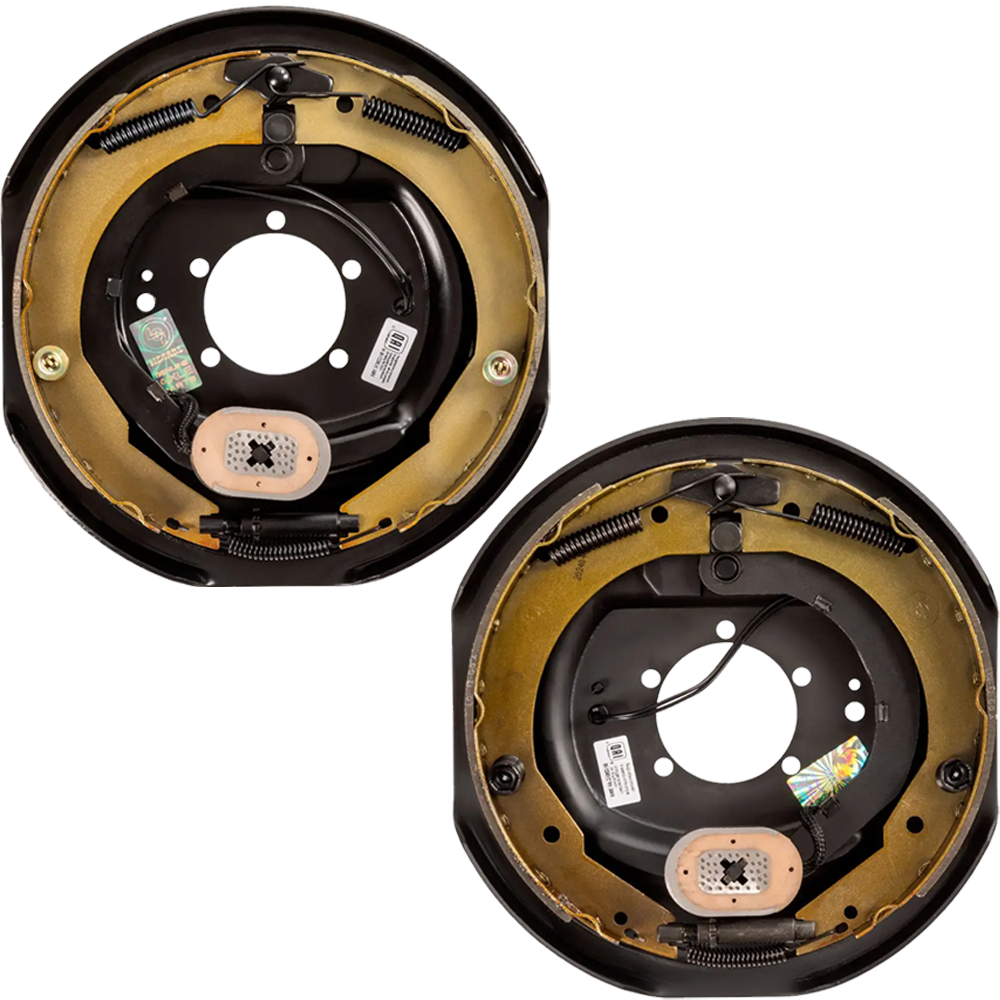

• QTY (1): Lippert Electric Brake Assembly – 12″ × 2″, 4,000‑7,000 lb (Left/Road Side)
  • Replacement electric brake assembly
  • Left hand (road side)
  • 12″ × 2″ brake shoe size
  • 4‑bolt mounting pattern
  • Axle rating: 4,000‑7,000 lb
  • Easy DIY install & manual adjustment
  • Dexter compatible part #: K23‑180‑00 | 023‑180‑00
  • 1‑year Lippert warranty
• QTY (1): Lippert Electric Brake Assembly – 12″ × 2″, 4,000‑7,000 lb (Right/Curb Side)
  • Replacement electric brake assembly
  • Right hand (curb side)
  • 12″ × 2″ brake shoe size
  • 4‑bolt mounting pattern
  • Axle rating: 4,000‑7,000 lb
  • Easy DIY install & manual adjustment
  • Dexter compatible part #: K23‑181‑00 | 023‑181‑00
  • 1‑year Lippert warranty

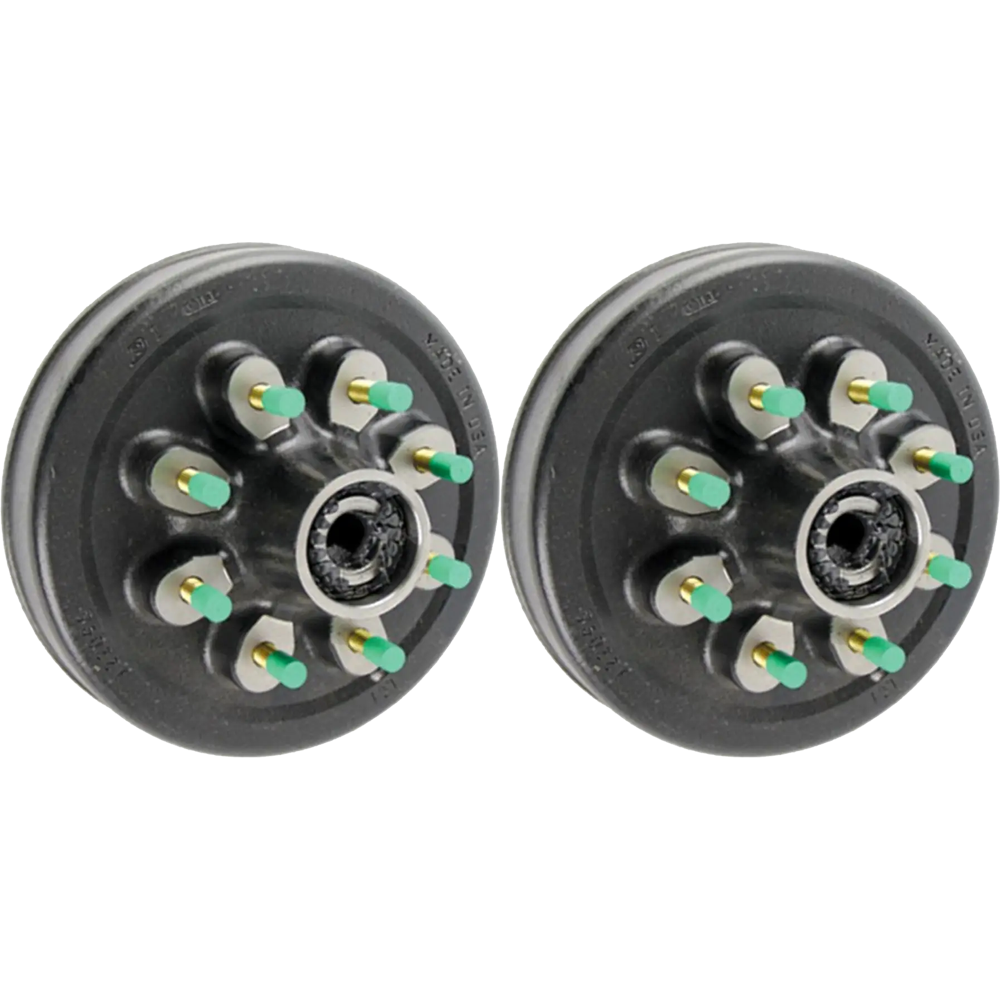

• QTY (2): 12″ Threaded Hybrid Trailer Brake Hub – 8 K, 8‑on‑6.5″, 9/16″ Studs
  • Axle capacity: 8,000 lb
  • 12″ hub‑only drum – accepts electric or hydraulic brakes
  • 8‑on‑6.5″ bolt pattern, 9/16″ studs pre‑installed
  • Races come factory‑installed for quicker setup
  • Fits 16″ – 17‑1/2″ wheels
  • Accepts Valcrum threaded dust caps
  • Durable cast‑iron construction
  • Dexter‑compatible & backed by 1‑year warranty

Recommendation: Confirm axle rating, lug‑nut torque, and brake‑flange pattern before installation. Inspect and service brakes periodically for optimal safety.
