Lippert 12" RH Electric Brake & 8?on?6.5?Hub/Drum Kit���7K?Standard?/?8K?Hybrid Axles,?9/16" Studs, Dexter?Alko?Rockwell Compatible

Lippert 12" Right‑Hand Electric Brake & Threaded Hybrid Hub/Drum Bundle – for 7K Axles & 8K Hybrid Applications

Refresh your heavy‑duty trailer’s stopping power with this genuine Lippert bundle. It pairs a manual‑adjust 12" right‑hand electric brake assembly with a pre‑greased, threaded 8‑on‑6.5" hub/drum (9/16" studs) for a fast, factory‑fit replacement on standard 7,000 lb axles—while also remaining compatible with 8,000 lb hybrid axles that use 12" x 2" brakes.

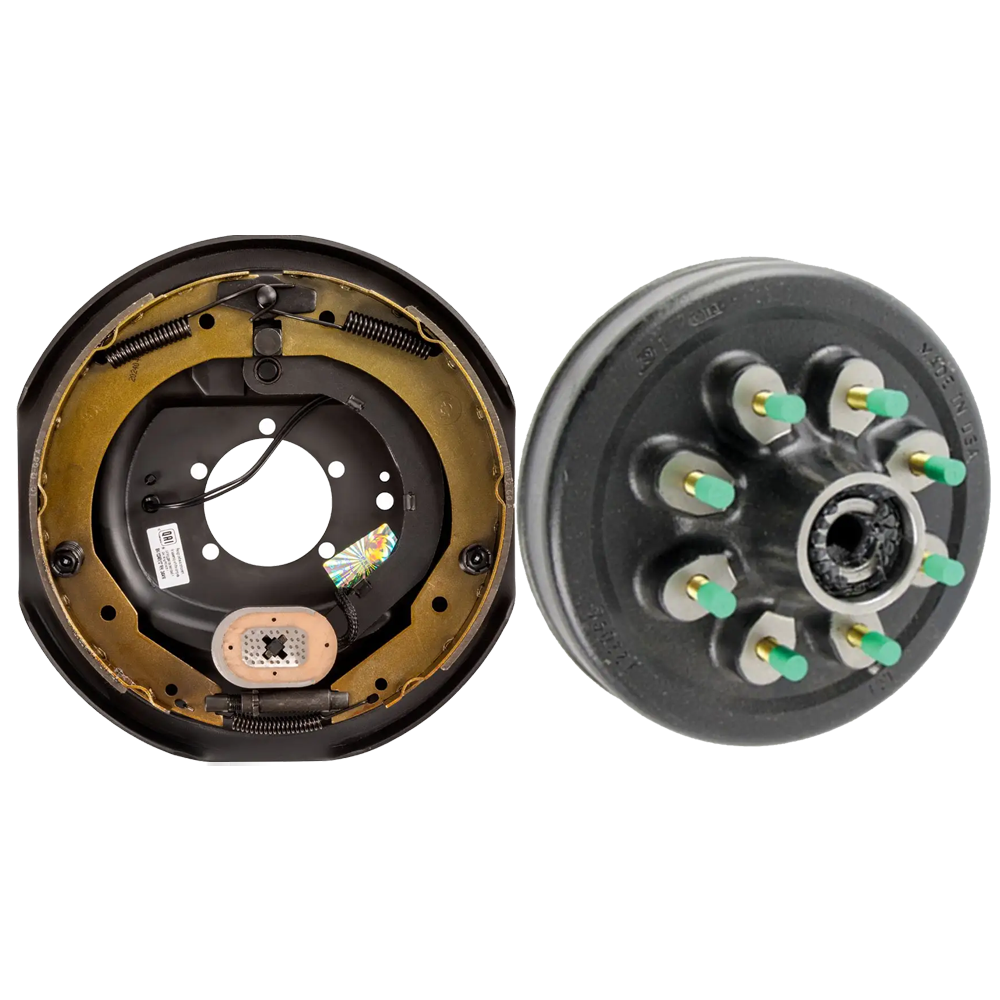

Bundle Contents:

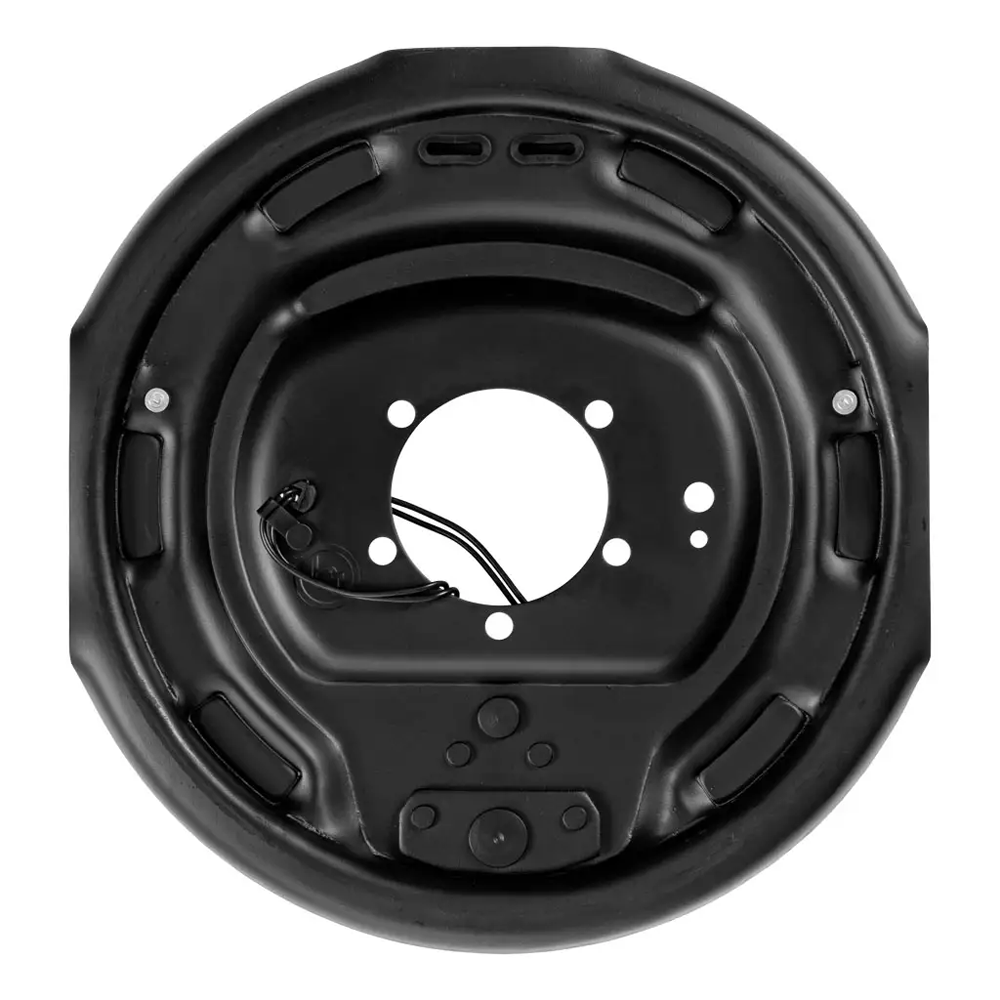

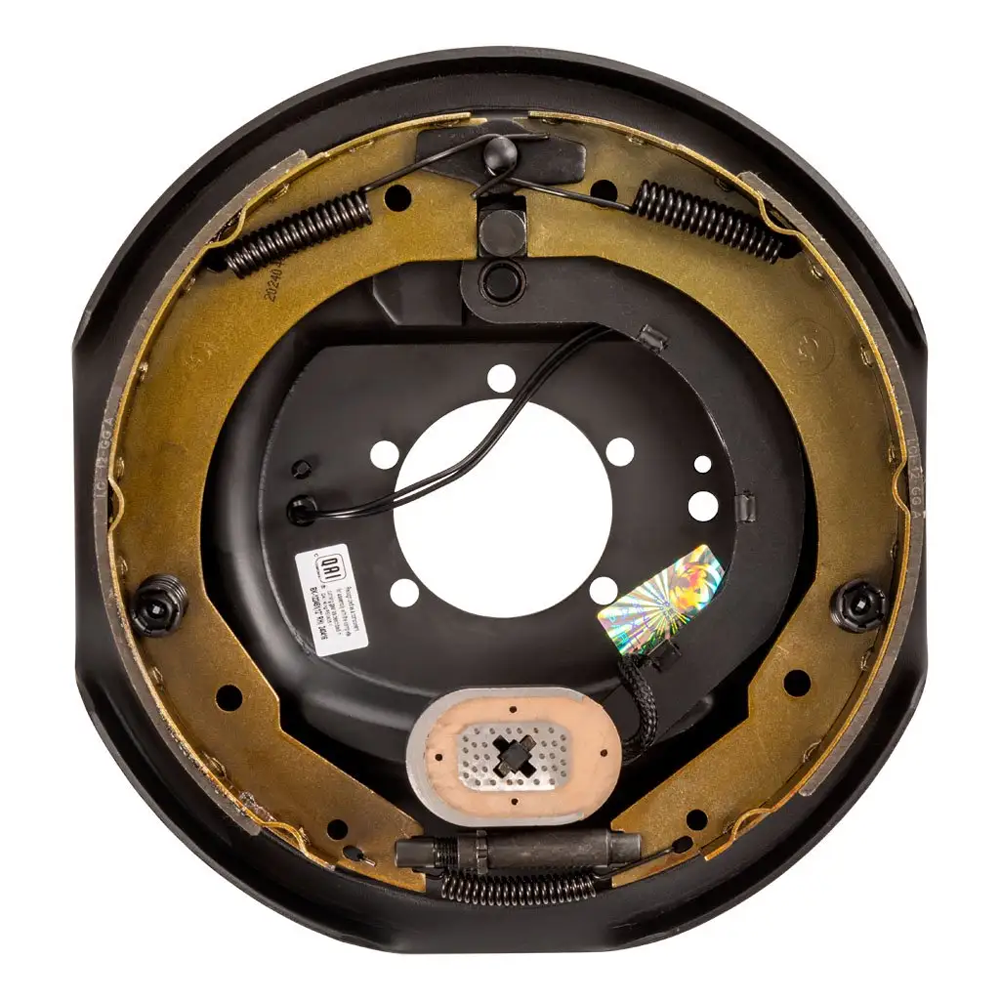

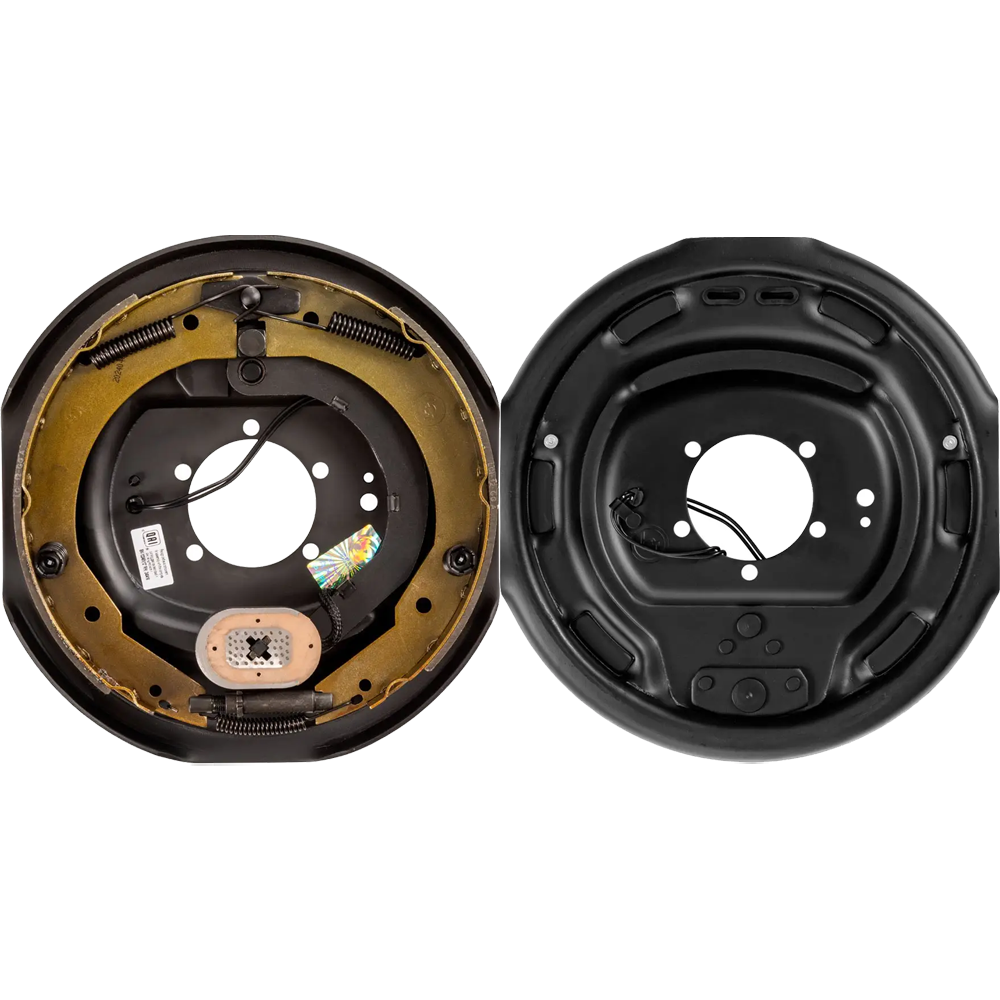

• QTY (1): Lippert 12" x 2" Manual‑Adjust Electric Brake Assembly – Right Side
  • Standard electric brake with integrated park feature
  • Dexter compatible part number: K23‑181‑00 | 023‑181‑00
  • Manual shoe adjustment for optimal wear
  • Right‑hand (curb‑side) only; 5‑bolt mounting plate
  • Fits 5,200 – 7,000 lb axles & 8K hybrid axles using 12" brakes
  • Works with 15" – 17.5" wheels
  • Requires break‑in for full stopping performance
  • DIY‑friendly install (mounting hardware sold separately)

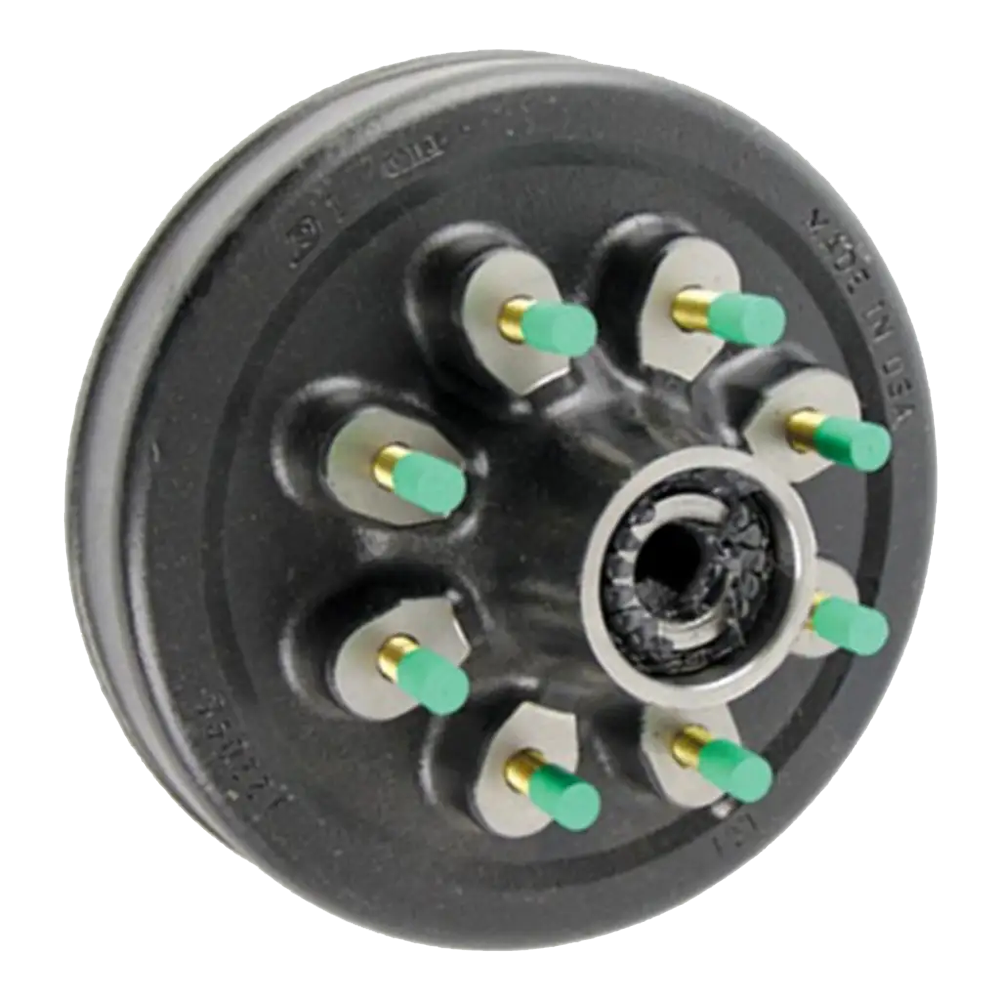

• QTY (1): 12" Threaded Hybrid Grease Hub/Drum – 8K, 8 on 6‑1/2", 9/16" Studs
  • Rated for 8,000 lb axles; cast‑iron construction
  • Races and wheel studs come pre‑installed to save time
  • Compatible with electric or hydraulic drum brakes
  • Threaded to accept Valcrum grease/dust caps
  • 8 on 6‑1/2" bolt circle, 9/16" studs
  • Fits 16" – 17.5" wheels
  • Universal fit with Lippert & Dexter axles
  • Backed by a 1‑year Lippert warranty

Always confirm your axle specifications, bolt pattern and mounting flange before installation, and perform routine inspections for safe, reliable braking.
