Lippert 12" Electric Brake & 8‑on‑6.5" Hub‑Only Drum Service Bundle – 7K Capacity

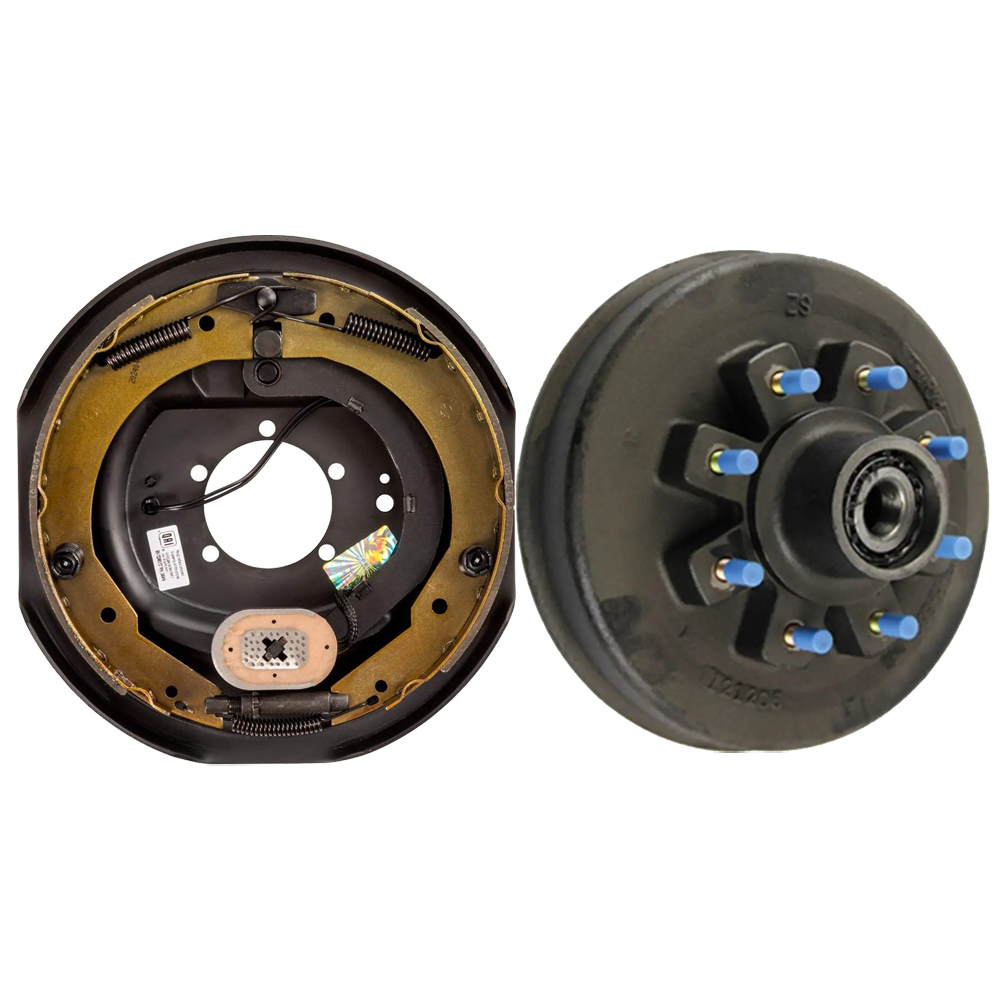

Refresh one wheel end on your heavy‑duty trailer with genuine Lippert components. This bundle mates a manual‑adjust 12" × 2" right‑hand electric brake assembly with a rugged hub‑only drum featuring an 8‑on‑6.5" bolt pattern and 5/8" studs. Get OEM‑grade performance that’s also compatible with Dexter, Alko and other popular axles.
Bundle Contents:
-

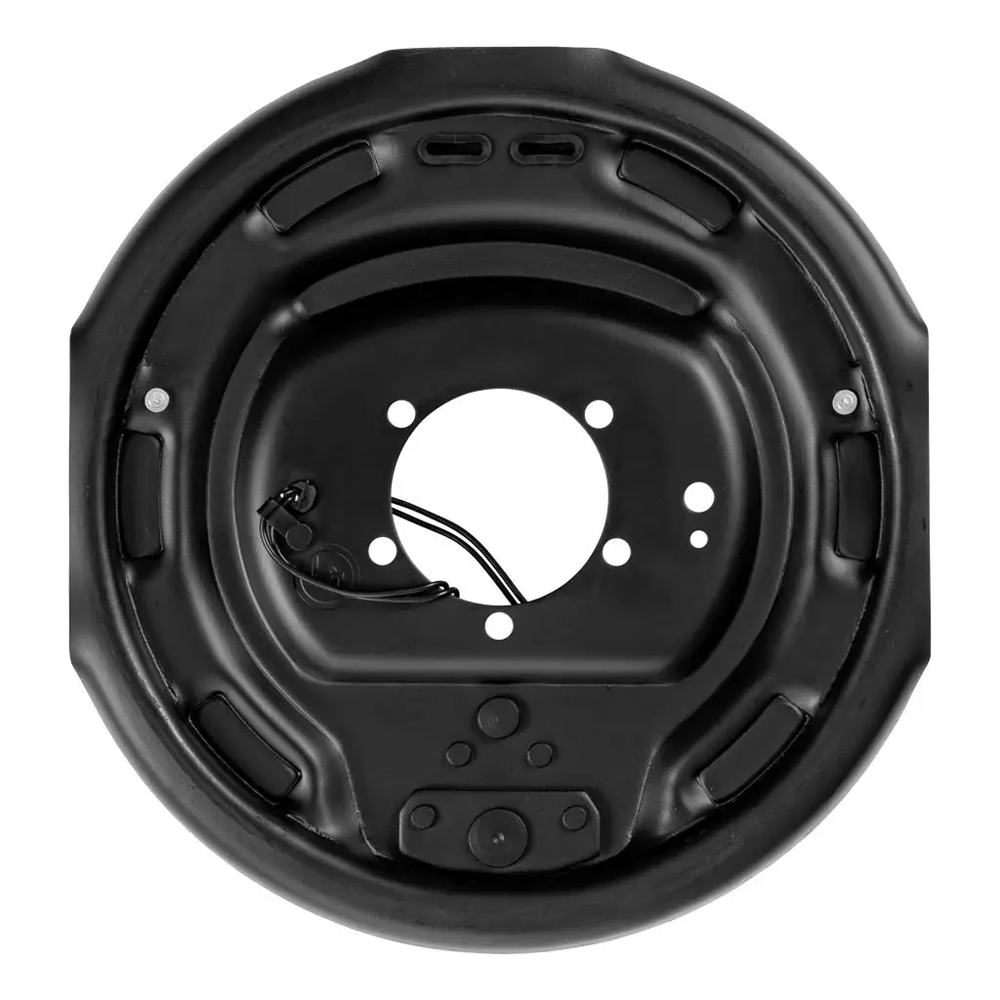

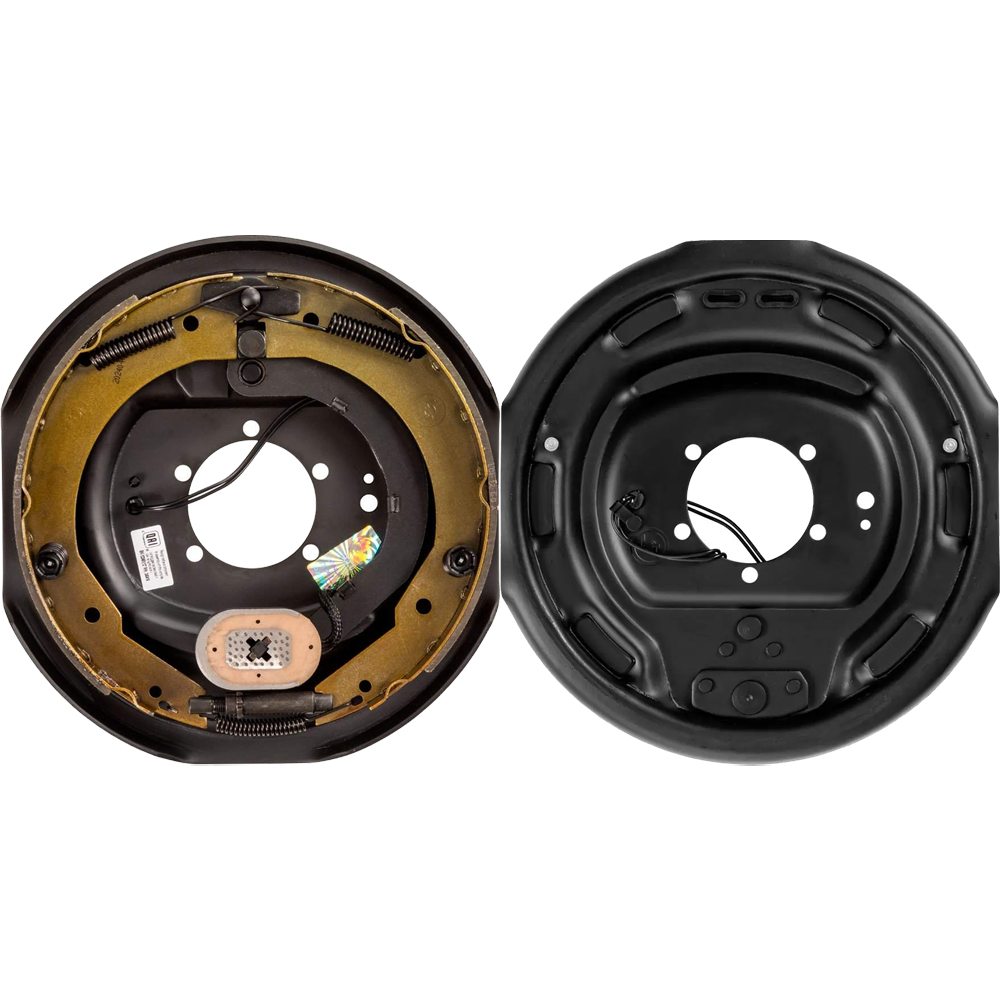

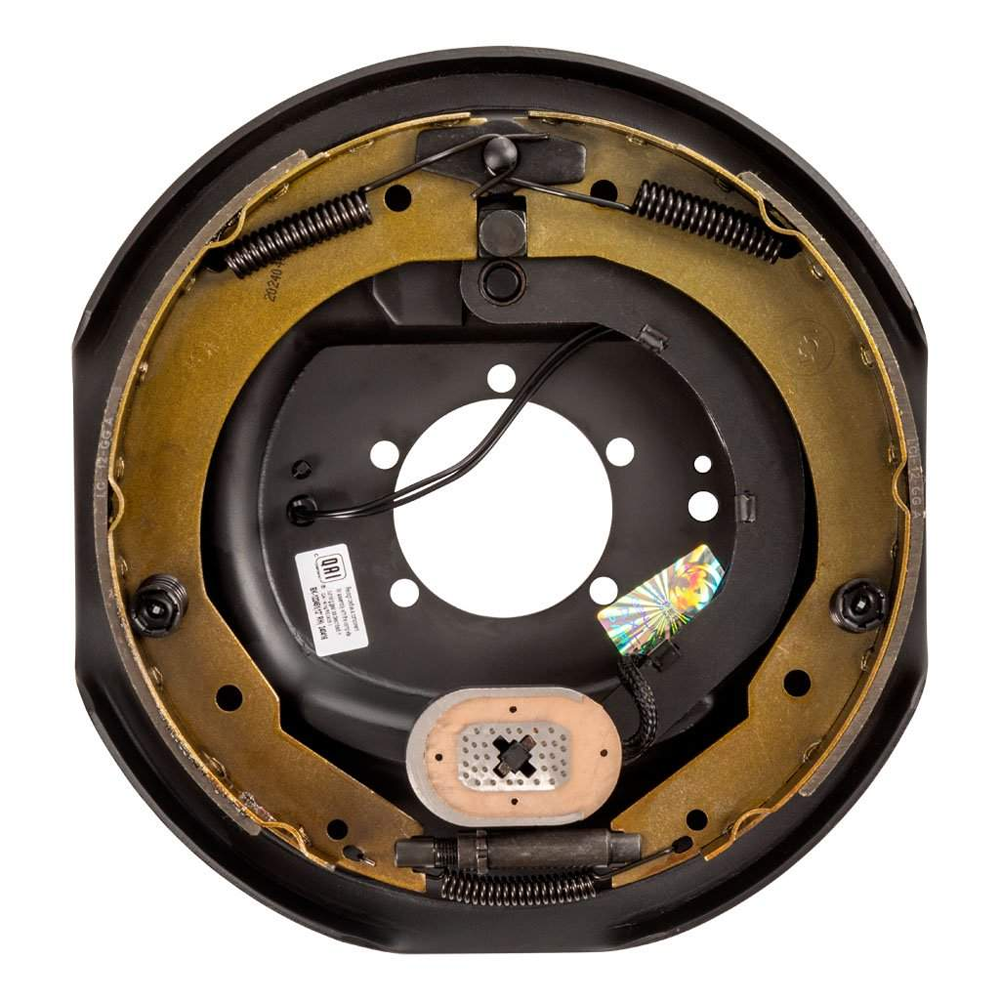

QTY (1): Lippert Electric Brake Assembly – 12" × 2", 7,000 lb (Right‑Hand)
- Manual‑adjust replacement electric brake
- Right‑hand / curb‑side fit
- 12" × 2" shoe size; 4‑bolt flange
- Fits 4,000–7,000 lb axles
- Easy DIY bolt‑on install
- Dexter compatible P/N: K23‑181‑00 | 023‑181‑00
- 1‑year manufacturer warranty
-

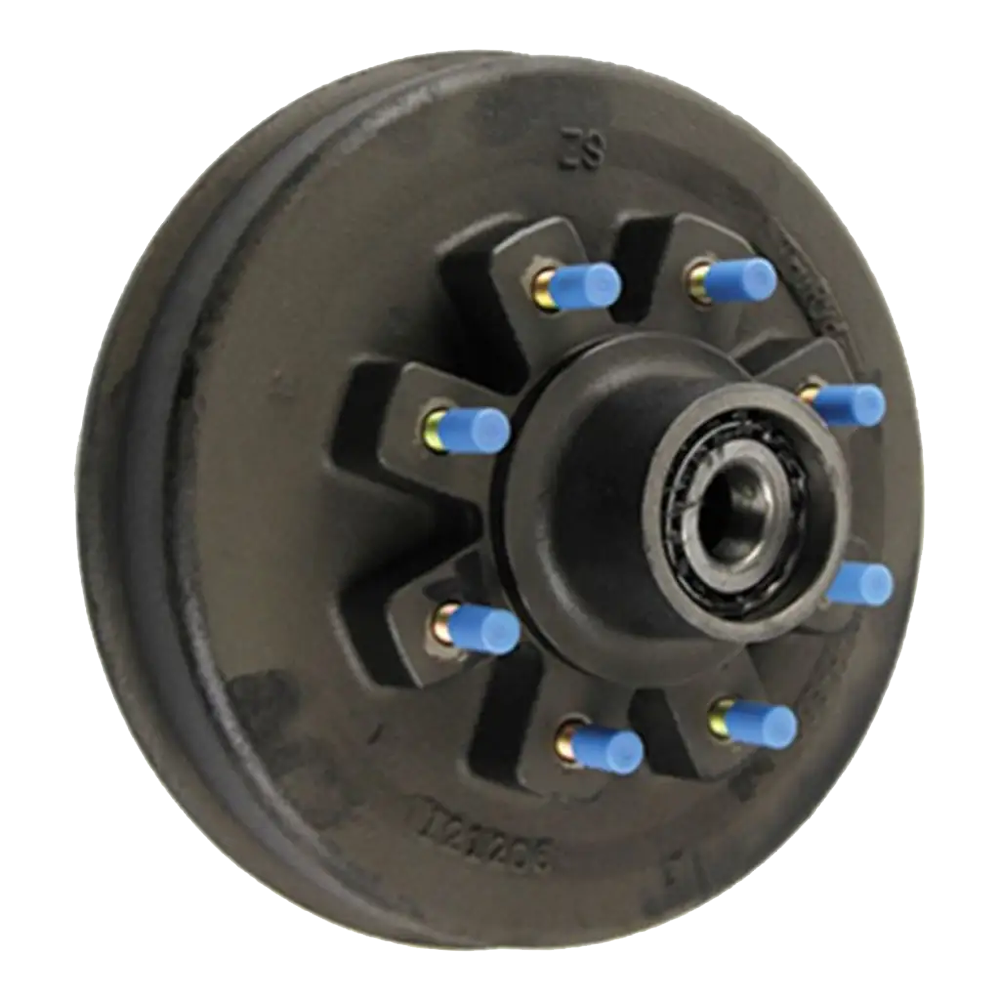

QTY (1): Lippert Threaded Hybrid Hub‑Only Drum – 8,000 lb, 8‑on‑6.5", 5/8" Studs
- Rated for 8,000 lb axles
- 12" drum accepts electric or hydraulic brakes
- 8‑on‑6.5" bolt pattern, 5/8" studs
- Races and wheel studs come pre‑installed
- Compatible with Valcrum threaded dust caps
- Durable cast‑iron construction; 1‑year warranty
Always verify your original equipment numbers and perform regular brake inspections to ensure safe, reliable towing.
| Specifications: | |
|---|---|
| Kit Type | Right‑Hand Electric Brake & Hub‑Only Drum Bundle |
| Axle Rating | 7,000 lbs (limited by brake assembly) |
| Brake Drum Dimensions | 12" × 2" |
| Brake Mounting Pattern | 4‑bolt brake flange |
| Hub Bolt Pattern | 8 on 6‑1/2" |
| Hub Type | Hub‑Only Drum, races & studs pre‑installed |
| Stud Size | 5/8" |
| Type of Adjustment | Manual |
| Brake Location | Right Hand (curb side) |
| Wheel Size Compatibility | 16", 16‑1/2", 17", 17‑1/2" |
