Lippert 12″ Right‑Hand Electric Brake Assembly & 6‑on‑5.5″ Hub‑Only Drum Kit — 6K Axle, 1/2″ Studs

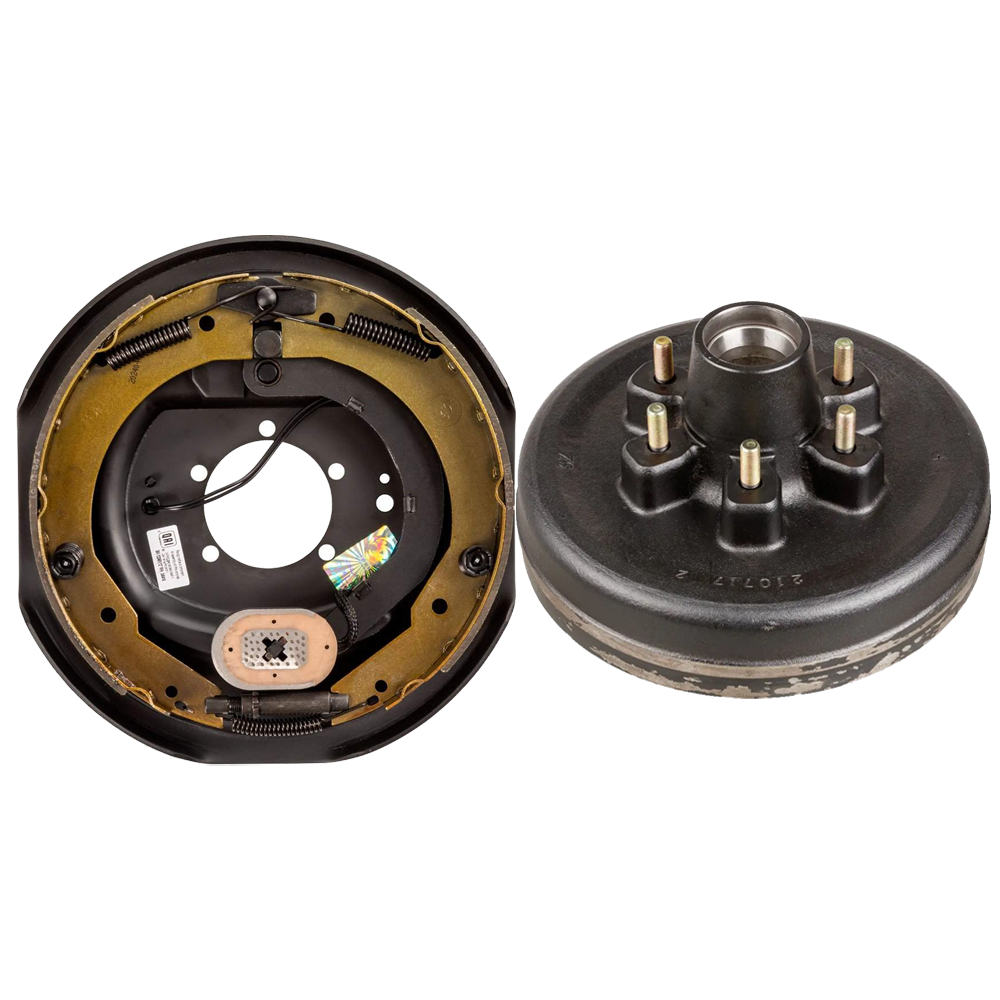

Restore confident stopping power on your RV, cargo, horse or utility trailer with this convenient Lippert bundle. The kit pairs a genuine 12″ right‑hand manual‑adjust electric brake assembly with a matching 6‑on‑5.5″ hub‑only drum, giving you everything you need to service one side of a 6,000‑lb axle that uses Lippert, Dexter, Al‑Ko or Rockwell‑style components.

Bundle Contents:

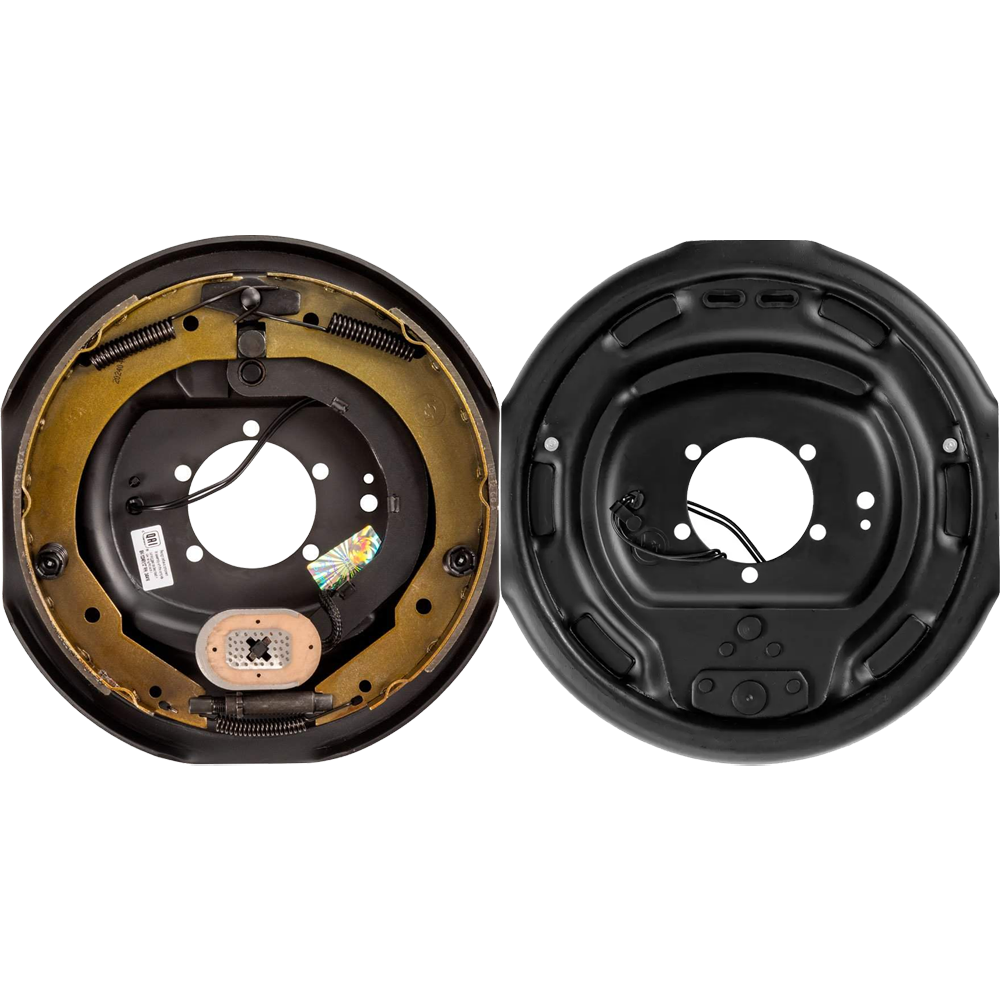

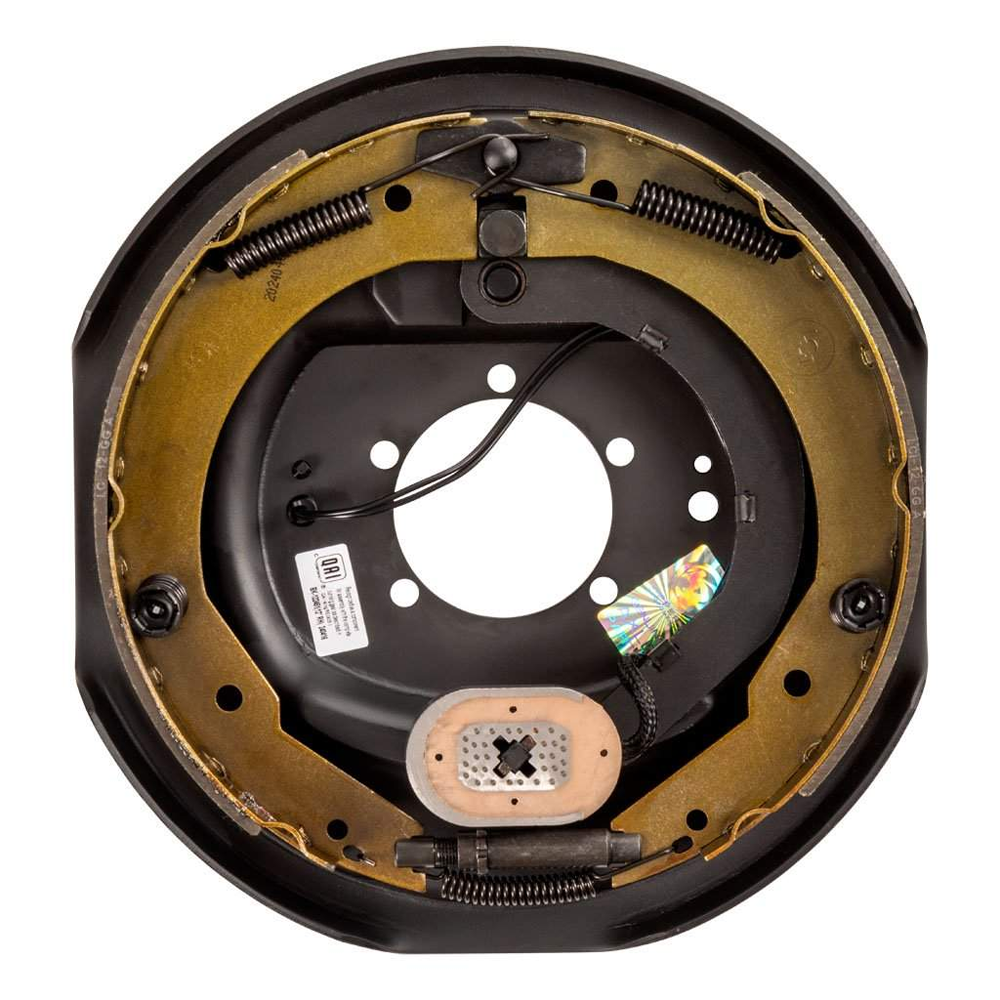

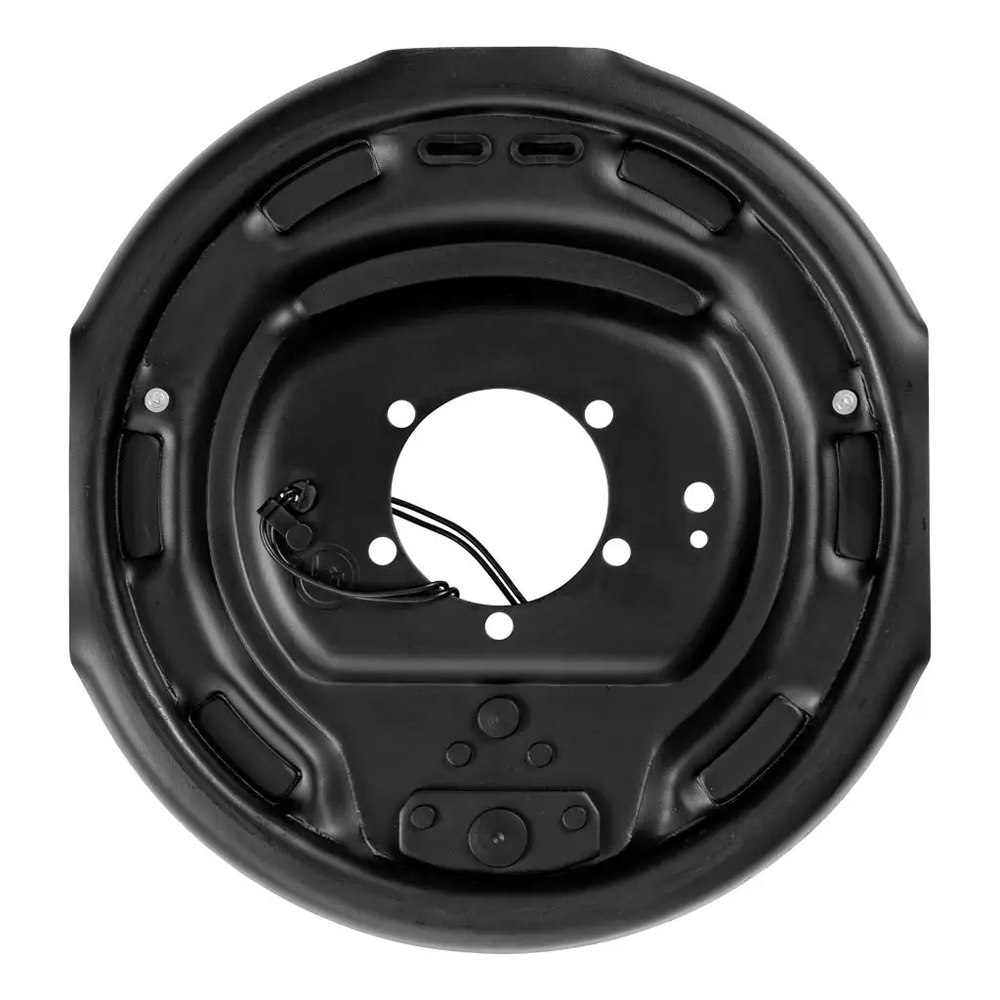

• QTY (1): Lippert 12″ x 2″ Manual Electric Brake Assembly – Right Hand, 7,000‑lb Rating
  • Replacement curb‑side brake for 12″ drums
  • Manual adjustment lets you fine‑tune braking force
  • 4‑bolt SAE brake‑flange mounting
  • Fits 4K – 7K Lippert, Dexter, Al‑Ko & Rockwell axles
  • Dexter compatible part #: K23‑181‑00 / 023‑181‑00
  • Pre‑wired magnet leads for easy DIY install
  • One‑year limited warranty

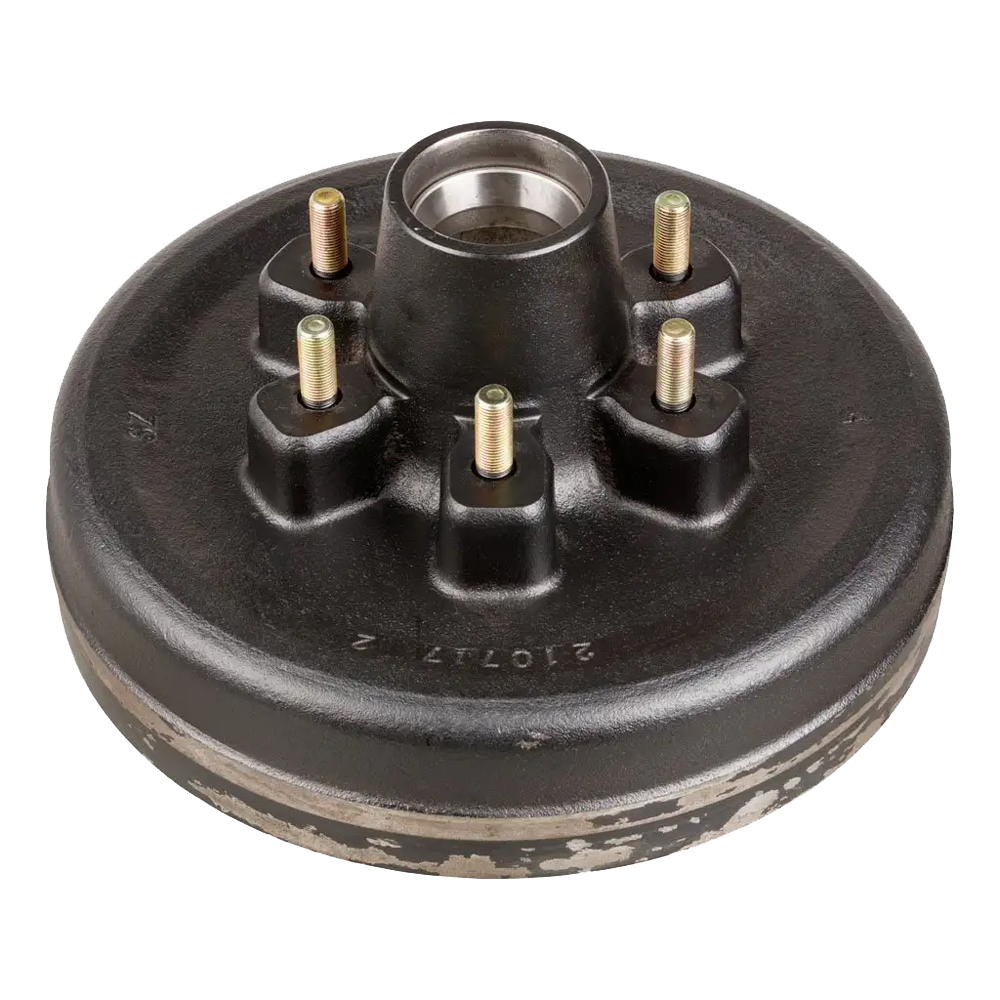

• QTY (1): Lippert 12″ Hub‑Only Drum – 6 on 5.5″, 1/2″ Studs, 6,000‑lb Rating
  • Hub only — bearings, seal, dust cap & nuts not included
  • Integrated cast‑iron drum accepts 12″ brake shoes
  • 6 on 5.5″ bolt pattern with 1/2″ pressed‑in studs
  • Compatible with 14.5″ – 16.5″ wheels
  • Designed for 6K axles; cross‑compatible with Dexter, Al‑Ko & Rockwell
  • Uses standard L68149 / L44649 bearing set (sold separately)
  • One‑year limited warranty

Always replace brakes and drums in left‑and‑right pairs, follow factory torque specs, and service bearings regularly for maximum performance and longevity.
