Lippert 12" Self?Adjust LH Brake Assembly & Threaded 12" Drum Hub Bundle – 8?on?6.5, 9/16" Studs, Dexter?/?Al?Ko?/?Rockwell Compatible

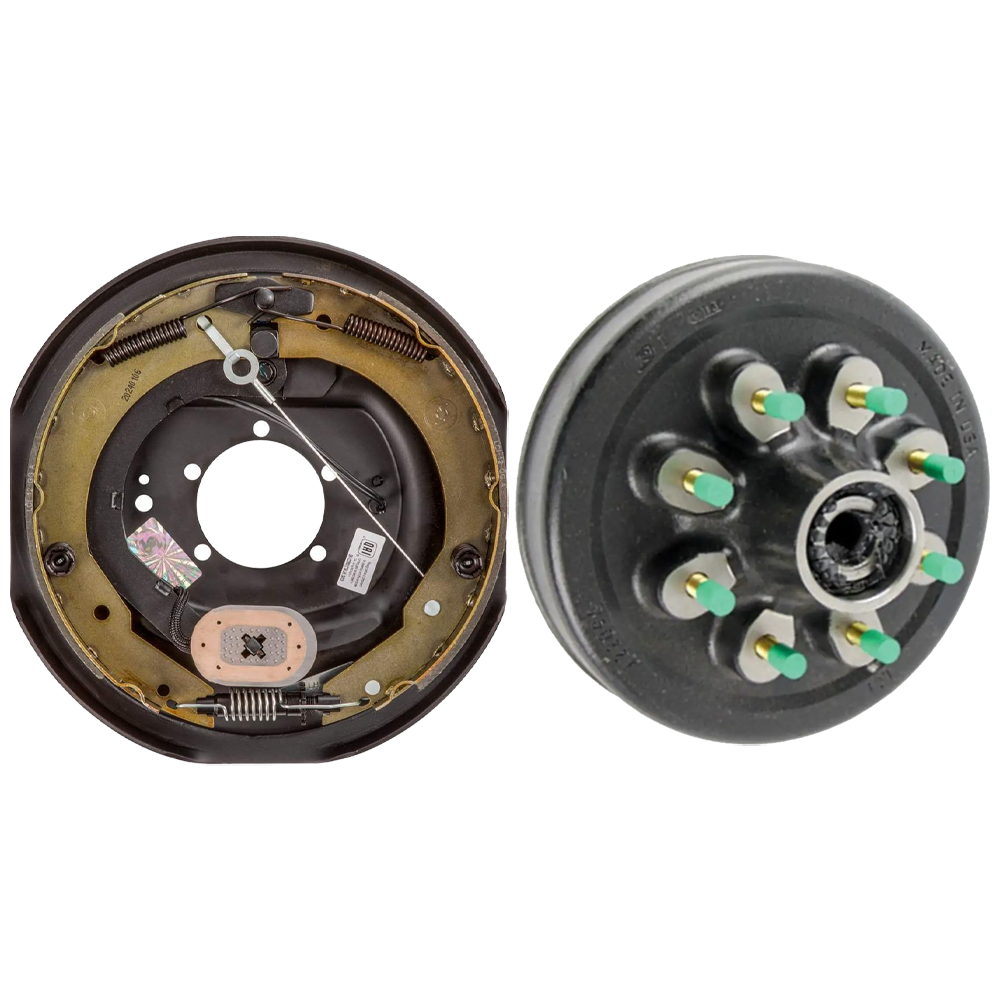

Lippert 12" Self‑Adjust Left Brake & 12" Threaded Drum Hub Bundle – 8‑on‑6.5, 9/16" Studs

Restore reliable stopping power on your 7,000‑lb trailer axle with this matched Lippert bundle. It pairs a forward self‑adjusting electric brake assembly with a heavy‑duty threaded oil‑bath drum hub, delivering faster installation, smoother stops and longer component life. Compatible with Lippert, Dexter, Al‑Ko and Rockwell axles, it’s the one‑box solution for quick roadside repairs or proactive maintenance.

Bundle Contents:

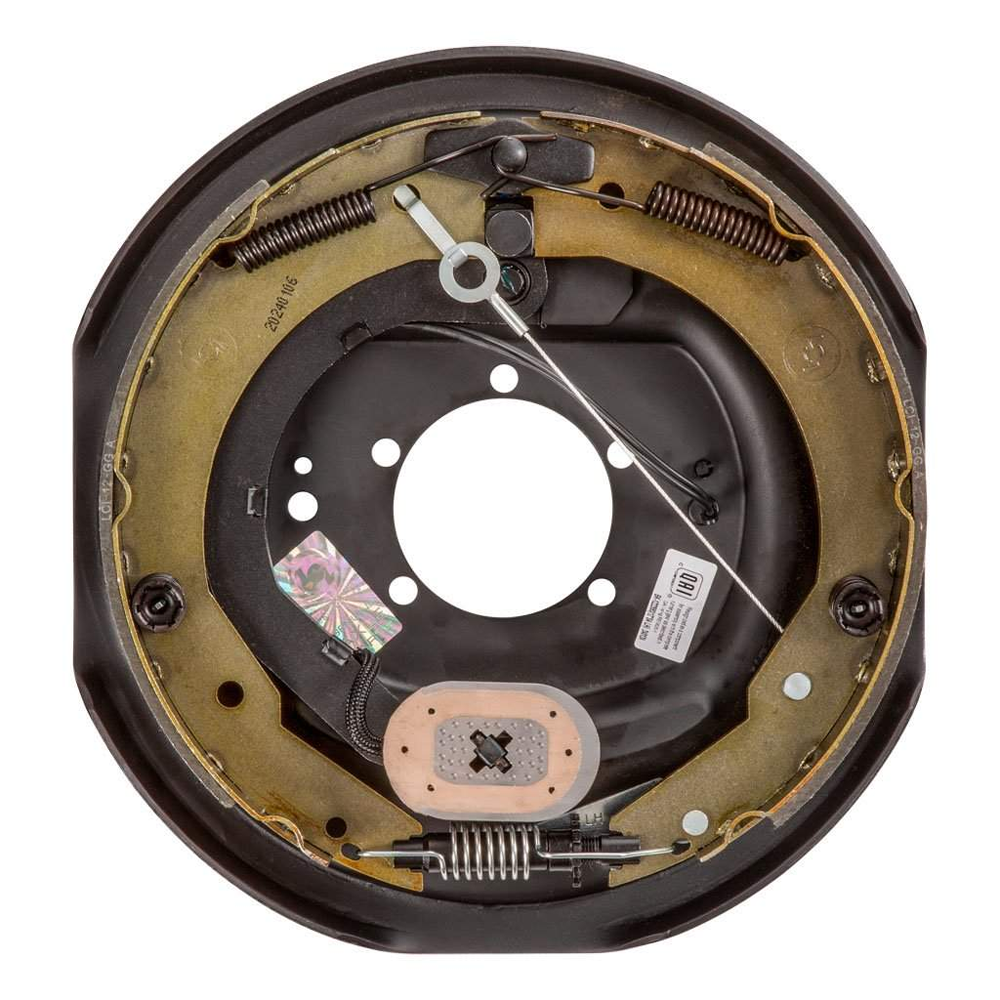

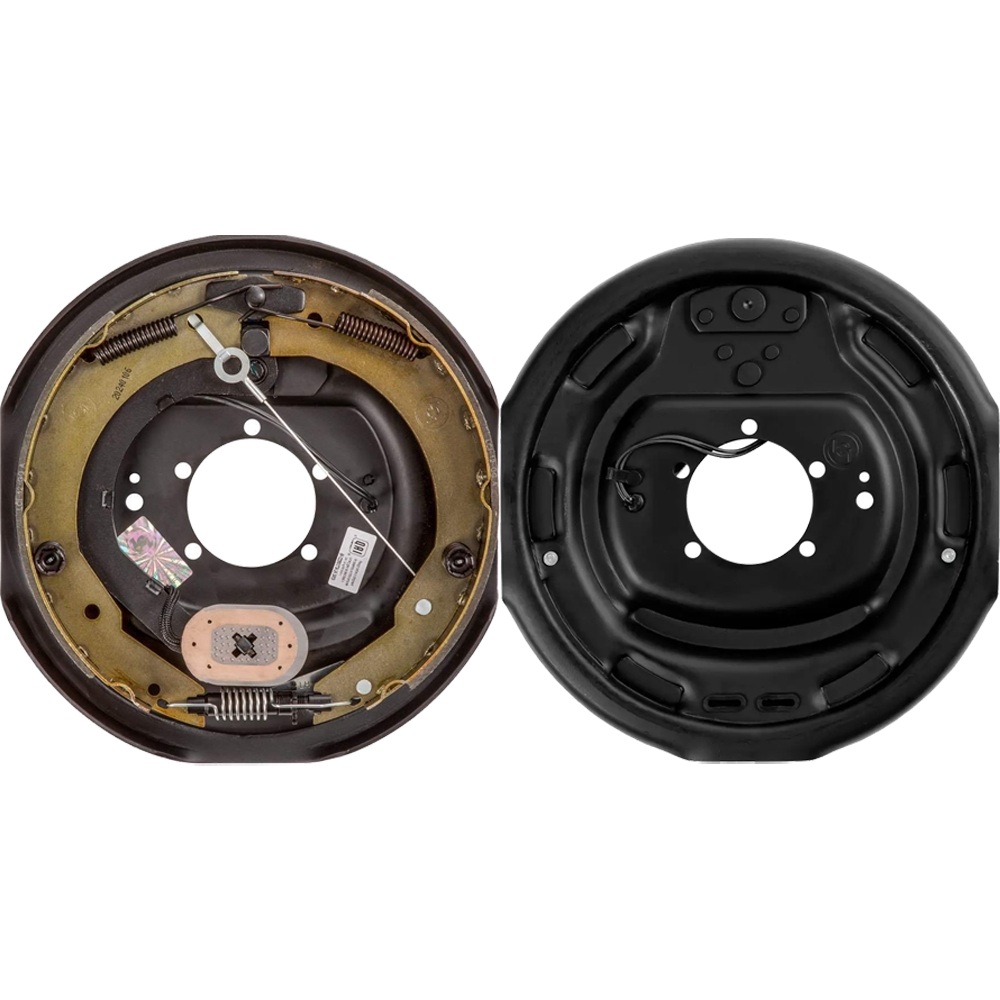

• QTY (1): Lippert Forward Self‑Adjusting Electric Brake Assembly – 12" × 2", 5‑Bolt, 4–7K, Left‑Hand
  • Direct replacement for Dexter, Lippert & Al‑Ko 12" brakes
  • Self‑adjusts during every forward stop—no manual dial‑in

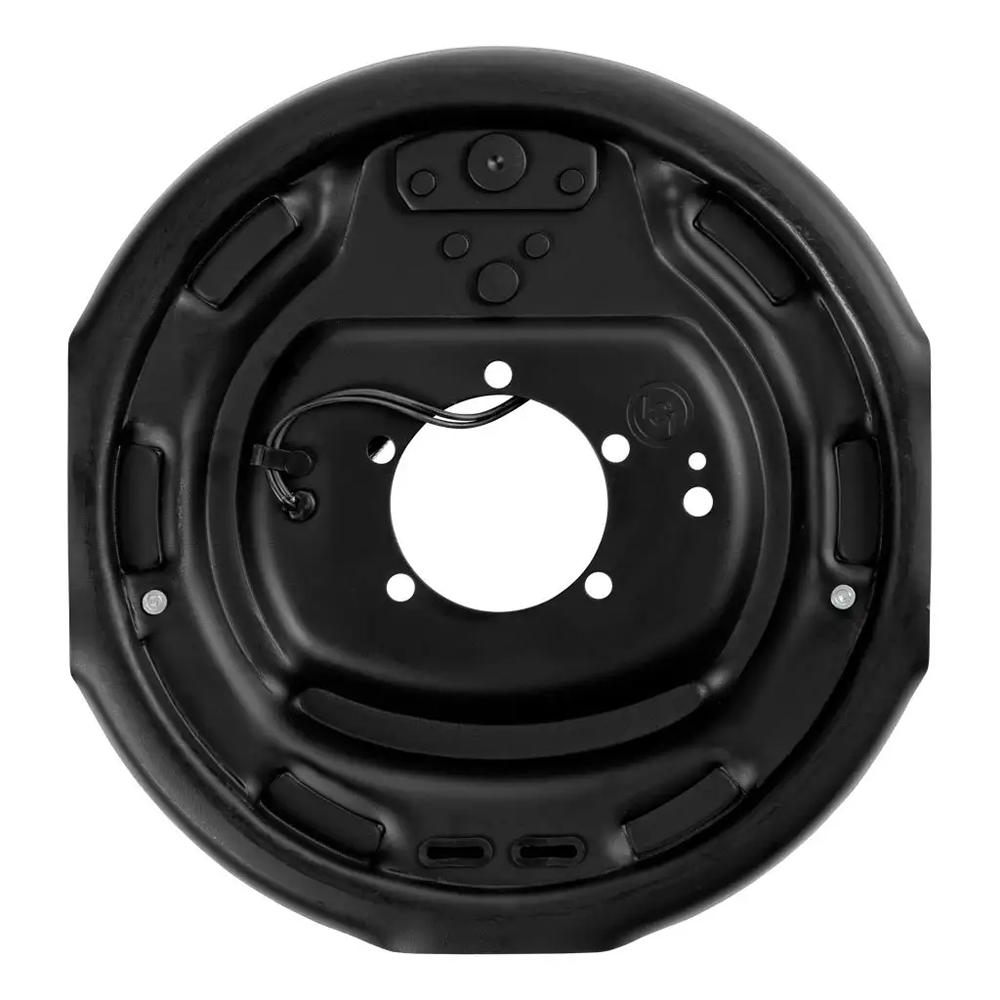

  • Left/road‑side mounting; five‑bolt backing plate
  • 12" × 2" bonded shoes deliver confident braking
  • Pre‑wired magnet for quick DIY install
  • Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00

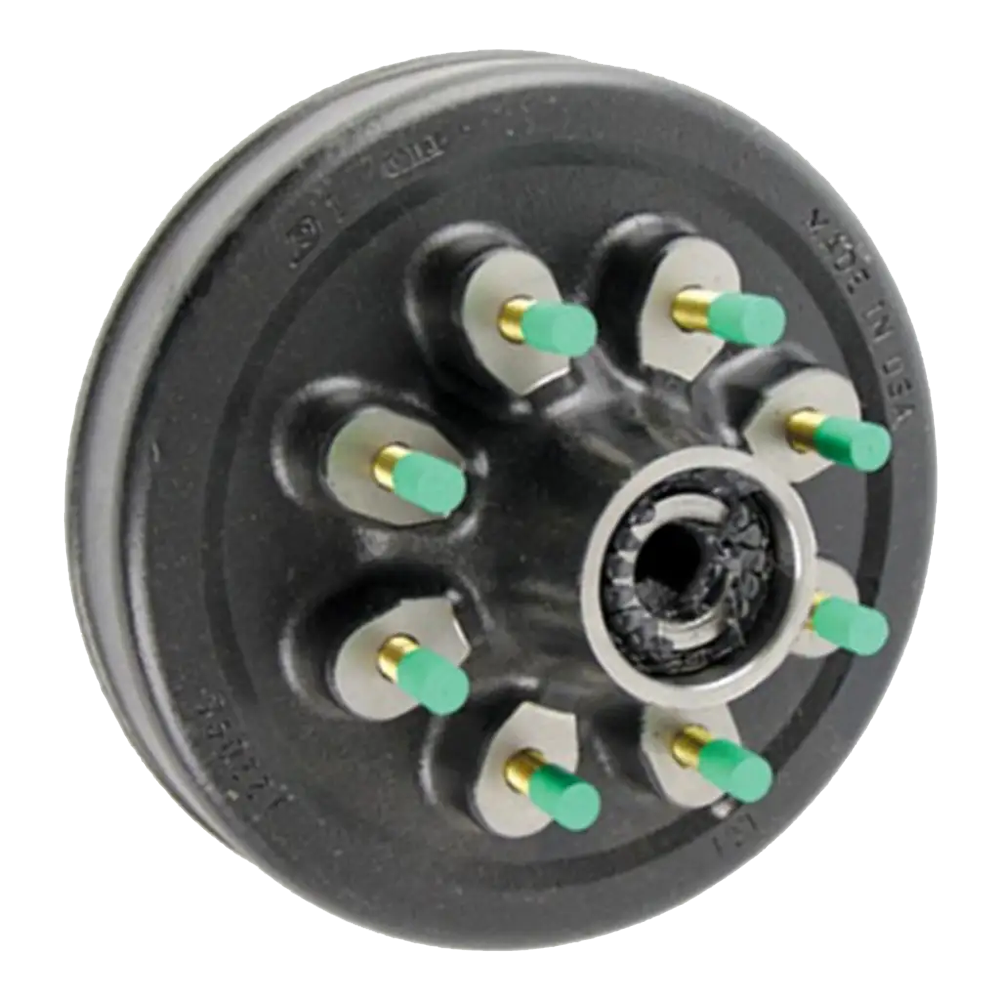

• QTY (1): 12" Threaded Hybrid Trailer Brake Drum/Hub – 8 K, 8‑on‑6.5", 9/16" Studs, Oil‑Bath
  • Cast‑iron hub & drum for electric or hydraulic brakes
  • Threaded spindle accepts Valcrum oil‑bath caps
  • 8‑lug on 6.5" bolt circle; 9/16" studs pre‑installed
  • Races & wheel studs come pre‑installed for out‑of‑box fit
  • 8,000‑lb axle capacity—built‑in strength and durability
  • Universal fit for Lippert, Dexter, Al‑Ko & Rockwell axles

Always verify your existing axle specs before ordering, and inspect brakes, bearings and seals at every service interval for safe, consistent stopping.
