Lippert 12″ Self‑Adjusting Trailer Brake Assemblies & Fully Assembled Hub‑Drum Pair

Upgrade your 7,000‑lb axle with this complete Lippert bundle: two forward self‑adjusting electric brake assemblies and two fully assembled 12″ hub‑drums. Enjoy up to 50 % shorter stopping distances, reduced maintenance, and a fast DIY swap—ideal for RV, cargo, horse, or utility trailers using an 8‑on‑6.5 bolt pattern with 9/16″ studs.

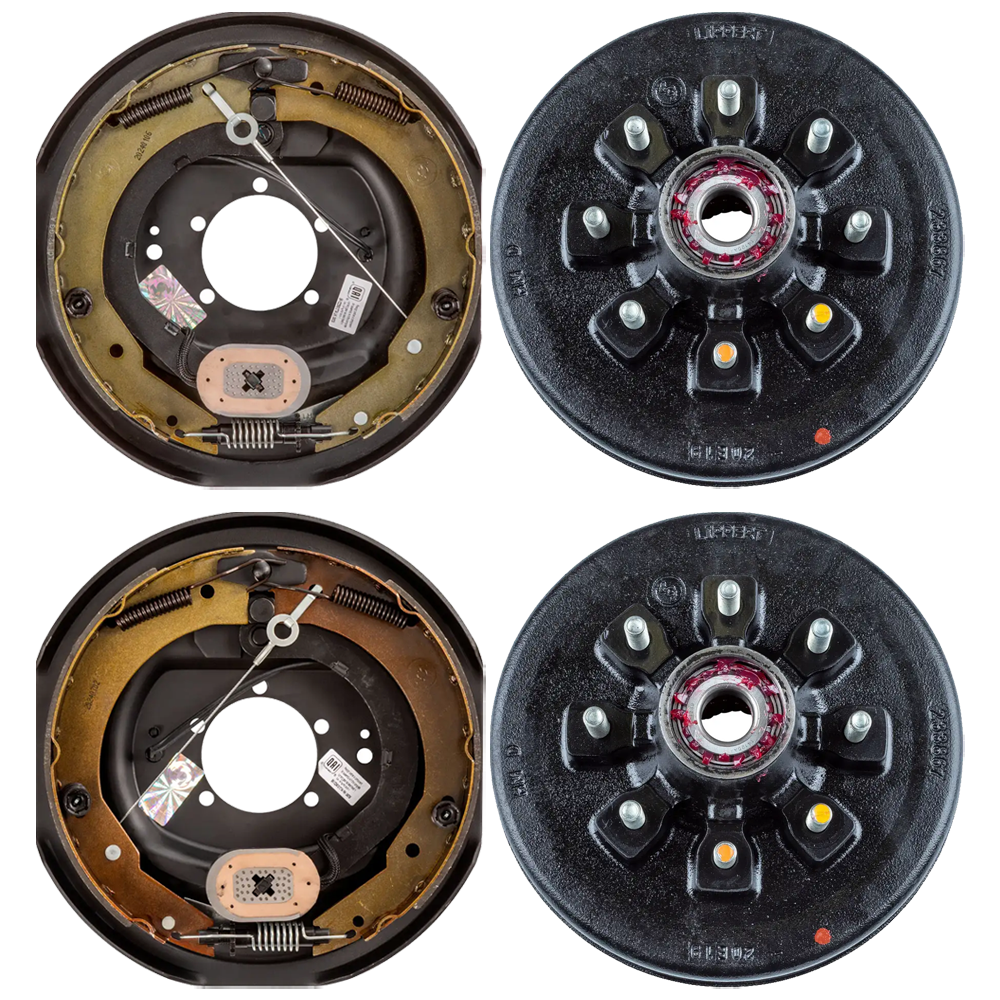

Bundle Contents:

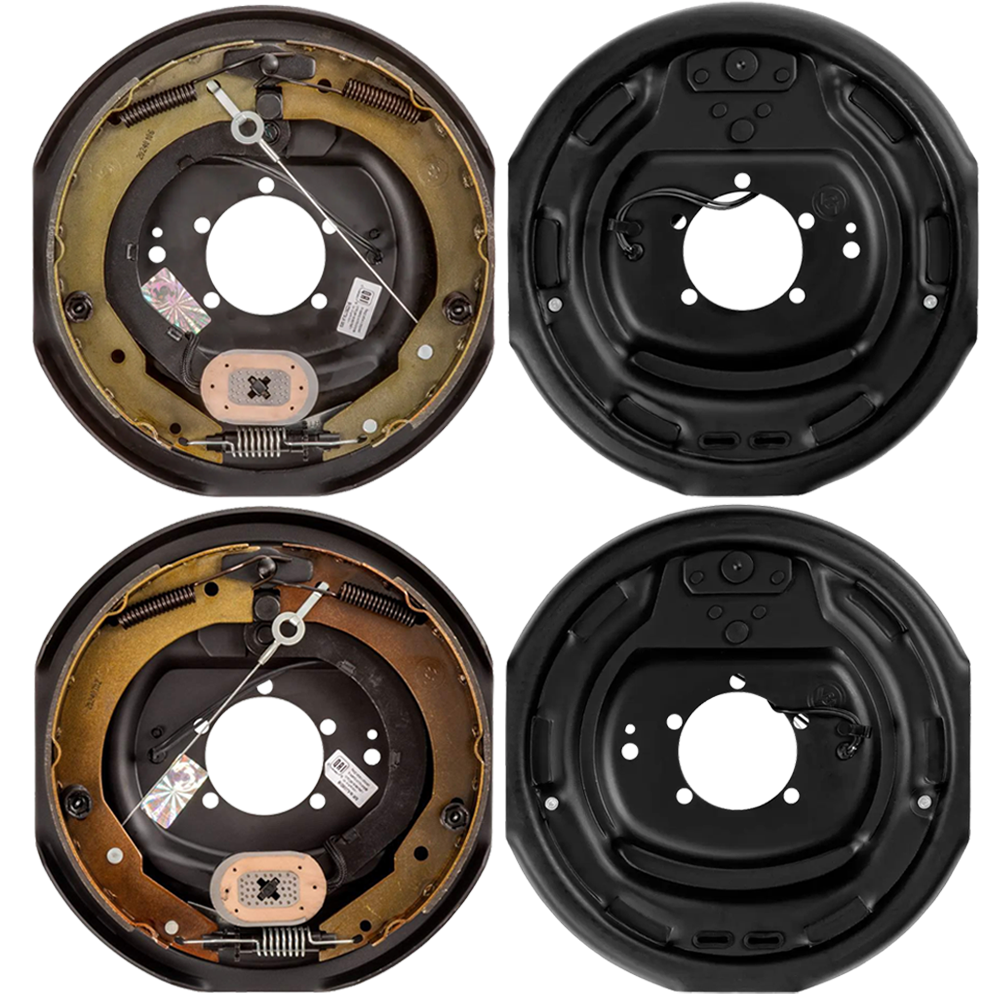

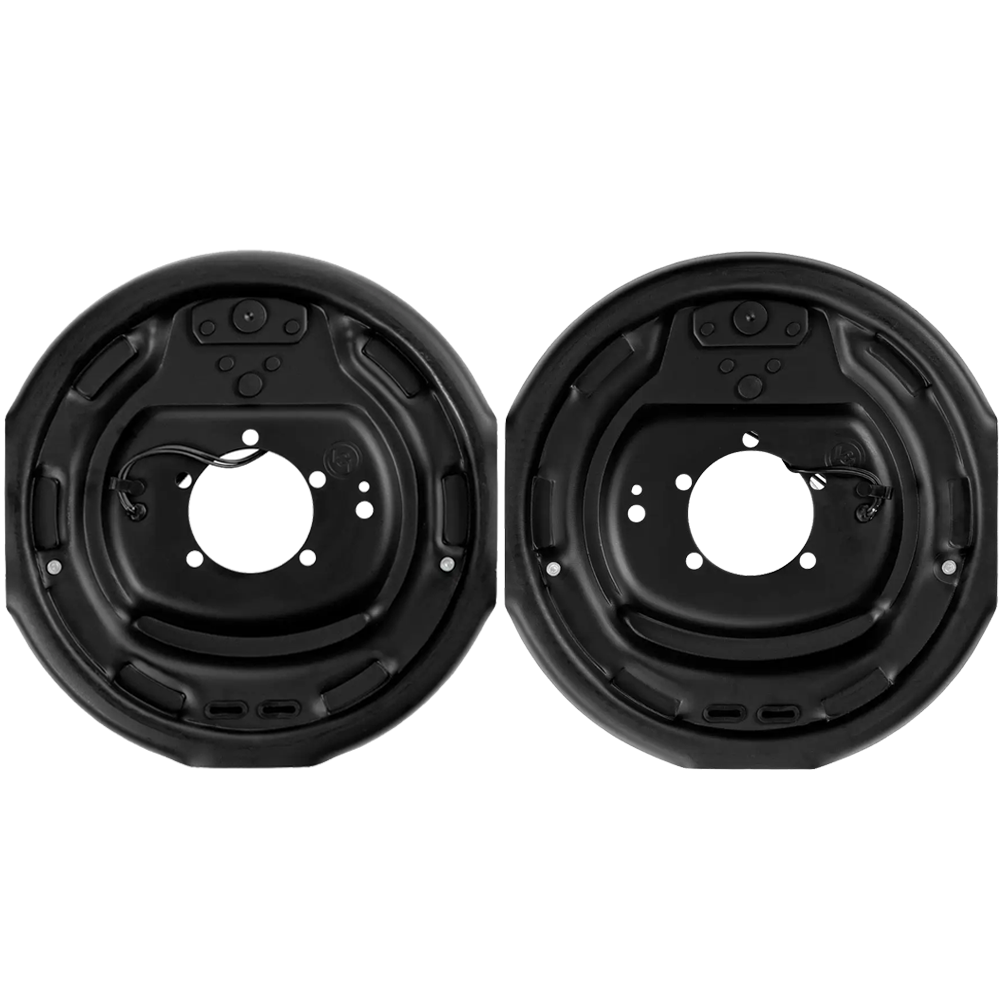

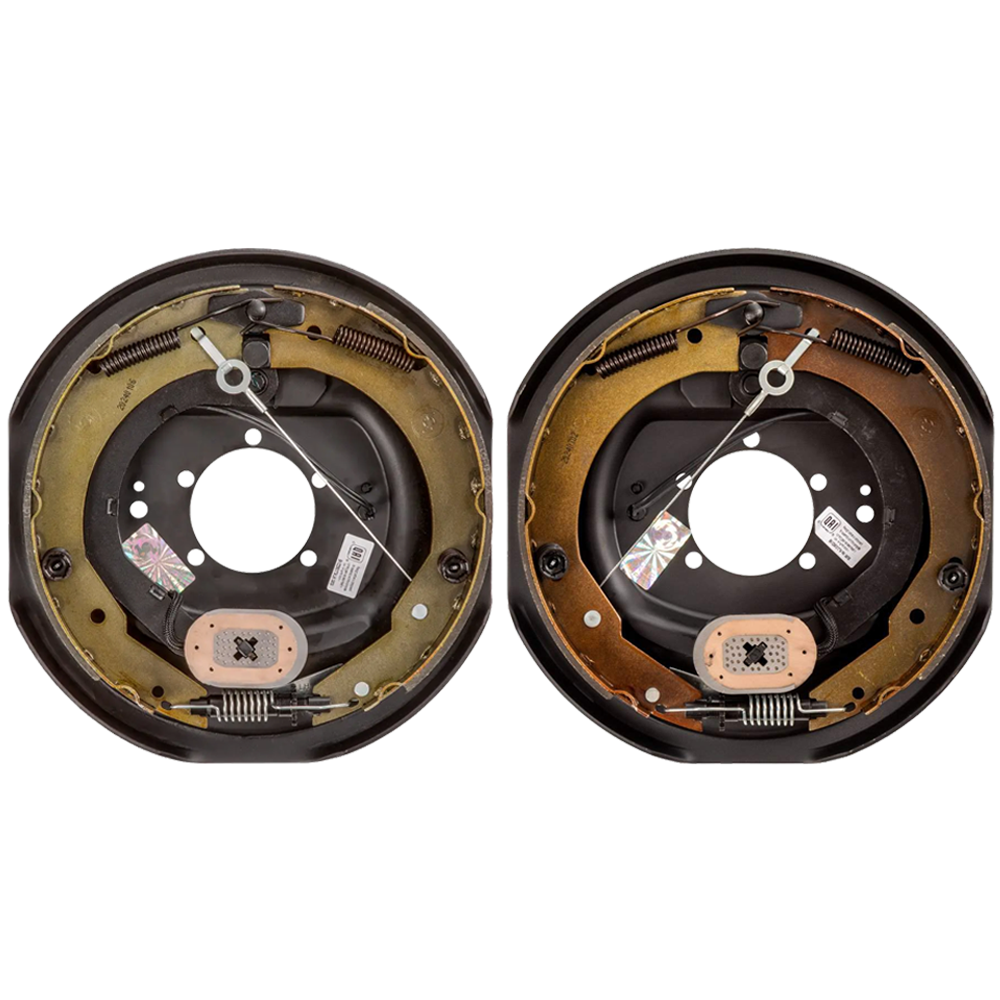

• QTY (1): Lippert 12″ × 2″ Self‑Adjusting Electric Brake Assembly – Left Hand
  • Road‑side replacement electric brake
  • Self‑adjusts on every forward stop
  • Fits 4 K – 7 K axles; five‑bolt mount
  • 12″ × 2″ brake shoe size
  • Dexter compatible part numbers: K23‑464‑00 | 023‑464‑00
  • 1‑year limited warranty
• QTY (1): Lippert 12″ × 2″ Self‑Adjusting Electric Brake Assembly – Right Hand
  • Curb‑side replacement electric brake
  • Self‑adjusts on every forward stop
  • Fits 4 K – 7 K axles; five‑bolt mount
  • 12″ × 2″ brake shoe size
  • Dexter compatible part numbers: K23‑465‑00 | 023‑465‑00
  • 1‑year limited warranty

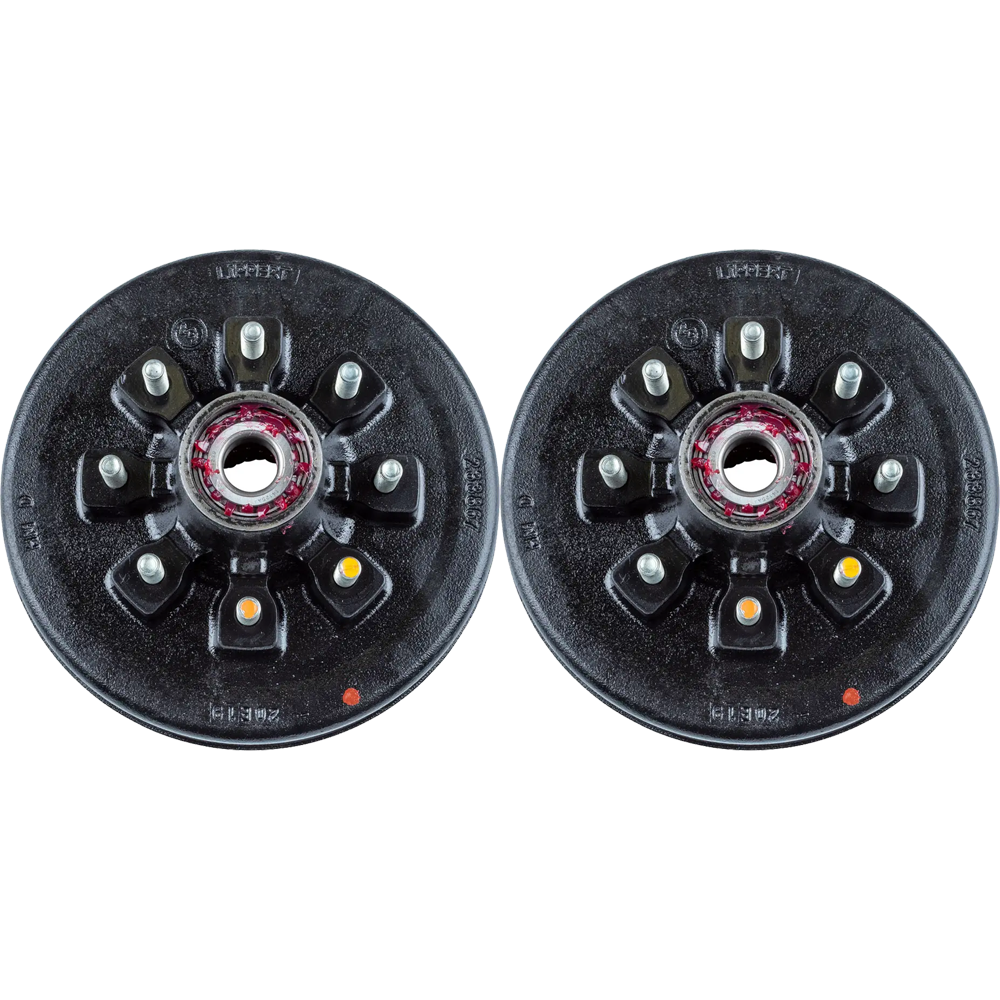

• QTY (2): Lippert 12″ Hub‑Drum Assembly – 8‑on‑6.5″, 9/16″ Studs
  • Fully assembled cast‑iron hub‑drum with pre‑installed bearings, seal & grease
  • Rated for 7,000‑lb axles; fits 16″–17.5″ wheels
  • Bolt pattern: 8 on 6.5″ – stud size: 9/16″
  • Brake drum dimensions: 12″ × 2″
  • Brake hub assembly #141290
  • 1‑year limited warranty

Always verify fitment against your axle tag and perform regular brake inspections for safe, reliable towing.
