Lippert 12? Self-Adjusting Brake & Threaded Hybrid Hub-Drum Kit � 7K Std / 8K Hybrid Axle, 8-on-6.5 5/8? Stud LH/RH Pair (Dexter � AL-KO � Rockwell � Quality Axles)

Lippert 12″ Self-Adjusting Brake & Threaded Hybrid Hub-Drum Kit — 7K Standard / 8K Hybrid Single-Axle Upgrade

Give your heavy-duty trailer a true all-in-one upgrade with Lippert’s forward self-adjusting 12″ electric brakes paired to grease-packed threaded hybrid hub-drums. The braking components are engineered for up to 7,000-lb conventional axles and are approved by Lippert for use on their 8,000-lb “hybrid” axle platforms, while the hubs themselves are rated 8,000 lbs. This delivers confident stopping power, extended pad life and seamless fitment with Dexter, AL-KO, Rockwell and other 8-lug axles.

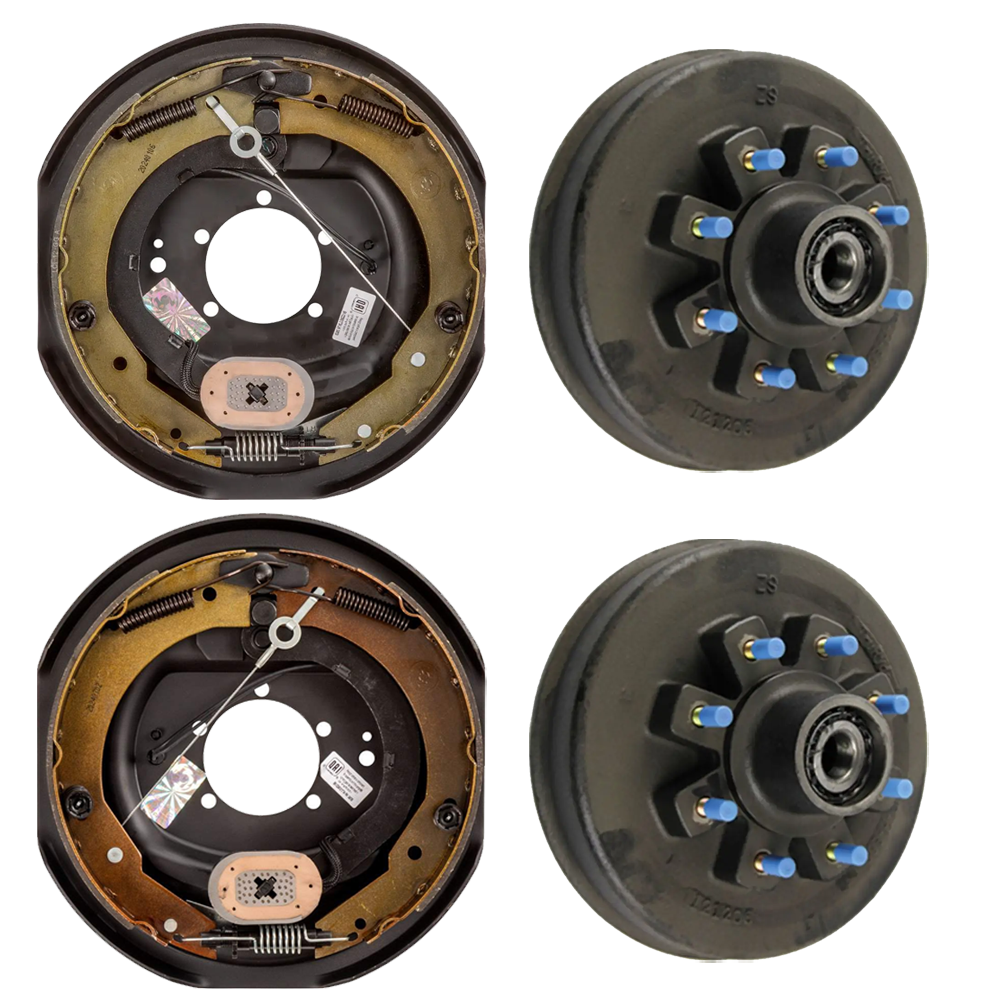

Bundle Contents:

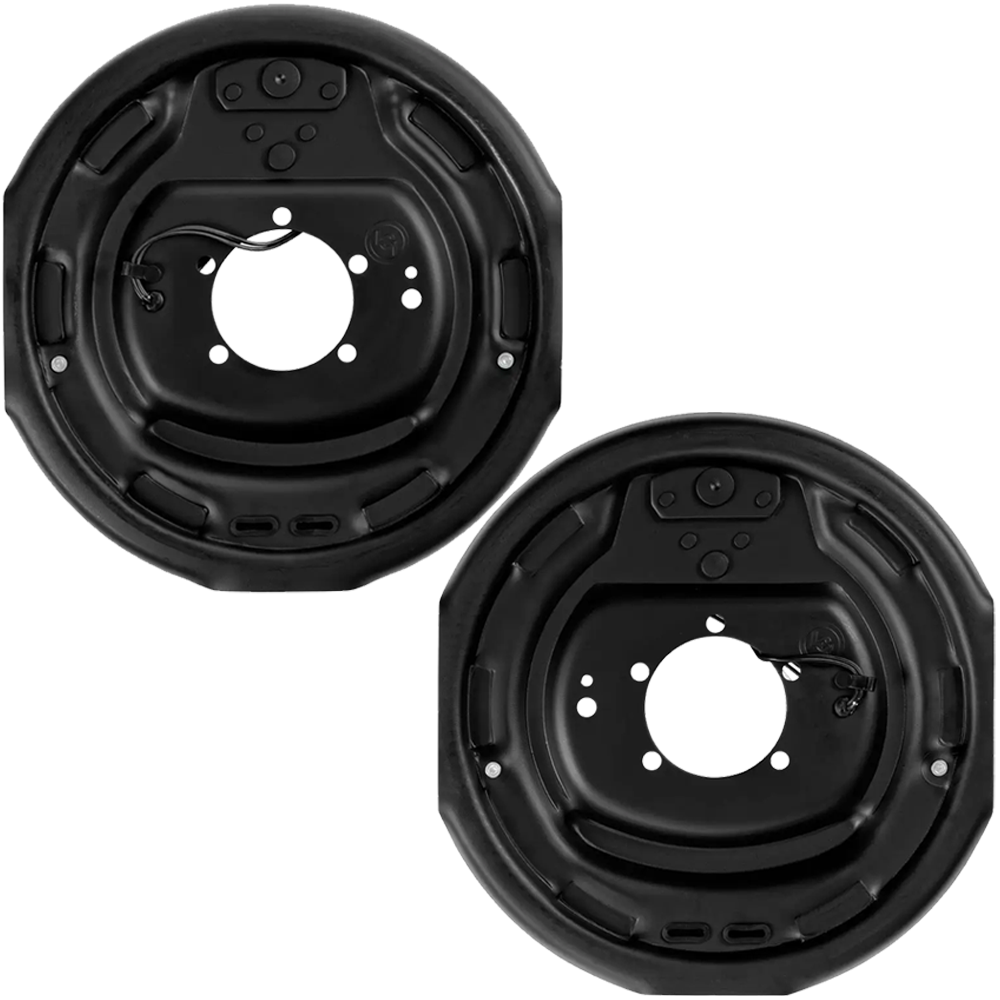

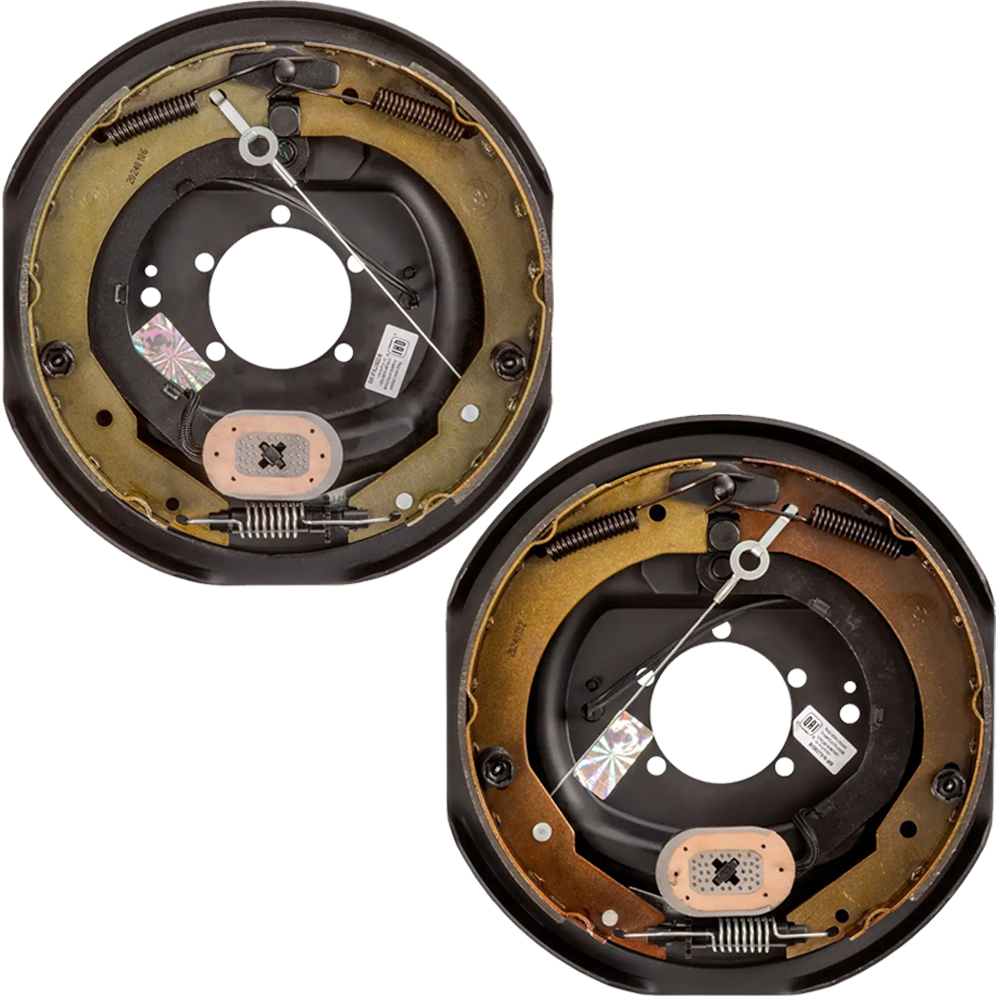

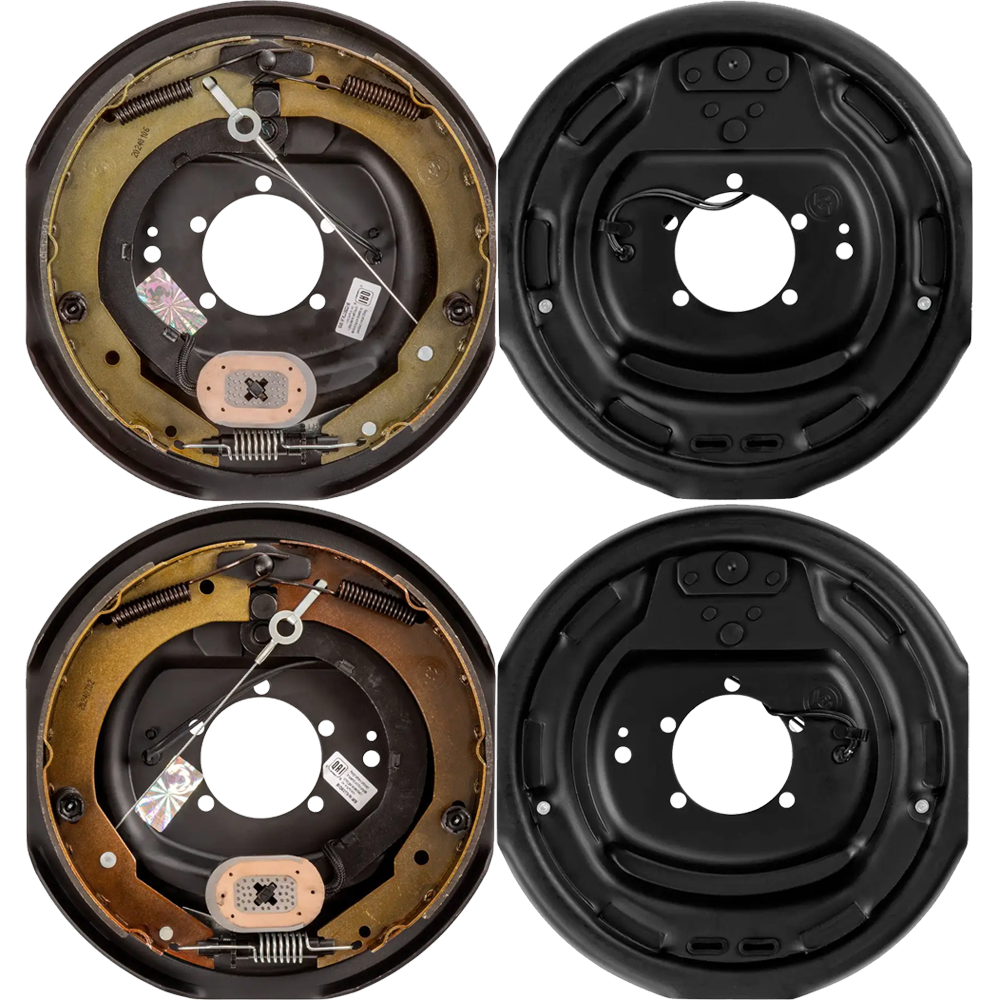

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12″ × 2″, 7K (Left)
  • Road-side electric brake; forward self-adjusting
  • Fits 15″–17.5″ wheels; 5-bolt mounting flange
  • For 5,200- to 7,000-lb axles & Lippert 8K hybrid axles
  • Dexter compatible PN: K23-464-00 | 023-464-00
  • Easy DIY install; 1-year Lippert warranty
• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12″ × 2″, 7K (Right)
  • Curb-side electric brake; forward self-adjusting
  • Fits 15″–17.5″ wheels; 5-bolt mounting flange
  • For 5,200- to 7,000-lb axles & Lippert 8K hybrid axles
  • Dexter compatible PN: K23-465-00 | 023-465-00
  • Easy DIY install; 1-year Lippert warranty

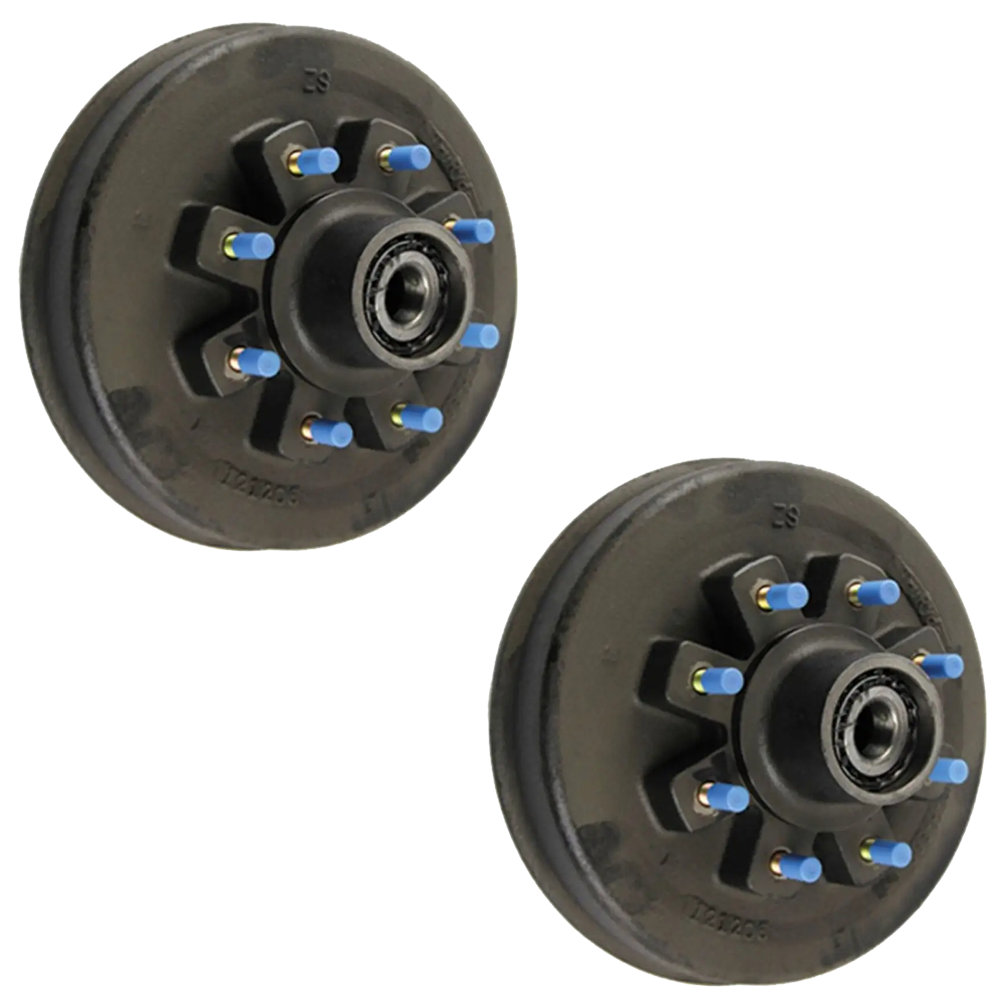

• QTY (2): Lippert Threaded Hybrid Hub-Drum – 8K, 8-on-6.5″, 5/8″ Stud (Grease-Packed)
  • Cast-iron hybrid hubs with integrated 12″ drums
  • Races and wheel studs come pre-installed
  • Supports electric or hydraulic drum brakes
  • Rated 8,000 lbs; designed for 17.5″ wheels
  • Accepts Valcrum threaded dust caps; 1-year warranty

Confirm all dimensions against your original equipment and perform routine hub & brake maintenance for safe, dependable towing.
