Lippert 12" Self?Adjusting Electric Brake & 12" Hub?Drum Kit | 8?on?6.5 | 7K Axles | Dexter?Compatible Quad?Axle (8?Wheel) Set

Lippert 12" Brake & Hub‑Only Drum Kit – Complete Quad‑Axle 7K Upgrade

Upgrade or service your quad‑axle trailer with this all‑inclusive Lippert bundle. You’ll receive eight forward self‑adjusting 12" electric brakes and eight 12" hub‑only drums, perfectly matched for 7,000‑lb axles with the popular 8‑on‑6.5" pattern. Save time, ensure OE fit, and restore confident stopping power in one convenient kit.

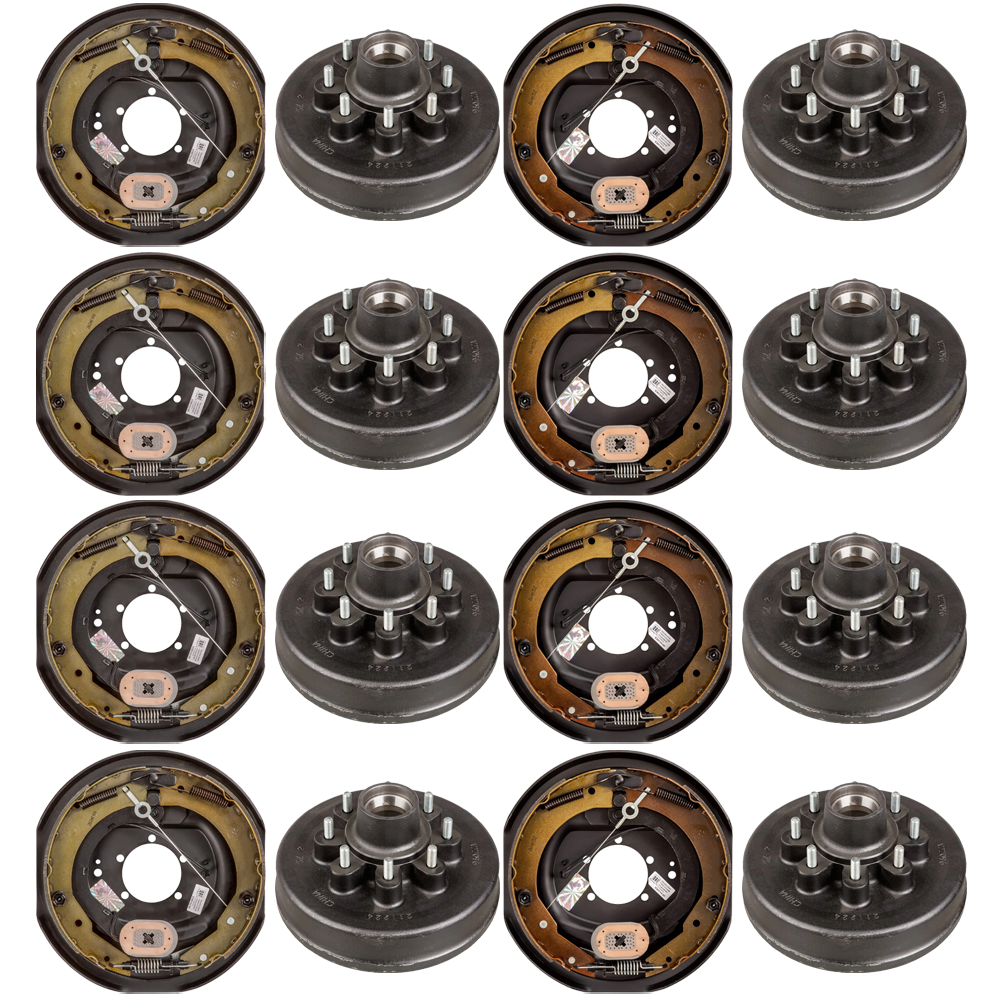

Bundle Contents:

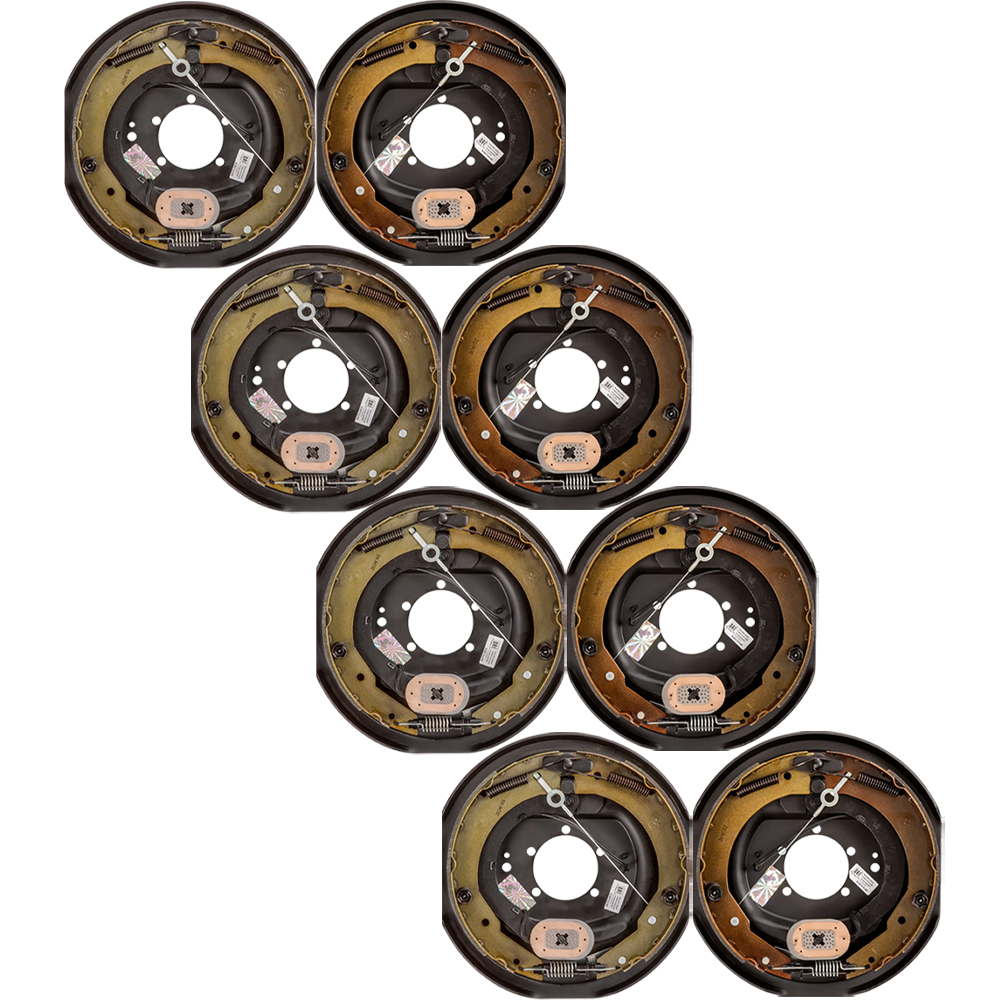

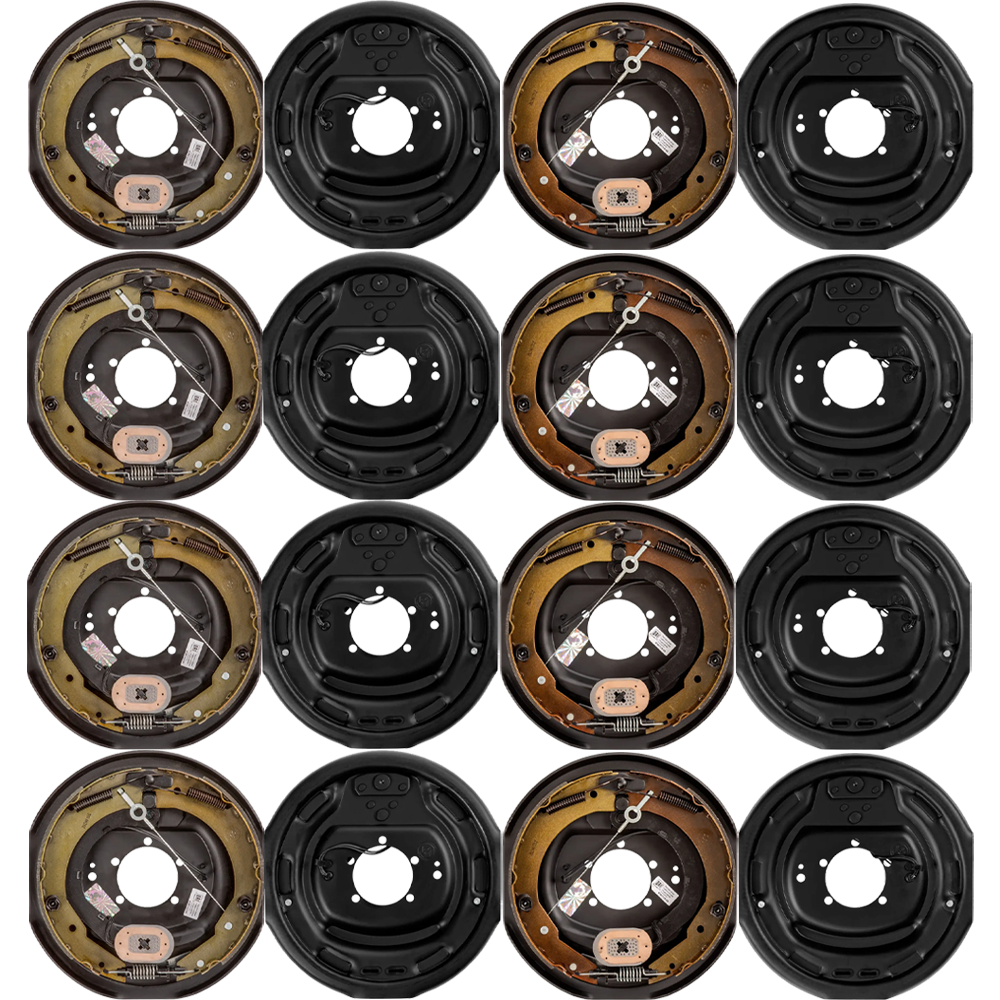

• QTY (4): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 7,000 lbs (Left)
  • Road‑side (left‑hand) electric drum brake
  • Self‑adjusting 12" × 2" shoe set
  • Fits 5,200–7,000 lb & 8K hybrid axles

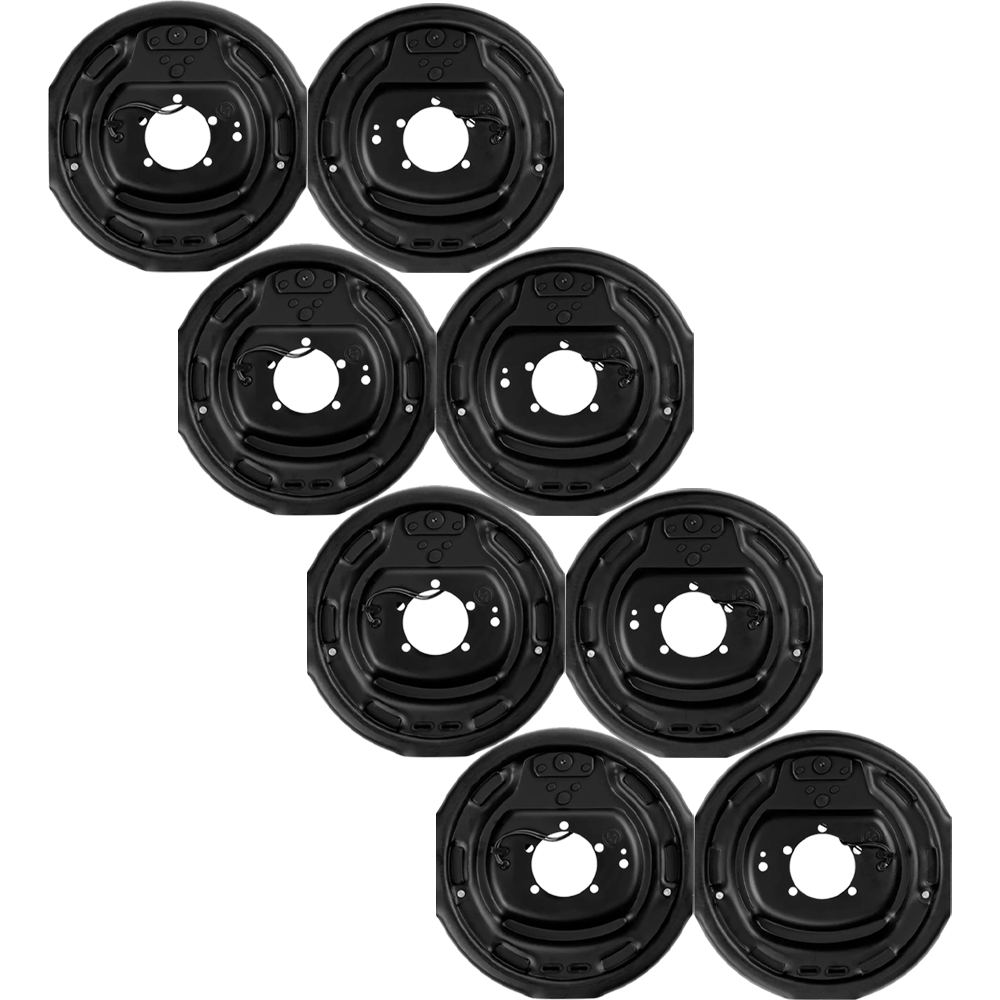

  • 5‑bolt backing plate; DIY friendly
  • Works with 15"–17.5" wheels
  • Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00
  • Genuine Lippert quality; 1‑yr warranty
• QTY (4): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 7,000 lbs (Right)
  • Curb‑side (right‑hand) electric drum brake
  • Self‑adjusting 12" × 2" shoe set
  • Fits 5,200–7,000 lb & 8K hybrid axles
  • 5‑bolt backing plate; DIY friendly
  • Works with 15"–17.5" wheels
  • Dexter Compatible Part Number: K23‑465‑00 | 023‑465‑00
  • Genuine Lippert quality; 1‑yr warranty

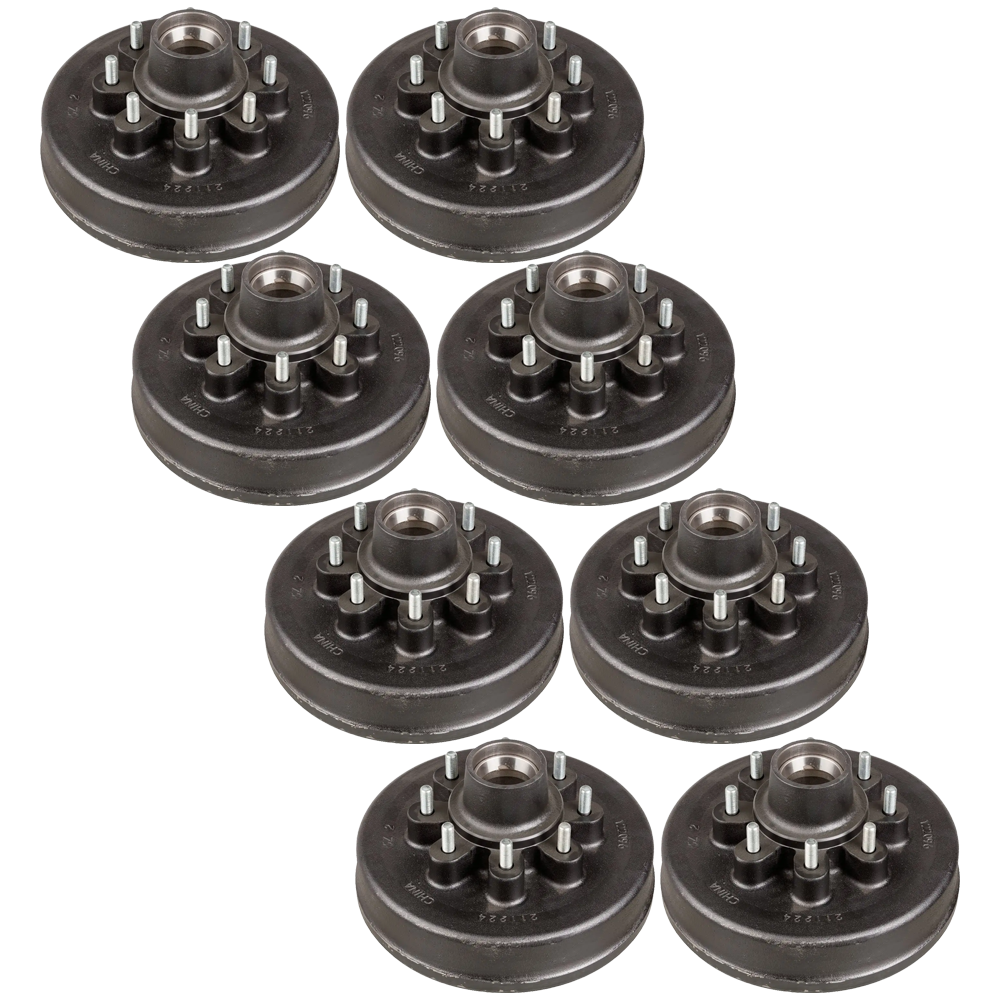

• QTY (8): 12" Trailer Brake Hub & Drum – 7,000 lb, 8 on 6‑1/2", 1/2" Studs
  • 12" hub‑only drum for electric / hydraulic brakes
  • Cast‑iron build; 7,000 lb axle rating
  • 8 on 6.5" bolt pattern, 1/2" pre‑installed studs
  • Races and wheel studs come pre‑installed
  • Accepts press‑in dust caps
  • Compatible with Lippert & Dexter axles
  • Fits 16" wheels; 1‑yr warranty

Recommendation: Confirm axle capacity, bolt pattern, and stud size before installation. Follow manufacturer torque specs and perform regular bearing maintenance for maximum life and safety.
