Lippert 12"?Self?Adjusting Electric Brake Assemblies?& 12"?Bare Drum Hub?Pair � 7K?Axle, 8?on?6.5?BP, 9/16"?Studs � Dexter,?Alko,?Rockwell?Compatible

Lippert 12" Self‑Adjusting Electric Brake Assemblies & 12" Bare Drum Hub Pair

Refresh your 7,000‑lb trailer axle with this complete Lippert bundle. It combines left‑ and right‑hand 12" × 2" forward‑self‑adjusting electric brake assemblies with two matching 12" bare drum hubs, delivering smoother stops, consistent braking performance, and the hardware you need to keep rolling safely.

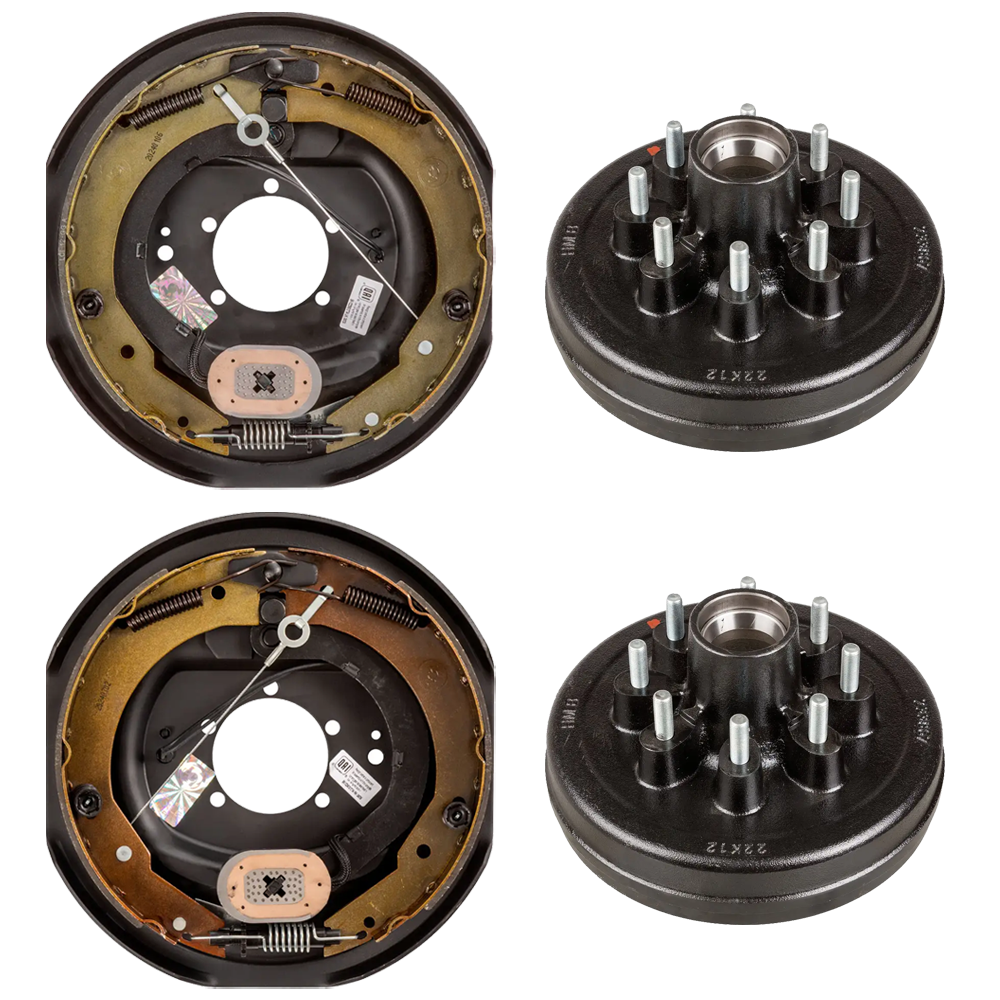

Bundle Contents:

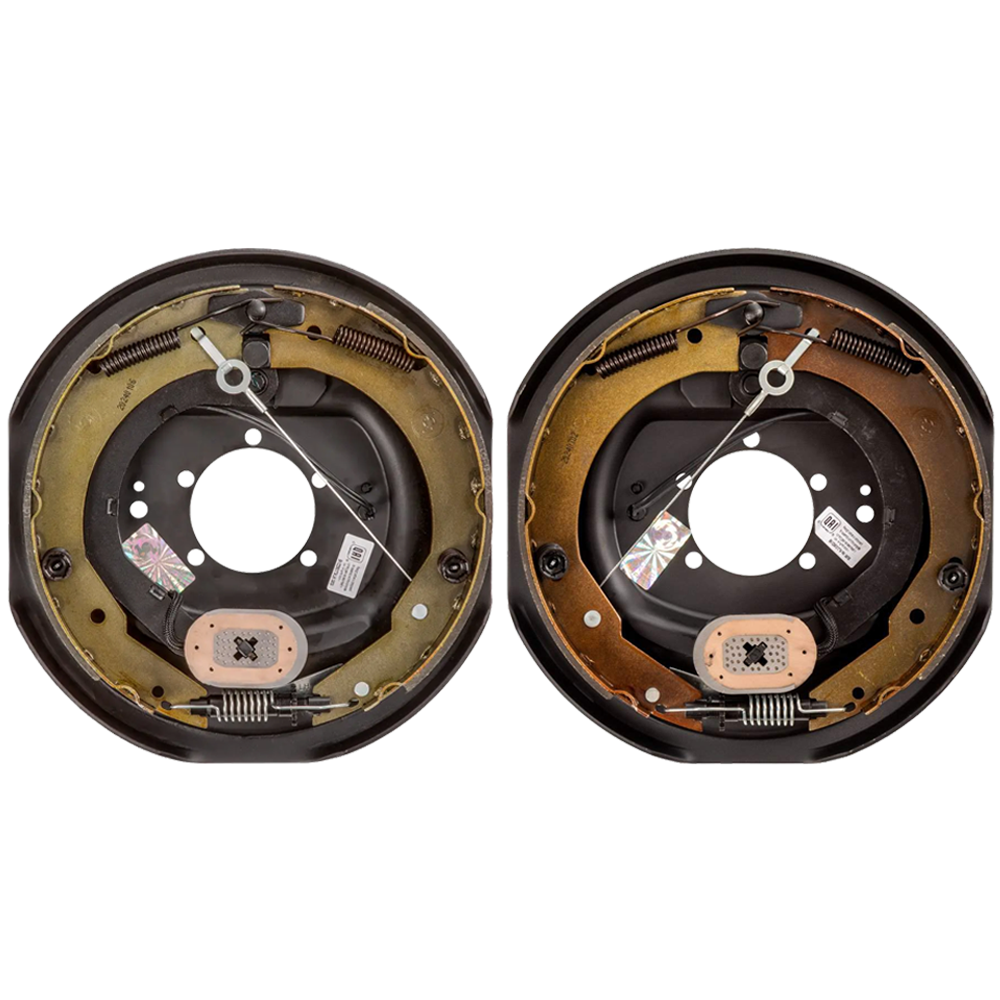

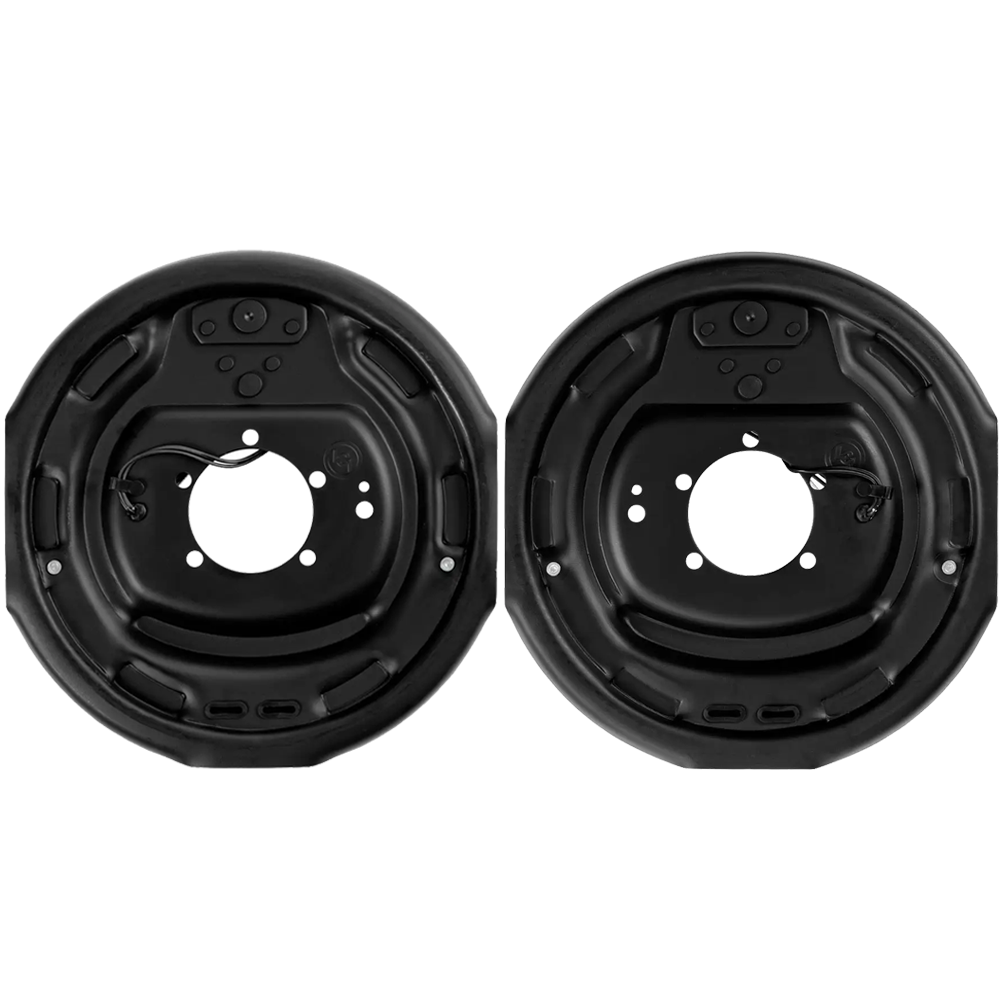

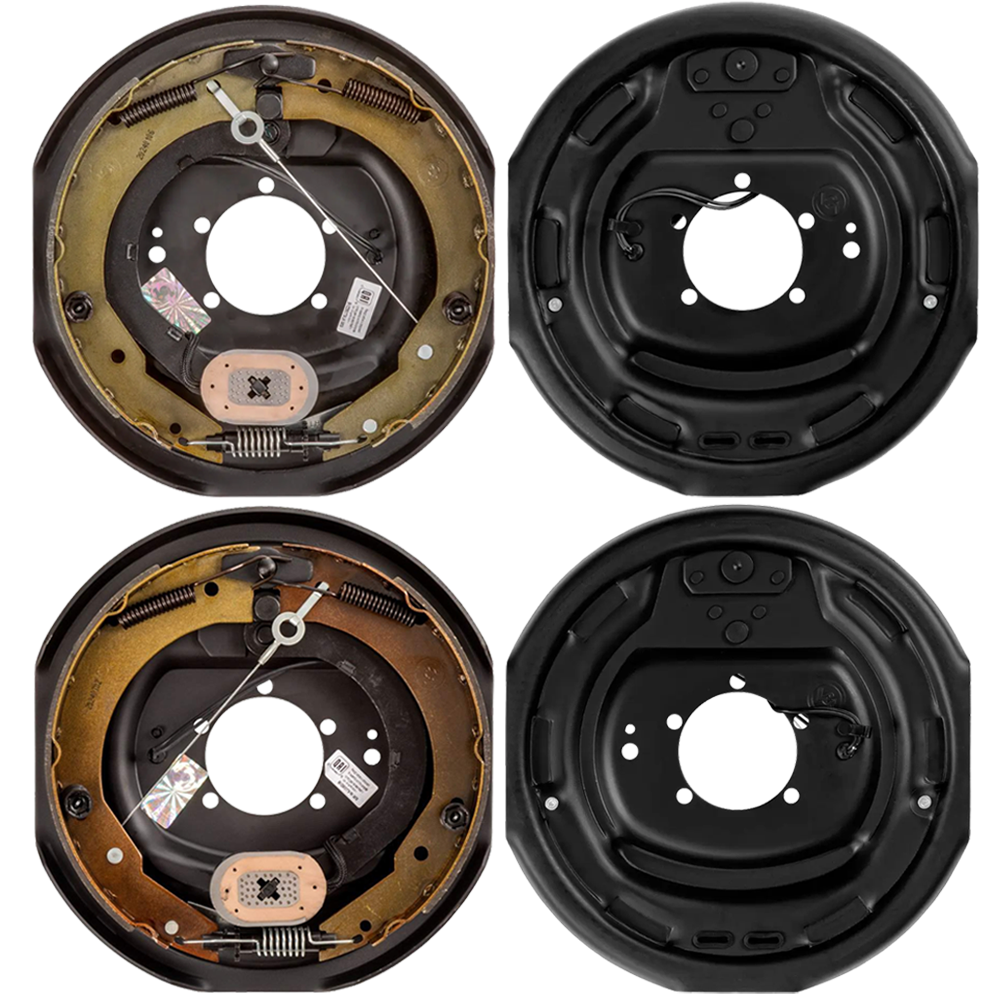

• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 5‑Bolt, 4–7K (Left/Road Side)
  • Forward self‑adjusts at every stop—no manual tweaks
  • 12" × 2" shoe surface for reliable braking power
  • Five‑bolt mounting fits most 7K axles
  • Rated for 4,000‑7,000 lb axles; DIY‑friendly install
  • Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00
  • One‑year limited Lippert warranty
• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 5‑Bolt, 4–7K (Right/Curb Side)
  • Mirror‑image of left unit for balanced braking
  • Self‑adjusting mechanism delivers up to 50 % shorter stops
  • 12" × 2" brake shoes, five‑bolt backing plate
  • Fits 4,000‑7,000 lb axles; includes all‑new components
  • Dexter Compatible Part Number: K23‑465‑00 | 023‑465‑00
  • Backed by Lippert’s one‑year warranty

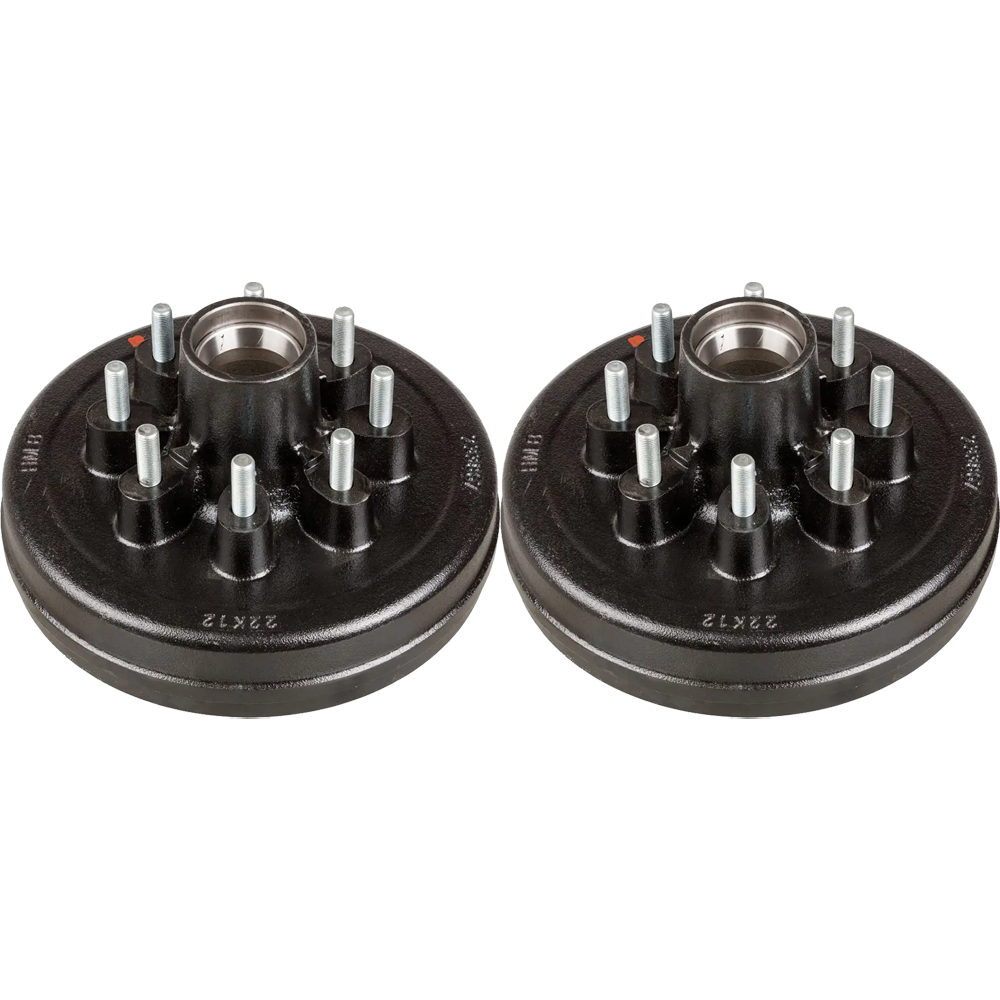

• QTY (2): Lippert 12" Bare Brake Drum Hub – 8‑on‑6.5", 9/16" Stud, 7K Axle
  • Brake hub only – full assembly not included
  • Cast‑iron hub with integrated 12" drum
  • 8‑on‑6.5" bolt circle, 9/16" press‑in studs
  • Works with 16"–17.5" wheels on 7,000 lb axles
  • Machined races installed for quick bearing pack
  • Limited one‑year warranty

Always match replacement parts to your original equipment and perform regular brake maintenance. Inspect linings, magnets, and drums periodically to prevent premature wear or axle damage.
