Lippert 12" Self‑Adjusting Electric Brake Assemblies & 12" Threaded 8K Hub‑Drums Bundle – 8 on 6.5, 9/16" Studs

Restore or upgrade your heavy‑duty trailer’s stopping power with this matched Lippert service kit. Rated up to 7,000 lbs overall (limited by the brake assemblies), the bundle delivers left‑ and right‑hand 12" × 2" forward self‑adjusting electric brakes plus two rugged 12" threaded hub‑drums (individually rated for 8,000 lbs) for a fast, dependable repair.

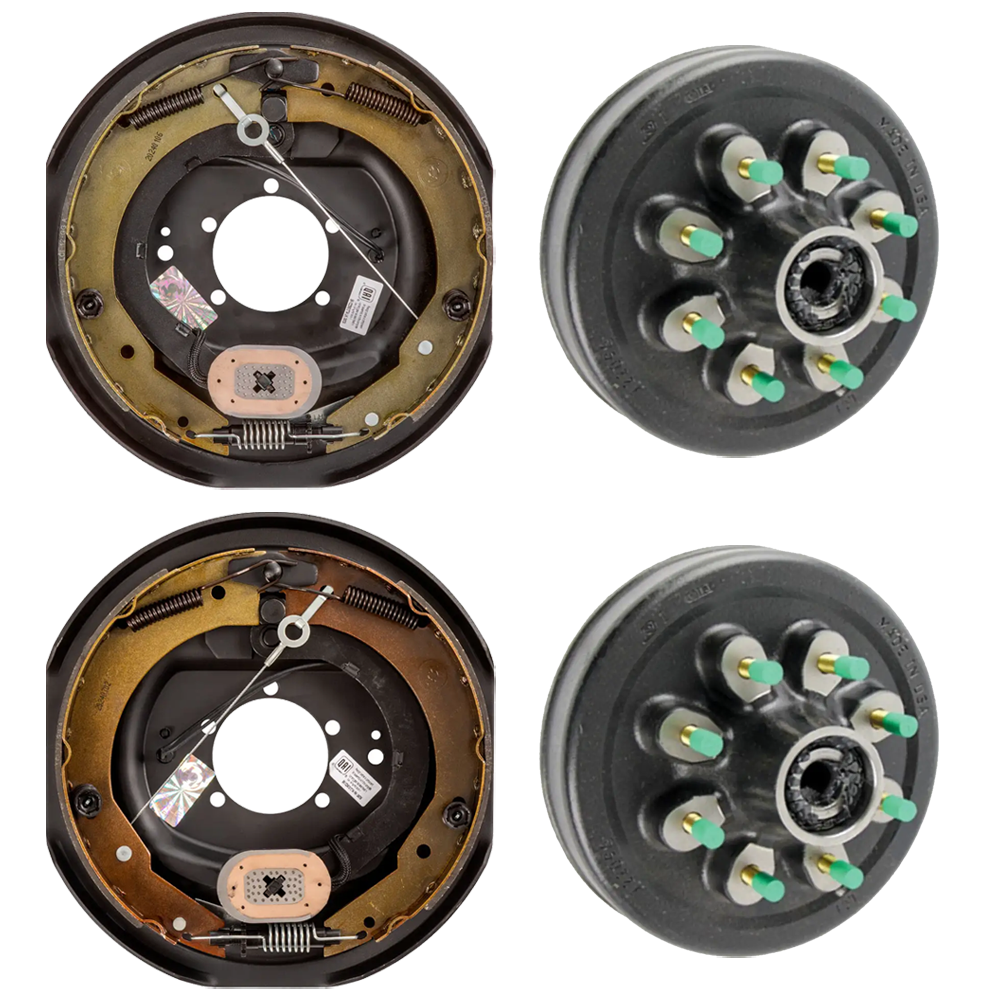

Bundle Contents:

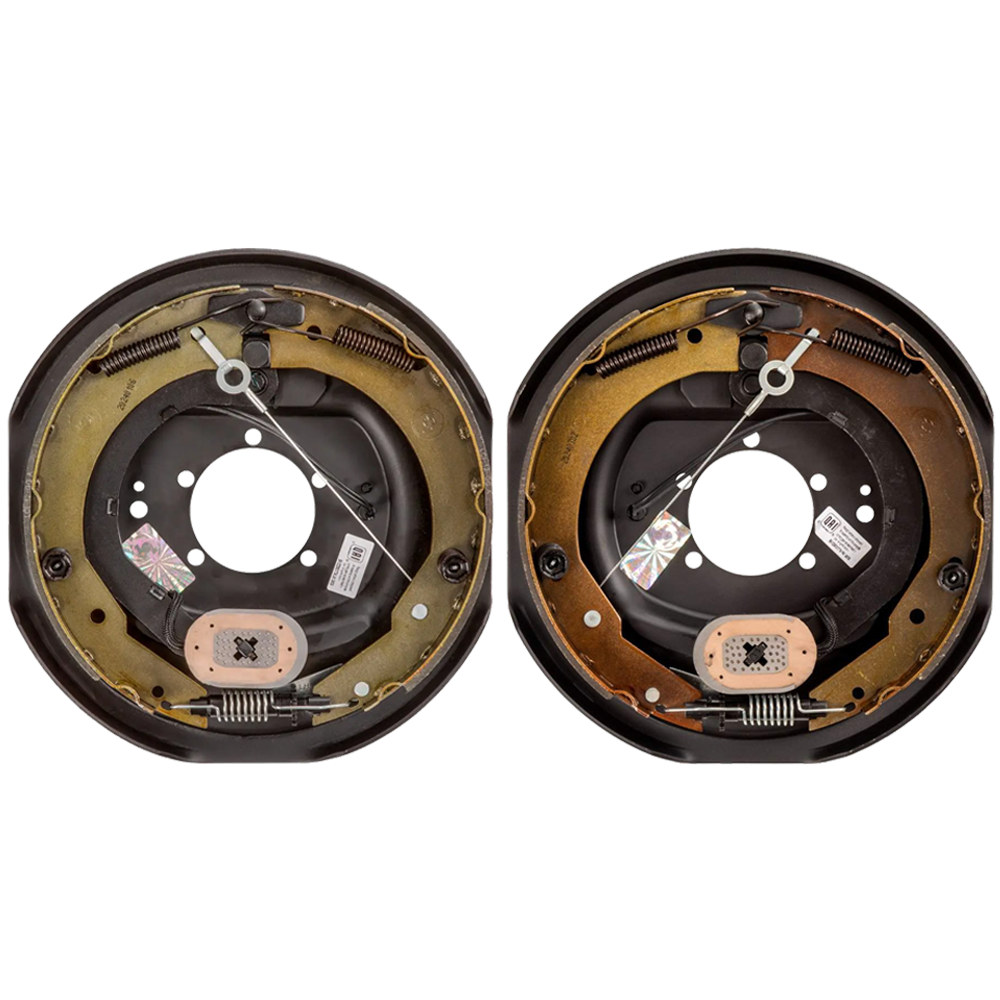

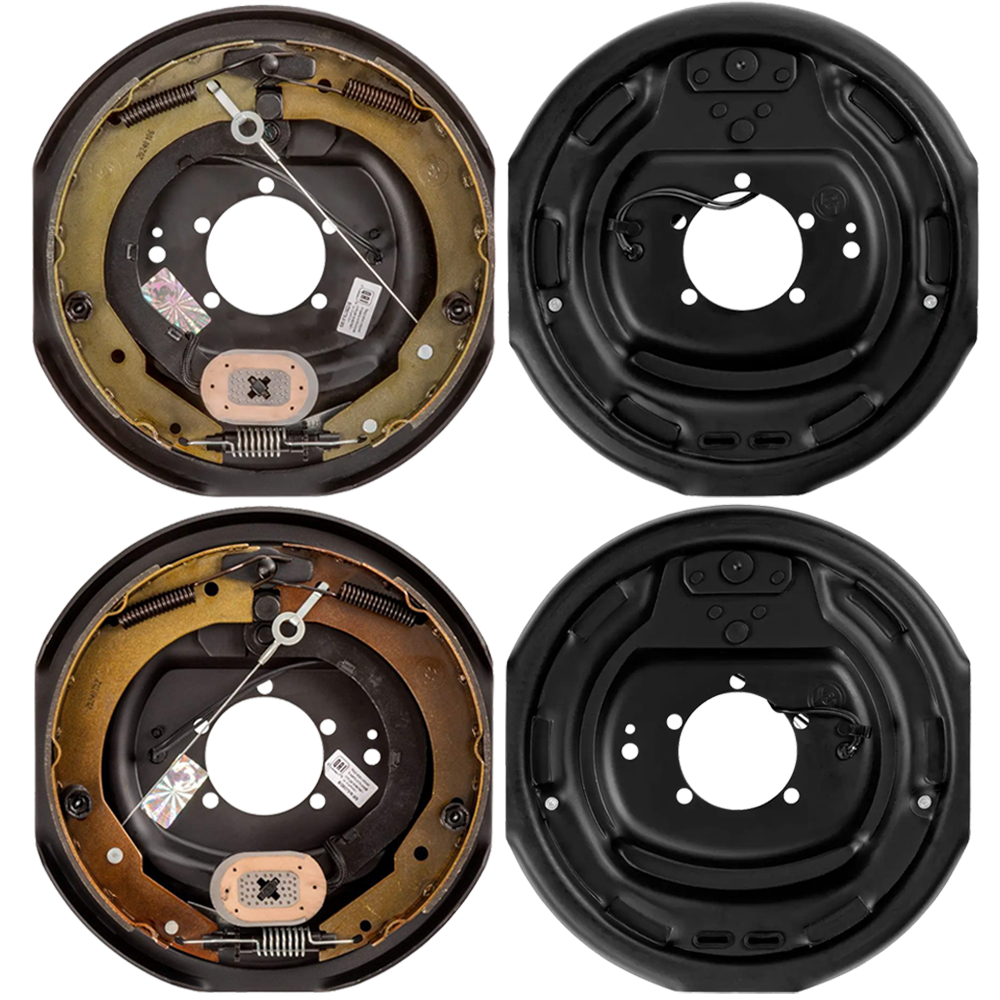

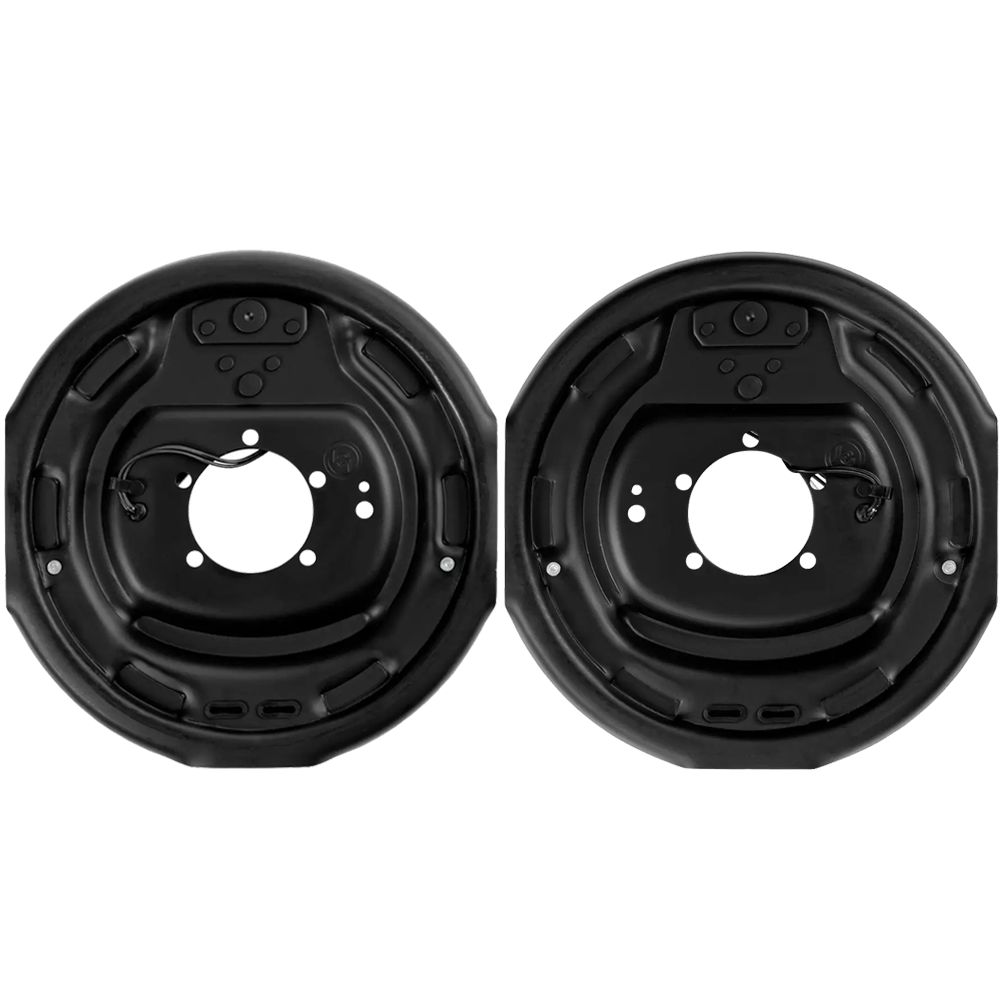

• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 5‑Bolt, 4–7K (Left)
  • Road‑side (left‑hand) electric drum brake
  • Self‑adjusts automatically with every forward stop
  • Fits 4,000‑7,000 lb axles; 12" × 2" drums
  • Standard 5‑bolt mounting flange
  • Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00
  • Lippert genuine replacement, 1‑year warranty
• QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 5‑Bolt, 4–7K (Right)
  • Curb‑side (right‑hand) electric drum brake
  • No manual adjustments after break‑in
  • Works with 12" × 2" drums on 4,000‑7,000 lb axles
  • Industry‑standard 5‑bolt pattern
  • Dexter Compatible Part Number: K23‑465‑00 | 023‑465‑00
  • Direct Lippert replacement, 1‑year warranty

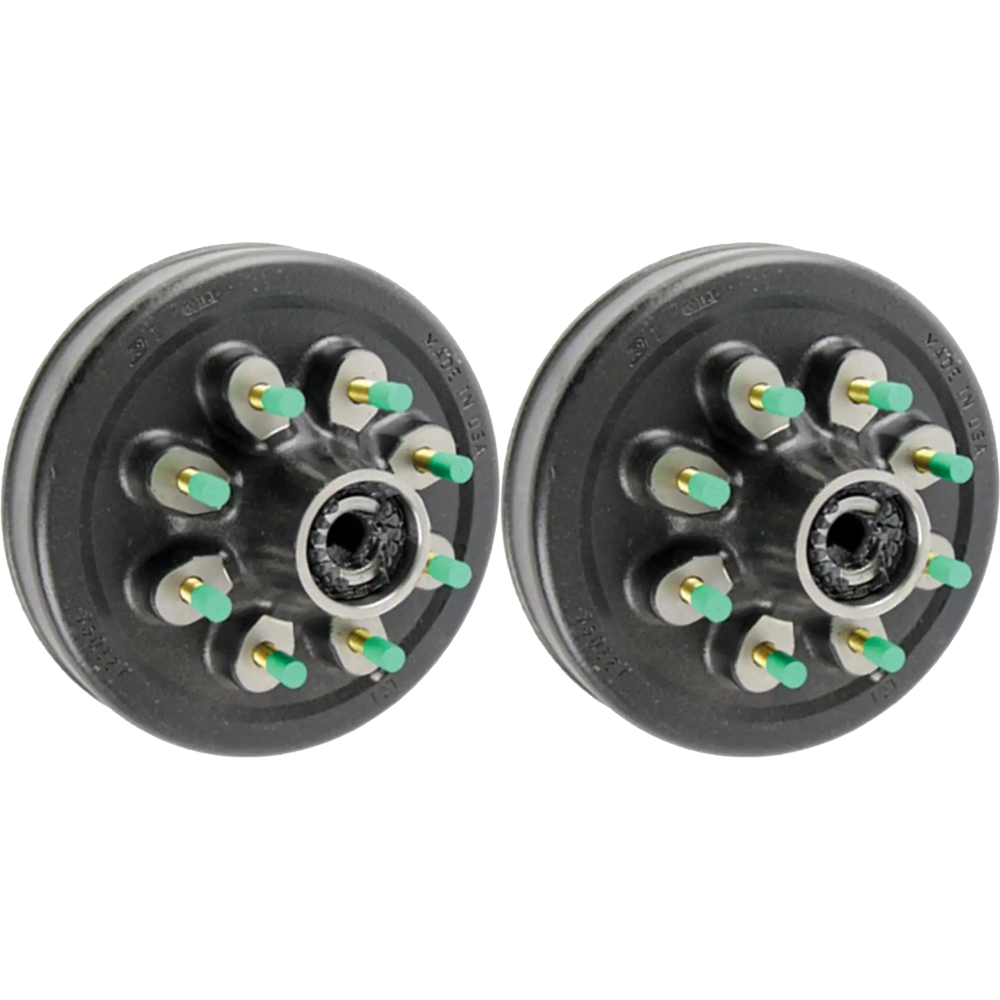

• QTY (2): 12" Threaded Hybrid Trailer Brake Hub‑Drum – 8K, 8 on 6‑1/2", 9/16" Studs
  • Individually rated for 8,000 lb axles (bundle limited to 7,000 lbs)
  • 8‑on‑6.5" bolt circle with pre‑installed 9/16" studs
  • Races and wheel studs come pre‑installed
  • Threaded design accepts Valcrum dust caps
  • Durable cast‑iron construction
  • Universally compatible with Dexter, Al‑Ko & others
  • Backed by Lippert’s 1‑year warranty

Always verify fitment with your original equipment tags and follow regular brake and bearing maintenance intervals for safe towing.
