Lippert 12"?Self?Adjusting Electric Brake & Hub?Drum?Bearing Kit � 6?on?5.5"?Pattern, 6,000?lb?Quad?Axle (8?Wheel) Set � Dexter?/?AL?KO?/?Rockwell?Compatible
$1,399.99
Lippert 12" Self‑Adjusting Electric Brake & Hub‑Drum Bearing Kit – 6‑on‑5.5" Pattern, 6,000 lb Quad‑Axle (8‑Wheel) Set
Restore confident stopping power on your quad‑axle trailer with this turnkey Lippert bundle. You get matching left‑ and right‑hand forward self‑adjusting electric brakes plus eight 12" hub‑drums with individually bagged bearing kits. Every component is OEM‑grade and cross‑compatible with Dexter, AL‑KO and Rockwell axles, so you bolt on, wire up and roll out—no parts‑hunt headaches.

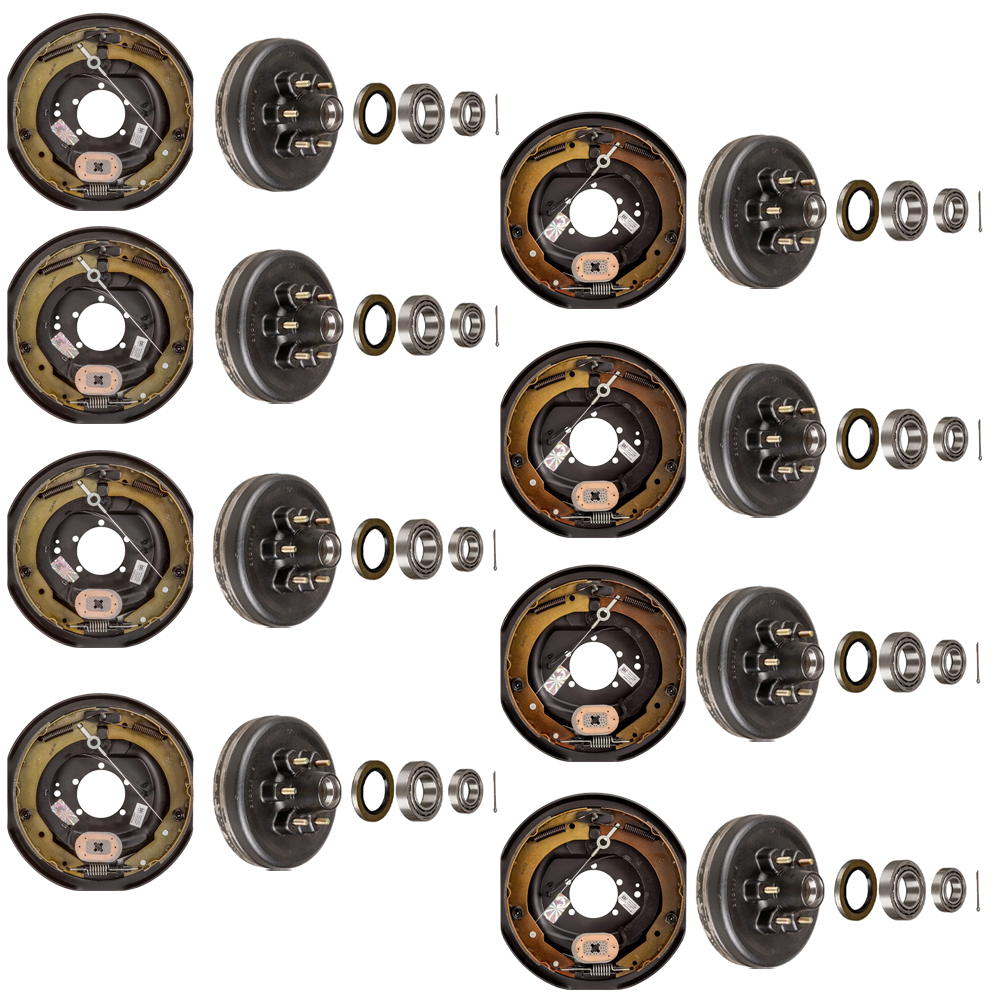

Bundle Contents:
-

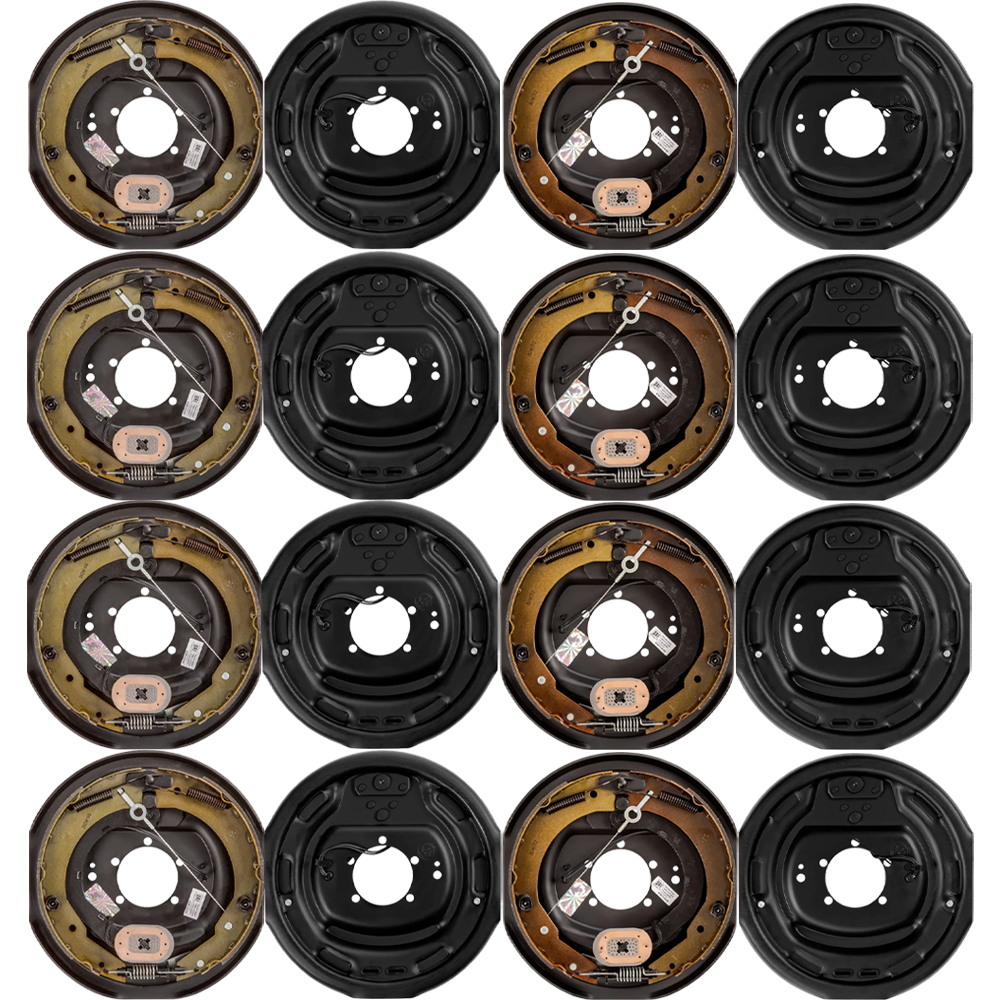

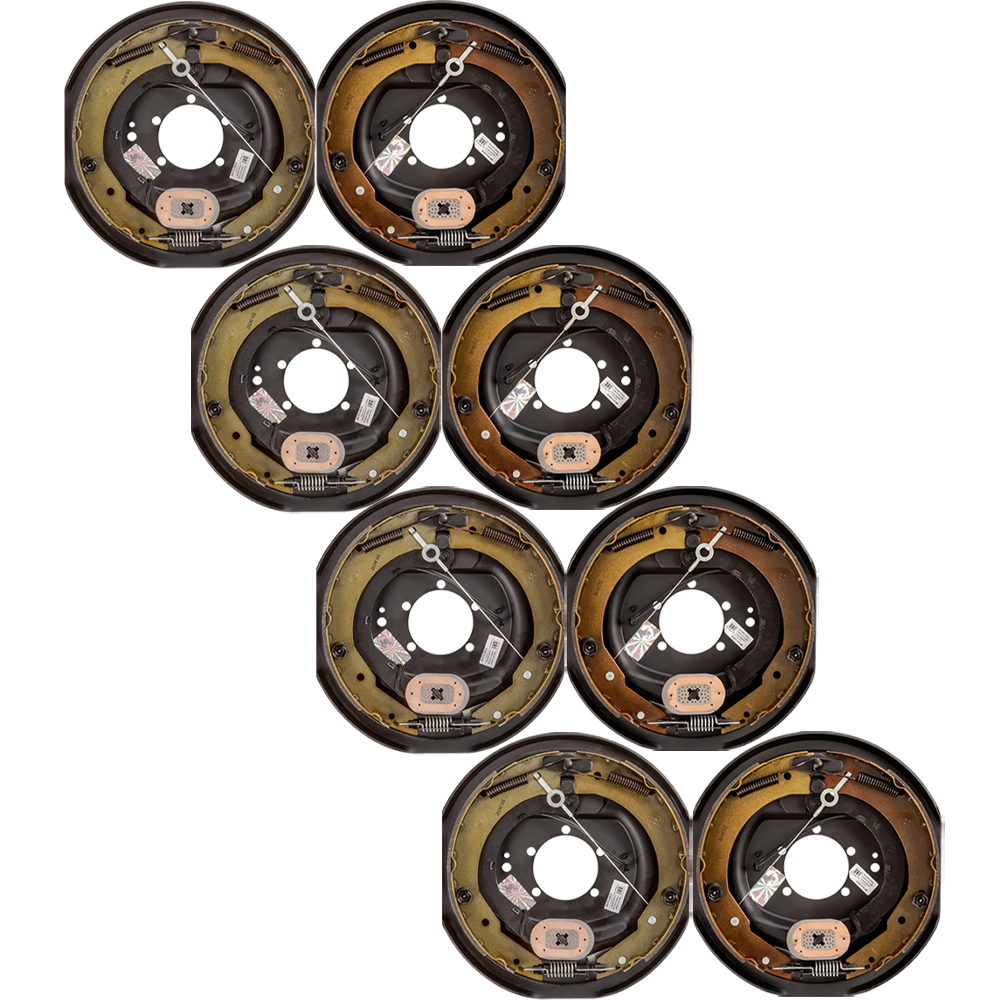

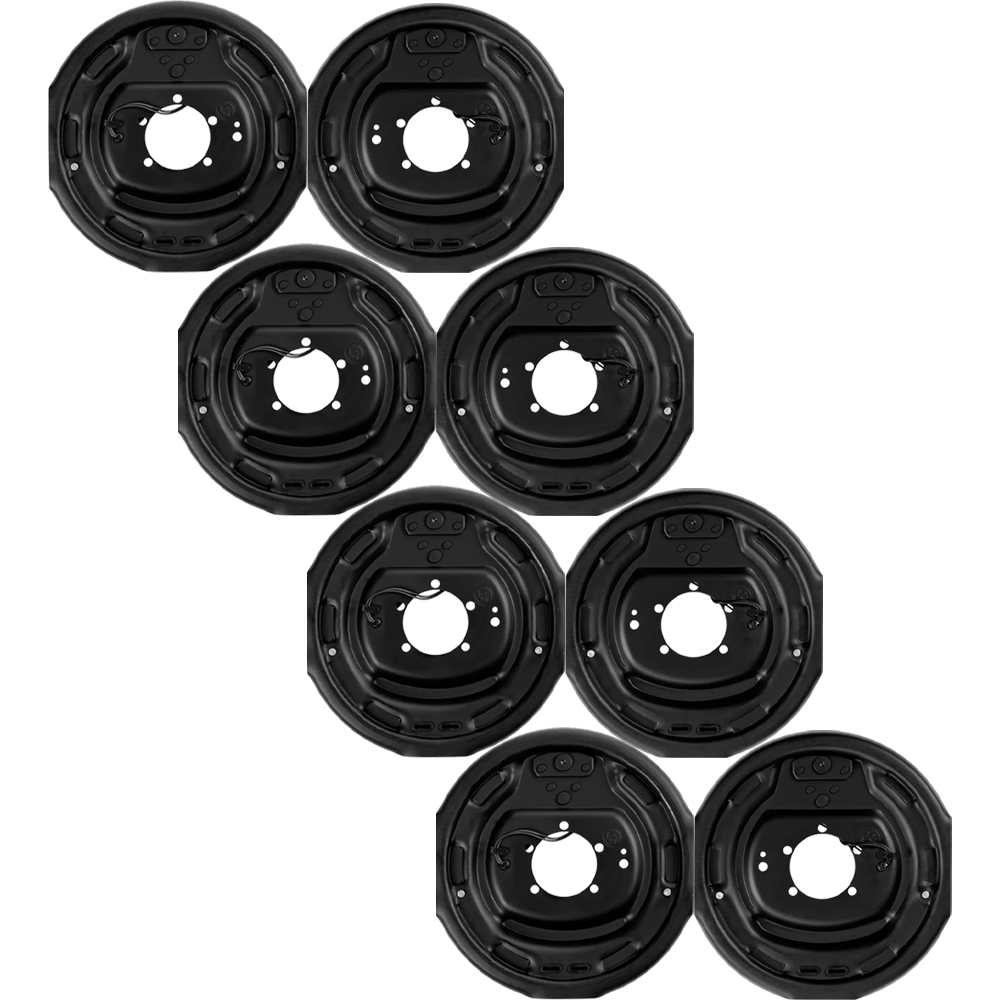

QTY (4): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 7,000 lb (Left‑Hand)
- Road‑side (left) electric brake replacement
- Self‑adjusts to maintain optimal shoe clearance
- Fits 15"–17.5" wheels; 5,200–7,000 lb & 8K hybrid axles
- Five‑bolt mounting flange; easy DIY install
- 1‑year Lippert warranty
- Dexter Compatible Part Number: K23‑464‑00 | 023‑464‑00
-
QTY (4): Lippert Forward Self‑Adjusting Brake Assembly – 12" × 2", 7,000 lb (Right‑Hand)
- Curb‑side (right) electric brake replacement
- Self‑adjusting mechanism reduces maintenance
- Fits 15"–17.5" wheels; 5,200–7,000 lb & 8K hybrid axles
- Five‑bolt mounting flange; install without special tools
- 1‑year Lippert warranty
- Dexter Compatible Part Number: K23‑465‑00 | 023‑465‑00
-

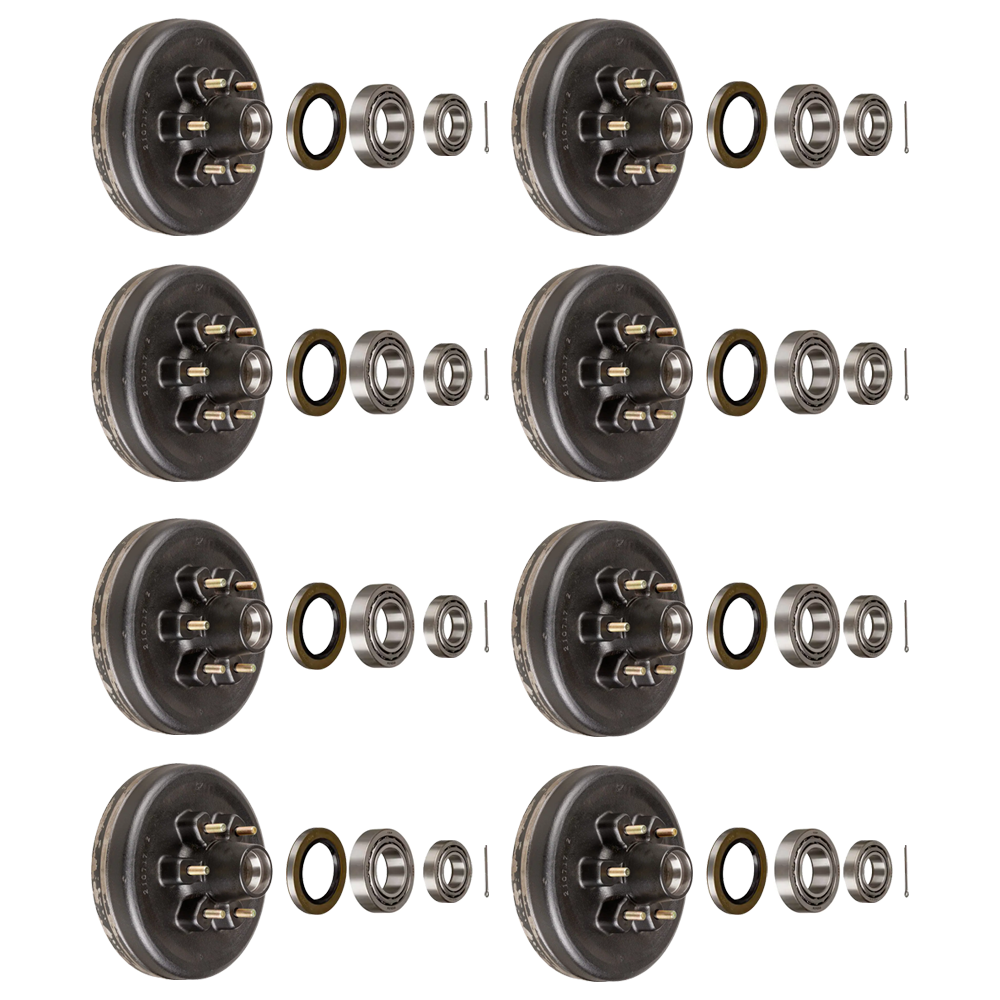

QTY (8): Lippert 12" Brake Drum Hub Assembly – 6‑on‑5.5", 1/2" Stud, 6,000 lb Axle
- Durable cast‑iron hub‑drum for 6K axles
- 6‑on‑5.5" bolt circle with 1/2" studs
- Works with 14.5"–16.5" wheels
-
Bearing kit (bagged separately, one kit per hub) includes:
- Inner Bearing Cone
- Inner Bearing Cup
- Outer Bearing Cone
- Outer Bearing Cup
- Double‑Lip Grease Seal
- Cotter Pin
- Brake Hub #122094 • Bearing Kit #333950 • 1‑year warranty
- Dexter Compatible Part Number: K08‑201‑9A
Please verify your original equipment specifications before ordering and perform routine inspections to maintain top brake performance.
| Specifications: | |
|---|---|
| Kit Type | Complete Trailer Brake, Hub & Bearing Kit |
| Axle Rating | 6,000 lb (limited by hub capacity) |
| Brake Drum Dimensions | 12" Diameter × 2" Shoe Width |
| Brake Mounting Pattern | 5‑Bolt Backing Plate |
| Hub Bolt Pattern | 6‑on‑5.5" |
| Hub Type | Cast‑Iron Hub with Integrated Drum |
| Stud Size | 1/2" |
| Type of Adjustment | Forward Self‑Adjusting |
| Brake Location | Left & Right (Road/Curb) Assemblies |
| Wheel Size Compatibility | Brakes: 15"–17.5" • Drums: 14.5"–16.5" |
| Number of Axles | 4 (Quad‑Axle) |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
