Lippert?12" Self?Adjusting RH Electric Brake & 6?on?5.5 Drum Hub Kit, 6K?Axle � Dexter / AL?KO / Rockwell Compatible

Lippert 12" Self‑Adjusting Right‑Hand Brake & Drum Hub Bundle

This all‑in‑one kit pairs Lippert’s forward self‑adjusting 12" × 2" electric brake with a matching 12" drum hub to refresh a single 6,000‑lb axle. Enjoy shorter stopping distances, worry‑free automatic adjustment, and everything you need for a quick, bolt‑on install.

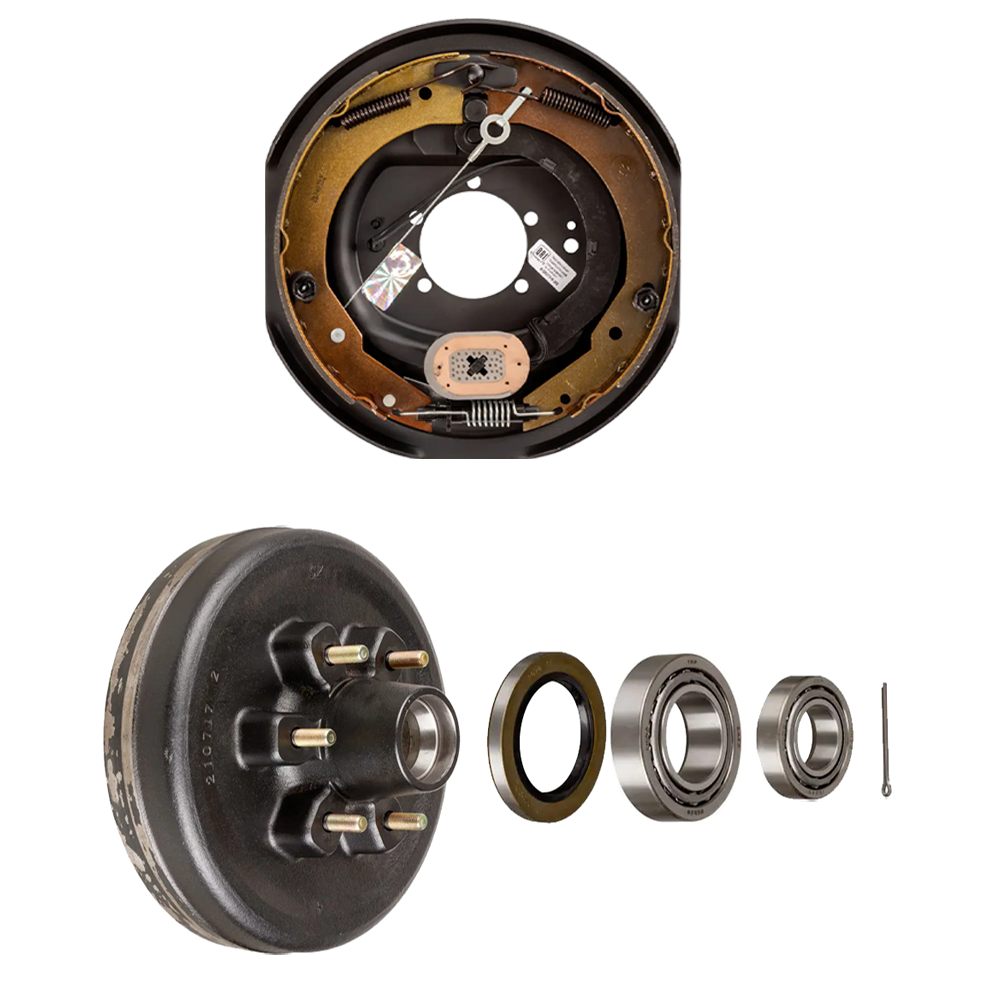

Bundle Contents:

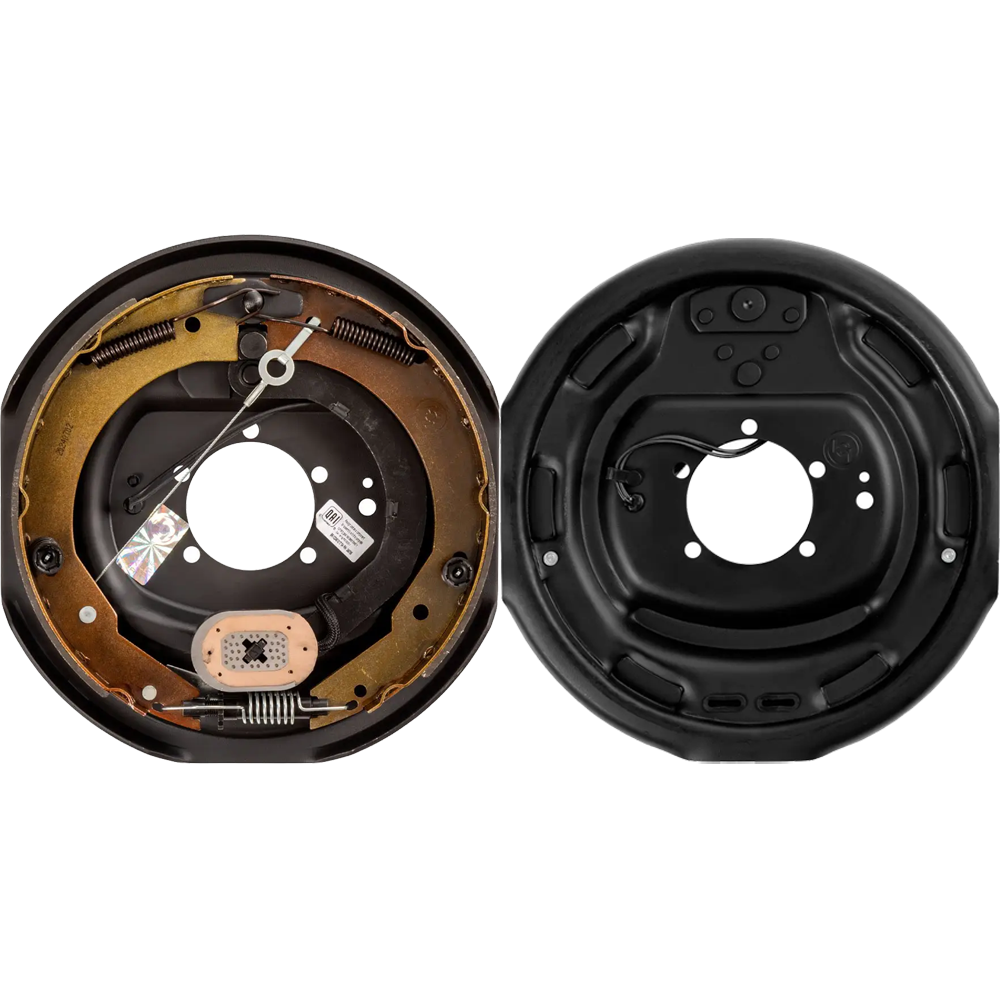

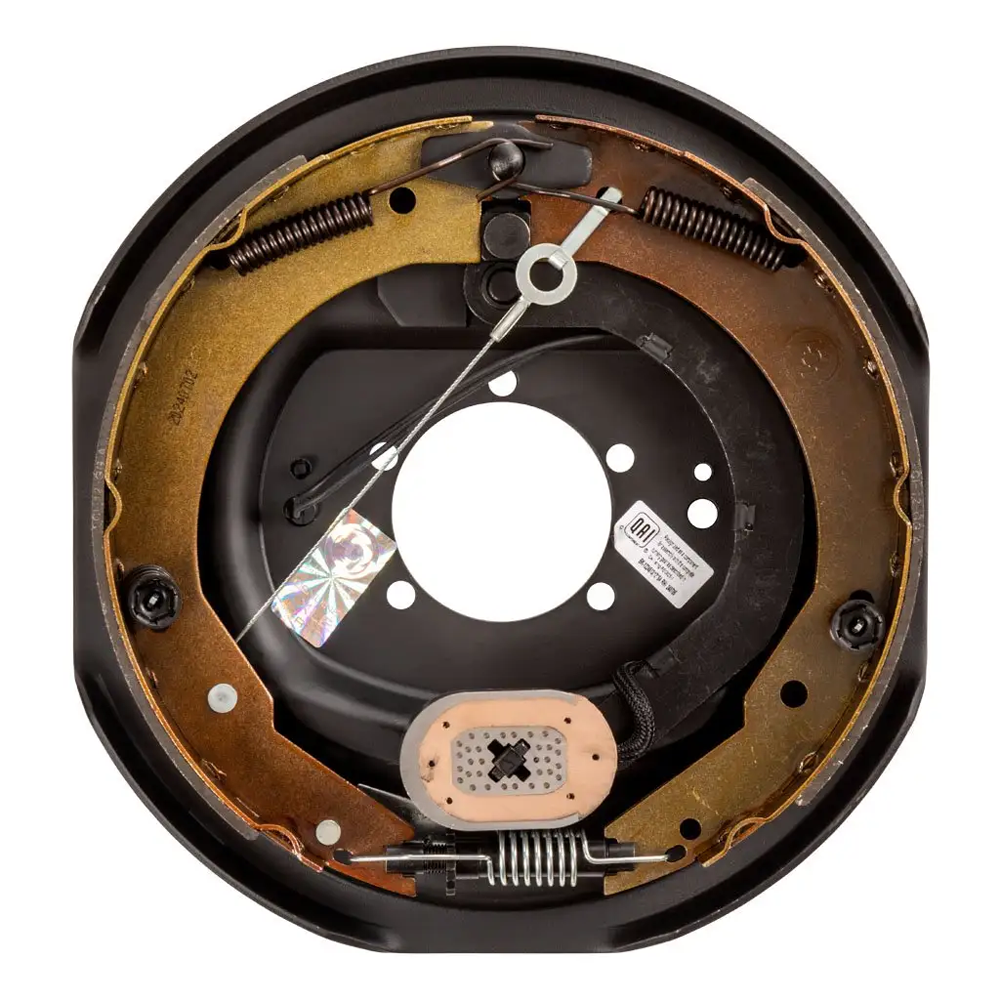

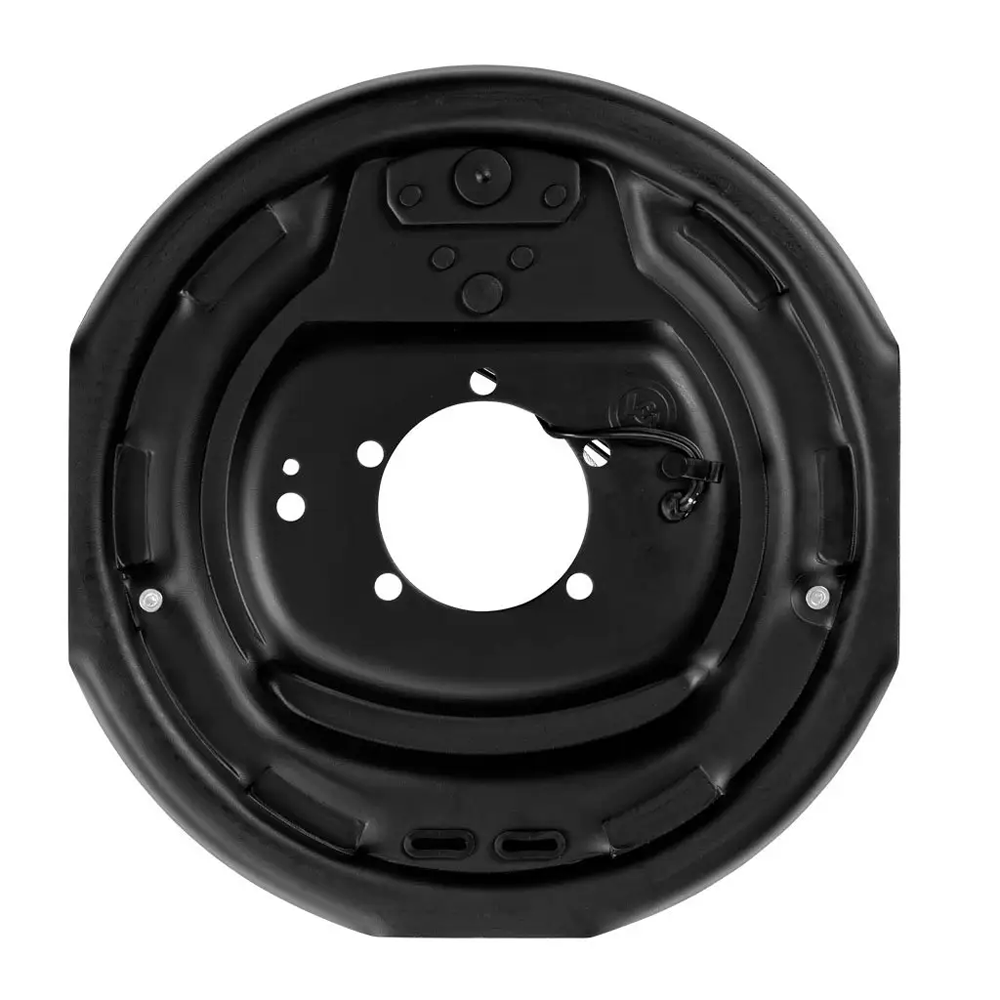

• QTY (1): Lippert Forward Self‑Adjusting Electric Brake Assembly – 12" × 2", 5‑Bolt, 4‑7K (Right)
  • Direct‑fit electric brake; right‑hand (curb side)
  • Self‑adjusts during every forward stop—no manual tuning
  • Brake size: 12" × 2"  •  Axle rating: 4,000 – 7,000 lbs
  • Brake mounting pattern: 5‑bolt plate
  • Dexter Compatible Part Numbers: K23‑465‑00 | 023‑465‑00
  • DIY‑friendly installation  •  1‑year limited warranty

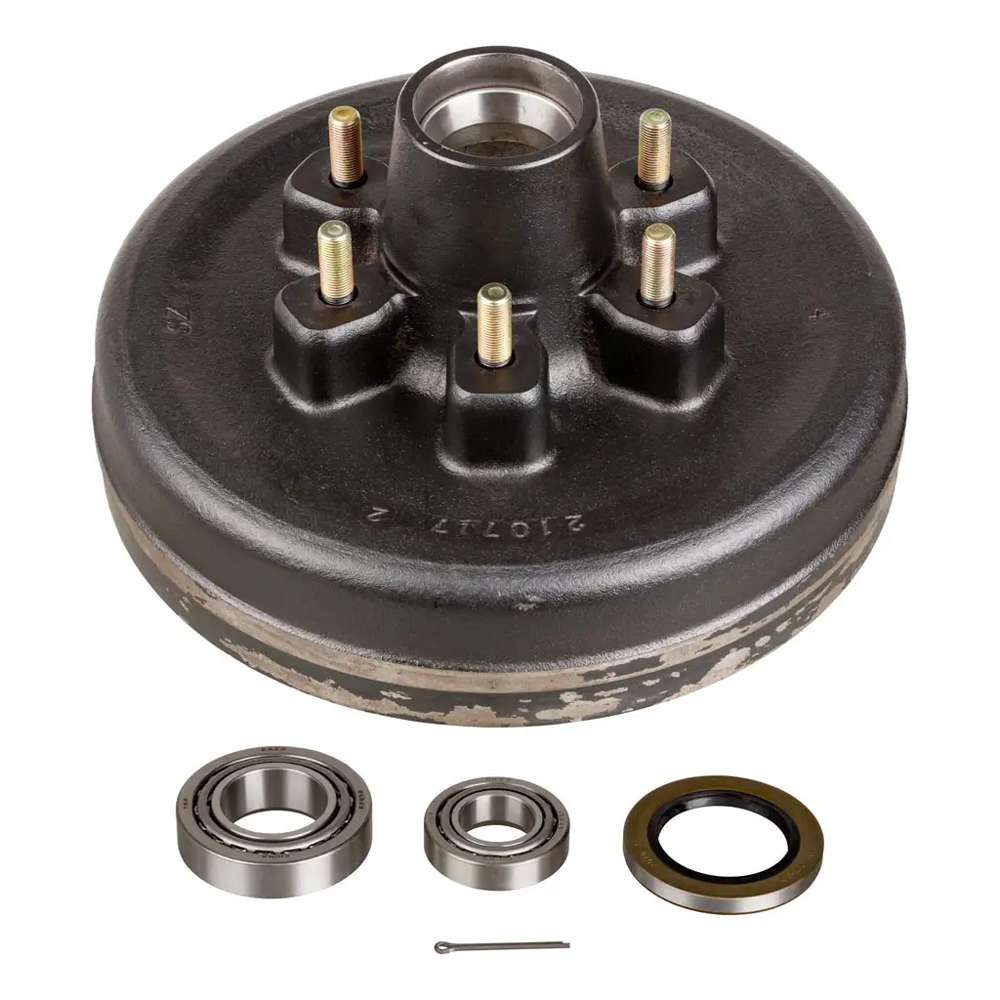

• QTY (1): Lippert 12" Brake Drum Hub Assembly – 6‑on‑5.5", 1/2" Studs, 6K Axle
  • Solid cast‑iron drum with integrated hub
  • Hub bolt pattern: 6 on 5.5"  •  Stud size: 1/2"
  • Fits 6,000‑lb axles  •  Wheel size: 14.5", 15", 16", 16.5"
  • Dexter Compatible Part Number: K08‑201‑9A
  • Bearing kit (bagged separately—one kit per hub) includes:
    • Inner bearing cone
    • Outer bearing cone
    • Inner bearing cup
    • Outer bearing cup
    • Double‑lip grease seal
    • Cotter pin
  • Brake Hub #122094  •  Bearing Kit #333950  •  1‑year limited warranty

Confirm all part numbers with your original equipment and perform regular maintenance—well‑maintained brakes and hubs protect your trailer investment and keep you safe on the road.
