Lippert 12" Tandem‑Axle Electric Brake & Grease Hub Kit – 7 K Standard / 8 K Hybrid, 17.5" Wheel

Restore confident stopping power on your heavy‑duty trailer with this matched Lippert bundle. It pairs left‑ and right‑hand 12 inch manual‑adjust electric brake assemblies with four threaded grease drum hubs. The kit supports 7,000 lbs on standard axles and up to 8,000 lbs on hybrid 8K axles while fitting 17.5" wheels for worry‑free highway performance.

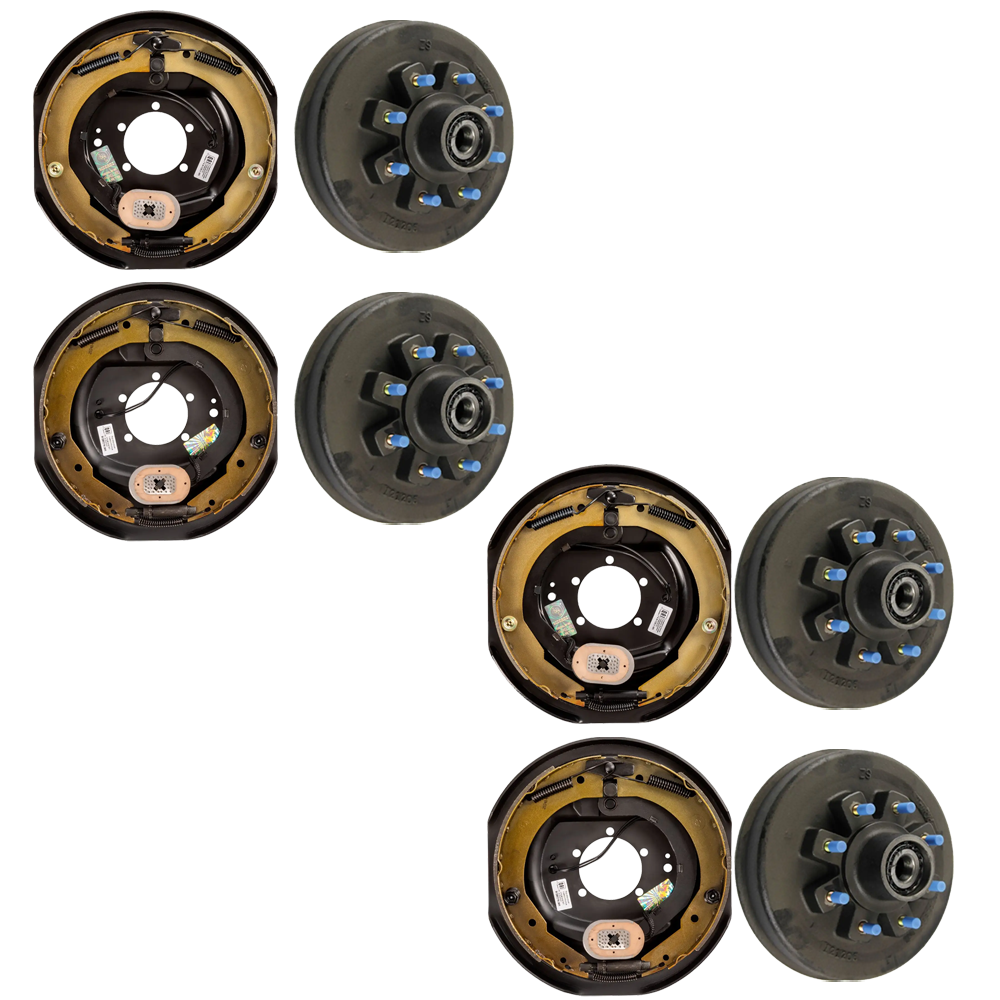

Bundle Contents:

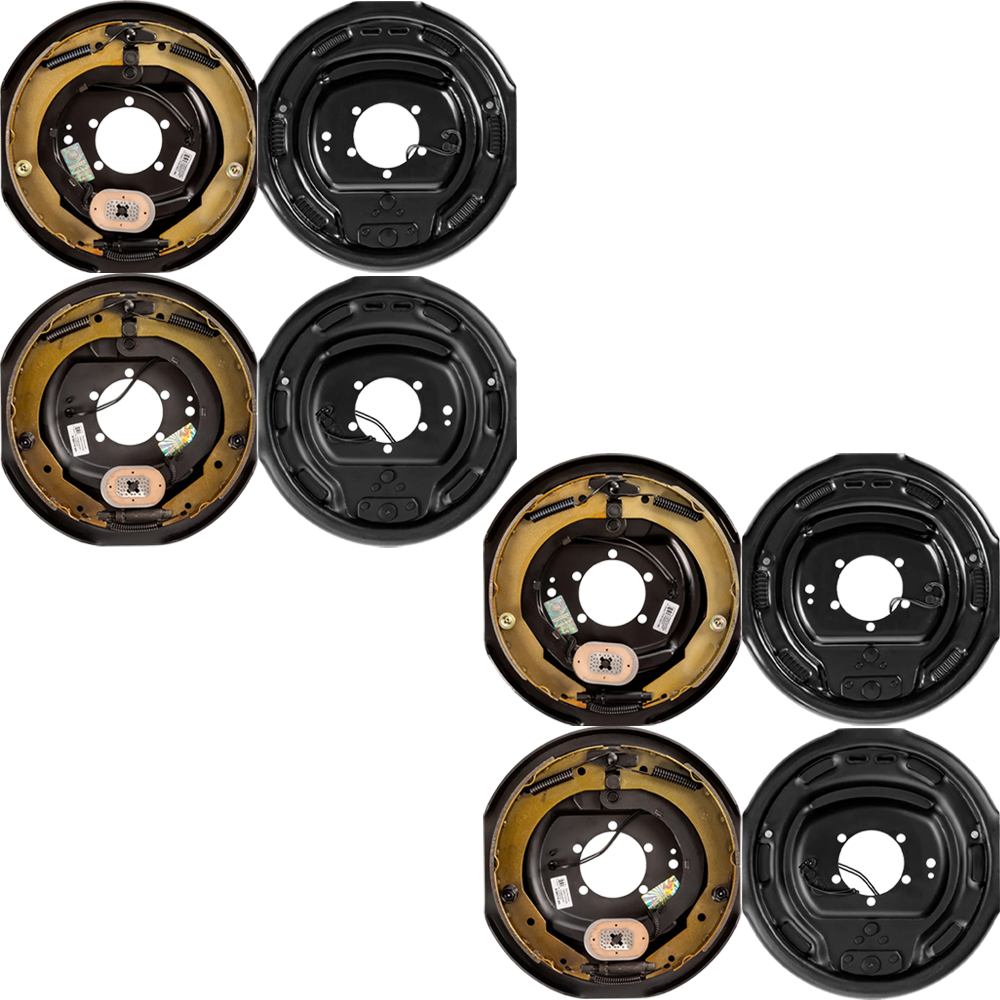

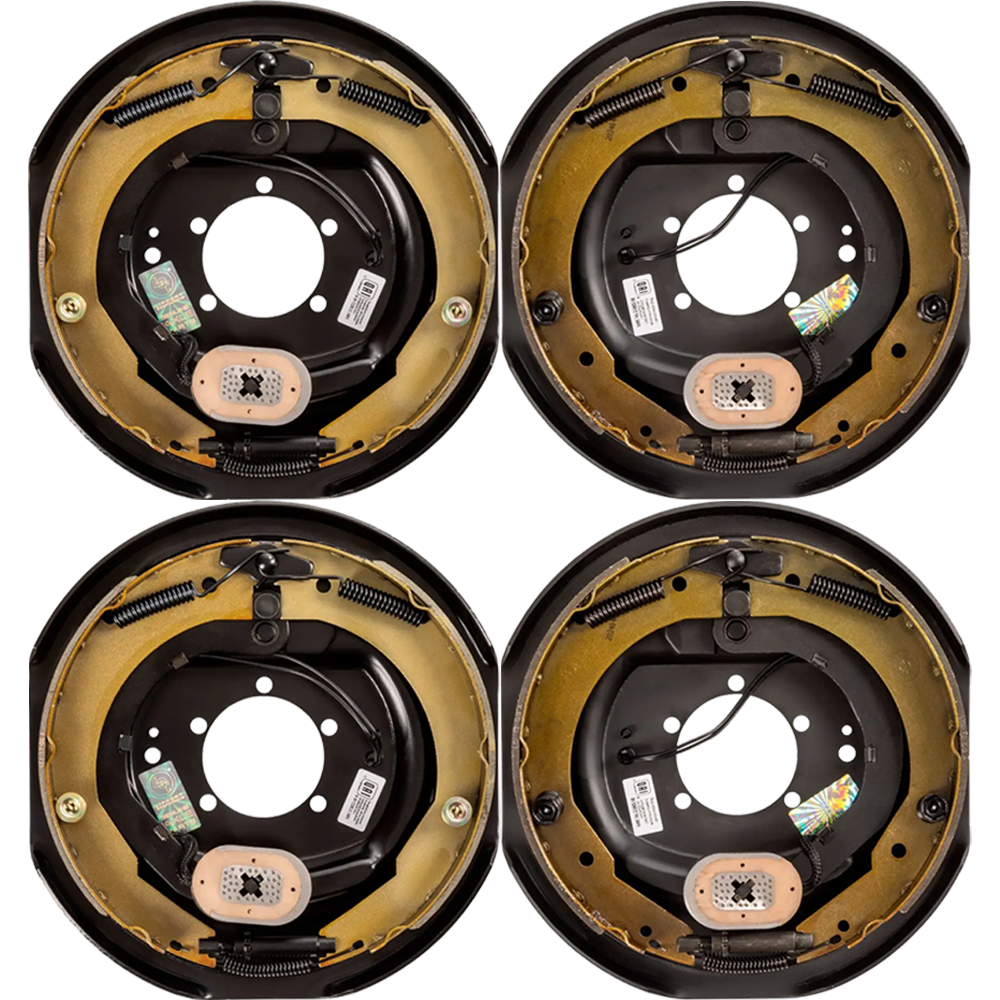

• QTY (2): Lippert 12" × 2" Manual‑Adjust Electric Brake Assembly – Left‑Hand
  • Road‑side (LH) fit for 5,200–7,000 lb & hybrid 8,000 lb axles
  • Built‑in park feature; star‑wheel manual adjustment
  • Standard 5‑bolt backing plate for quick OEM replacement
  • Works with 15"–17.5" wheels; break‑in required
  • Dexter compatible p/n K23‑180‑00 | 023‑180‑00
• QTY (2): Lippert 12" × 2" Manual‑Adjust Electric Brake Assembly – Right‑Hand
  • Curb‑side (RH) mate for balanced braking
  • Manual star‑wheel lets you fine‑tune shoe wear
  • Five‑bolt mounting pattern; DIY friendly
  • Fits 5,200–7,000 lb & hybrid 8,000 lb axles, 15"–17.5" wheels
  • Dexter compatible p/n K23‑181‑00 | 023‑181‑00

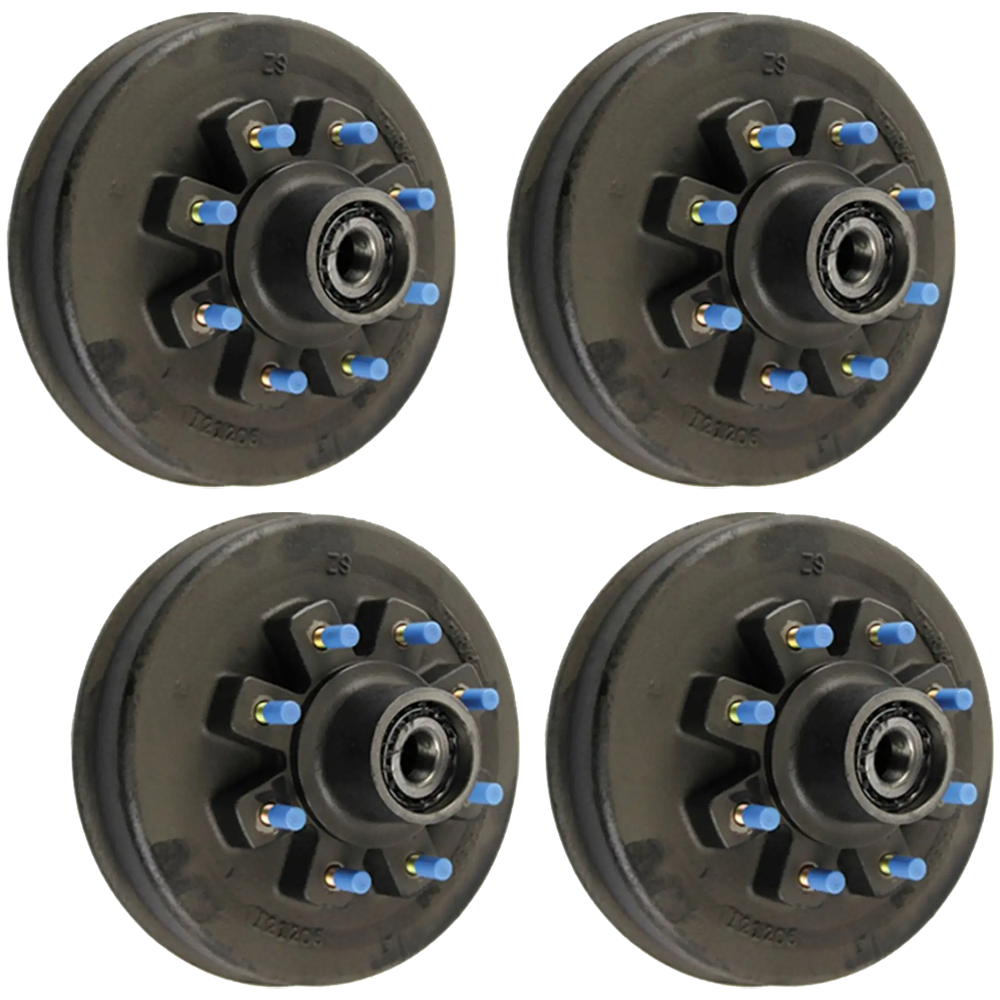

• QTY (4): Lippert Threaded Hybrid‑Grease Drum Hub – 8 on 6.5", 5/8" Studs
  • Rated for 8,000 lb axles; 12" drum pairs with included brakes
  • Heavy‑duty 8‑on‑6.5" pattern with 5/8" wheel studs pre‑installed
  • CNC‑threaded to accept Valcrum dust caps
  • Races and wheel studs come pre‑installed
  • Durable cast‑iron construction; hybrid grease lubrication

Confirm axle rating, bolt pattern, and drum dimensions before installation, and follow Lippert’s break‑in and maintenance guidelines for long‑lasting, reliable braking.
