Lippert 12" Trailer Brake Drum Hub Bundle (8-Pack) � 7,000-lb Axles, 8 on 6.5, 9/16" Studs � Dexter, AL-KO, Rockwell Compatible
$833.99
Lippert 12" Brake Drum Hub Bundle – 8 Pack for 7,000-lb Trailer Axles
Keep your heavy-duty trailer stopping safely with this bundle of eight Lippert 12-inch hub-and-drum units. Each cast-iron hub is precision-machined for 7,000-lb axles using the popular 8 on 6.5-inch bolt pattern with 9/16-inch studs. Compatible with Dexter, AL-KO, Rockwell and other 12" × 2-1/4" electric or hydraulic brake assemblies. This bundle supplies the hub-only components—complete brake backing plates, shoes and mounting hardware are not included.
Bundle Contents:
-

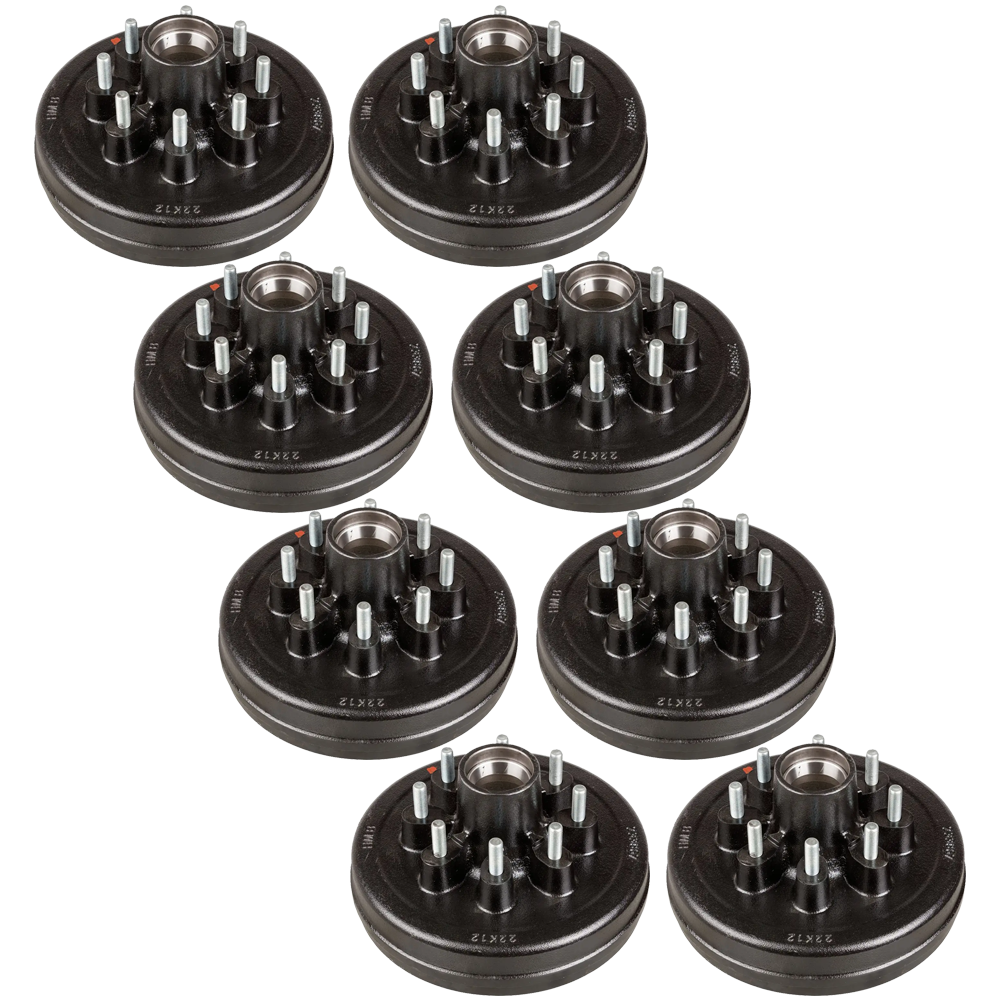

QTY (8): Lippert 12" Brake Drum Hub – 8 on 6.5", 9/16" Stud

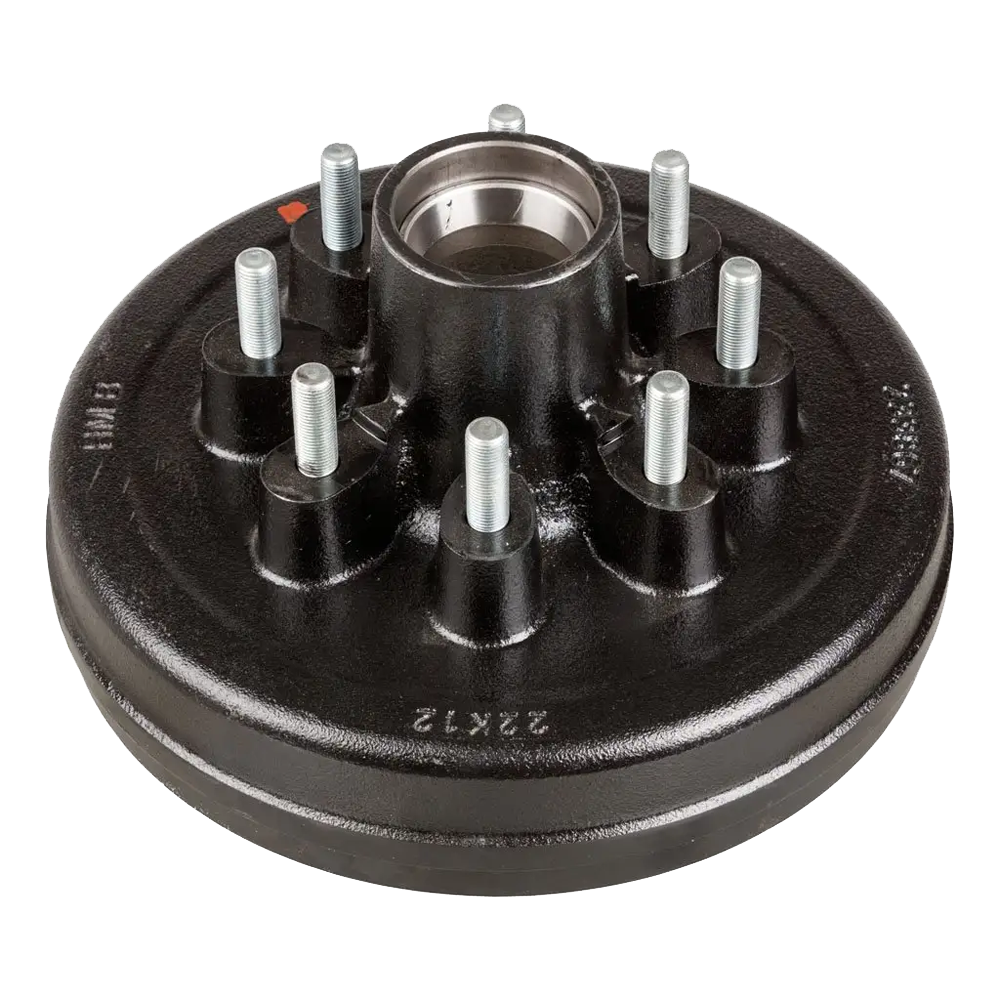

- Integrated 12" cast-iron drum with hub
- Rated for 7,000-lb trailer axles
- 8-lug, 8 on 6.5" bolt pattern with 9/16" press-in studs
- Fits 16" – 17.5" wheels
- Hub-and-drum only – brake assemblies sold separately
- Direct replacement for Lippert, Dexter, AL-KO & Rockwell 12" brakes
- Backed by Lippert’s limited 1-year warranty
Always match replacement parts to your original equipment and inspect brake components regularly to maintain peak trailer performance and safety.

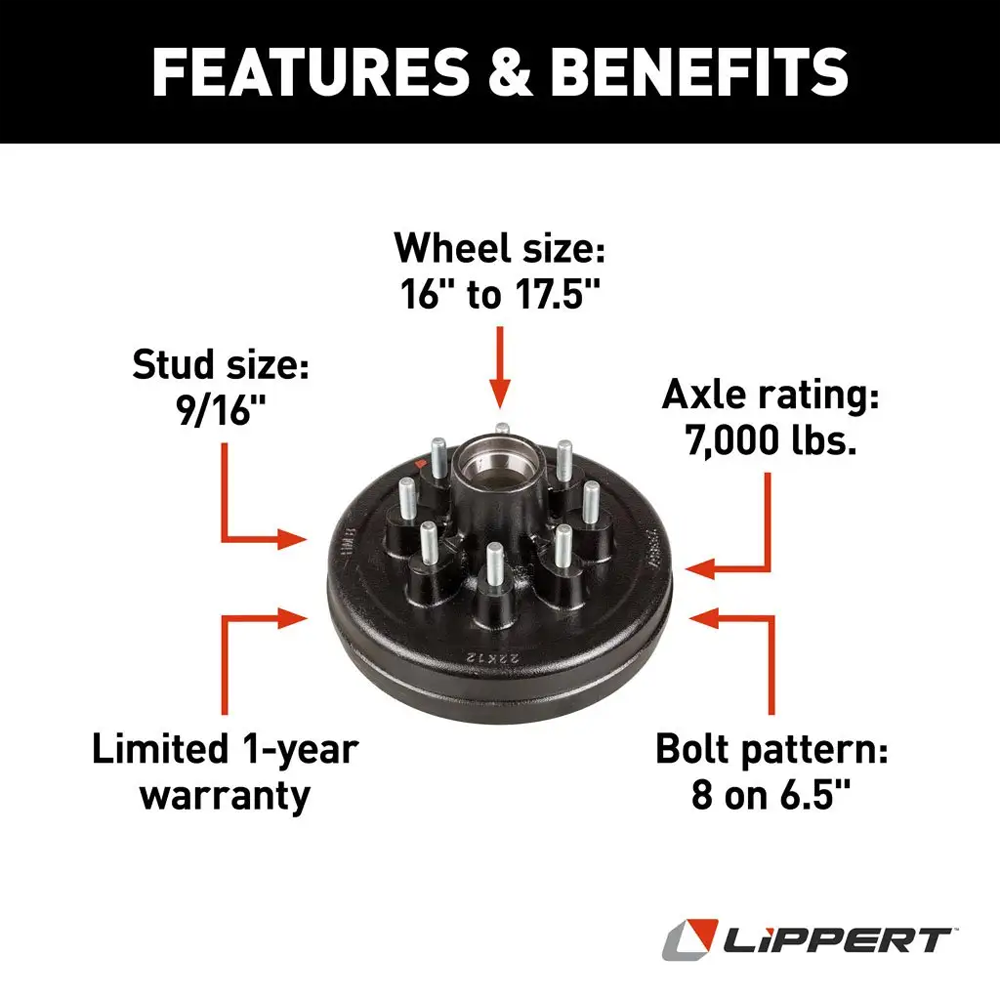

| Specifications: | |
|---|---|
| Kit Type | Brake Drum Hub Replacement Bundle (8-Pack) |
| Axle Rating | 7,000 lbs |
| Hub Size | 12" Hub with Integrated Drum |
| Drum Diameter | 12" |
| Bolt Pattern | 8 on 6.5" |
| Stud Size | 9/16" |
| Hub Type | Hub with Integrated Drum |
| Wheel Size Compatibility | 16" – 17.5" Wheels |
| Material | Cast Iron |
| Warranty | Limited 1-Year |
Order today or call us at 877-869-6690 for expert advice and personalized service.
