Lippert 12" Triple?Axle 6,000?lb Brake Drum & Hub Assembly Kit � 6 on 5?1/2" Bolt Pattern w/�Bearing�Cones (Set�of�6) � Compatible with Dexter, AL?KO, Rockwell
$689.99
Lippert 12" Triple‑Axle 6,000‑lb Brake Drum & Hub Assembly Kit (Set of 6)

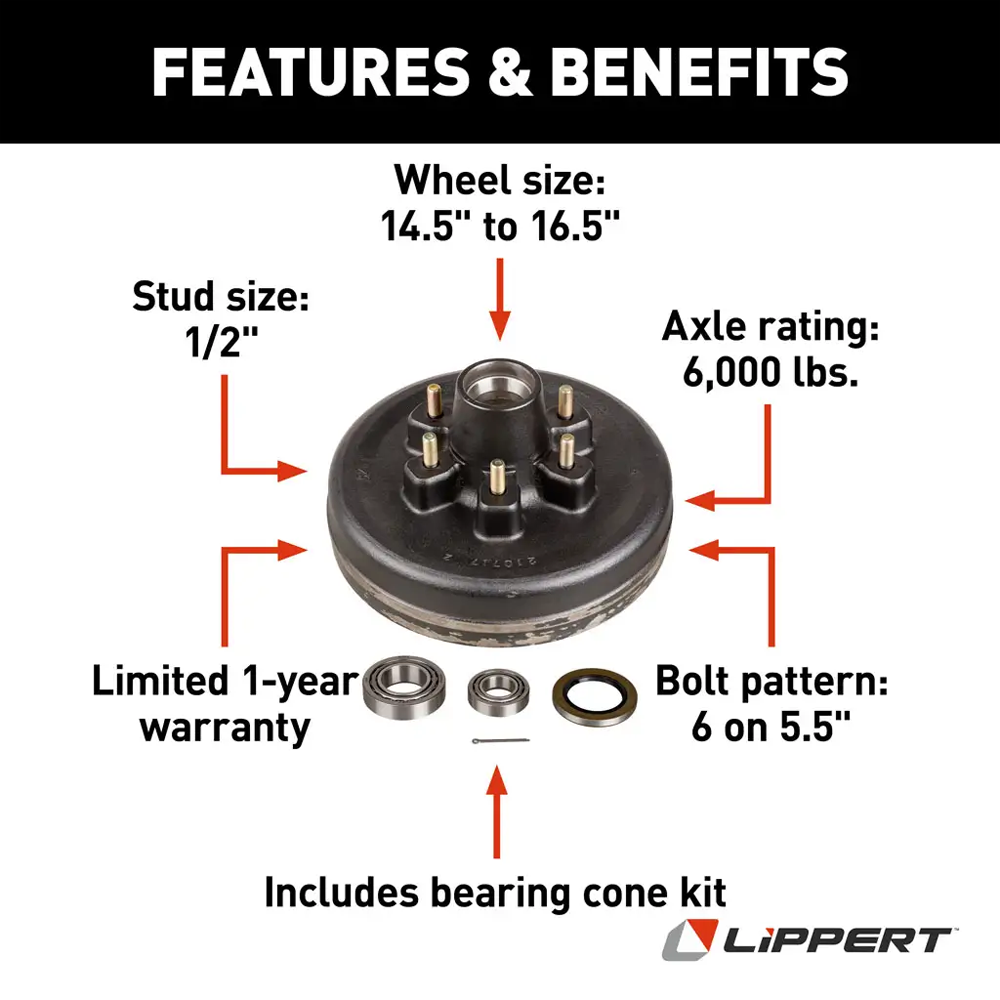

Upgrade or service your triple‑axle RV or utility trailer with this complete kit of six Lippert 12" brake drum & hub assemblies. Rated for 6,000‑lb axles and machined from durable cast iron, each hub features a 6 on 5‑1/2" bolt pattern with 1/2" studs and comes pre‑matched with inner & outer bearing cones, cups, grease seal, and cotter pin for a faster, trouble‑free installation.

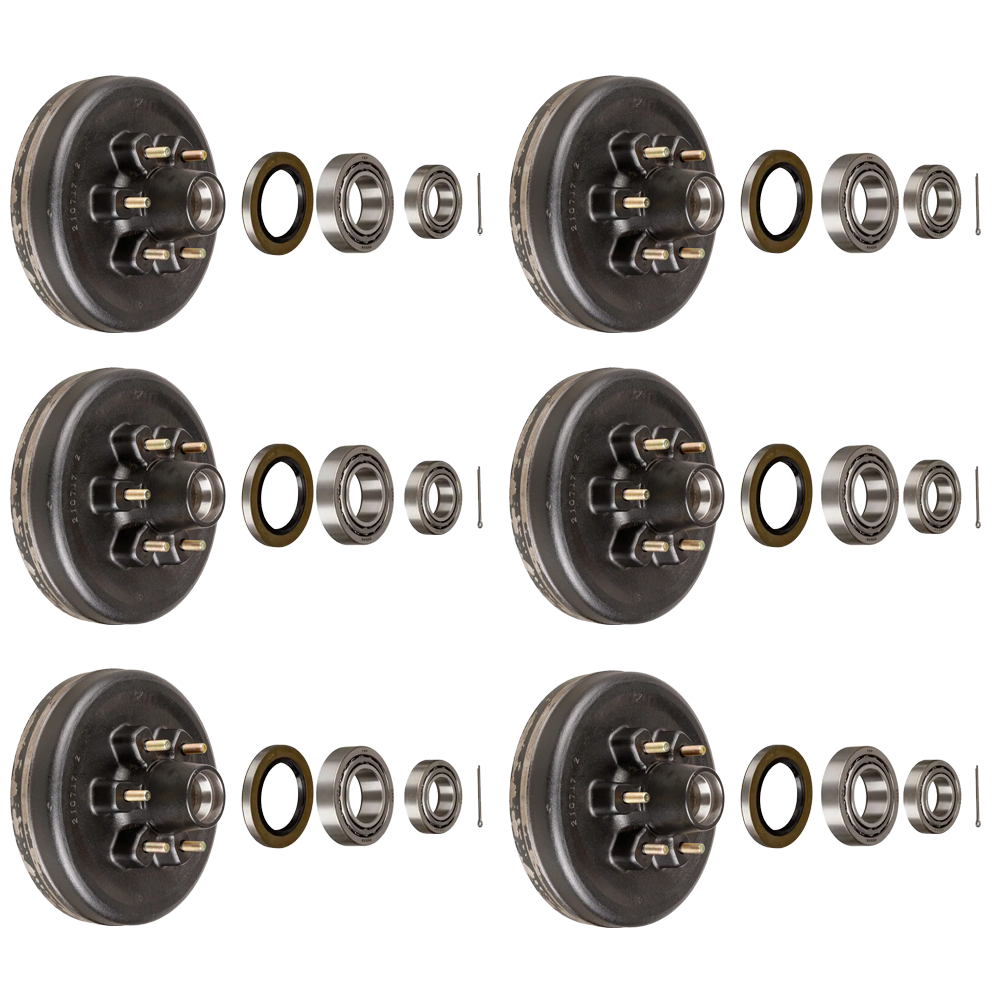

Bundle Contents:
-

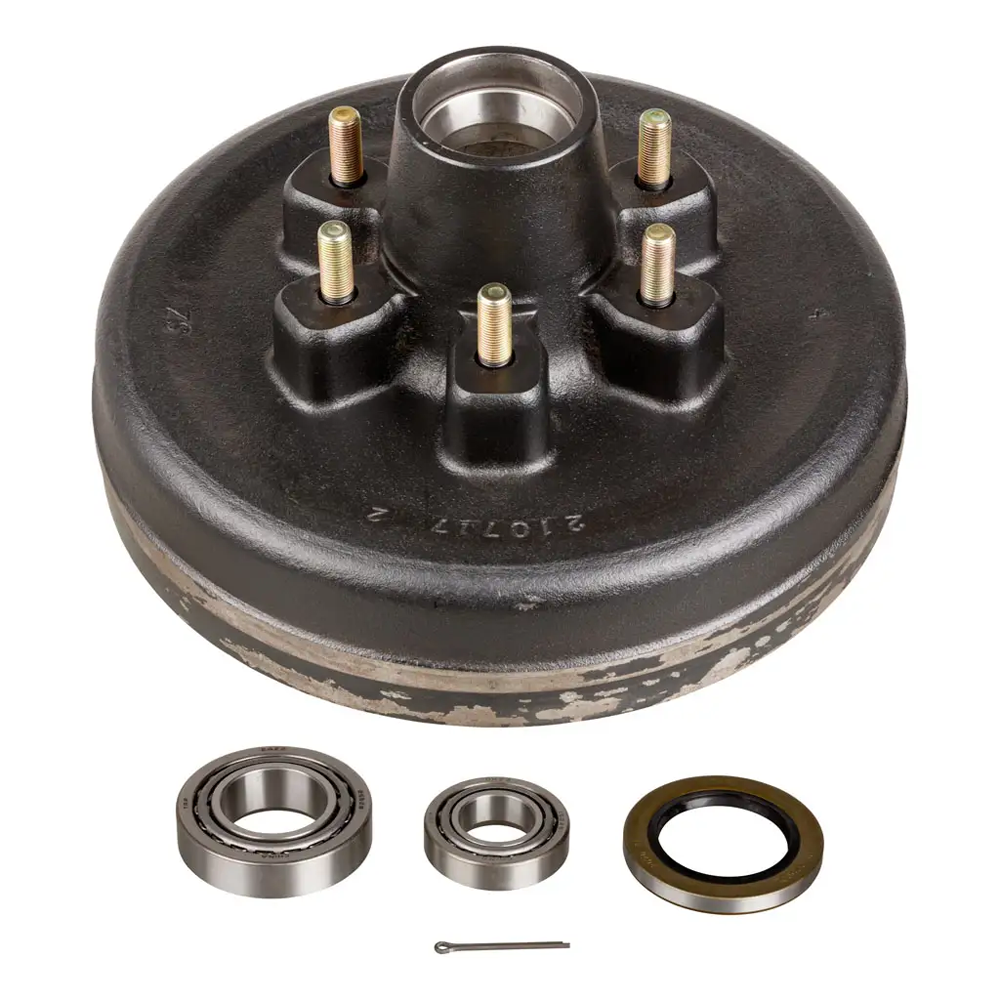

QTY (6): Lippert 12" Brake Drum Hub Assembly – 6,000‑lb Axle, 6 on 5‑1/2" BP, 1/2" Studs
- Dexter Compatible Part Number: K08‑201‑9A
- Fits Lippert, Dexter, Al‑Ko & Rockwell 6K axles
- High‑strength cast‑iron drum dissipates heat for consistent braking
- 6 on 5‑1/2" bolt circle; 1/2" pre‑installed studs
- Compatible wheel sizes: 14.5", 15", 16", 16.5"
- Bearing Kit (bagged separately, 1 per hub) includes:
- Inner bearing cone
- Outer bearing cone
- Inner bearing cup
- Outer bearing cup
- Double‑lip grease seal
- Cotter pin
- OEM Brake Hub #122094 | Bearing Kit #333950
- Backed by Lippert 1‑year limited warranty
Always verify dimensions and load ratings against your original equipment, and perform regular brake inspections and lubrication to maintain safe, reliable stopping power.
| Specifications: | |
|---|---|
| Kit Type | Complete Triple‑Axle Brake Drum & Hub Kit |
| Hub Size | 12" Drum Diameter |
| Bolt Pattern | 6 on 5‑1/2" |
| Axle Capacity | 6,000 lbs per axle |
| Stud Size | 1/2"‑20 |
| Hub Type | Hub with Integrated Drum |
| Wheel Compatibility | 14.5" – 16.5" wheels |
| Pieces Included | 6 Hubs & Bearing Kits |
Order today or call us at 877‑869‑6690 for expert advice and personalized service.
