Lippert 12″ x 2″ Self‑Adjusting Electric Brake & 12″ Hub‑Only Drum Kit – Left‑Hand
Restore confident stopping power on your 6,000‑lb. trailer axle with this convenient Lippert service kit. It pairs a genuine forward self‑adjusting left‑hand electric brake assembly with a 12″ hub‑only drum (6‑on‑5.5″ bolt pattern, 1/2″ studs) for smooth, even braking and long‑lasting reliability.

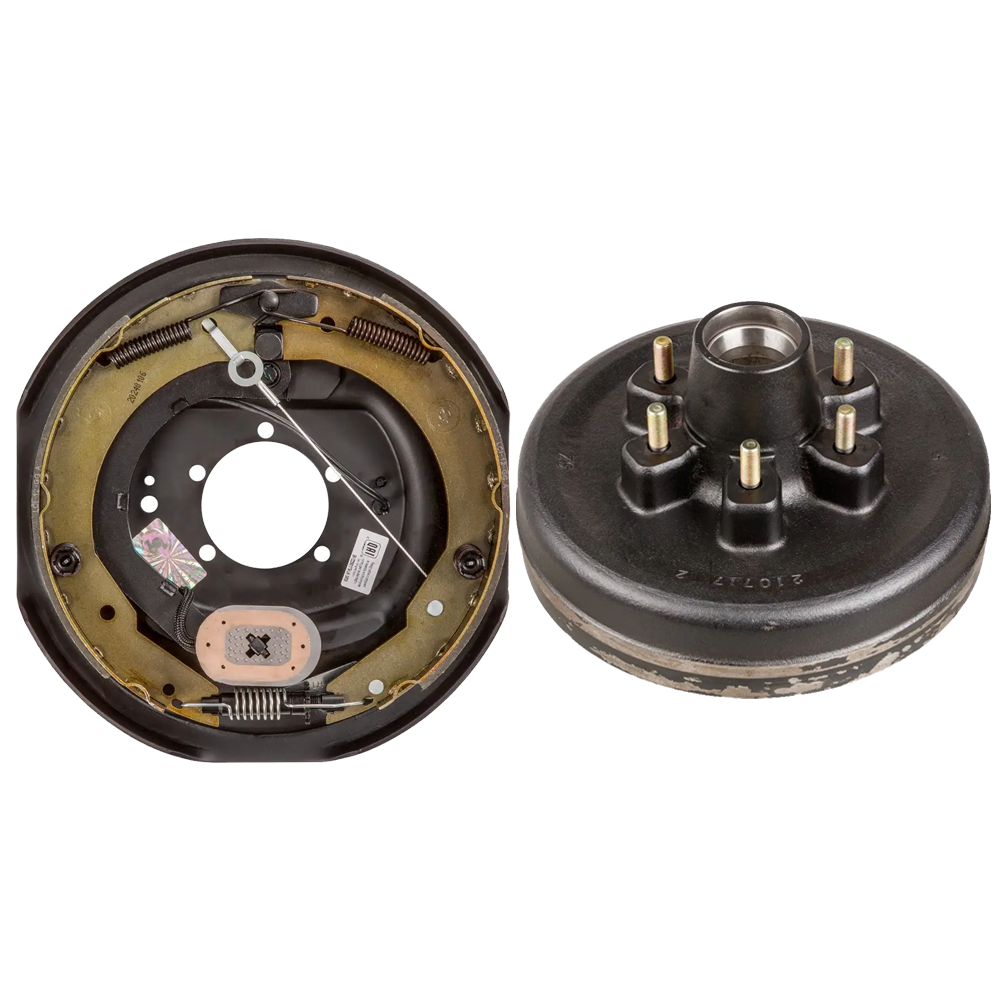

Bundle Contents:
-

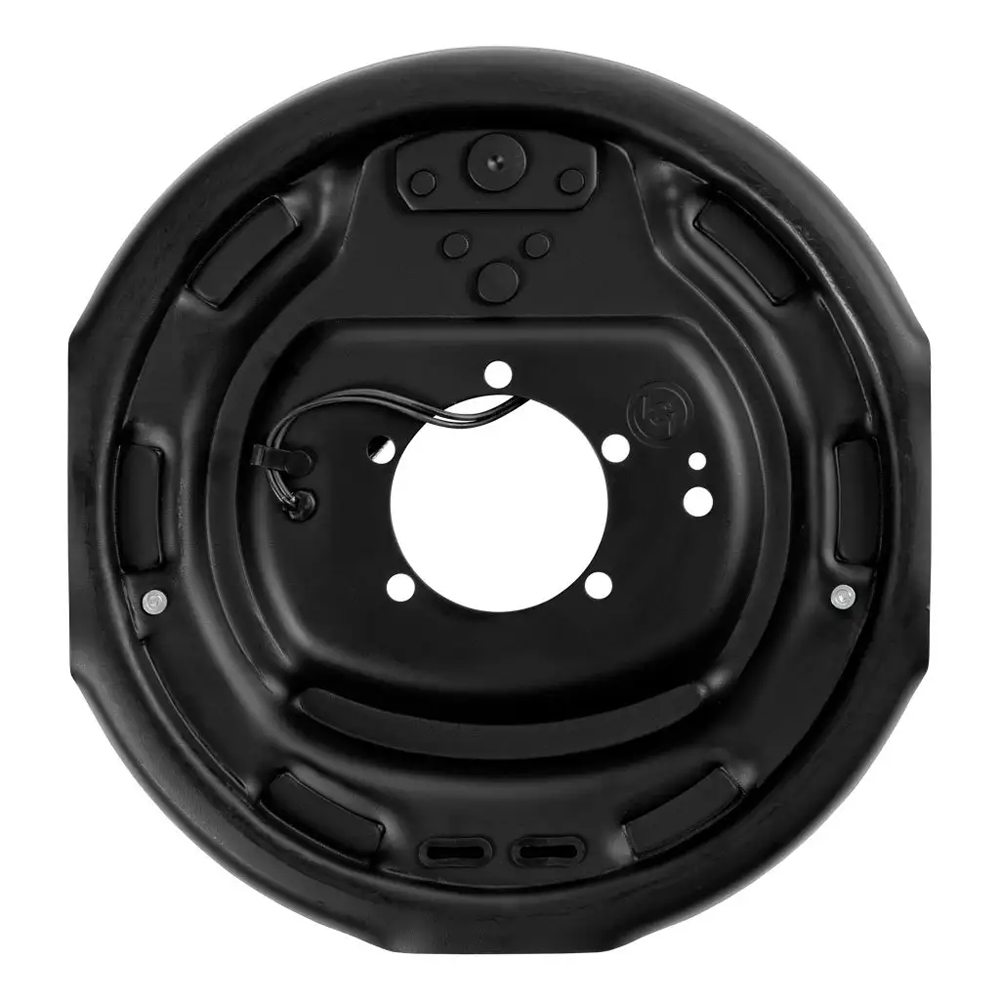

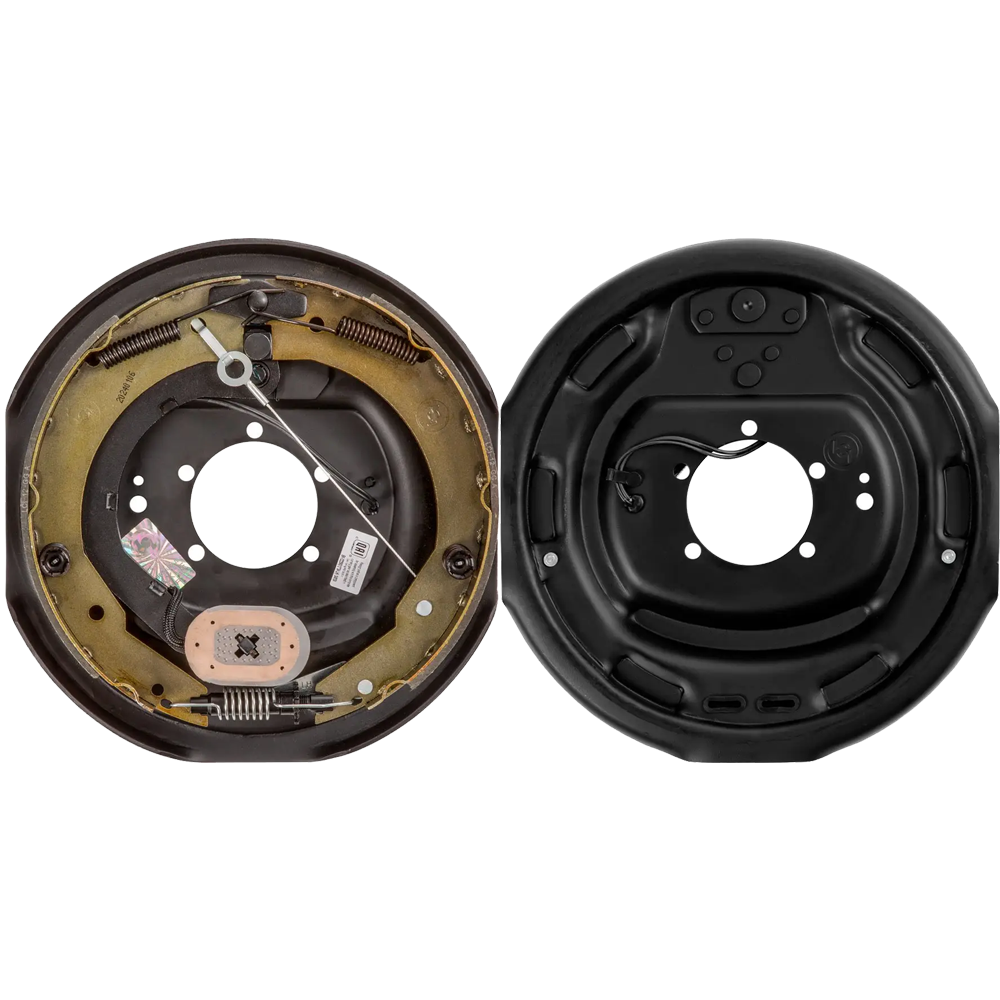

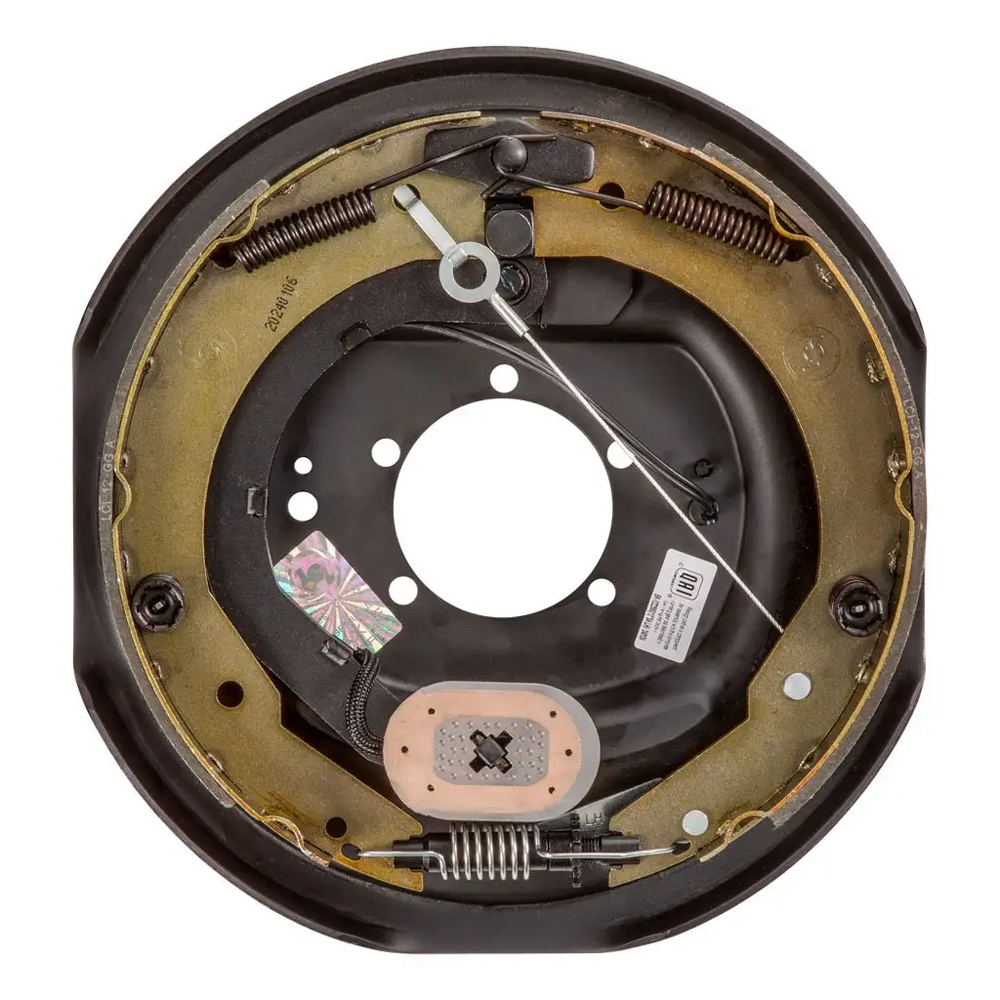

QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12″ x 2″, 7,000 lbs. (Left)
- Replacement electric brake assembly
- Left‑hand (road‑side) configuration
- Fits 15″ – 17.5″ wheels
- Self‑adjusting for consistent braking
- For 5,200 – 7,000 lb. & 8,000 lb. hybrid axles
- Five‑bolt mounting flange
- Easy DIY installation
- Dexter compatible part #: K23‑464‑00 / 023‑464‑00
- 1‑year manufacturer warranty
-

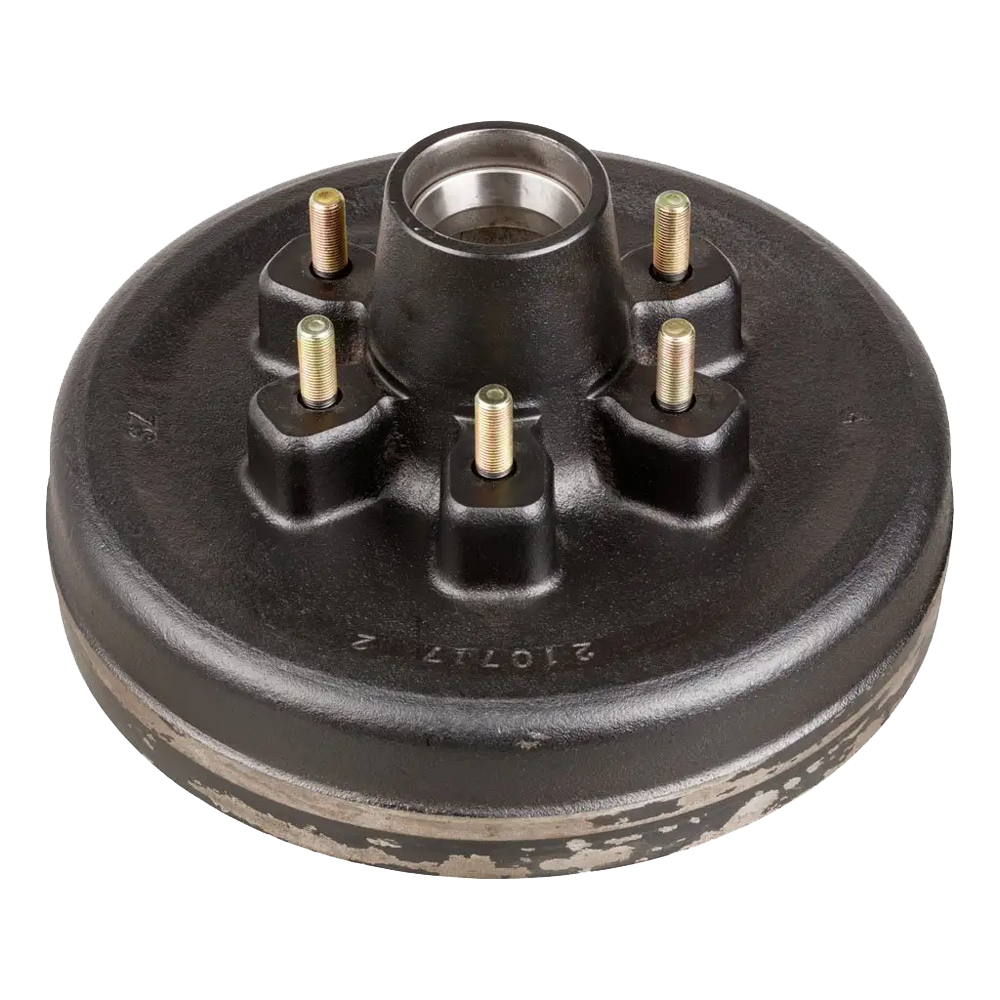

QTY (1): 12″ Trailer Brake Hub‑Only Drum – 6,000 lb., 6‑on‑5.5″, 1/2″ Studs
- Hub‑only drum – full bearing/grease assembly not included
- Rated for 6,000 lb. axles
- Wheel size range: 14.5″ – 16.5″
- Bolt pattern: 6 on 5.5″
- 1/2″ press‑in studs
- Limited 1‑year warranty
Always confirm your existing bolt pattern, stud size and axle rating before purchase, and replace brake components on both sides for balanced performance.
| Specifications: | |
|---|---|
| Kit Type | Left‑Hand Brake & Hub‑Only Drum Service Kit |
| Axle Rating | Up to 6,000 lb. (limited by hub capacity) |
| Brake Drum Dimensions | 12″ × 2″ |
| Brake Mounting Pattern | 5‑bolt brake flange |
| Hub Bolt Pattern | 6 on 5.5″ |
| Hub Type | Hub‑Only Drum (no bearings) |
| Stud Size | 1/2″ |
| Type of Adjustment | Forward Self‑Adjusting |
| Brake Location | Left‑Hand (Road side) |
| Wheel Size Compatibility | Brake: 15″ – 17.5″ | Drum: 14.5″ – 16.5″ |
