Lippert 12" x 2" LH Self-Adjust Brake + 12" Hybrid Hub-Drum, 8-on-6.5 – 7K Standard / 8K Lippert Hybrid – Fits Dexter, AL-KO, Rockwell

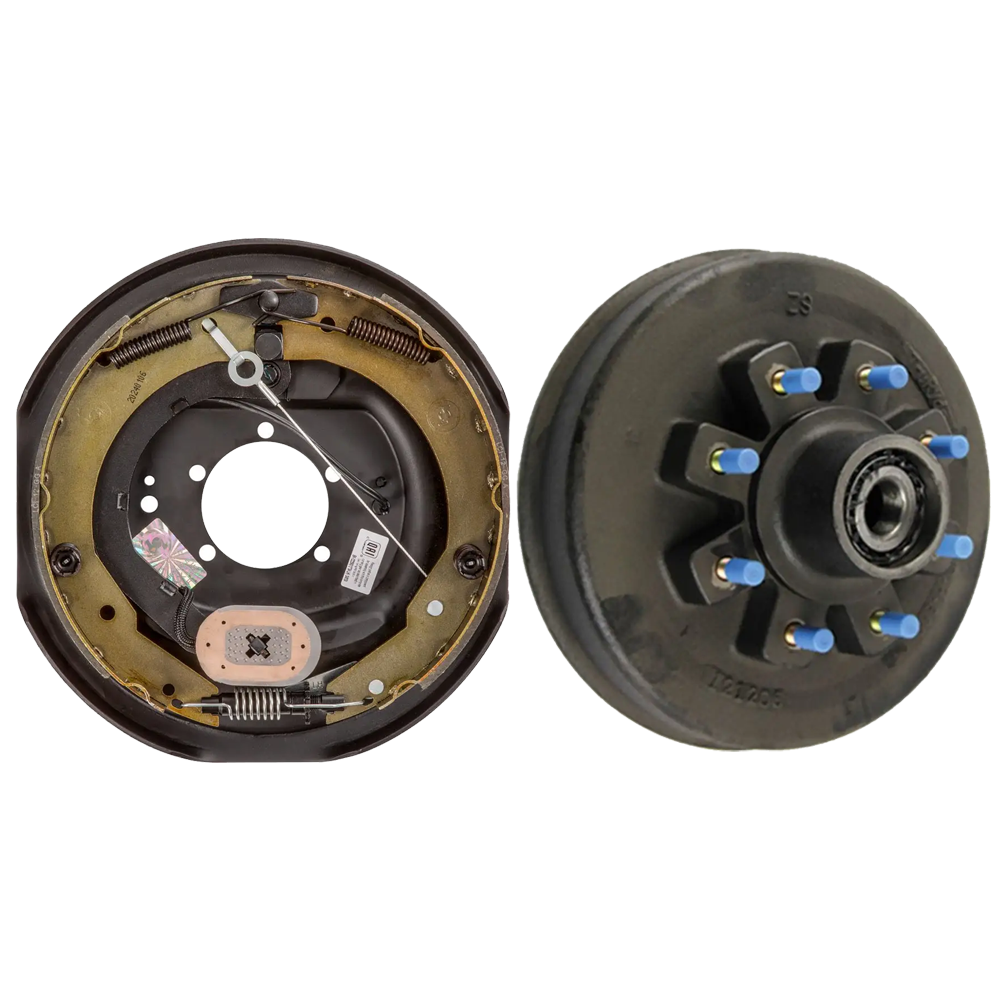

Lippert 12" x 2" Self-Adjusting Brake & 12" Hybrid Hub-Drum Bundle (LH, 8-on-6.5)

This bundle teams a left-hand Lippert forward self-adjusting 12" x 2" electric brake with a heavy-duty 12" hybrid hub-drum. The brake is rated for 7,000 lb on standard 6-lug axles and 8,000 lb when installed on a Lippert 8K hybrid axle. Combined with the 8K-rated hub, you get dependable stopping power and full compatibility with Dexter, AL-KO, Rockwell and other quality axles, whether you run a conventional 7K setup or Lippert’s hybrid platform.

Bundle Contents:

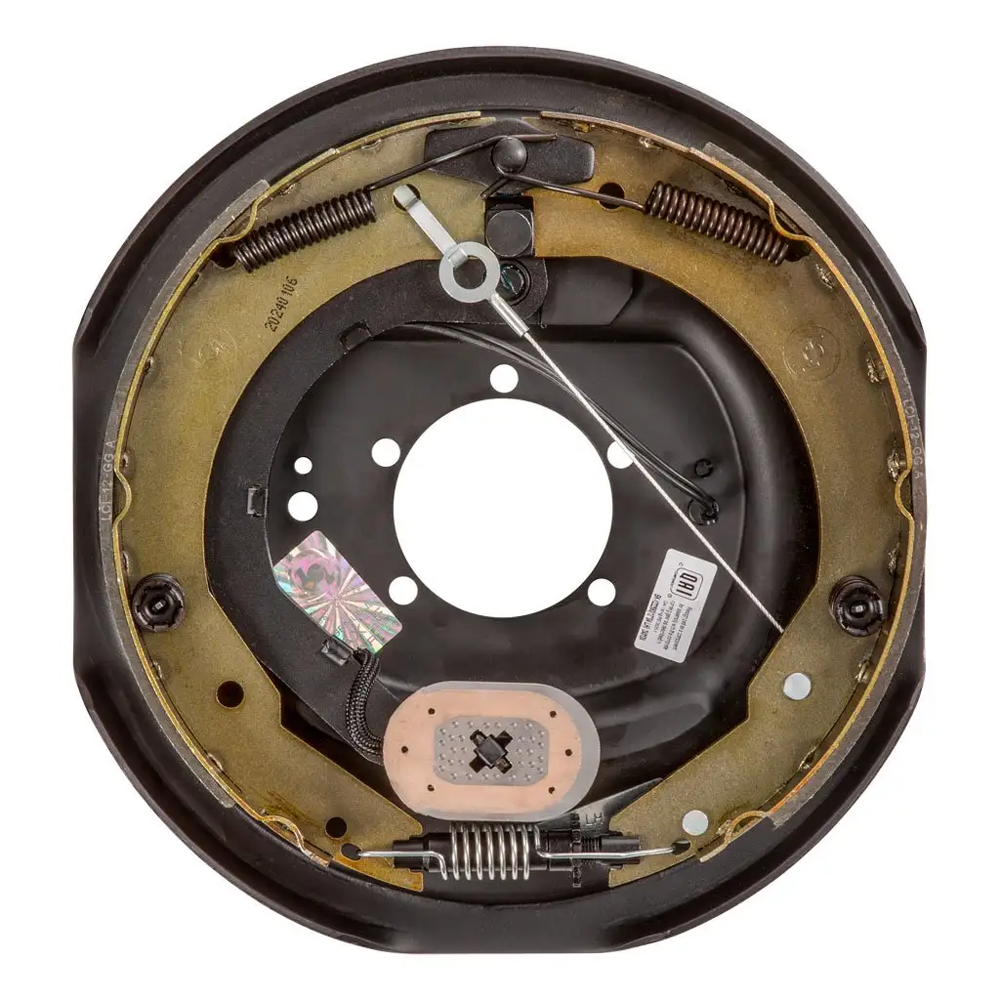

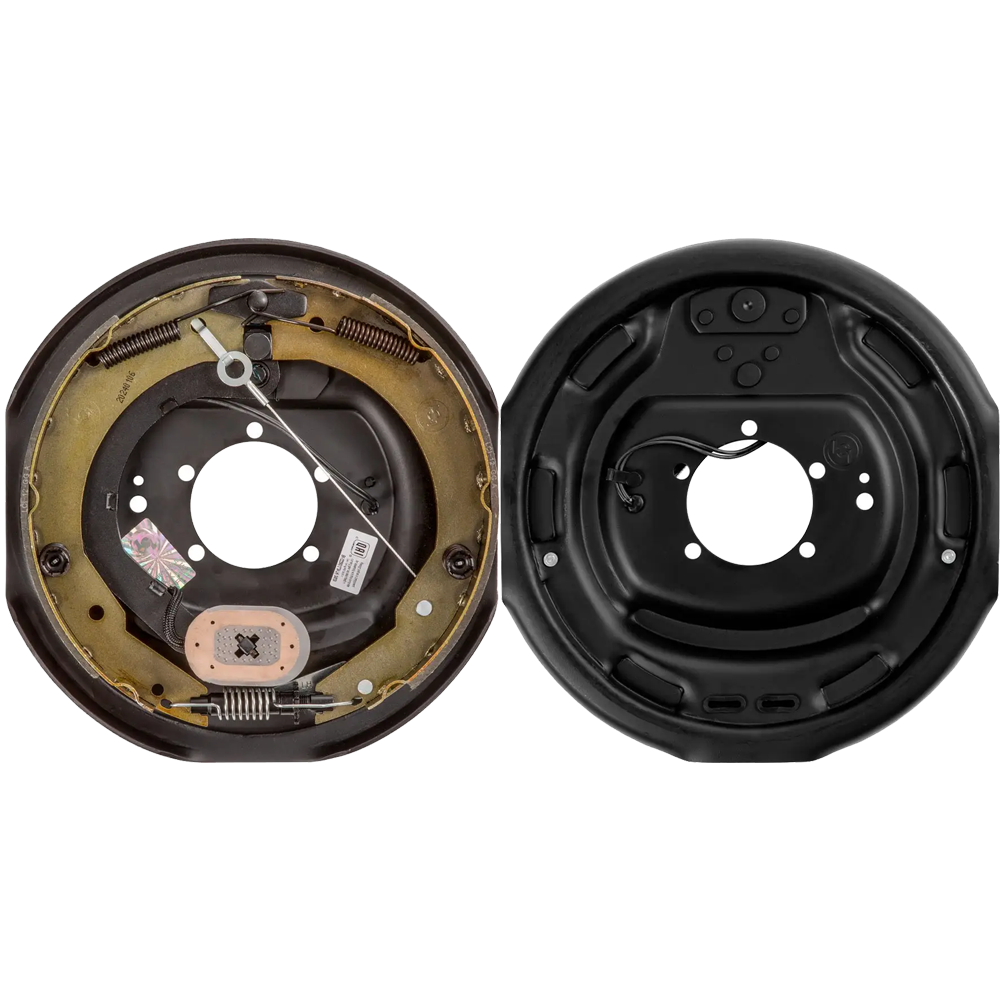

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12" x 2", Left-Hand
  • Forward self-adjusting electric brake (road side)
  • Capacity: 5.2K – 7K standard axles • 8K Lippert hybrid axles

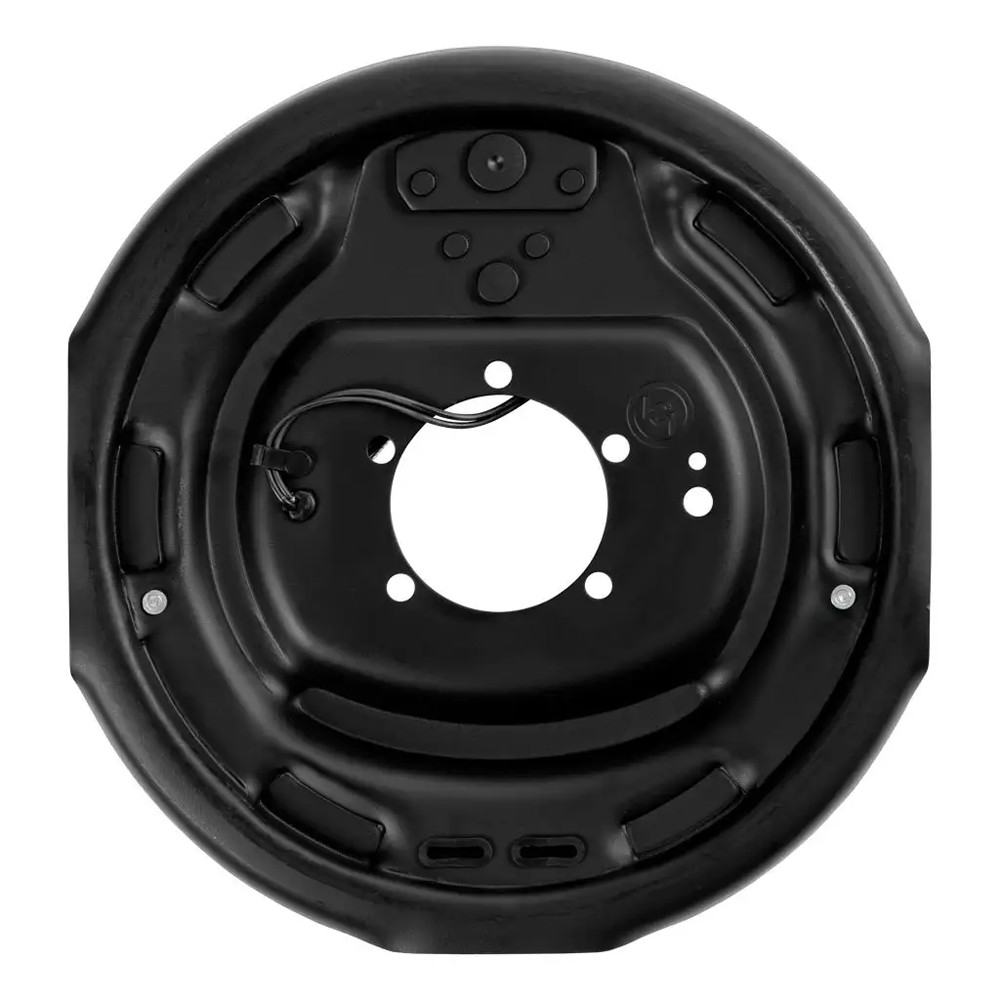

  • Five-bolt backing-plate • Fits 15" – 17.5" wheels
  • Dexter cross-ref: K23-464-00 | 023-464-00
  • Matching RH brake (Dexter K23-465-00 | 023-465-00) sold separately
  • 1-year limited warranty

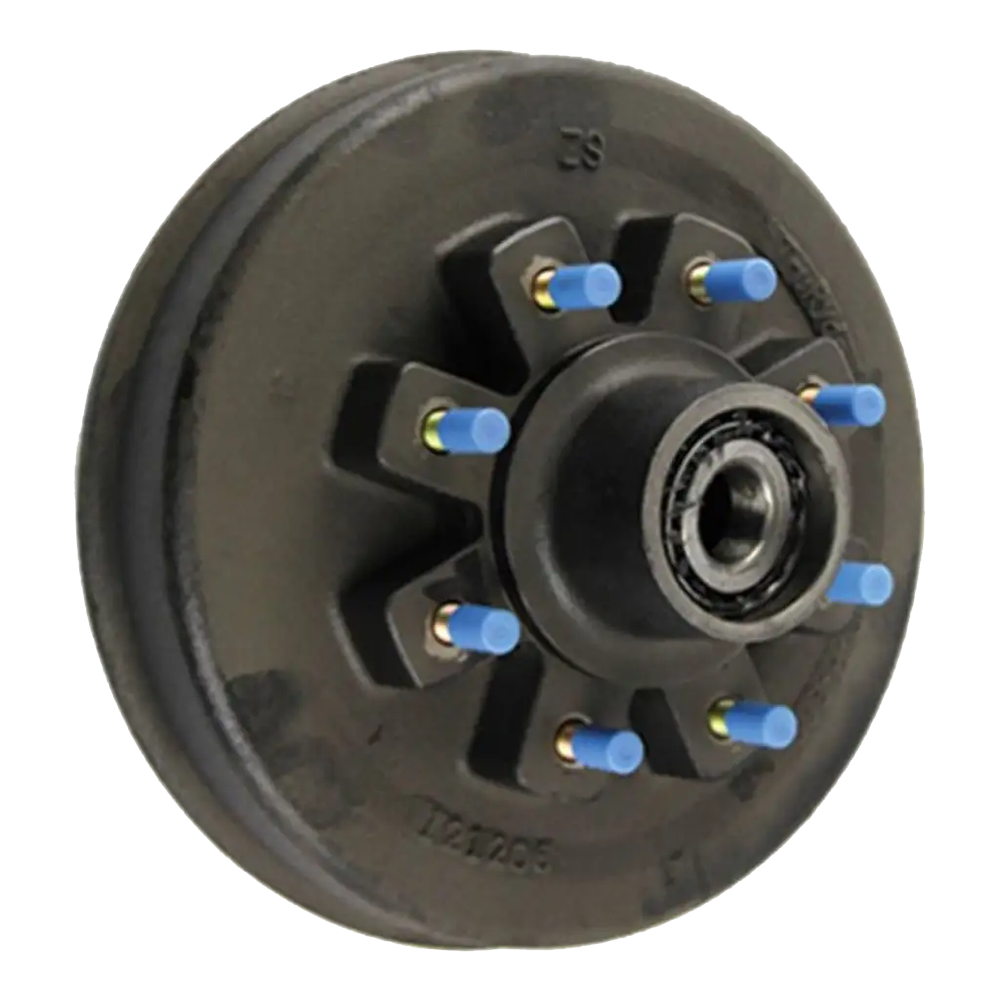

• QTY (1): Lippert Brake Drum Hub Assembly – 12" Hybrid, 8-on-6.5", 5/8" Stud
  • Integrated grey-iron hub-drum, 12" x 2"
  • 8-on-6.5" pattern • 5/8" studs • 4.75" pilot
  • Rated 8,000 lb for Lippert hybrid axles
  • Pre-installed bearing races & wheel studs
  • 1-year limited warranty

Double-check your original equipment, and perform routine maintenance to ensure safe, reliable operation.
