Lippert 12"?x?2" LH Self?Adjust Electric Brake & 12" Drum?Hub Bundle?(8?on?6.5,?1/2" Stud)?for 7K Axle �?Dexter?/?Al?Ko?Compatible

Lippert Left‑Hand Self‑Adjusting Brake & Drum Hub Replacement Kit – 7K Trailer Axle

Restore factory‑grade stopping power in one purchase. This Lippert bundle combines a forward self‑adjusting 12" x 2" electric brake (LH) with a 12" hardware‑included drum hub. Direct‑fit parts, matched capacities, and Dexter‑compatible numbers make upgrades fast, safe, and worry‑free.

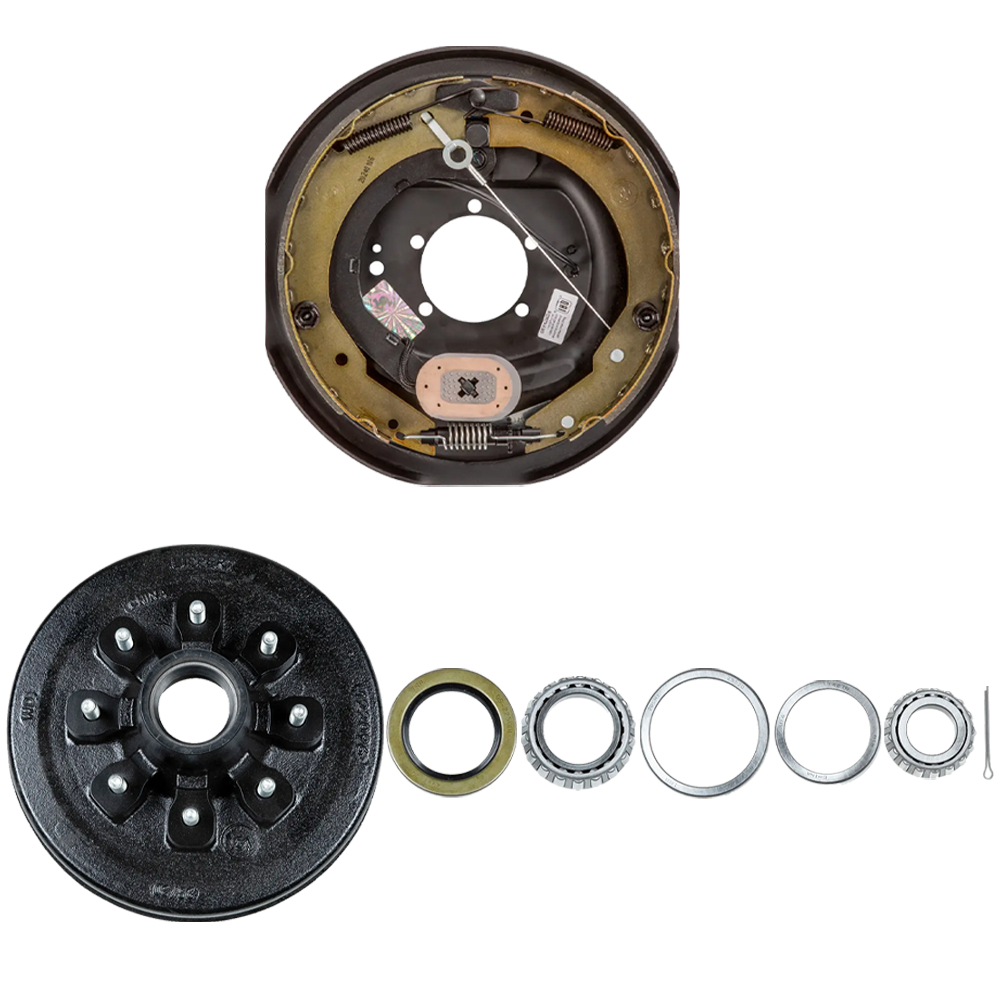

Bundle Contents:

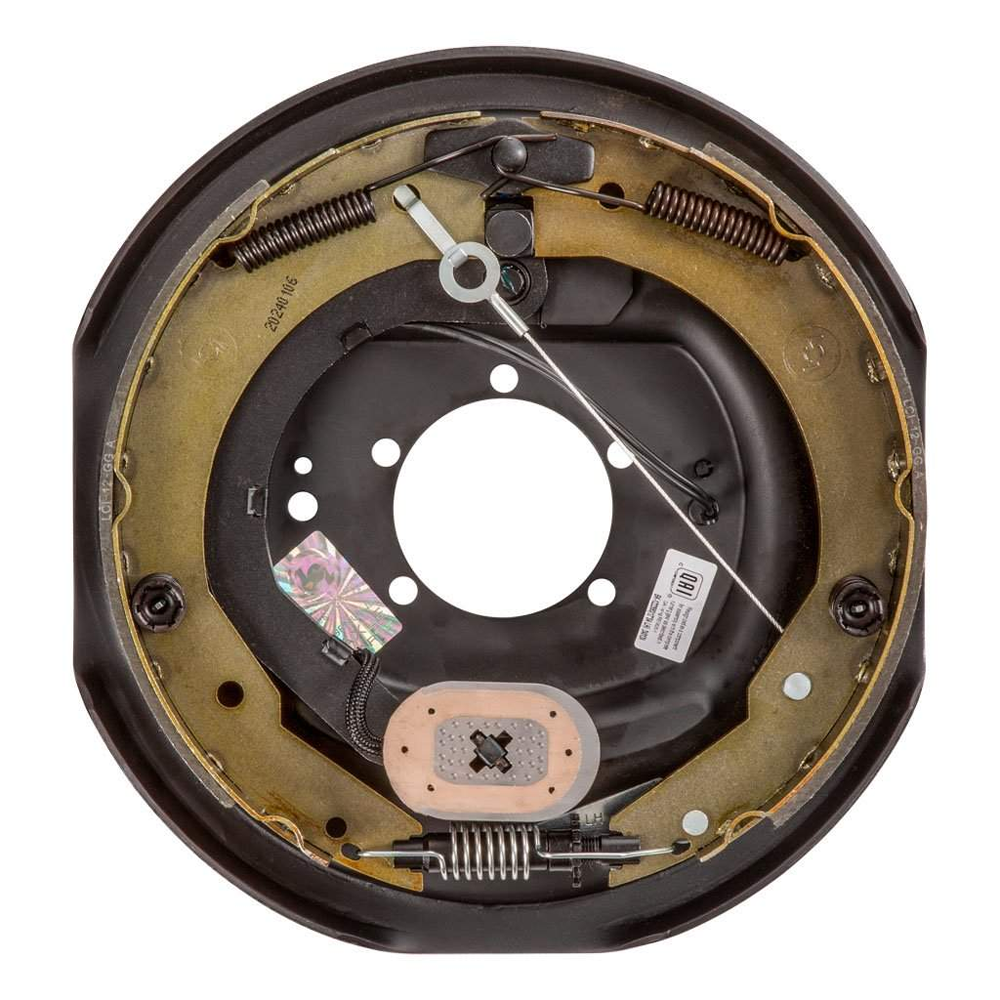

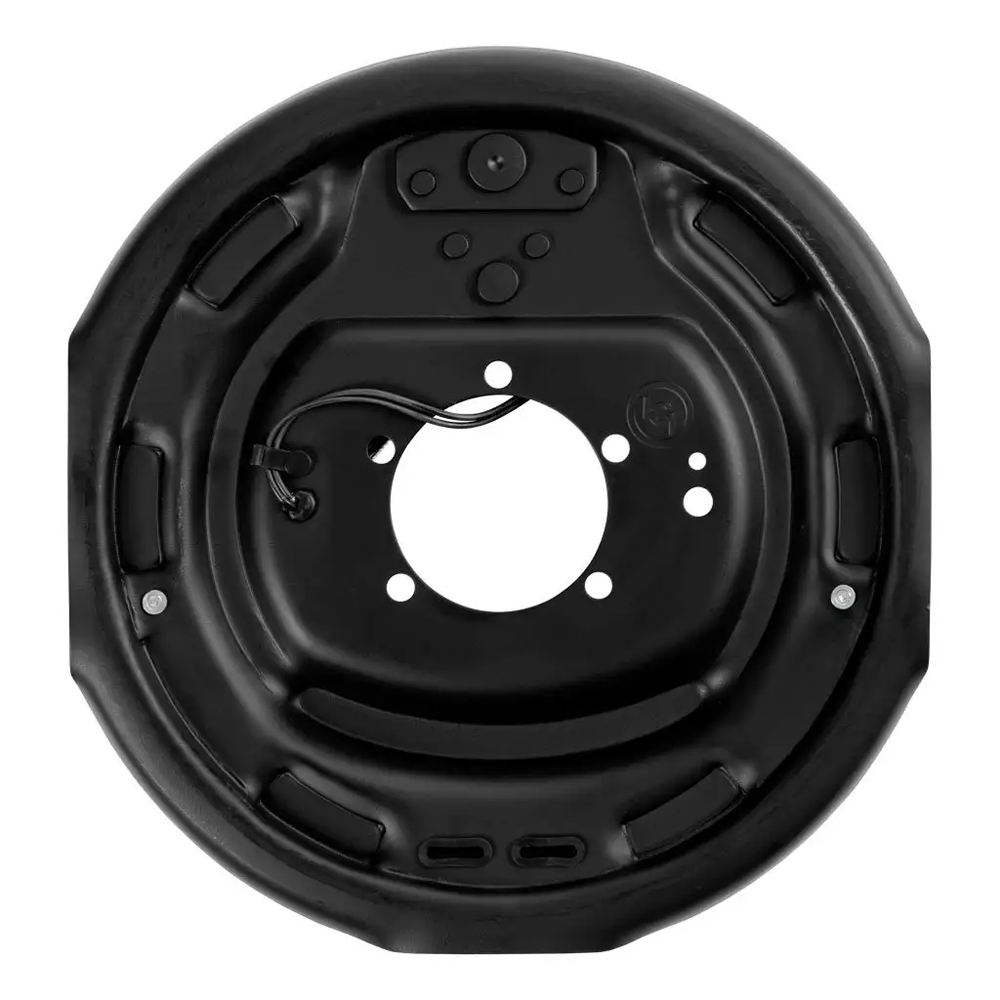

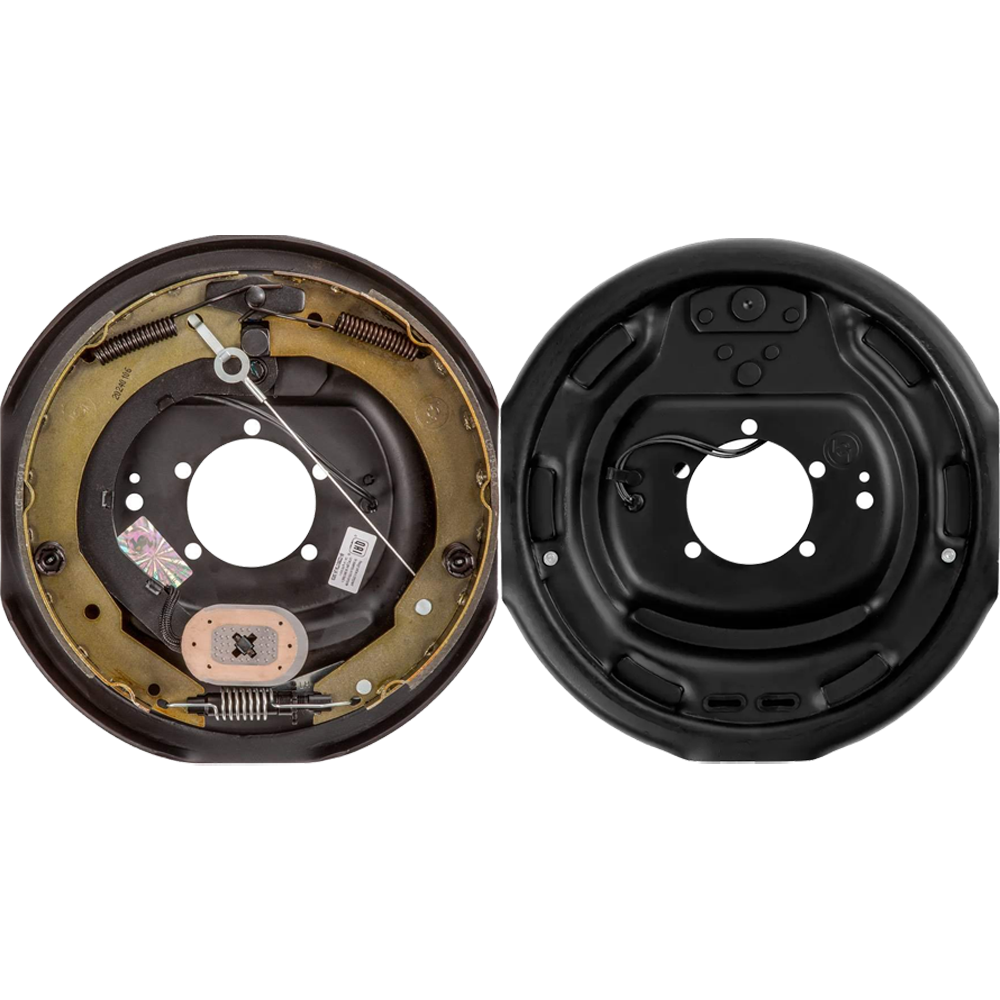

• QTY (1): Lippert 12" x 2" Forward Self‑Adjusting Electric Brake Assembly – Left‑Hand, 5‑Bolt
  • Road‑side (LH) unit for 4,000 – 7,000 lb axles
  • Forward self‑adjusting—up to 50 % shorter stopping distance
  • Five‑bolt brake‑flange pattern; pre‑wired magnet for simple swap
  • 12" drum diameter, 2" shoe width; electric actuation
  • Dexter compatible part #: K23‑464‑00 | 023‑464‑00
  • 1‑year limited warranty

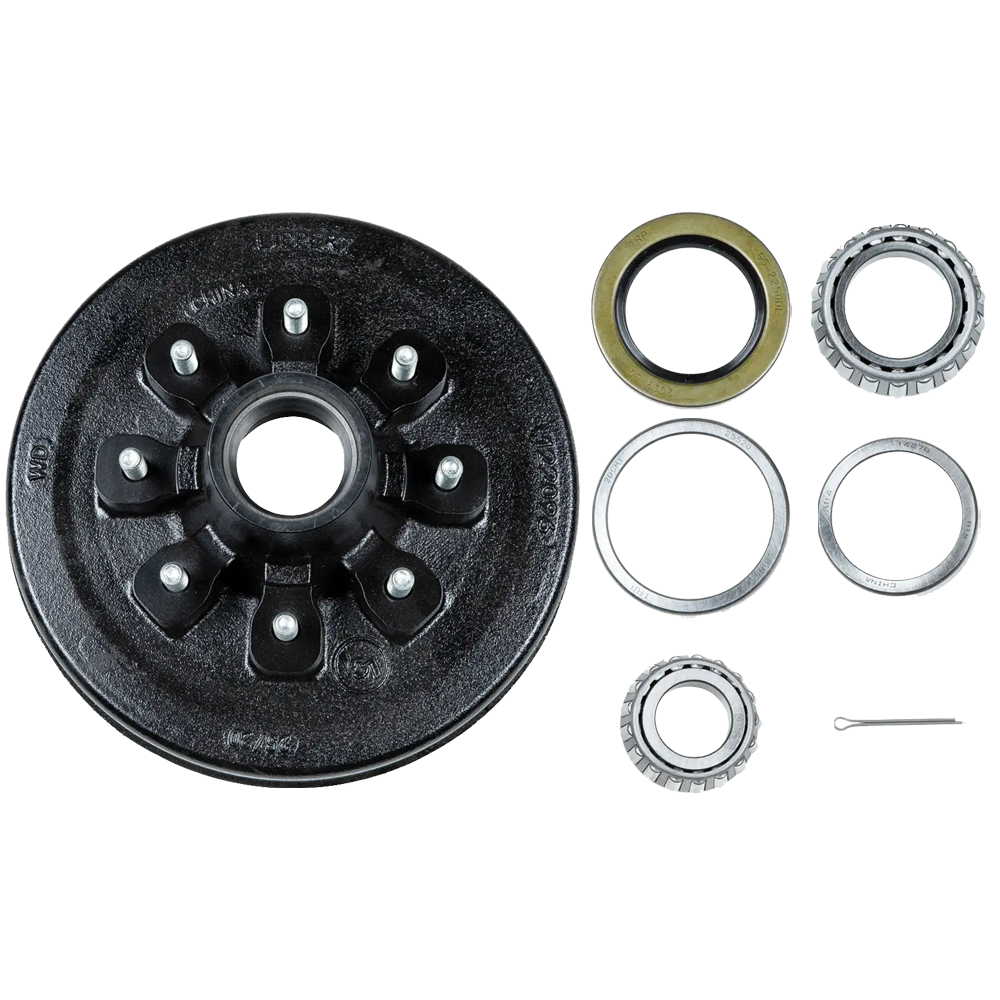

• QTY (1): Lippert 12" Brake Drum Hub Assembly – 8 on 6.5", 1/2" Stud, 7,000 lb
  • Cast‑iron hub/drum rated for 7K axles
  • 8‑on‑6.5" bolt pattern with 1/2" press‑in studs
  • Fits 16" – 17.5" wheels; Lippert #122096
  • Dexter compatible part #: K08‑219‑9B
  • Bearing kit (bagged separately, one per hub) includes:
    • Inner bearing cone & cup (25580 / 25520)
    • Outer bearing cone & cup (14125A / 14276)
    • Double‑lip grease seal (10‑36)
    • Cotter pin
  • 1‑year limited warranty; bearing kit #333951

Always verify axle specs and replace brakes in left/right pairs. Inspect brakes, seals, and bearings regularly for safe towing.
