Lippert 12" x 2" LH Self-Adjust Electric Brake + 12" Pre-Greased Hub-Drum, 8-on-6.5" � 7K Standard / 8K Hybrid Capacity � Fits Dexter, Alko & Rockwell Axles
$222.99

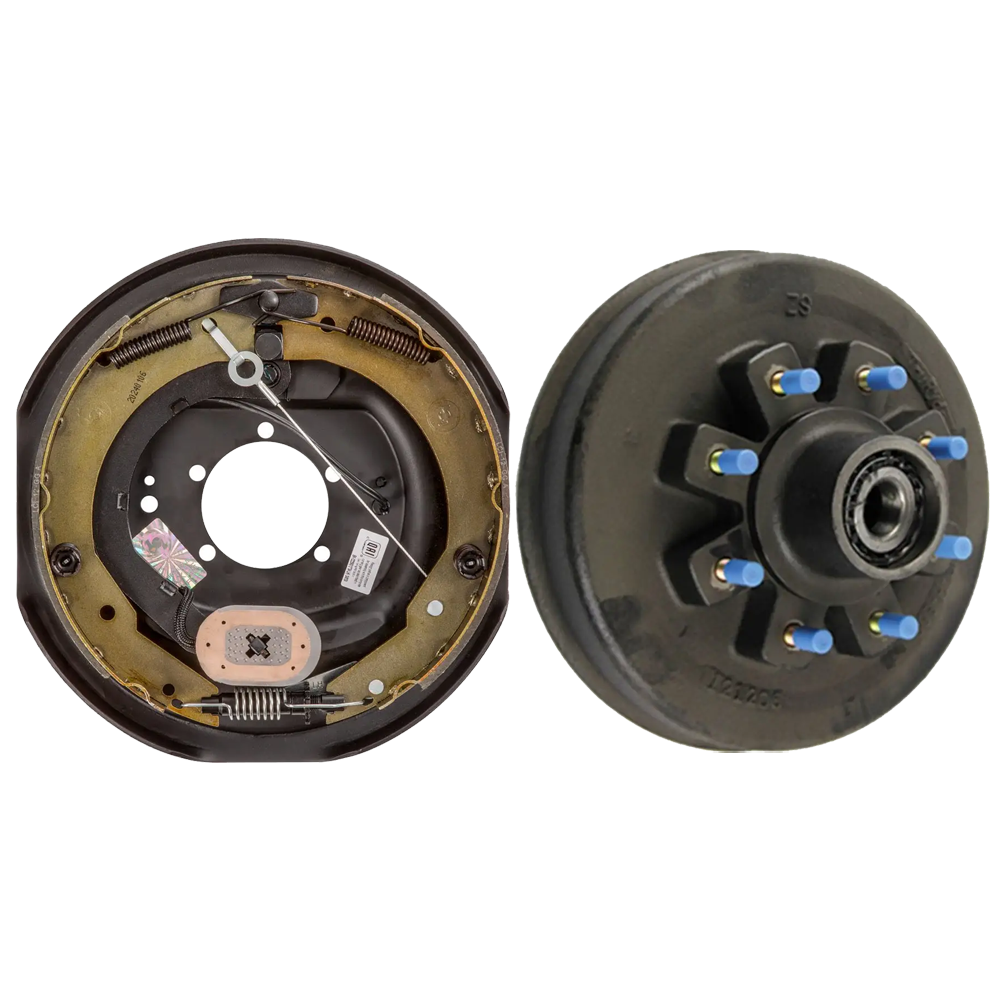

Lippert 12" x 2" Self-Adjust Electric Brake & 12" Pre-Greased Hub-Drum Kit – Left-Hand, 8-on-6.5", 7K Standard / 8K Hybrid
Refresh or upgrade your heavy-duty trailer axle with this genuine Lippert bundle. You get a left-hand 12" x 2" forward self-adjusting electric brake plus a factory-pre-greased 12" hub-drum assembly. Together they deliver smooth stops, quick installation and less downtime on Lippert, Dexter, Alko, Rockwell and other quality axles.
Bundle Contents:
-

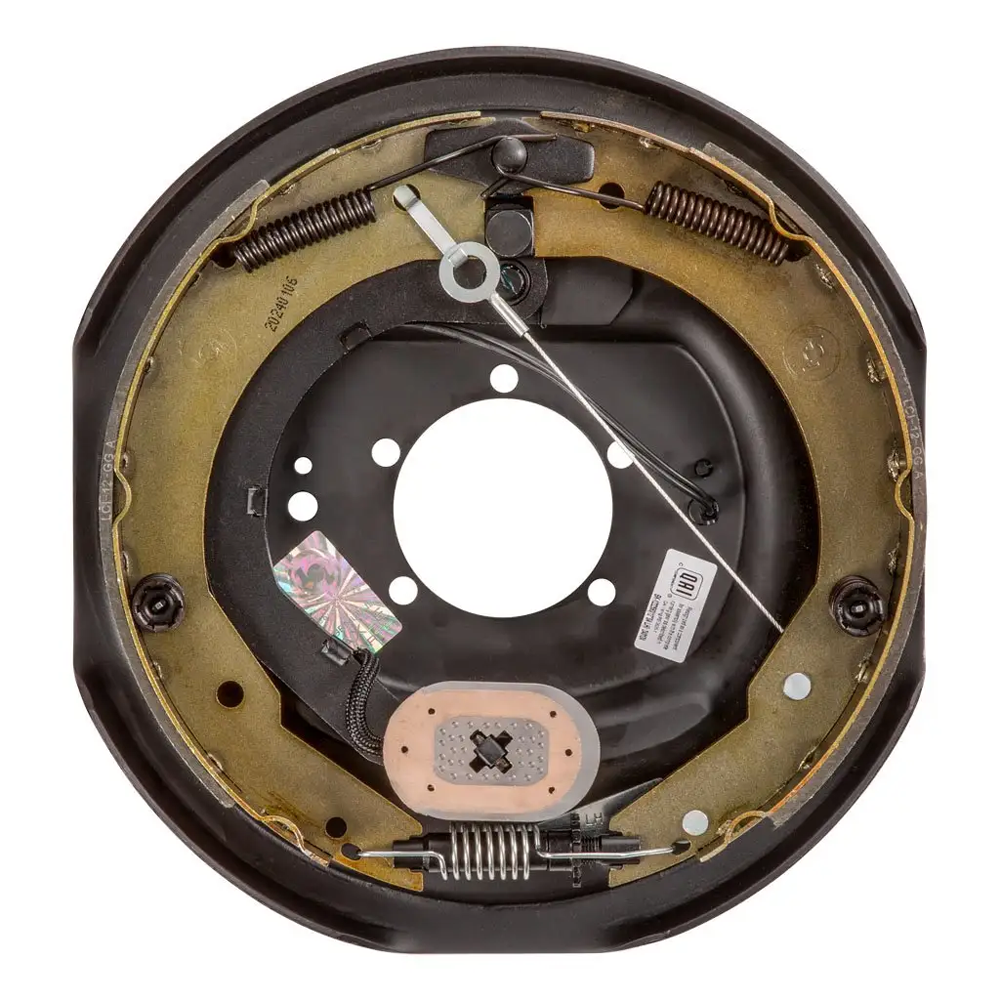

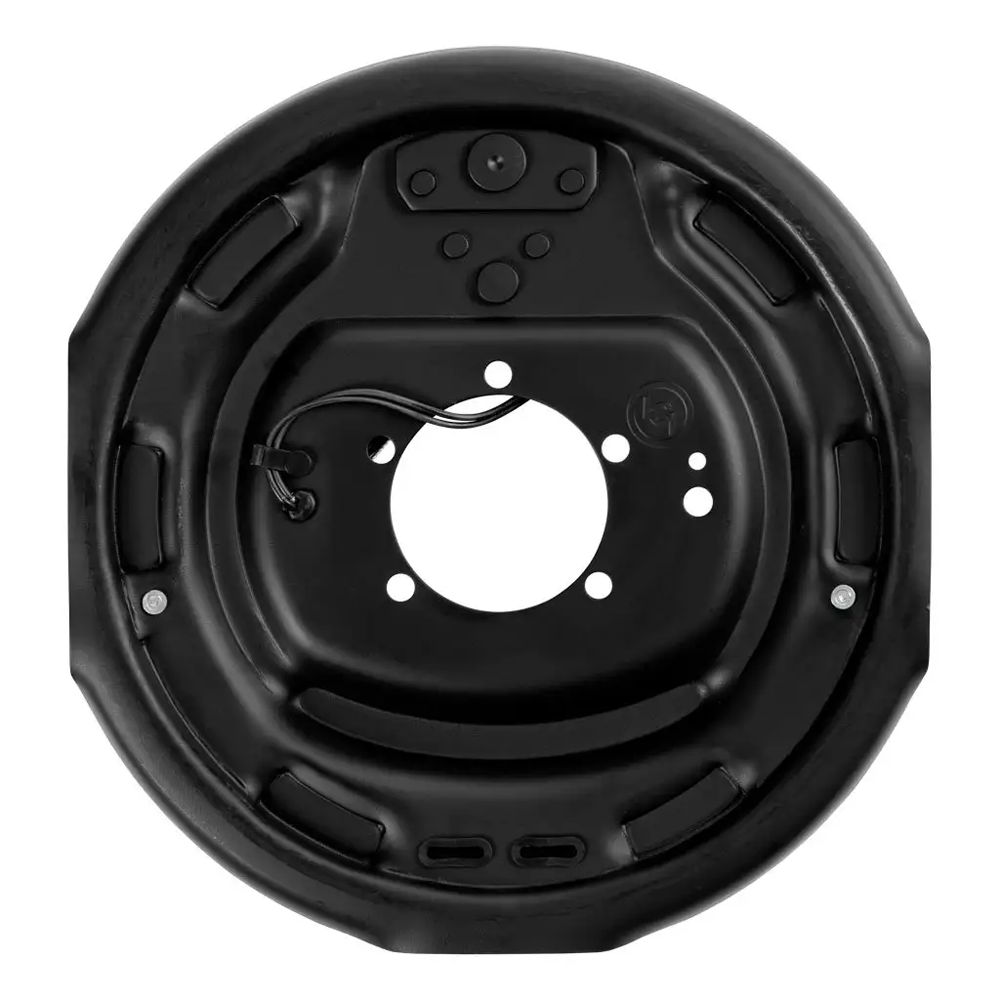

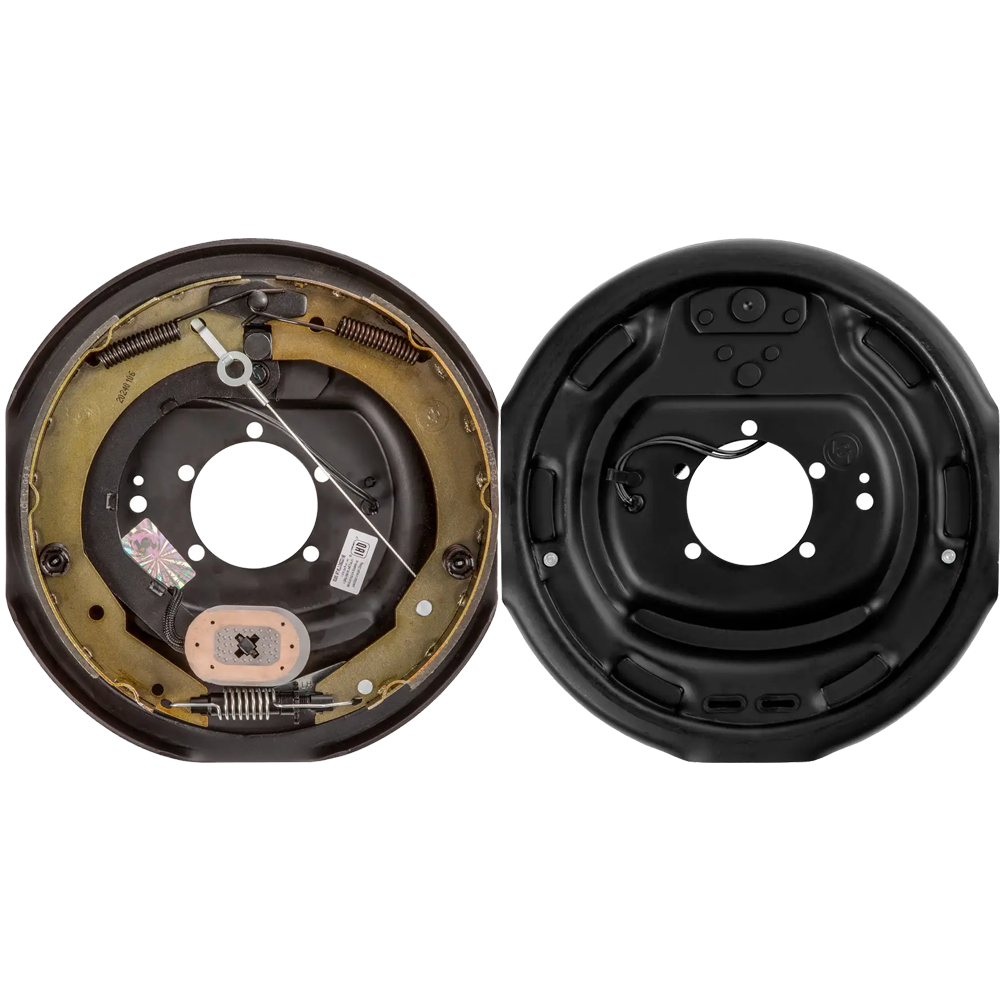

QTY (1): Lippert Forward Self-Adjusting 12" x 2" Electric Brake Assembly – Left-Hand
- Self-adjusts to maintain ideal shoe-to-drum clearance
- Left-hand (road side); 5-bolt mounting pattern
- Rated for 5.2K – 7K axles & 8K hybrid axles
- Dexter compatible #: K23-464-00 / 023-464-00
- DIY-friendly replacement; 1-year limited warranty
-

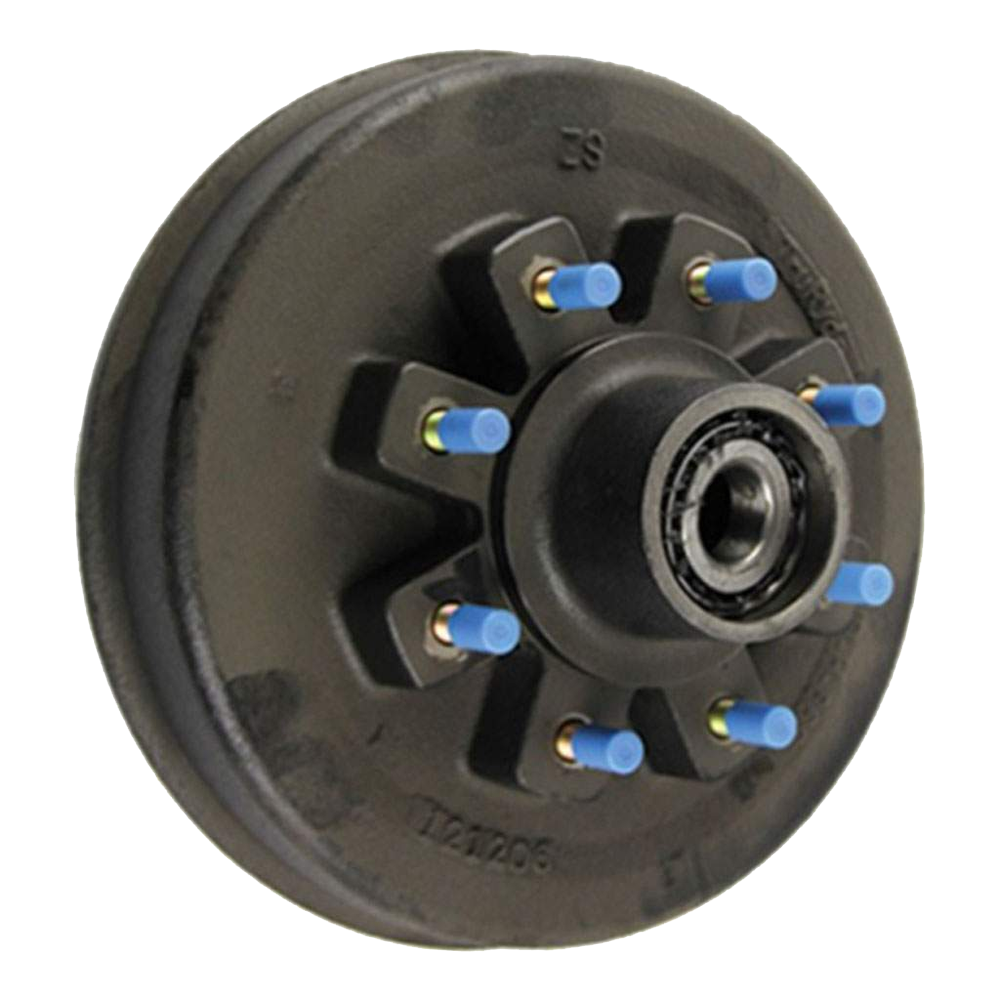

QTY (1): Lippert Pre-Greased 12" Hub-Drum Assembly – 8 on 6.5", 5/8" Studs, 8K
- Factory-installed bearing cones, seal & premium grease
- 8-on-6.5" bolt pattern with 5/8" studs
- 8,000 lb capacity; mates perfectly with 12" x 2" brakes
- Includes bolts, bearing races & oil seal; fits 17.5" wheels
Confirm axle rating, bolt pattern and stud size before installation, and perform routine bearing inspections and brake maintenance for peak performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete Electric Brake & Hub-Drum Kit |
| Axle Rating | 7,000 lbs standard (8,000 lbs on hybrid axles) |
| Brake Drum Dimensions | 12" x 2" |
| Brake Mounting Pattern | 5-bolt |
| Hub Bolt Pattern | 8 on 6-1/2" |
| Hub Type | Pre-Greased Hub with Integrated Drum |
| Stud Size | 5/8" |
| Type of Adjustment | Forward Self-Adjusting |
| Brake Location | Left-Hand (Road Side) |
| Wheel Size Compatibility | Brakes 15"–17.5" | Hub 17.5" single |
Order today or call us at 877-869-6690 for expert advice and personalized service.
