Lippert 12" x 2" RH Self-Adjust Brake & 12" Threaded Hybrid 8K Hub-Drum Kit � Fits 7K Axles & Lippert Hybrid 8K � 8-on-6.5, 5/8" Studs � Dexter / Alko / Rockwell Compatible

Lippert 12" x 2" Self-Adjust Brake & 12" Threaded Hybrid Hub-Drum Kit – Right-Hand

Refresh your trailer’s stopping power with this Lippert bundle: a forward self-adjusting RH electric brake plus a grease-packed 12" threaded hybrid hub-drum. The assembly is rated for up to 7,000 lbs on conventional 12" x 2" axles and is also approved for Lippert “Hybrid 8K” axles that use 12" x 2" brakes. Perfect for 8-on-6.5" wheels and 5/8" studs, it delivers a true plug-and-tow solution.

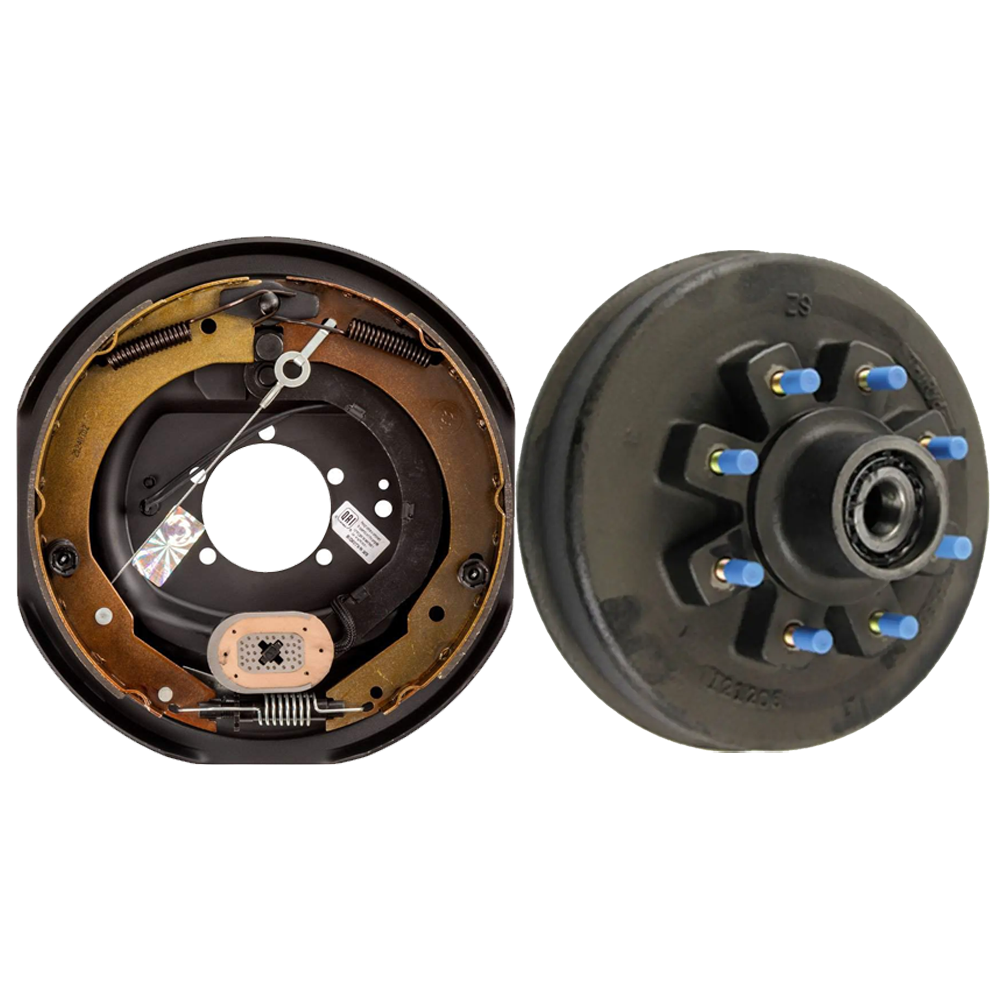

Bundle Contents:

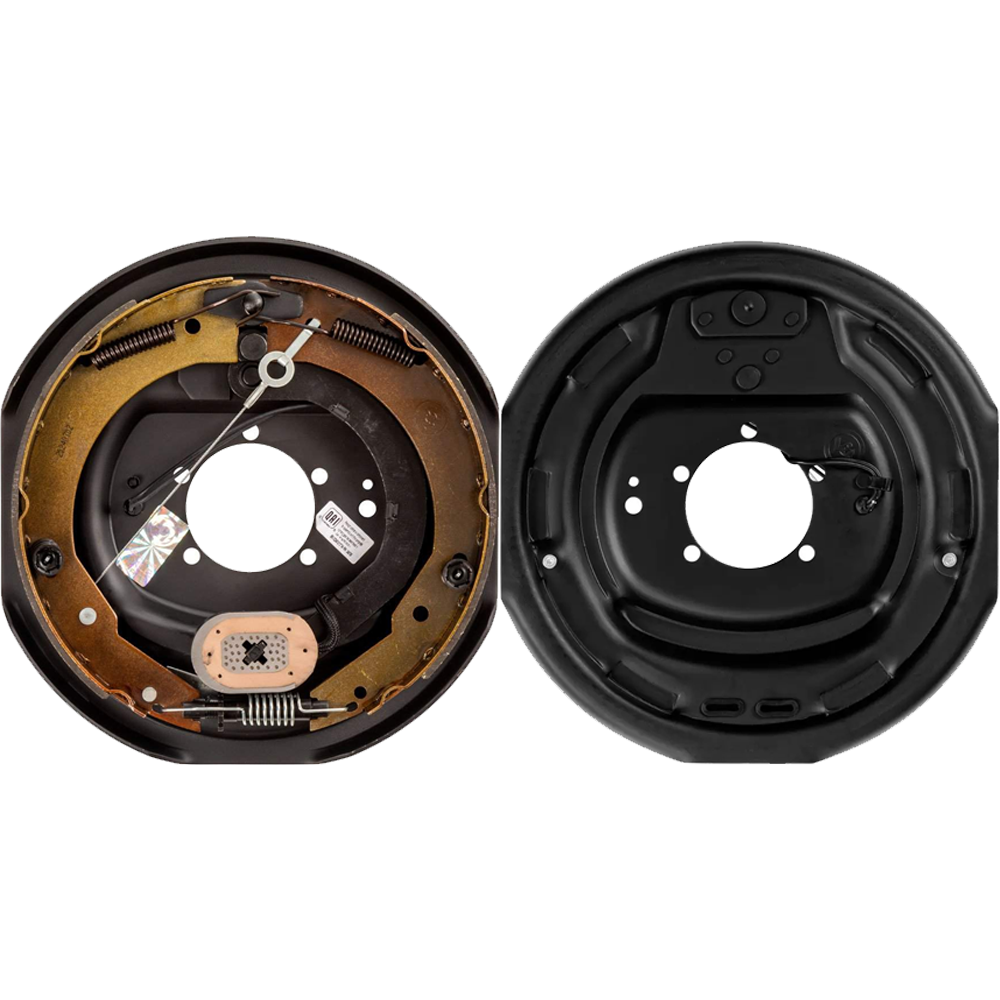

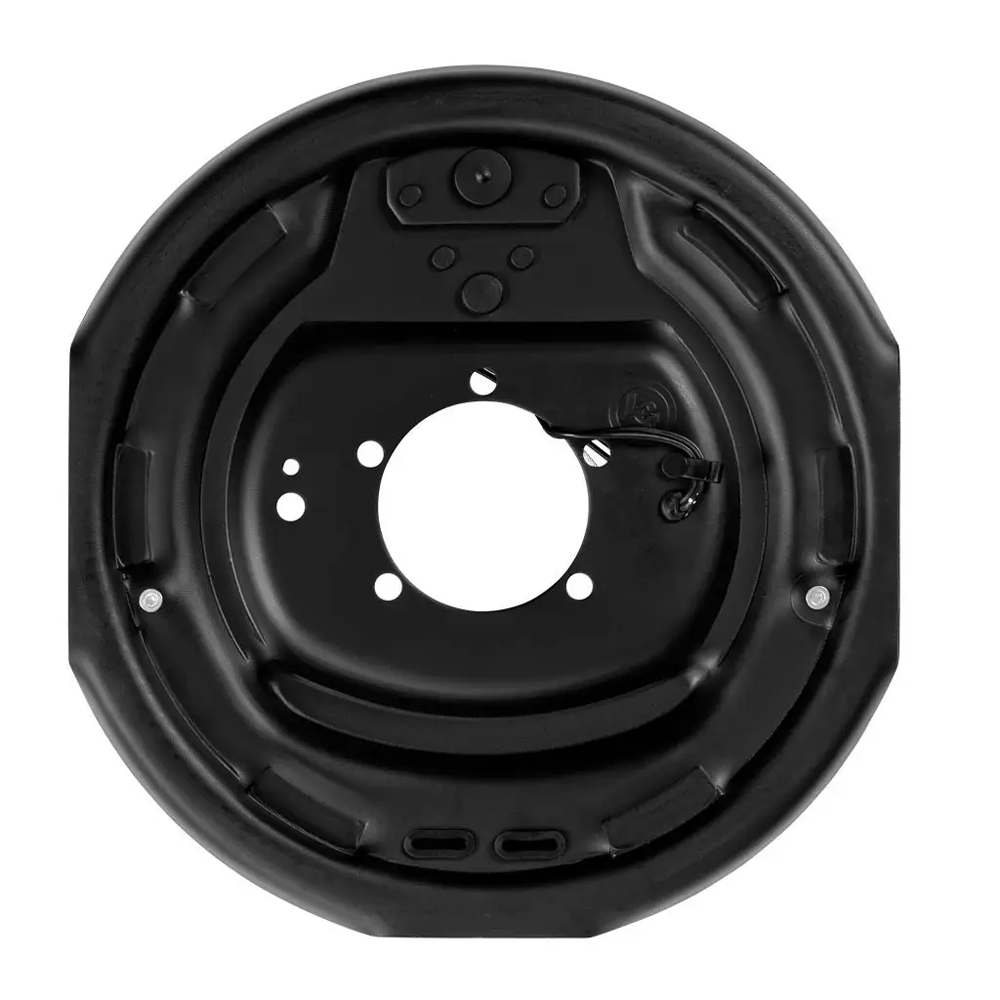

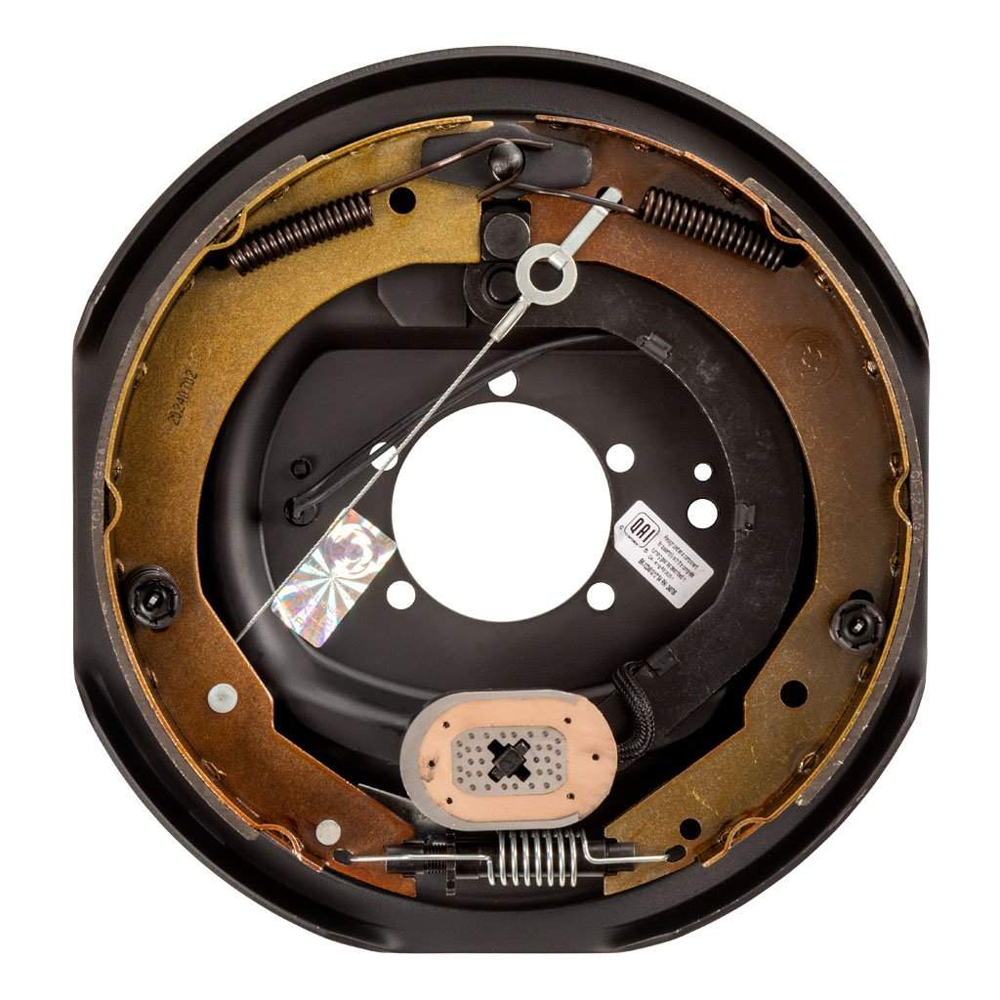

• QTY (1): Lippert Forward Self-Adjusting Brake Assembly – 12" x 2", RH
  • Replacement electric brake, right-hand (curb side)
  • Fits 15"–17.5" wheels
  • For 5,200-7,000-lb axles & Lippert Hybrid 8K axles
  • Five-bolt brake-flange pattern
  • Forward self-adjusting design
  • Dexter compatible PN: K23-465-00 | 023-465-00
  • DIY installation; 1-year Lippert warranty

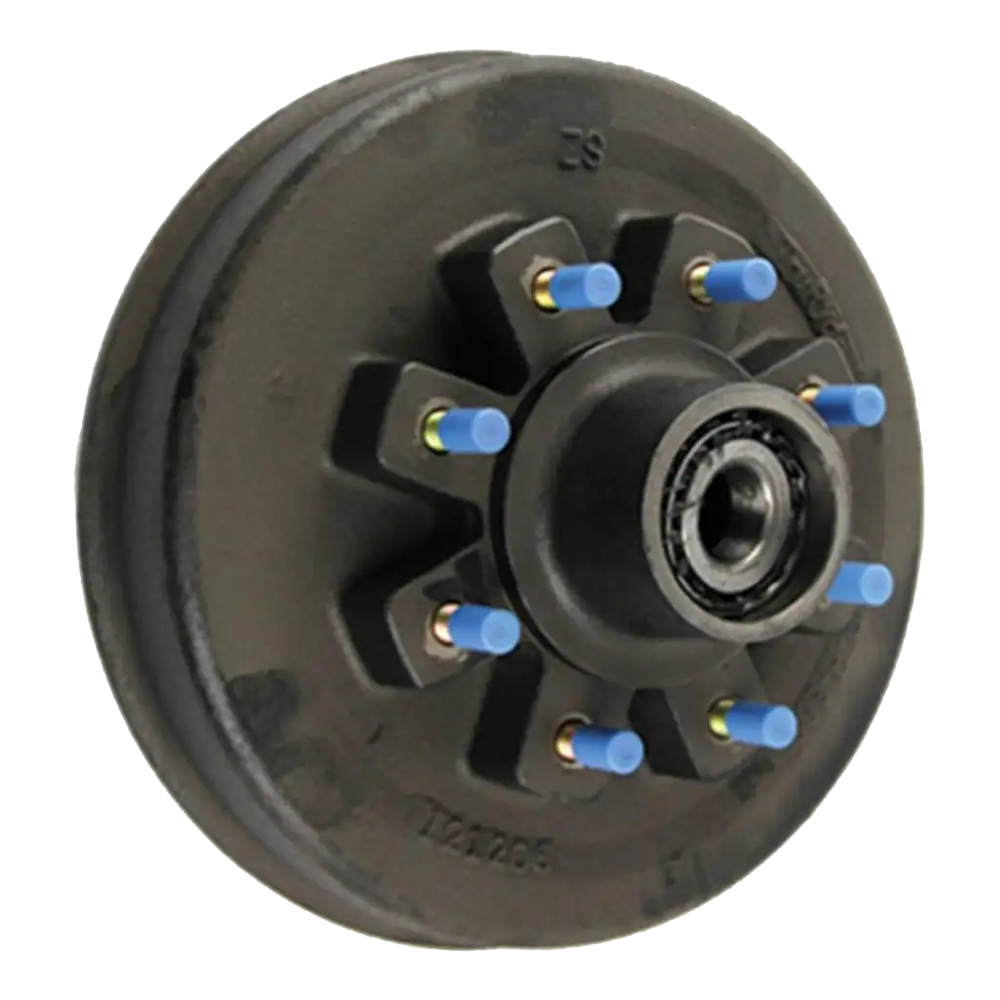

• QTY (1): Lippert Threaded Hybrid Hub-Drum – 12", 8K, 8-on-6.5", Grease, 5/8" Studs
  • Component axle rating: 8,000 lbs
  • Integrated 12" drum accepts electric or hydraulic shoes
  • Bolt pattern: 8 on 6-1/2"  |  Stud size: 5/8"
  • Wheel sizes: 16" – 17.5"
  • Races & wheel studs come pre-installed
  • Accepts Valcrum threaded dust caps
  • Durable cast-iron construction; 1-year warranty

Recommendation: Verify axle rating, hub/drum size and bolt pattern before purchase. Inspect brakes, bearings and seals regularly for maximum safety.
