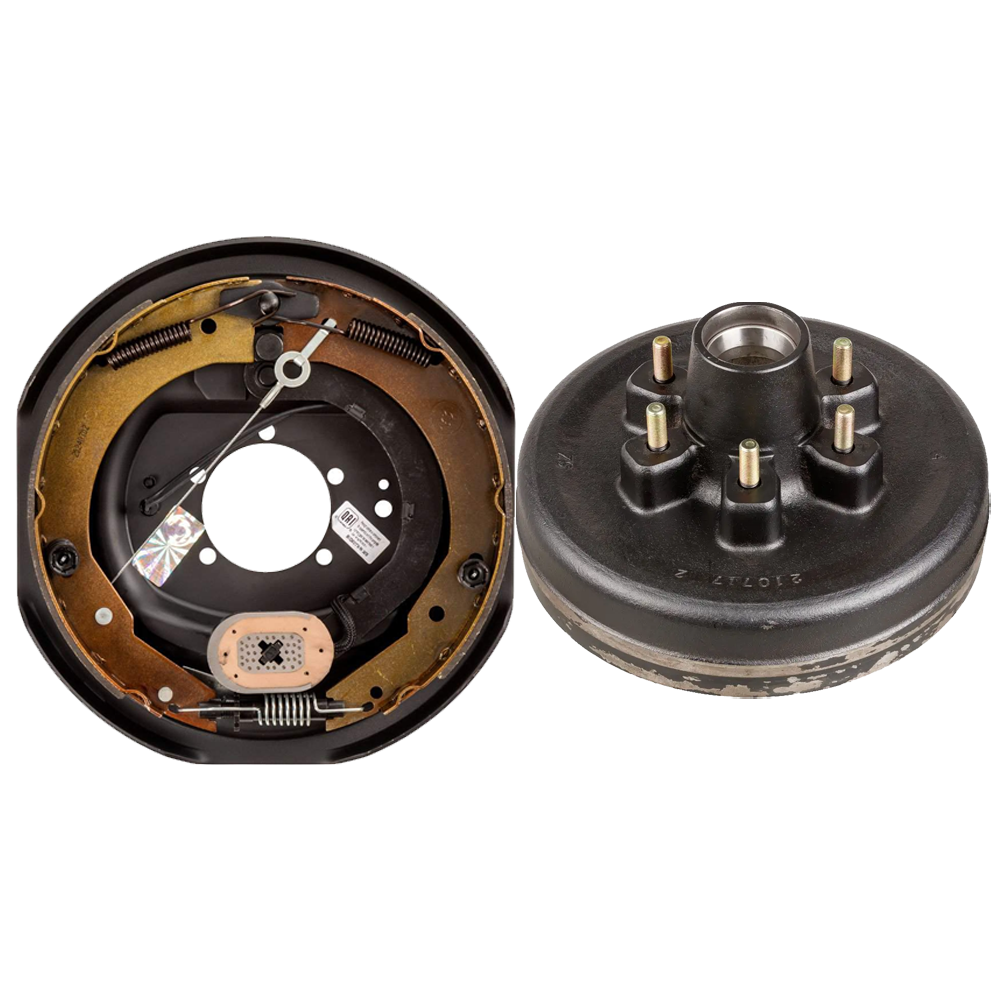

Lippert 12" x 2" Right‑Hand Self‑Adjusting Electric Brake & 12" Hub‑Only Drum Kit – 6‑on‑5.5" 6K Axles
Restore confident stopping power on your 6,000‑lb trailer axle with this genuine Lippert bundle—engineered for seamless fit with Dexter, AL‑KO and Rockwell systems. You receive a forward self‑adjusting right‑hand brake assembly plus a rugged 12" cast‑iron hub‑only drum, giving you everything needed to service one side quickly and reliably.
Bundle Contents:
-

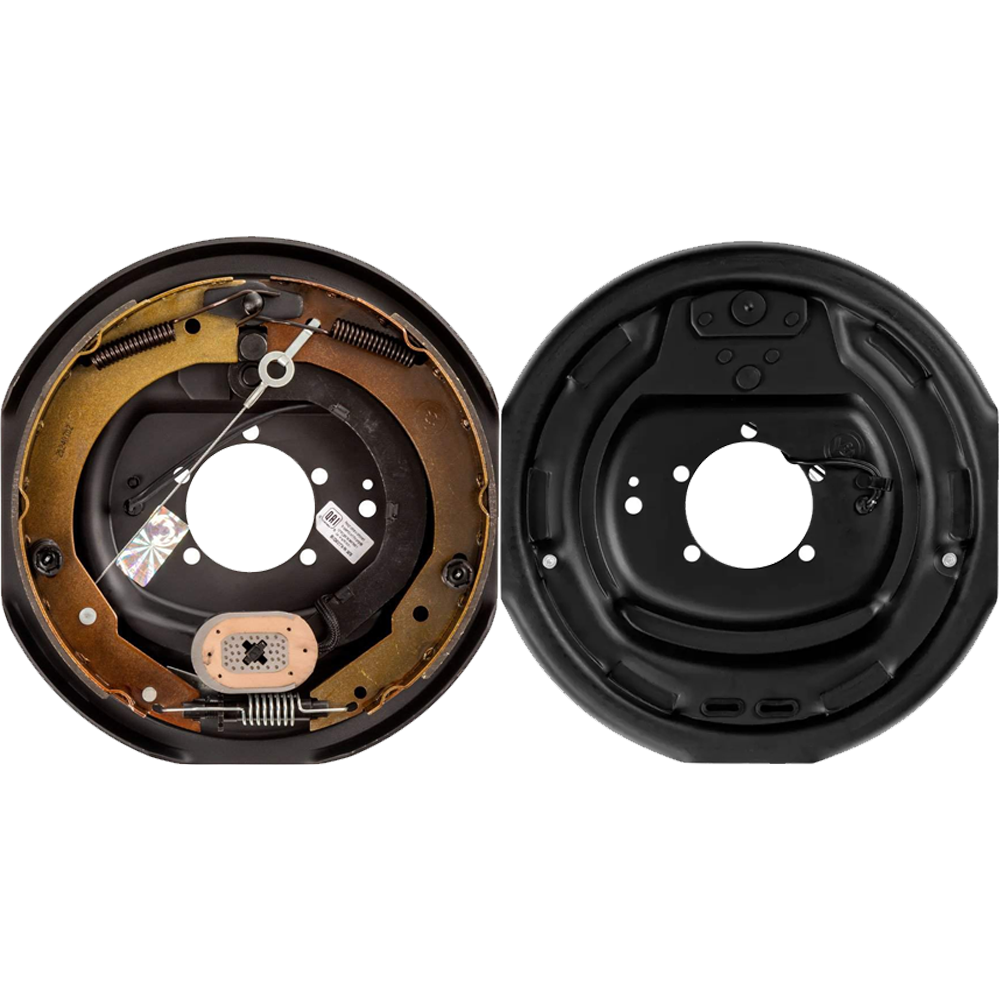

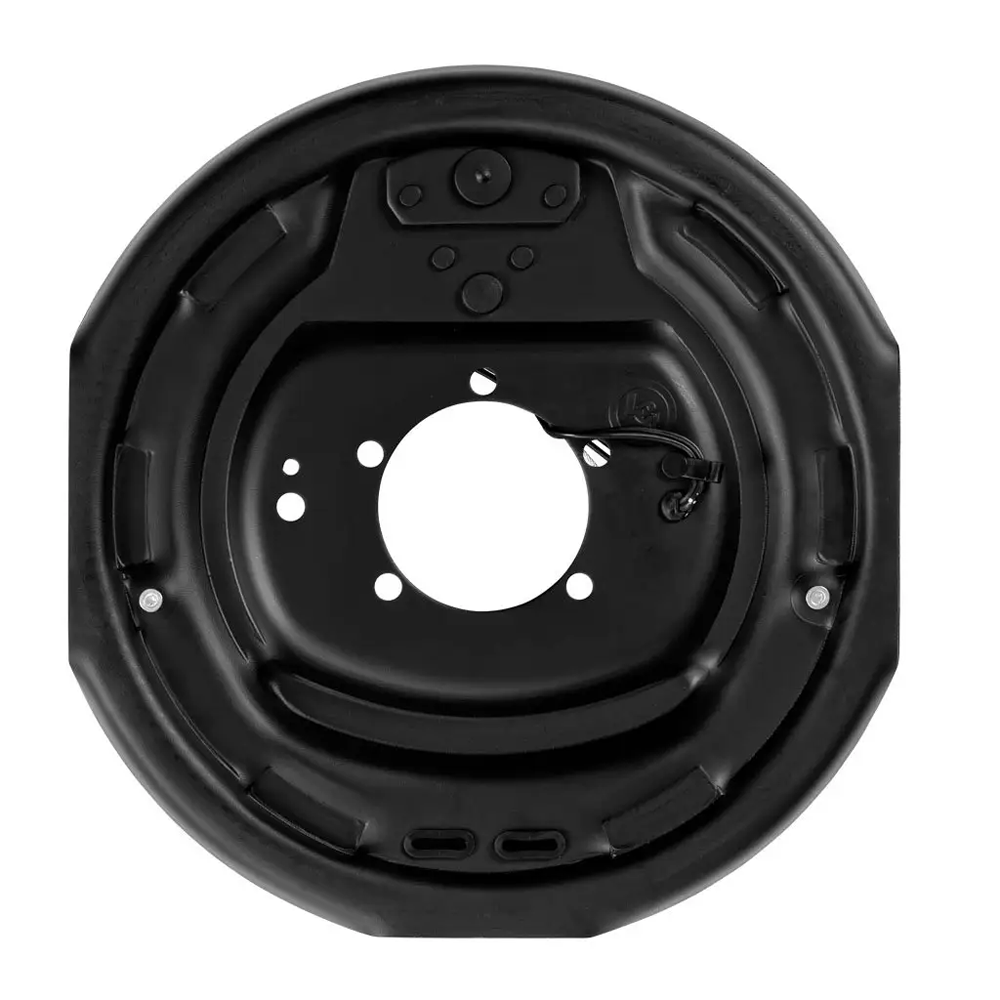

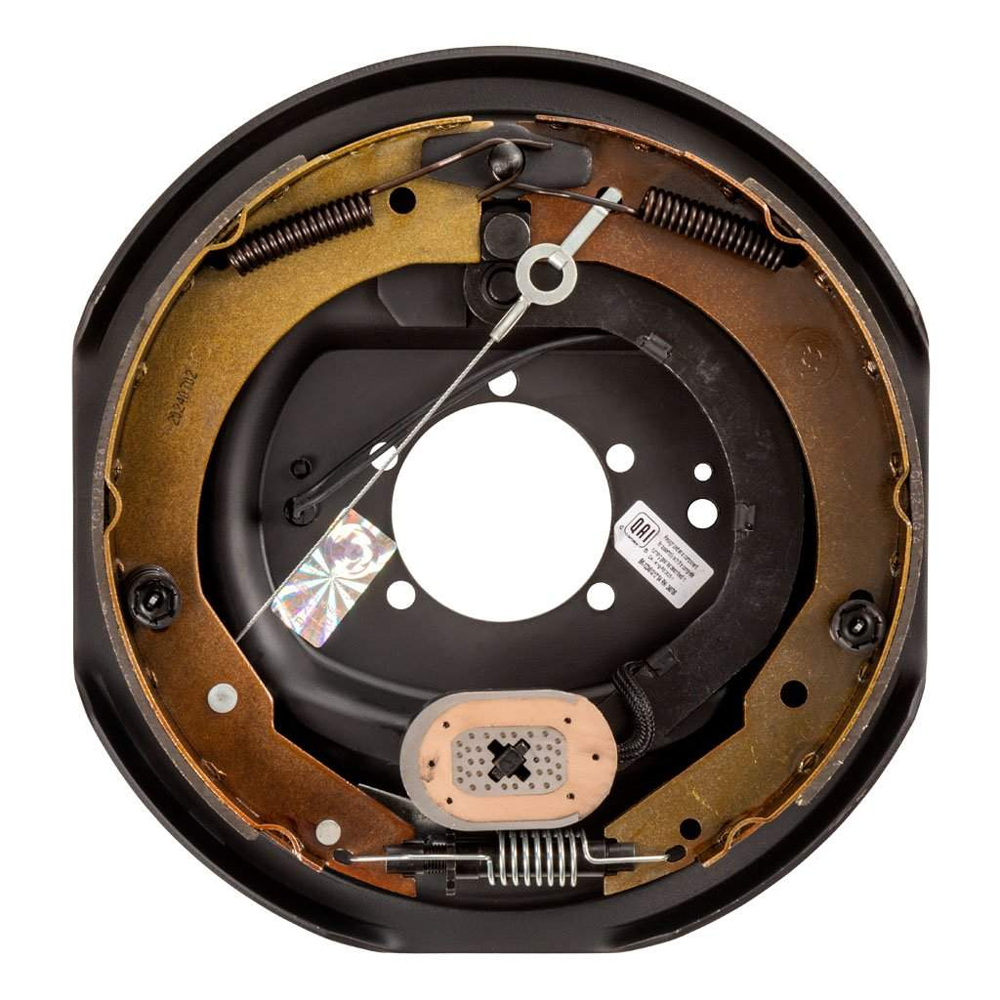

QTY (1): Lippert Forward Self‑Adjusting Brake Assembly – 12" x 2", 7,000 lbs (Right‑Hand)
- Forward self‑adjusting for consistent braking
- Fits 15"–17.5" wheels; 5‑bolt mount
- For 5,200–7,000‑lb axles
- Dexter compatible RH PN: K23‑465‑00 / 023‑465‑00
- Left‑hand counterpart PN: K23‑464‑00 / 023‑464‑00 (sold separately)
- 12" x 2" bonded shoes; easy DIY install; 1‑year warranty
-

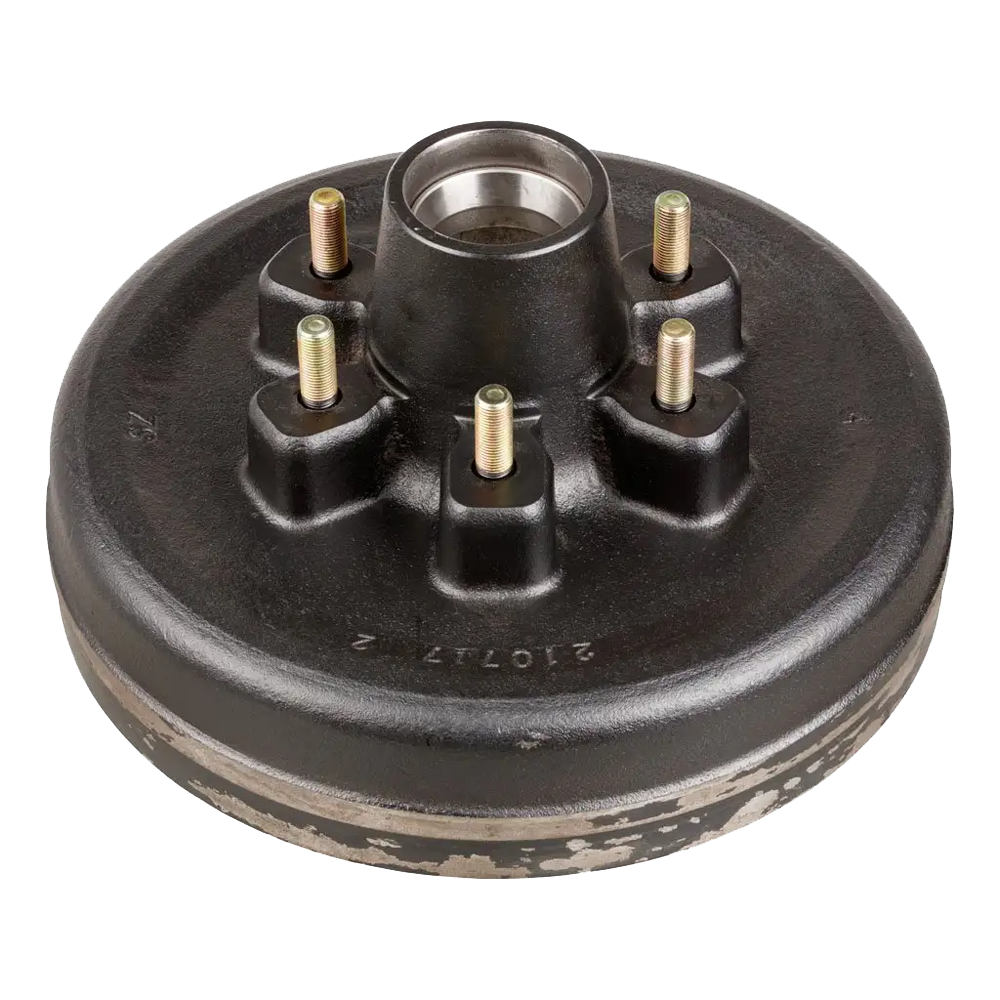

QTY (1): Lippert 12" Brake Drum Hub – 6 on 5.5", 1/2" Stud, 6,000 lbs
- Cast‑iron hub‑only drum (bearings & seal not included)
- 6‑lug 5.5" bolt circle with 1/2" studs
- For 14.5"–16.5" wheels on 6K axles
- Dexter / AL‑KO / Rockwell compatible
- Limited 1‑year warranty
Please match all parts to your original equipment, re‑torque lug nuts after 50 miles, and perform routine inspections for maximum life.
| Specifications: | |
|---|---|
| Kit Type | Right‑Hand Brake & Hub‑Only Drum |
| Axle Rating | 6,000 lbs |
| Brake Drum Dimensions | 12" Ø × 2" W |
| Brake Mounting Pattern | 5‑bolt backing plate |
| Hub Bolt Pattern | 6 on 5.5" |
| Hub Type | Cast‑Iron Hub with Integrated Drum (Hub‑Only) |
| Stud Size | 1/2" |
| Type of Adjustment | Forward Self‑Adjusting |
| Brake Location | Right (Curb‑Side) |
| Wheel Size Compatibility (Brake) | 15", 16", 16.5", 17.5" |
| Wheel Size Compatibility (Hub) | 14.5", 15", 16", 16.5" |
