Lippert 12K Right-Hand Electric Brake & Hub-Drum Kit � 12.25? � 5?, 8-on-6.5, 5/8? Studs � Fits Dexter, Alko, Rockwell, Quality Axles

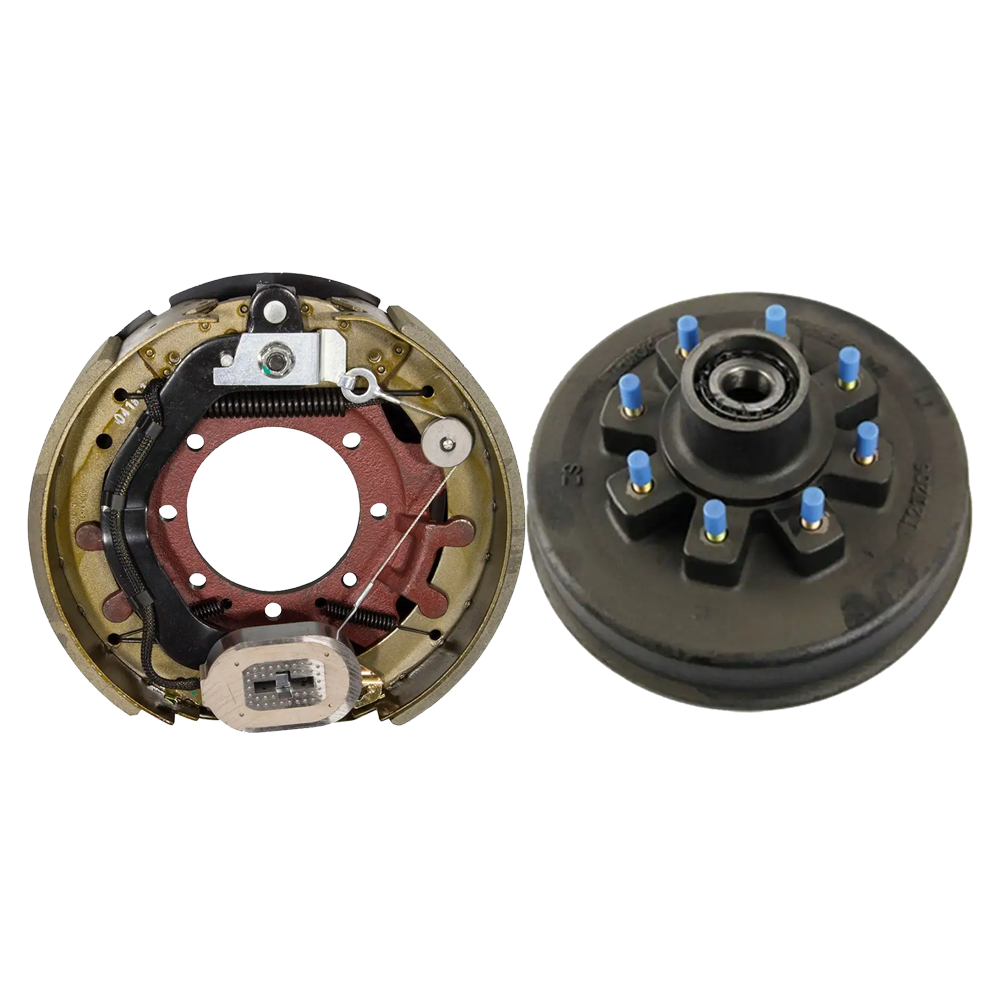

Lippert 12K Right-Side Electric Brake & Hub-Drum Kit

Restore confident stopping power on your heavy-duty trailer with this genuine Lippert bundle. The kit pairs a forward self-adjusting 12.25″ × 5″ right-hand electric brake assembly with a matching 8-on-6.5 hub-drum—everything you need for fast, worry-free service on 12,000-lb axles.

Bundle Contents:

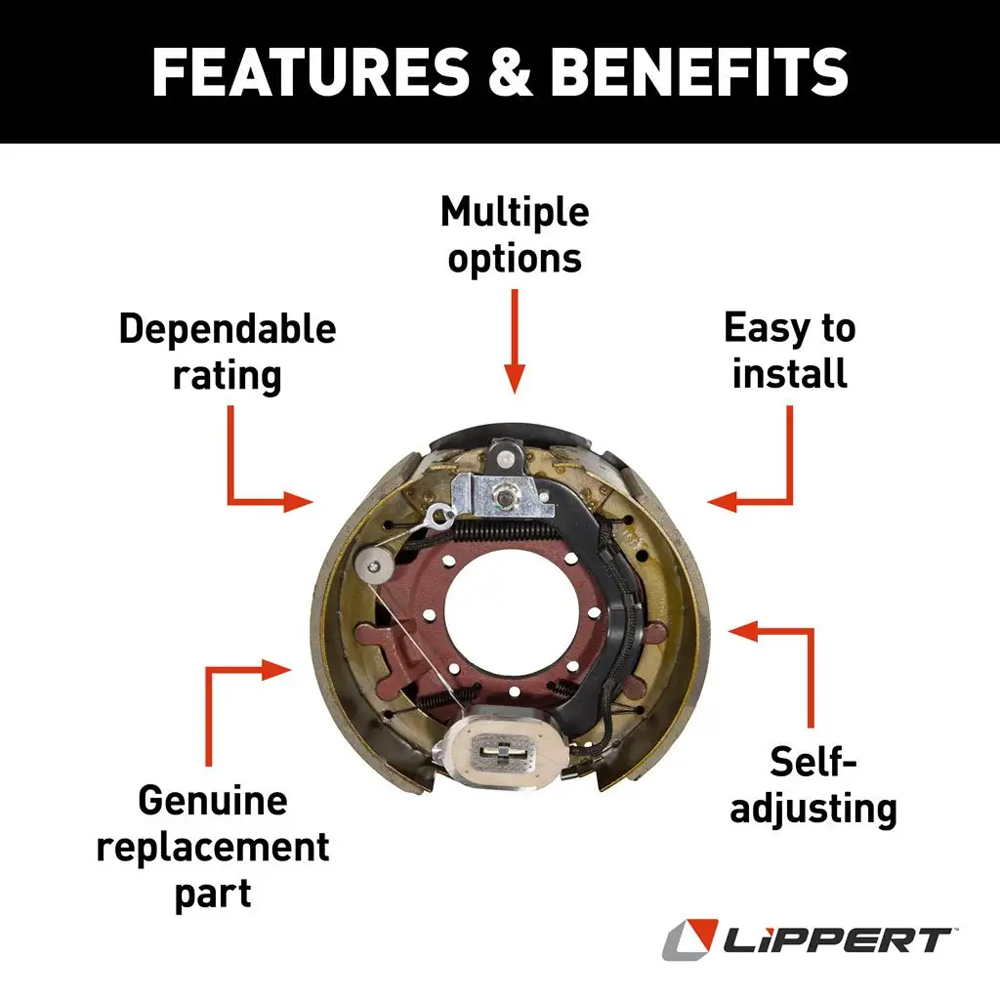

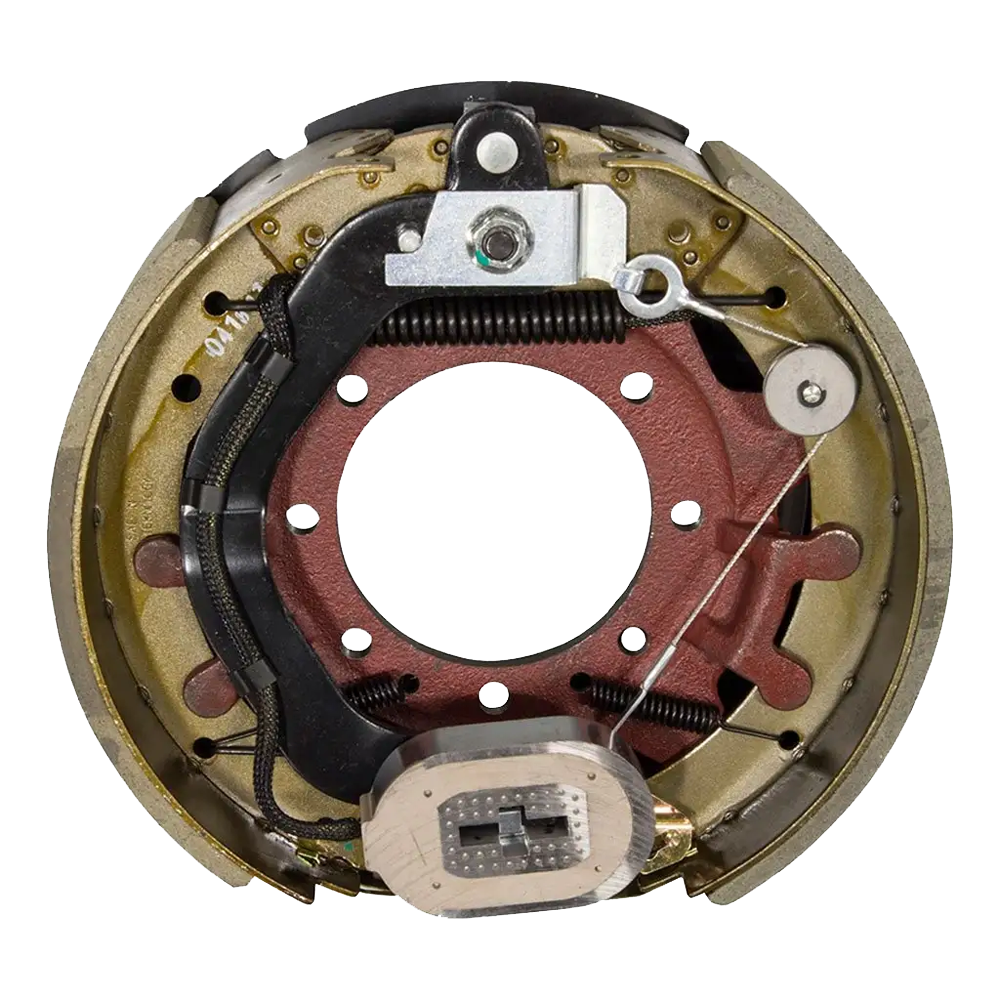

• QTY (1): Lippert 12.25″ × 5″ Electric Trailer Brake Assembly – Right-Hand, 12K
  • Forward self-adjusting design—no manual tweaks after break-in
  • Right-side (curb/passenger) fit, 7-bolt mounting pattern
  • Rated for 12,000-lb axles; works with 16–17.5″ wheels
  • Up to 50 % shorter stopping distance vs. worn brakes
  • Easy DIY installation (mounting hardware sold separately)

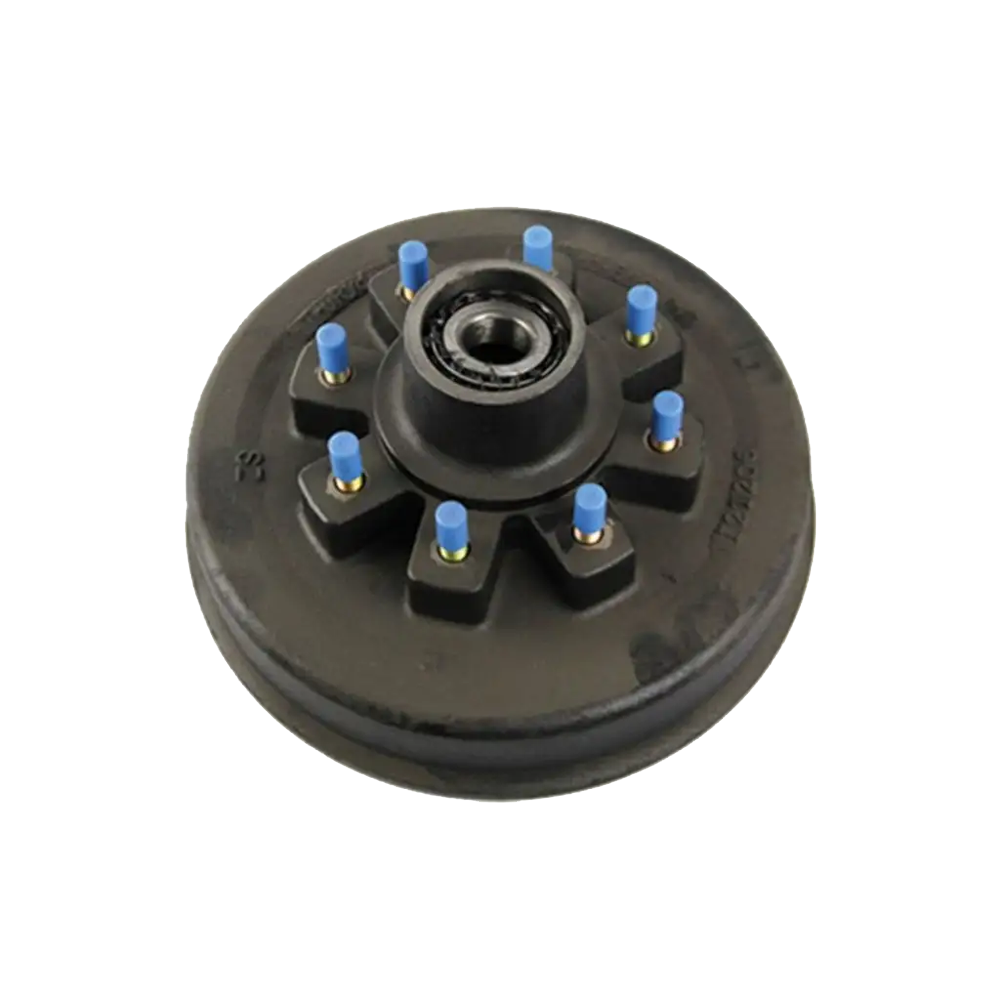

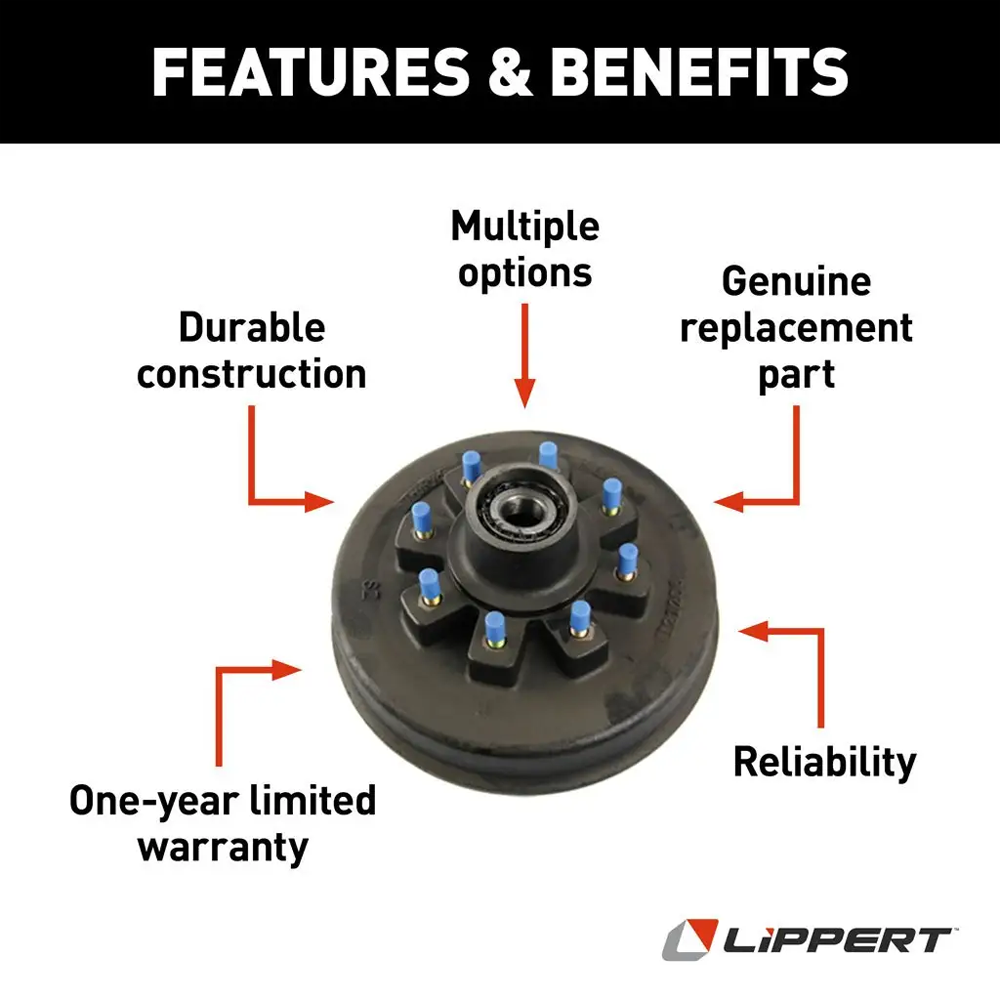

• QTY (1): Lippert Hub-Drum Assembly for 12K Axle – 8 on 6.5″, 5/8″ Stud
  • Grey-iron drum with bearing races & 5/8″ studs pre-installed
  • Matches 12.25″ × 5″ electric brake, 12,000-lb axle rating
  • 8-lug on 6.5″ bolt circle, 4.75″ hub pilot diameter
  • Compatible with 16″ dual or 17.5″ single wheels
  • Backed by Lippert’s 1-year limited warranty

Always confirm fitment with your original equipment labels, torque wheel studs to spec, and inspect brakes regularly to maintain safe, reliable performance.
