Lippert 12K Single-Axle Electric Brake & Hub-Drum Kit � 12.25? � 5?, 8-on-6.5, 5/8? Studs � Dexter, AL-KO & Rockwell Compatible

Lippert 12K Electric Brake & Hub-Drum Kit for Single 12,000-lb Axles

Restore confident stopping power on heavy-duty trailers with this genuine Lippert bundle. The kit pairs matched, self-adjusting 12.25″ × 5″ electric brake assemblies with rugged grey-iron hub-drums—engineered for 12,000-lb single axles, 8-on-6.5 bolt pattern and 5/8″ studs. Everything ships together for faster, easier DIY service.

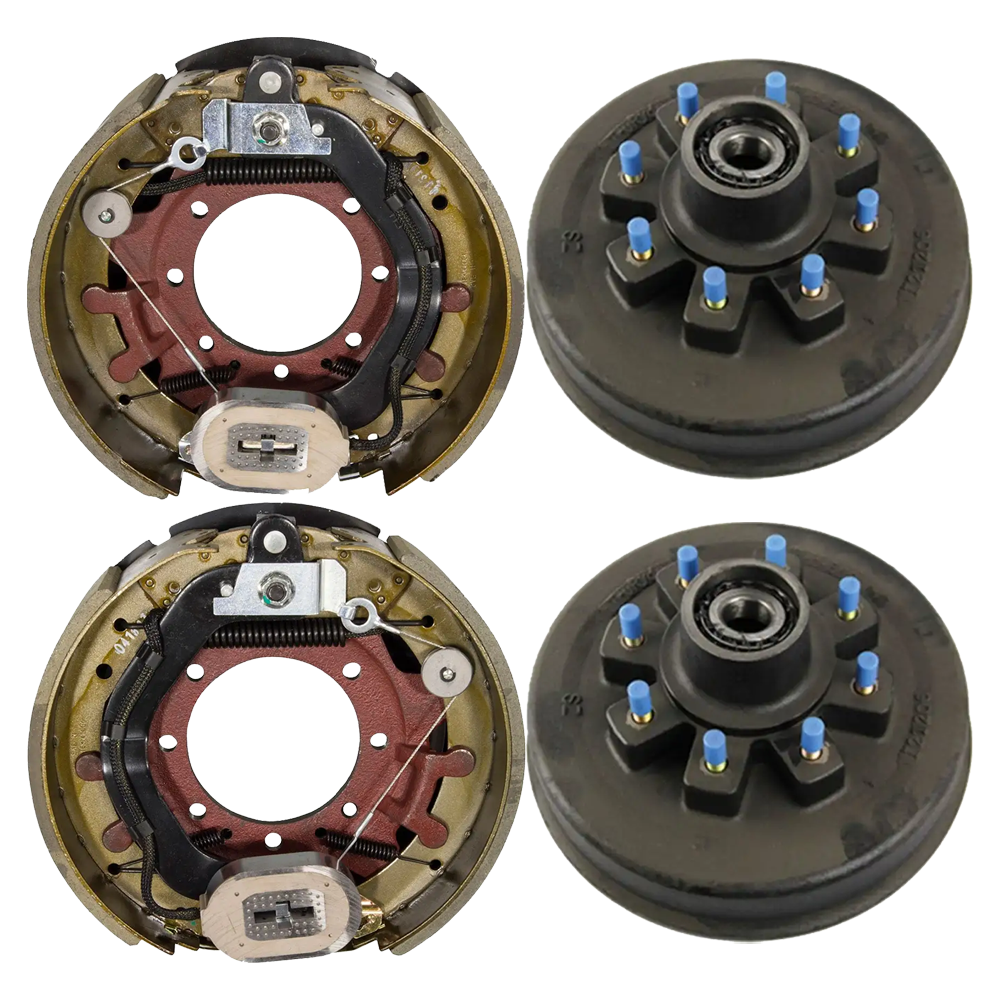

Bundle Contents:

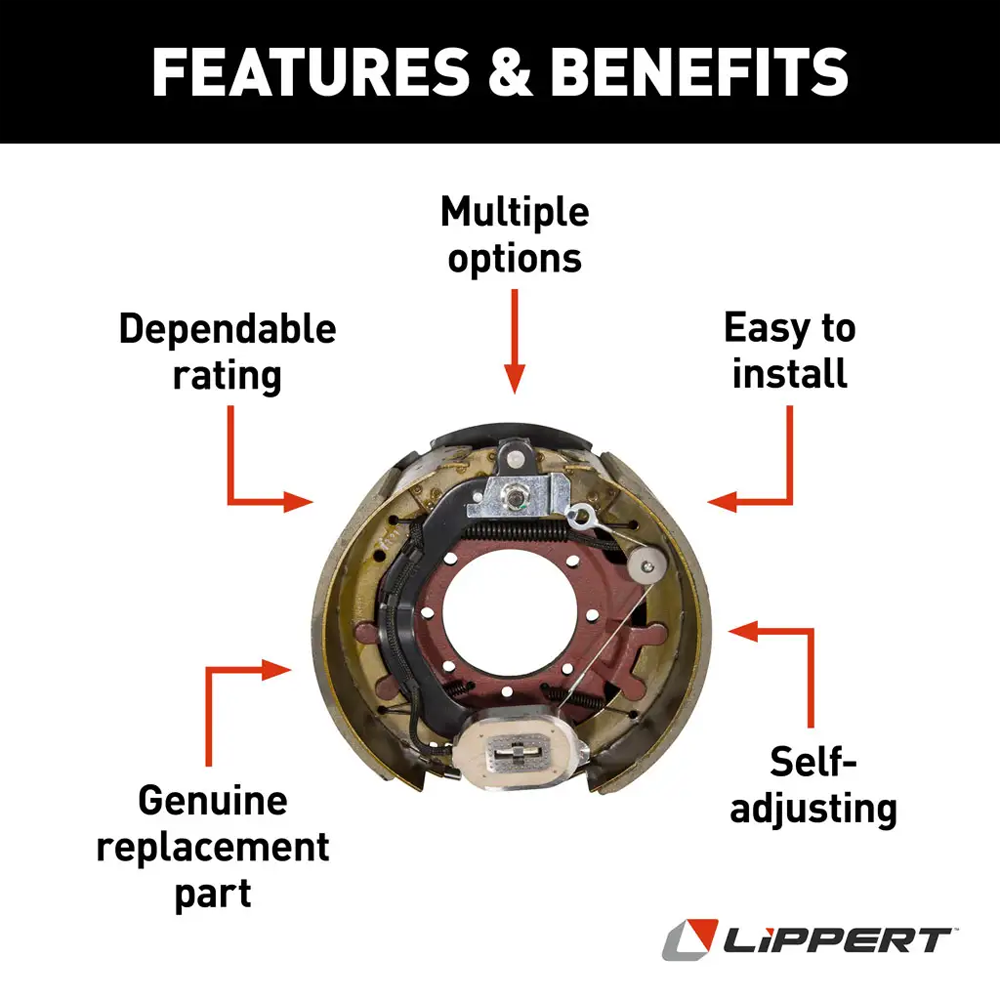

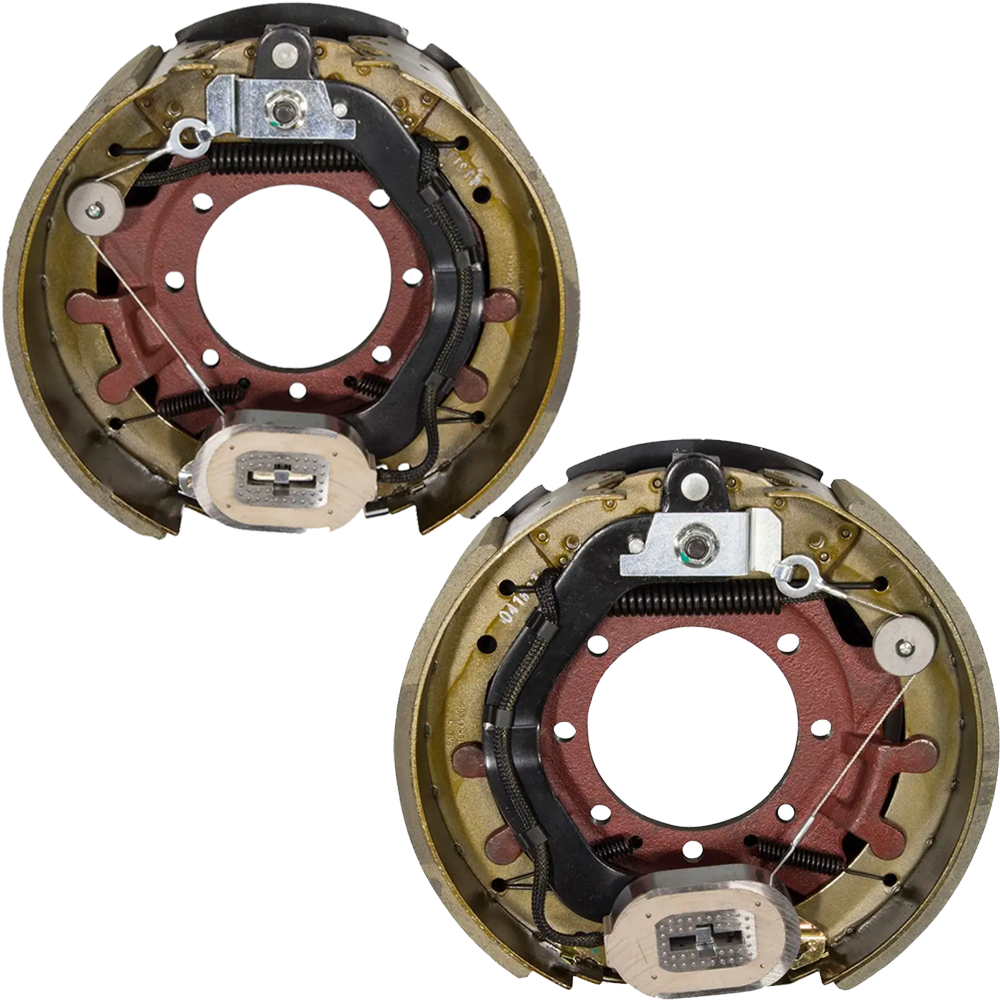

• QTY (1): Lippert 12.25″ × 5″ Electric Brake Assembly — 12K, Left/Roadside
  • Forward self-adjusting design—no manual tweaks
  • Left-hand (roadside) 7-bolt mount with park brake
  • Rated for 12,000-lb axles
  • Fits 16″, 16.5″, 17″ & 17.5″ wheels
  • DIY installation (hardware sold separately)
  • Requires break-in for full performance

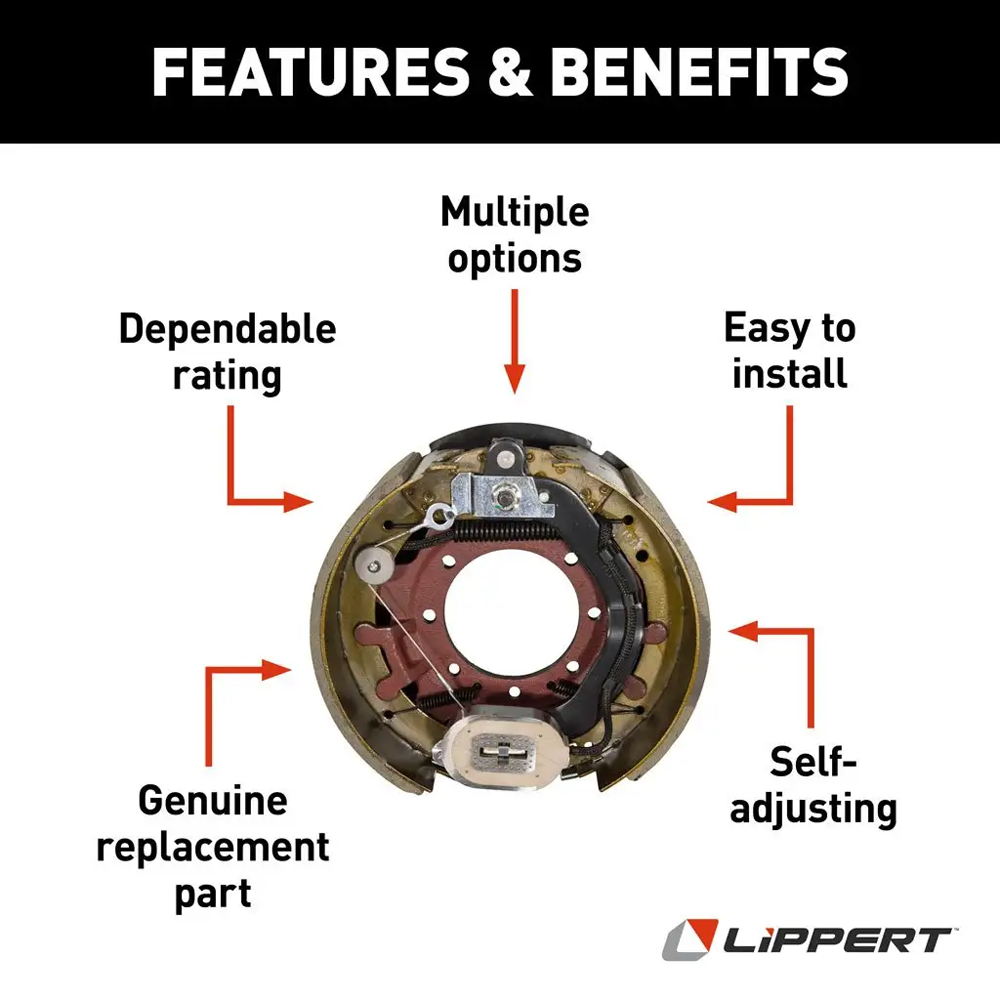

• QTY (1): Lippert 12.25″ × 5″ Electric Brake Assembly — 12K, Right/Curbside
  • Forward self-adjusting design—no manual tweaks
  • Right-hand (curbside) 7-bolt mount with park brake
  • Rated for 12,000-lb axles
  • Fits 16″, 16.5″, 17″ & 17.5″ wheels
  • DIY installation (hardware sold separately)
  • Requires break-in for full performance

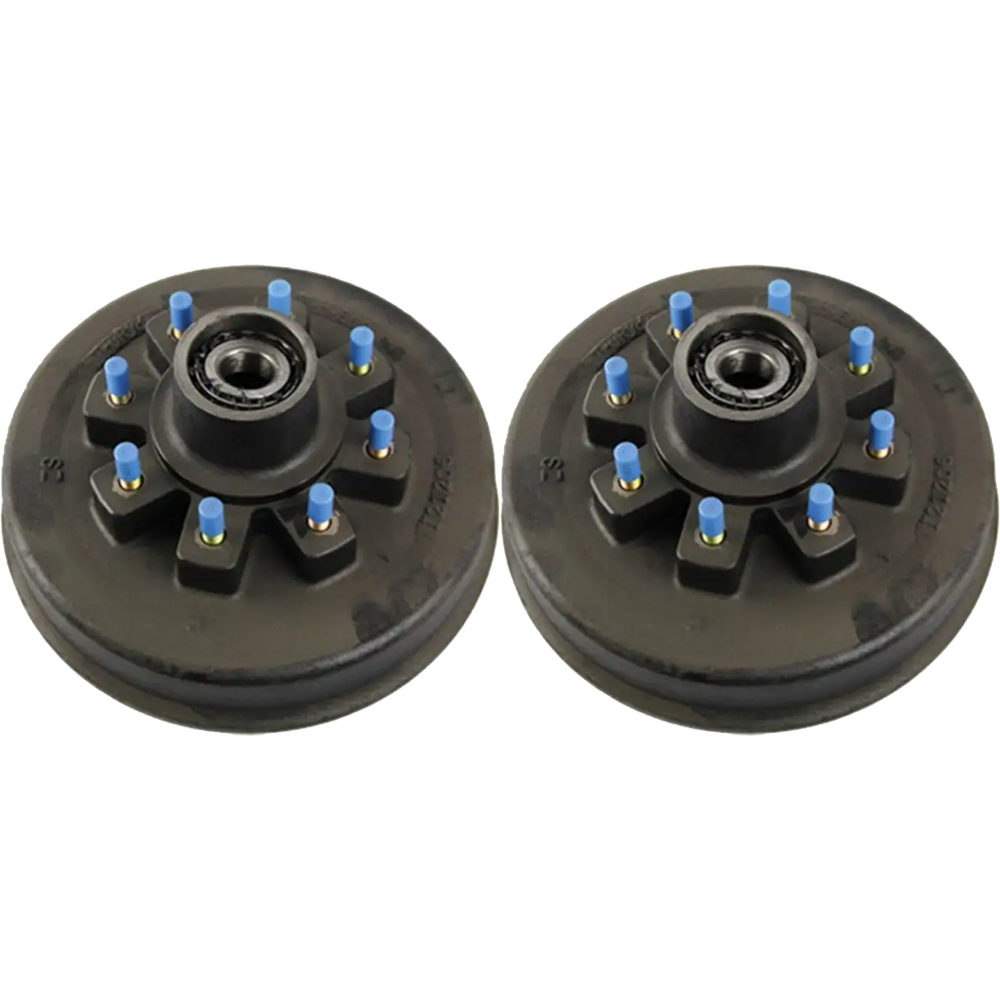

• QTY (2): Lippert Brake Drum Hub Assembly — 8-on-6.5, 5/8″ Stud, 12K
  • Grey-iron drum hub — 12.25″ × 5″ brake surface
  • 8-on-6.5 bolt pattern, 4.75″ hub pilot
  • 5/8″ wheel studs & bearing races installed
  • For 16″ dual or 17.5″ single wheels
  • 12,000-lb axle rating
  • 1-year limited component warranty

Verify original equipment numbers and perform routine brake inspections to maximize safety and service life.
